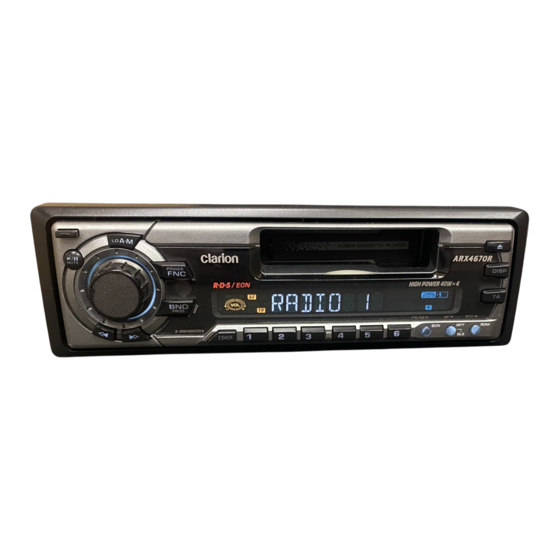

Clarion ARX4670R Service Manual

RDS-EON/FM/MW/LW RADIO
CASSETTE COMBINATION
WITH CD CHANGER CONTROL
mods ARX46/70R
(PE-1682E-A)
moat ARX46/0RB
(PE-1682E-B)
EX Lem fea te ete SOOT OF | | (PE-1682E-C)
(RAX4671R)
a SPECIFICATIONS
Power supply voltage:
14VDC (10.8V to 15.6V
7
allowable), negative ground
*% Specifications and design are subject to change wi-
Playback Systerm:
thout notice for further improvement.
Auto reversing 4-track, 2-channel
Setero cassette tape playback(m-
onaural playback also possible)
General
Max. Power Output:
40W x 4
