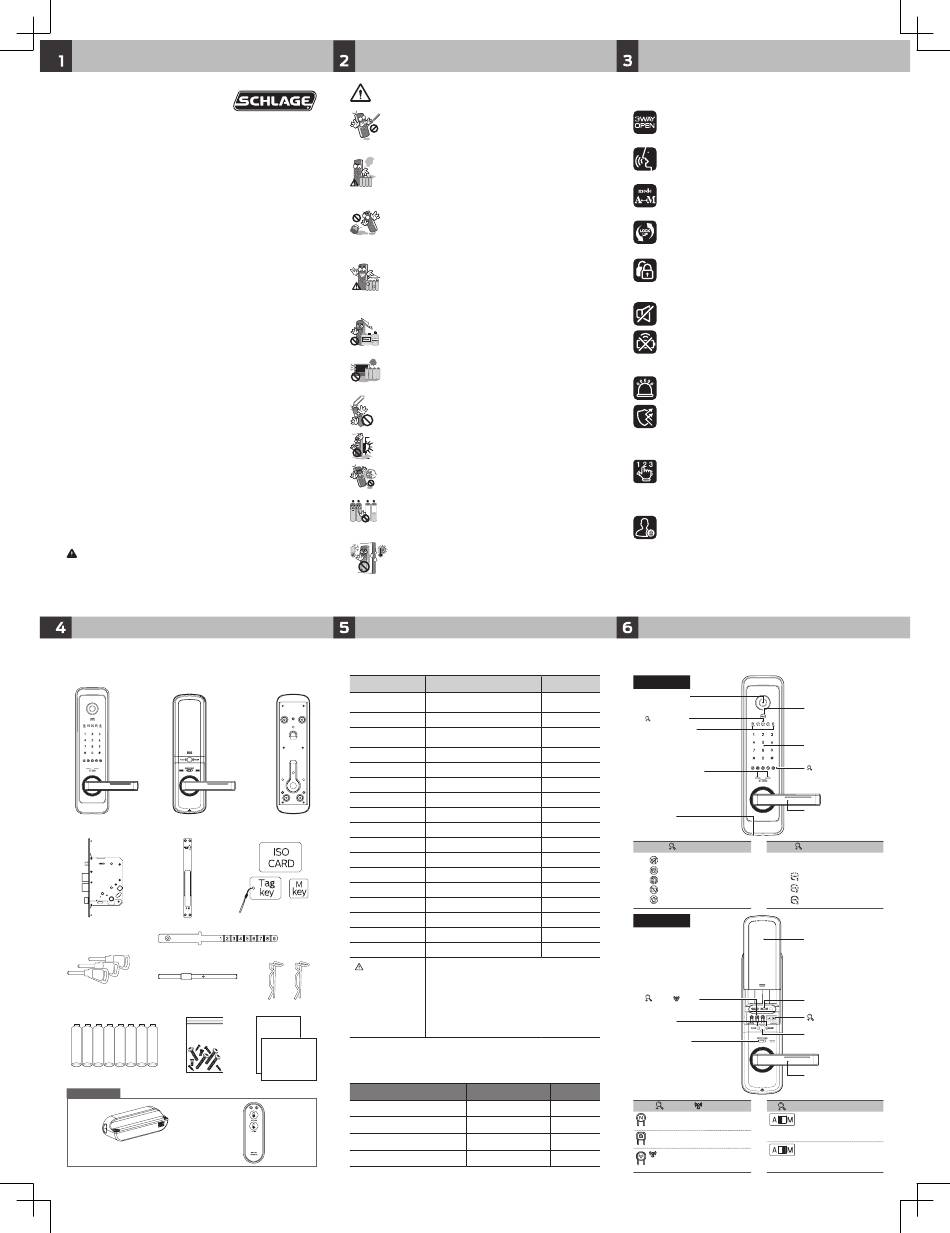

USER MANUAL
——————————————
TOUCHPAD DIGITAL
DOOR LOCK
WITH FINGERPRINT READER
S-6500
Notice
Please read this manual before installation and operation.
The specifications of the exterior and communication pack vary
depending on the product you purchased, so please check before
using it.
Product composition and components
① ②
④ ⑤ ⑥
⑦ ⑧
⑨ ⑩
⑪ ⑫ ⑬
Screws
⑭
Optional parts
⑮ ⑯
Communication pack
Safety precautions
Do not disassemble or alter the lock.
Disassembling the door lock may damage the product. Damages
to the product caused by unauthorized persons may void the
warranty.
If the product generates harmful gases and
smoke.
Please remove the batteries immediately from the product, if
you do not take this step immediately, the product may suffer
severe damage.
Please keep the product away from water or any
liquids.
If the product is exposed to water or liquids, please wipe the
moisture off with a soft cloth. If moisture or foreign materials
penetrate the product, remove the batteries immediately.
Please check the batteries every 6 months for
leaks/cleanliness.
If leakage is discovered, please wipe out with a dry cloth and
replace with new batteries. In case of exposure to leakage, wash
affected skin area with soap and water immediately.
Do not clean the product with flammable
materials such as alcohol, benzene or thinners.
Such materials may damage the surface of the lock or cause a fire.
Batteries should not be exposed directly to heat
source or submerged in water, because they may
leak or explode, resulting in severe damage.
Do not use damaged batteries.
Do not allow the battery electrodes to contact
metals such as keys, as the battery may
overheat, causing explosion or severe damage.
Please do not close the door with the deadbolt
in the locked position.
It may damage the product or cause a malfunction.
Do not force to pull the front cover.
It may damage the product or cause a malfunction.
Do not mix old and new batteries, or use
different types of batteries.
The battery life is getting shorter and it may cause leaks or
explosion.
It may damage the product when installed on a
heavy dew condensation door.
Dew condensation; small drops of water that form when warm air
touches a cold surface. Please check the environment of installation
area. Heavy dew condensation may damage the product or cause a
malfunction.
③
Name
① Front Ass`y 86.6mm(W) X 331mm(H) X 30mm(D)
② Back Ass`y 82mm(W) X 310mm(H) X 33.7mm(D)
③ Back bracket 88mm(W) X 316mm(H) X 9.2mm(D)
④ Mortise lock 105.4mm(W) X 240mm(H) X 24mm(D)
⑤ Strike 24mm(W) X 240mm(H) X 4.5mm(D)
⑥ Card / Fob ISO card, Tag key, Mobile tag key
⑦ Emergency key 3 EA
⑧ Key tail plate 1 EA
⑨ Handle shaft 152.7mm(W) X 8mm(H) X 8mm(D)
⑩ Handle shaft clip 2 EA
⑪ Battery 1.5V 'AA' Size LR6 Alkaline, 8ea(DC 6V)
⑫ Screws 1 set
⑬ User manual
Main User manual
⑭ Installation template Using for making hole at the door
⑮ Communication pack Communication pack
⑯ Remote key
Remote key
※ Installation condition Door thickness 40~90mm
ㆍWorking temperature : -15~55 C
 H igh
ㆍSensor working temperature(high): 60 C +- 5 C
temperature
If a high temperature is detected that may cause a fire, the
warning
alarm will sound with a beeping sound for safety reasons.
If the Inside body is exposed to direct sunlight for a long
time and exceeds the set temperature, a beep will be
generated to protect the user. High temperature detection
User
manual
also works with Double locking function.
Installation
template
Factory setting
Item
Auto/Manual lock mode
Normal mode / Safety Mode
Voice guide volume (1~3 level)
Remote key
Beep sound level (1~8 level)
Product specification Remark
Including rubber
pad
Including rubber
pad
Optional
Optional
Setting Status Ref.page
[Auto lock] 8
Normal mode 9-10
3 level [Maximum] 7
8 level 7
Product features
Three way solution. (PIN code, Card / Fob,
fingerprint)
Available to use PIN code as well as Card / Fob and fingerprint.
Voice guide and 3 step volume control system
Voice guide (operation status, menu selection.) and provide 3 step
volume control system.
A ↔ M automatic / manual locking set function
Automatic and manual locking mode set is possible with simple
switch operation from Inside.
Auto relock function
If users do not open the door after unlocking the device it will lock
itself automatically.
Double lock function
When double lock function is activated, the door cannot be opened
from the outside, even with the registered card, PIN code or
fingerprint. Override key can still be used.
Mute function
Door will not emit any sound when mute is activated.
Battery level indicator and alarm for battery
replacement
Easy to check battery status with three step level indicator and
alarm when battery replacement is required.
Trespass alarm function
When the door is opened by force an alarm will sound.
Prevent trespass and hacking
After multiple incorrect attempted entries an alarm will sound and
all the functions of the lock will be suspended for three minutes.
The alarm activates after three incorrect PIN/card entries and five
incorrect fingerprint entries.
Random security coding
When you enter your home with other people, you may not want
to show your PIN code to them. In this case, you may press any
numbers randomly and then enter your PIN code at the end and you
will still gain access.
Normal mode/safety mode
Normal mode is ideal for new users or low security environments
Safety mode provides a higher security level via use of a manager
PIN code. Allows individual register and delete function which is not
provided in normal mode.
Name and function of each part

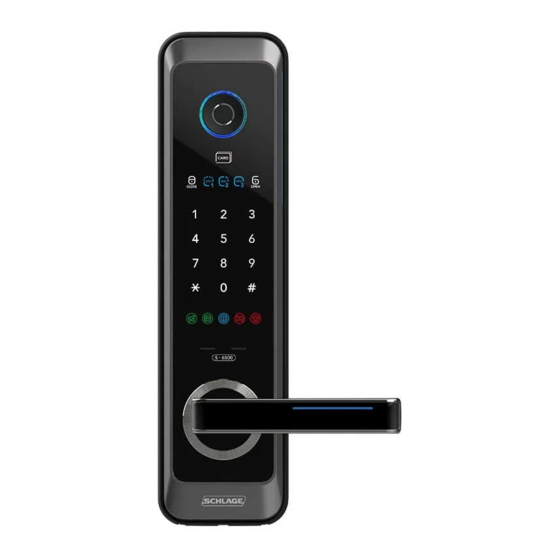

1. Front Ass`y
Finger print sensor
Touch the registered fingerprint on sensor and
Card / Fob touch plate
then open the door.
Touch the registered Card / Fob to
Status indicator
open the door.
Lock / Unlock lamp
Indicate lock / unlock status.
Touch type numeric pad
External emergency power
supply terminal
when battery does not operate, product may
be operated and unlocked by contacting 9V on
terminal located outside.
Handle
Can open the door by pushing
Emergency key
down it after pressing PIN code
open the door with emergency key by manual.
or touching Card / Fob or
fingerprint.
Window icon Status indicator
Indicate operation status and
Mute function
checking battery capacity.
Double lock function
Remaining battery 20%
Wireless interlock
Remaining battery 50%
Battery replacement indicator
Trespass alarm function Remaining battery 80%
2. Back Ass`y
Battery cover
Push up to open the battery cover.
 [ N], [S], [ ] Button
Communication pack socket
Indicator lamp
Manual locking button
[Double lock function] Button to lock the door by manual at
Slide switch manual locking mode.
Handle
Can open the door at anytime only by
pulling down this handle.
[N], [S], [ ] button Auto/Manual mode switch
N :  R egistration / delete of PIN code, Card
Auto lock
/ Fob,fingerprint in normal mode
[Auto lock]mode, door will be locked
S :  R egistration / delete of PIN code, Card /
automatically after closing.
Fob, fingerprint in safety mode
Manual lock
 ( Communication function) :
[Manual lock] mode, door will be locked with
To register or delete optional
pressing manual lock button after closing.
communication module
Window icon
 A uto / Manual mode switch
