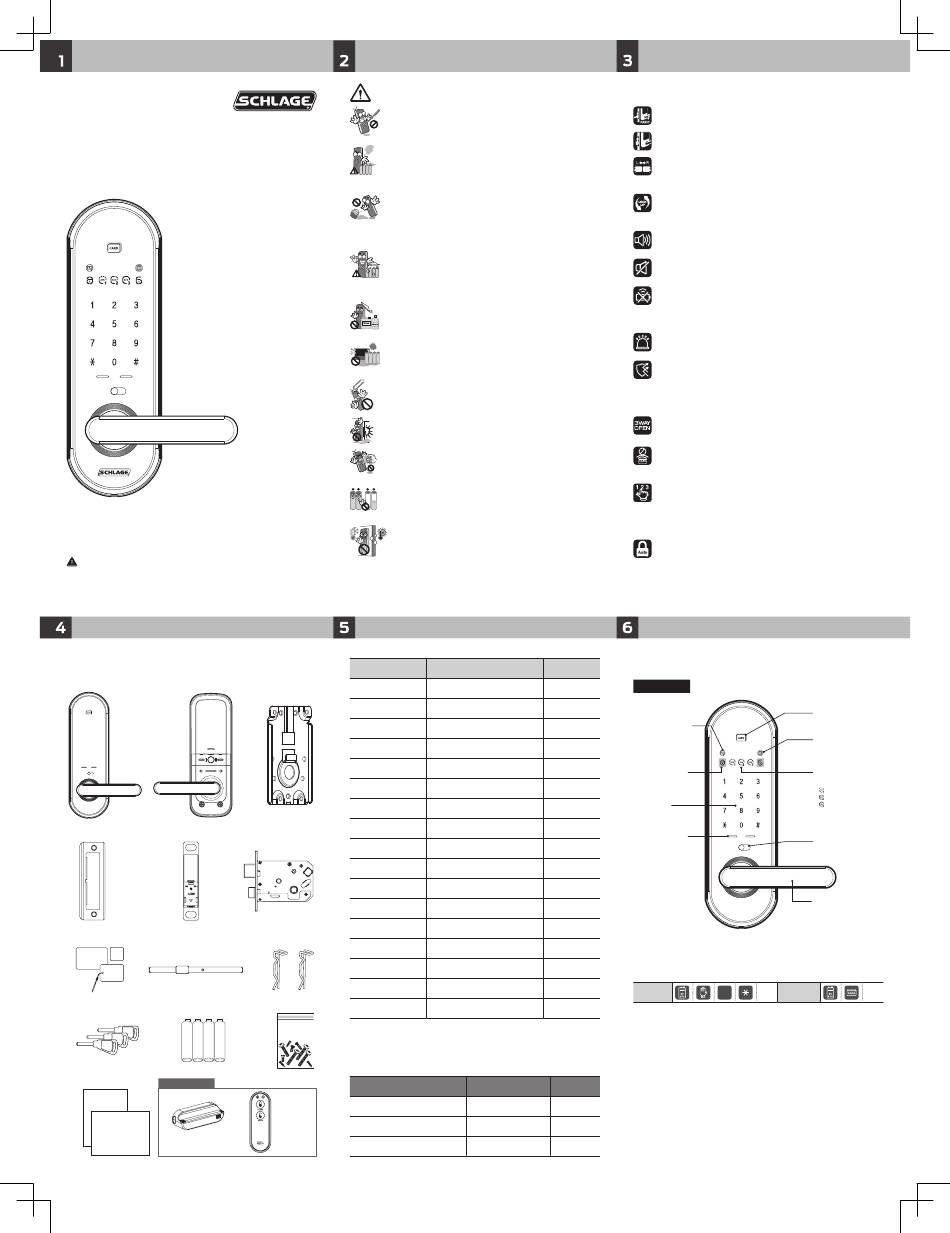

Schlage S-5600 User Manual

S-5600
USER MANUAL
Notice
Please read this manual before installation and
operation.
Product composition and components
① ②
④ ⑤ ⑥
⑦ ⑧
M
ISO
key
CARD
Tag
key
⑩ ⑪
Optional parts
⑬
⑮ ⑯
User
manual
⑭ Installation
template
Communication pack
Safety precautions
Do not disassemble or alter the lock.
Disassembling the door lock may damage the product. Damages to
the product caused by unauthorized persons may void the warranty.
If the product generates harmful gases and
smoke.
Please remove the batteries immediately from the product, if you
do not take this step immediately, the product may suffer severe
damage.
Please keep the product away from water or any
liquids.
If the product is exposed to water or liquids, please wipe the
moisture off with a soft cloth. If moisture or foreign materials
penetrate the product, remove the batteries immediately.
Please check the batteries every 6 months for
leaks/cleanliness.
If leakage is discovered, please wipe out with a dry cloth and replace
with new batteries. In case of exposure to leakage, wash affected
skin area with soap and water immediately.
Do not clean the product with flammable
materials such as alcohol, benzene or thinners.
Such materials may damage the surface of the lock or cause a fire.
Batteries should not be exposed directly to heat
source or submerged in water, because they may
leak or explode, resulting in severe damage.
Do not use damaged batteries.
Do not allow the battery electrodes to contact
metals such as keys, as the battery may overheat,
causing explosion or severe damage.
Please do not close the door with the deadbolt in
the locked position.
It may damage the product or cause a malfunction.
Do not force to pull the front cover.
It may damage the product or cause a malfunction.
Do not mix old and new batteries, or use different
types of batteries.
The battery life is getting shorter and it may cause leaks or
explosion.
It may damage the product when installed on a
heavy dew condensation door.
Dew condensation; small drops of water that form when warm air
touches a cold surface. Please check the environment of installation
area. Heavy dew condensation may damage the product or cause a
malfunction.
Name
③
① Front Ass`y
② Back Ass`y
③ Back bracket
④ Strike
⑤ Strike housing
⑥ Mortise lock
⑦ Card key
⑧ Handle shaft
⑨ Handle shaft clip
⑩ Override key
⑪ Battery
⑫ Screws
⑬ User manual
⑨
⑭ Installation template
⑮ Communication pack
⑯ Remote key
※ Installation condition
⑫
Screws
Factory setting
Item
Auto/Manual lock mode
Beep sound level (1~8 level)
Remote key Factory setting PIN code
Product specification Remark
Including rubber
84mm(W) X 260mm(H) X 21mm(D)
pad
82mm(W) X 242mm(H) X 34mm(D)
70mm(W) X 119.5mm(H) X 6.6mm(D)
35mm(W) X 106mm(H) X 6.3mm(D)
21mm(W) X 106mm(H) X 19.5mm(D)
105.4mm(W) X 110mm(H) X 25mm(D)
ISO card, Tag key, Mobile tag key
96mm(W) X 8mm(H) X 8mm(D)
2 EA
3 EA
1.5V 'AA' Size LR6 Alkaline, 4EA(DC 6V)
1 SET
Main User manual
Using for making hole at the door
Communication pack Optional
Remote key Optional
Door thickness 35~50mm
Setting Status Ref.page
[Auto-lock] 9
8 level 8
123456 -
Product features
Panic release handle type
It facilitates escape with a simple action of lever down.
High reliable mechanical mortise lock type
Free-direction mortise lock type
The product can be installed in a left or right handed
configuration.
Auto relock function
If users do not open the door after unlocking the device it will
lock itself automatically.
Volume control
8 levels of volume.
One touch mute function
Door will not emit any sound when mute is activated.
Low battery indicator and alarm for battery
replacement
Easy to check battery status with three step level indicator and
alarm when battery replacement is required.
Trespass alarm function
When the door is opened by force an alarm will sound.
Prevent mischief & hacking
After multiple incorrect attempted entries an alarm will sound
and all the functions of the lock will be suspended for three
minutes. The alarm activated after three incorrect PIN/card
entries.
Three way solution
(PIN code, Card key, Override key)
Disable function when missing PIN code or card key
Automatically deleting old PIN code or card key information when
registering new one.
Random security coding function
When you enter your home with other people, you may not
want to show PIN code to them. In this case, you may press
any numbers randomly without limitation and then enter your
PIN code at the end.
Auto lock function
When the door is closed, it will be locked automatically in auto
lock mode.
Name and function of each part
1.
Front Ass`y
Battery replacement
indicator
When the battery is low, the
red light blinks. Please change
batteries
Lock / Unlock lamp
Indicate lock / unlock status
Touch Keypad
External emergency
power supply terminal
When battery does not operate,
product may be operated
and unlocked by contacting a
9V battery on terminal located
outside
How to apply external power in the emergency
PIN code Card key
C
Card key touch plate
Touch the registered card key to
unlock the door
Wireless connection
indicator
Status indicator
Indicate operation status and
checking battery capacity
˙ Remaining battery 20%
˙ Remaining battery 50%
˙ Remaining battery 80%
Override key
Unlock the door with override
key manually
Handle
Can open the door by pushing down
it after unlocking with PIN code or
Card key
