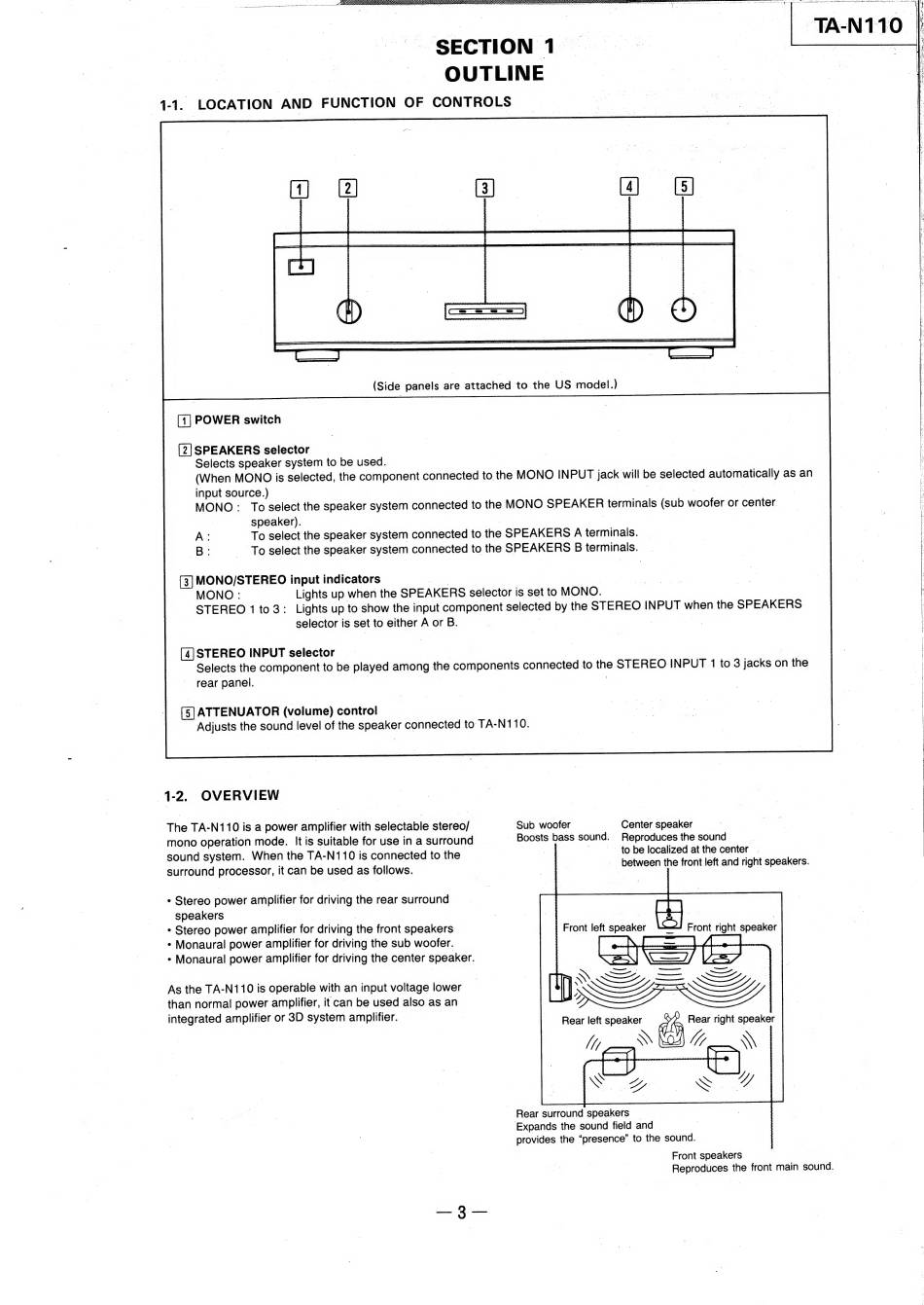

SECTION 1
OUTLINE
(4-1, LOCATION AND FUNCTION OF CONTROLS
(Side panels are attached to the US model.)
[1] POWER switch
[2] SPEAKERS selector
Selects speaker system to be used.
(When MONO is selected, the component connected to the MONO INPUT jack will be selected automatically as an
input source.)
|
MONO:
To select the speaker system connected to the MONO SPEAKER terminals (sub woofer or center
speaker).
|
A:
To select the speaker system connected to the SPEAKERS A terminals.
B:
To
select the speaker system connected to the SPEAKERS B terminals.
[3] MONO/STEREO input indicators
|
MONO :
Lights up when the SPEAKERS selector is set to MONO.
STEREO 1 to 3:
Lights up to show the input component selected by the STEREO INPUT when the SPEAKERS
selector is set to either A or B.
|
7
|
STEREO INPUT selector
Selects the component to be played among the components connected to the STEREO INPUT 1 to 3
jacks on the
rear panel.
[5] ATTENUATOR (volume) control
Adjusts the sound level of the speaker connected to TA-N110.
1-2,
OVERVIEW
* Stereo power amplifier for driving the rear surround
speakers
7
¢ Stereo power amplifier for driving the front speakers
¢ Monaural power amplifier for driving the sub woofer.
* Monaural power amplifier for driving the center speaker.
As the TA-N110 is operable with an input voltage lower
than normal power amplifier, it can be used also as an
integrated amplifier or 3D system amplifier.
Rear surround speakers
Expands the sound field and
provides the "presence" to the sound.
Front speakers
Reproduces the front main sound.
