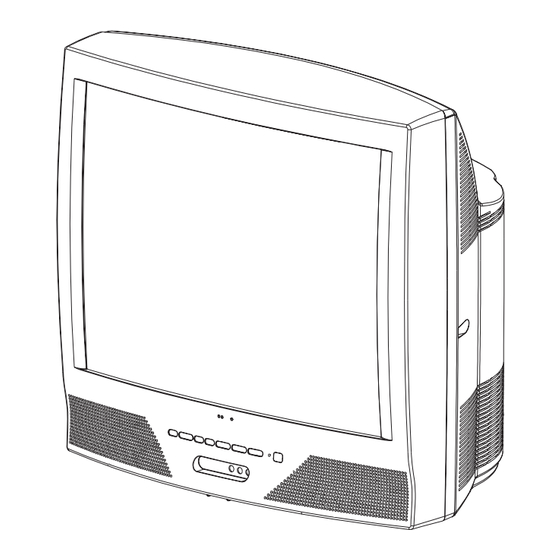

- Page 1 Installation / Operating Guide | Warranty Model Numbers H 1 9 F 3 4 D T H20F34DT H25F34DT Concierge t a b l e o f c o n t e n t s p a g e © Copyright 2003, Zenith Electronics Corporation...
- Page 2 Consult the dealer or an experienced radio/TV technician for help. • CAUTION: Do not attempt to modify this product in any way without written authorization from Zenith Electronics Corporation. Unauthorized modification could void the user’s authority to operate this product. COMPLIANCE: The responsible party for this product’s compliance is:...
-
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Important safeguards for you and your new product This product has been manufactured and tested with your safety in mind. However, improper use can result in potential electrical shock or fire hazards. To avoid defeating the safeguards that have been built into the new product, please read and observe the following safety points when installing and using the new product, and save them for future reference. - Page 4 IMPORTANT SAFETY INSTRUCTIONS (Continued from previous page) 14. Outdoor Antenna Grounding If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges.
-
Page 5: Table Of Contents
To perform a normal installation set up, you need an installer’s remote like the LP702. The LP702 is shown and described in later sections. The installer remote allows access to the Installer’s menus, and User menus. The installer remote has Menu, Select, and Adjust Keys (Down/Left/Right arrow) keys. To purchase the LP702 remote, see your Zenith Dealer. 206-3852 Add/Del/Blank . -
Page 6: Antenna
Go to page 11 to Auto Program the TV. If you have a 75 ohm RF cable, then you don’t need any adapters! A 300 to 75 ohm adapter is not included with the Zenith Concierge TV. Mini glossary 75 OHM RF CABLE The wire that comes from an off-air antenna or cable service provider. -
Page 7: Cable Service
60 Hz Go to page 11 to Auto Program the Concierge TV. If you’re using a cable box, leave the TV tuned to channel 3 or 4 and use the cable box to change channels. If you’re using a cable box, Auto Program might only find the channel your cable service is on (usually channel 3 or 4). -
Page 8: Antenna With Vcr
Antenna With VCR Hook Up Connect an off-air antenna and VCR to the Concierge TV Locate the Antenna/Cable jack on the back of the VCR. Connect the antenna wire that runs from the antenna, according to one of the diagrams to the right. -
Page 9: Cable Service With Vcr
Cable Service (CATV) with VCR Hook Up Connect a VCR and Cable service to the Concierge TV Locate the Antenna/Cable jack on the back of the VCR. Connect the cable service wire that runs from the wall, according to one of the dia- grams to the right. -
Page 10: External Speaker
Locate the Audio In jack on the back of the exter- nal speaker. Connect a standard audio cable from the Speaker Out jack on the TV, to the Audio In jack on the external speaker. P A G E 1 0... -
Page 11: Auto Program
Press the Right or Left ADJ (Adjust) arrow to go to the Auto Program menu. Using SELECT, choose either CABLE TV or OFF AIR ANTENNA on your screen. Press the Right or Left ADJ arrow key to begin the Channel Search. -
Page 12: Front Panel Controls
Set Menu Option 11, Key defeat to “1” - Menus not available with front panel controls. Press POWER to turn on your TV. To access the menus, press the MENU button on the control panel. Cycle through the various menus by pressing MENU repeatedly. -
Page 13: Guest's Remote Key Functions
Displays the available TV channels, includ- ing access to guest’s Parental Control menu. Allows guest to select the Aux Channel. (Use the Audio/Video jacks on the back of the TV as the source of the picture and sound.) remote control part number SC652Z... -
Page 14: Installer's Remote Key Functions
Gives installer access to the guest’s menus. Displays the available TV chan- nels and hotel guest’s Parental Control menu. Allows user to select the Aux Channel. (Use the Audio/Video jacks on the back of the TV as the source of the picture and sound.) 206-3490-O... -
Page 15: On-Screen Menus Overview
On-Screen Menus Overview Descriptions of the menus and on-screen displays on the TV available to the installer Using the Menu button on the installer’s remote, the installer can access all the menus below. Menu Name Page Description ON-SCREEN MENUS SETUP MENU... -
Page 16: Clock Set
Channel Add/Delete/Blank Fine-tuning the guest’s channel selection list Press the MENU key on an Installer’s remote so the SETUP MENU appears. Press SELECT repeatedly to go to the Add/Del/Blnk option. Using either the NUMBER keypad and ENTER or the Channel Up/Down arrows on the remote, select a channel. - Page 17 Setting Up Channel Labels Customizing the channel selection names Overview Channel Labels help the user identify the channel or network being viewed. In the Setup menu with the CH. LABELS option highlighted, use the Adjust Left/Right arrows to scroll through the available channel labels, such as, A &...
- Page 18 For Auto Clock Set to work, TV must be tuned to a channel that has XDS data available. Auto Clock Set, sets the time only once while the TV is on. To set the clock with XDS data, turn TV off, then back on again, or set the clock time manually.
- Page 19 Press ENTER to remove menu and return to TV viewing. The clock must be set before the Timers will function. The Off Timer can be used to turn the TV off at the preset time. Note: No On Timer setting is required to use the Off Timer feature.
- Page 20 Mini glossary CAPTIONS The term for the words that scroll across the bottom of your TV screen; usually the audio portion of the program provided for the hearing impaired. TEXT The term for the words that appear in a large black frame and almost cover the entire screen; usually messages...
-
Page 21: Language
Use the SELECT key on the remote control, to highlight Language on your screen. Use the Right/Left ADJ arrow to choose one of the following options: English, Spanish, or French. Press ENTER to return to TV viewing. 206-3490-O SETUP MENU AUTO PROGRAM ADD/DEL/BLNK CH. -
Page 22: Video Menu
• Brightness: Increases or decreases amount of white in the TV picture. • Color: Adjusts levels of all colors in the TV picture. • Tint: Balances between amounts of red and green in the TV picture. • Sharpness: Raises or lowers the definition of the TV picture. -
Page 23: Installer Parental Control Menu
Overview To insure complete coverage for all TV programs, (movies and regular TV shows) choose a rating for MPAA, from the selec- tions below AND choose ratings from the TV Parental Guidelines Rating System on the next page, using the Age Block option for General Audiences and for Children. -
Page 24: Installer Parental Control Menu
Installer Parental Control Menu After you have read the preceding page, follow instructions below to set up and activate Parental Control. SETUP MENU VIDEO MENU PARENTAL CONTROL AUX SOURCES MPAA RATING AGE BLOCK TO BLOCK CONTENT BLK TO BLOCK SET HOURS SET PASSWORD LOCK ON OFF Note: Use the installer’s remote control to... -
Page 25: Other Menus And On-Screen Displays
6:10 AM TIMER PRESS DIGITS TO SET TIME TIMER TO SELECT AM/PM Alarm Menu Press ALARM. Sets a time the TV will turn itself on. (Clock must be set.) CAPTION 1 IS ON Closed Captions Menu Press CC. Turns selected option on or off. -
Page 26: Managing The Channel Banks
Managing the Channel Banks The TV has four channel banks, where the administrator or installer can store groups of TV channels Note: Channel banks set up requires an installer’s remote with “Source” or “Bank” keys like the Zenith MBR3447, or a similar remote. - Page 27 Managing the Channel Banks Examples of typical channel banks charts Figure 1. Typical channel banks after running Auto Program B Purpose A = Active - - Channel was found during AUTO PROGRAM Figure 2. Typical channel banks after running Auto Program, and customizing with Add/Del/Blnk B Purpose 1 Basic BC A...
- Page 28 Managing the Channel Banks PLAN YOUR CHANNEL BANKS BY FILLING IN THESE CHARTS (or use photocopies). B Purpose B Purpose 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 B Purpose 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 B Purpose...
-
Page 29: Installers Menus
0 / 1 Set to 1 to disable Menu, Select, and Adj keys on front panel. 0 / 1 Set to 1: enables TV to respond to IR codes to change Channel Bank directly. 0 / 1 0 / 1 Set to 1 to put TV on/off below start channel number. - Page 30 Installer Menus Installer Menu Items 26-I through 63-I Menu Item Function Value Range Default Value 26-I. NOT USED 27-I. NOT USED 28-I. CH. OVER RIDE 29-I. OLD OCV 30-I. ACK MASK 31-I. POLL RATE 32-I. TIMING PULSE 33-I. NOT USED 34-I.
- Page 31 POWER MANAGE function is for saving energy. When set to 0, Power Manage is OFF. Settings range from 0 - 7, with 1 - 7 repre- *M.P.I. Multiple Protocol Input: Zenith protocol for remote control of TV through RJ11 (M.P.I.) jack on TV connections panel. 206-3852...
-
Page 32: Installer Menus
Generally, this feature is used in conjunction with START CHANNEL (item 4-I.) where the start channel may, for example, be set to 3 or 4. If the start channel is 3 then the TV will remain on channel 3. NOTE: When CHANNEL LOCK is active and CHANNEL OVERIDE is disabled, AUTO PROGRAM is not active. - Page 33 20-I. FEATURE LEVEL Default set to ZEN 1 for Zenith IR remote control operation. Set O, P LBL for Zenith Private Label IR remote control operation. Warning: Do not set to “0” or remote will not control TV. Installer should leave item 0-I FEATURE LEVEL set to 1 (default).
- Page 34 Installer Menus Installer Menu Items 35-I through 60-I: Detailed Descriptions 35-I. NOT USED 36-I. NOT USED 37-I. REAR Y/C EN. Set to 1 to enable the rear S-Video input. Set to 0 to disable the rear S-Video input. 38-I. NOT USED 39-I.
- Page 35 Installer Menus Installer Menu Items 61-I through 82-I: Detailed Descriptions 61-I. FOR. VIDEO M. (Video Menu Foreground Color) 0 = Black 3 = Yellow 1 = Red 4 = Blue 2 = Green 5 = Violet 62-I. BCK. VIDEO. COL. (Video Menu Background Color) 0 = Black 3 = Yellow 1 = Red...
- Page 36 Installer Menus Installer Menu Items 83-I through 86-I: Detailed Descriptions 83-I. HANDSHK TIME Adds an additional delay to the handshake time which is 64 msec, thus relaxing M.P.I. timing requirements to be compatible with PC based Windows controlled systems, range is 0 - 5. Set to 0 to retain standard 64 msec delay.
-
Page 37: Lt2000 Quickset Ii Clone Programmer
TV into multiple identical television sets. Once learned from the master, setup data is retained in the LT2000 for future use. When using the LT2000, cloning operations will go easier if the TV set is connected to a good quality signal and operating with a stable picture displayed. -
Page 38: Clone Selection Menu Choices
Since the Clone Programmer’s time cannot be set directly, the time needs to be copied from a Zenith TV equipped with M.P.I. input capability. P A G E 3 8... -
Page 39: Troubleshooting
• TV not reset. When cloning operations are complete, just unplug the LT2000 from the TV. If the TV does not display a picture (blank screen) after a few seconds, just change channels. 206-3490-O The LT2000 programmer is designed to be used with TVs contain- ing the 221-01006 and later processors. - Page 40 NC-17 Restricted Viewing Hard Core Films Note: Zenith Electronics Corporation is not liable for any program content that appears when using this rating system; as always, user discretion is advised. P A G E 4 0 When the Aux input is set to block, your TV will block all pro- gramming you have set for cable or over-air broadcasts.
-
Page 41: Parental Control Menu
Press ADJ Right arrow to choose: Unblocked, TV-PG AND ABOVE, TV-14 AND ABOVE, or TV-MA. (AND ABOVE means more restrictive headings are automatically included when you choose a low restriction setting like TV-PG.) See the Mini Glossary, Ratings Charts on this and the previous page for rating meanings. - Page 42 Sex Scenes Violence F Violence No Rating 00 Hours To Set CONTENT BLOCK UNBLOCKED PRESS CC TO RETURN Unblocked TV-G and Above TV-PG and Above TV-14 and Above TV-MA Unblocked TV-Y and Above TV-Y7 Unblocked TV-PG and Above TV-14 and Above...
- Page 43 6:10 AM TIMER PRESS DIGITS TO SET TIME TIMER TO SELECT AM/PM Alarm Menu Press ALARM. Sets the time the TV will automatically turn itself on. CAPTION 1 IS ON Closed Captions Menu Press CC. Turns Caption/Text option On and Off.
-
Page 44: Maintenance
Extended Absence If the TV is to be left dormant for a long time, it’s a good idea to unplug the power cord to protect against possi- ble damage from lightning or power surges. If you use an off-air antenna, you may also want to disconnect it from the back of the TV. -
Page 45: Troubleshooting
• If the audio mode is set to SAP, the channel may not have a SAP program. • Are you in TV or cable tuning mode, and should be in the other? • Make sure output channels on all A/V equipment are on the same channel (3 or 4). -
Page 46: Glossary
Mono (monaural) sound is one channel of sound. On more than one speaker, all the speakers play the same audio. M.P.I. Multiple Protocol Interface: Zenith protocol for external control of TV through RJ11 (M.P.I.) input jack on TV connections panel. (M.P.I. jack is used for cloning TV’s features.) OUTPUT Refers to the jack that sends a signal out of a VCR, DVD, or other A/V device. -
Page 47: Notes
Notes P A G E 4 7 206-3490-O... - Page 48 Direct-View Color TV Welcome to the Zenith family! We believe that you will be pleased with your new Zenith TV. Please read this warranty carefully, it is a “LIMITED WAR- RANTY” as defined under Federal Law. This warranty gives you specific legal rights, and you may also have other rights that vary from state to state within the U.S.A.
