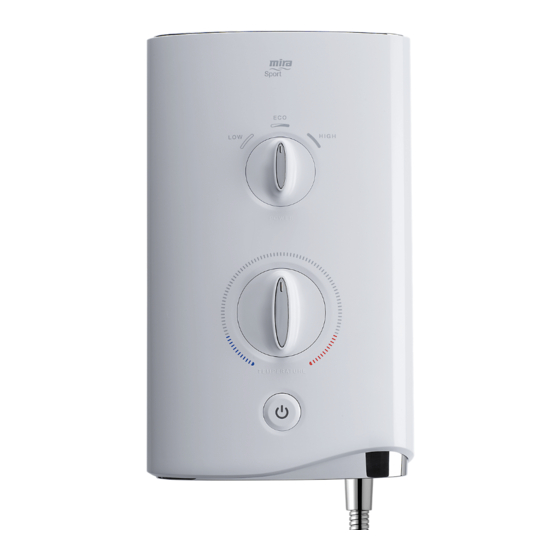

- Page 1 Mira Sport 7.5, 9.0, 9.8 and 10.8 kW For SPARES, For Safety! ADVICE or REPAIRS Before installing please call us free or using this shower, on 0800 001 4040 you MUST read this (UK only) guide. Installation and User Guide...
-
Page 2: Important Safety Information
Important Safety Information Warning! This shower can deliver scalding temperatures, cause fire, electric shock or other personal injury if not operated, or maintained in accordance with the instructions, warnings and cautions contained in this guide and on the appliance. Please read the important safety information and the operation section of this guide before using the shower. - Page 3 DO NOT restrict the water flow from the shower outlet, temporarily bending the shower hose or blocking the shower head, such as placing against your body while in use can cause a very hot shot of water to be discharged. The outlet must not be connected to any tap or fitting other than those specified.
- Page 4 Only Kohler Mira recommended accessories should be used. DO NOT perform any unspecified modifications, or drill or cut holes in the product other than instructed by this guide.
- Page 5 DO NOT connect this shower to a Waste Water Heat Recovery System as this may cause unstable or scalding temperatures to be delivered from the shower head. Always check the water temperature is safe before entering the shower. The water supply to this product must be isolated if the product is not to be used for a long period of time.
-
Page 6: Pack Contents
Pack Contents Tick the appropriate boxes to familiarize yourself with the part names and to confirm that the parts are included. 1 x Electric Shower 2 x Case Inserts 1 x Olive 1 x Compression Nut 3 x Fixing Screws ... -
Page 7: Products Covered
Introduction Thank you for purchasing a quality Mira Sport Electric Shower. To enjoy the full potential of your new shower, please take time to read this guide thoroughly, and keep it handy for future reference. Products manufactured by Kohler Mira Ltd are designed to be safe provided, that they are installed used and maintained in good working order, in accordance with our instructions and recommendations. -
Page 8: Specifications
Specifications Plumbing Variant 10.8 Minimum Dynamic Pressure 70 kPa 70 kPa 70 kPa 100 kPa (0.7 bar) (0.7 bar)** (0.7 bar)** (1.0 bar) Maximum Dynamic Pressure* 500 kPa (5.0 bar) Maximum Static Pressure* 1000 kPa (10 bar) Minimum Static Pressure 20 kPa (0.2 bar) Maximum Inlet Temperature 30°C... - Page 9 Guarantee This product has been designed for domestic use only, Mira Showers guarantee this product against any defect in materials or workmanship for a period of two years from the date of purchase (shower fittings for one year). For terms and conditions, refer to the back cover of this guide. UK &...
-
Page 10: Disposal And Recycling
Disposal and Recycling End of Product Life Electrical and electronic devices contain a range of materials that can be separated for recycling and used in new products. This product should not be disposed of with your general household waste. When this product has reached the end of its serviceable life, please remove any batteries and take it to a recognised WEEE (Waste Electrical and Electronic Equipment) collection facility such as your local civic amenity site for recycling. -
Page 11: Installation Requirements
Installation Requirements Plumbing 1. The plumbing installation must comply with all national or local water regulations and all relevant building regulations, or any particular regulation or practice specified by the local water supply company. 2. DO NOT use any other shower fittings. Only install and use the shower hose and handset provided with this product. - Page 12 18. A water treatment device should be installed where the water hardness may exceed 200 ppm. Malfunctions caused by excessive limescale formation are not covered by this shower’s guarantee (see back page for details). 19. The installation must not cause the hose to be sharply kinked during normal use.
- Page 13 Electrical 1. The electrical installation must comply with BS 7671 (commonly referred to as the IEE Wiring Regulations) and all relevant building regulations, or any particular regulation or practice specified by the local electricity supply company. 2. Ensure that all circuit protection devices, switches and cabling is adequate for the rated current of the shower and that the rating of the electricity supply company fuse and the consumer unit are adequate for the additional demand.
-
Page 14: Installation
Installation Warning! Turn off the electrical and water supplies before proceeding with the installation of the shower. Remove the three screws that hold the cover on and remove the Screws cover. Remove the service tunnel. Using the holes in the case, mark the positions of the three fixing holes. - Page 15 Connect the inlet supply pipe to the inlet connector using the compression nut and olive (supplied). Inlet Always provide mechanical support when making plumbing Connector connections. Olive Upon completion of the installation ensure connections and back Compression case are not under any stress due to misaligned pipework or electrical cables.
- Page 16 DO NOT use alternative screws to secure the cover. This can cause internal damage to the appliance. DO NOT seal around the back of appliance. HIGH This completes the installation, follow the guidelines in section 'COMMISSIONING' to prepare the shower POWER for use.
- Page 17 Commissioning Before carrying out the commissioning procedure install the Shower Fittings, refer to the Shower Fittings Installation and User Guide. If you are unsure how an electric shower works, please read through the section “User Instructions” before continuing. HIGH Switch on the electrical supply. POWER TEMPERATURE Turn temperature control to the...
- Page 18 HIGH COLD HIGH 5 - 10 secs POWER COLD Turn power control to Eco. POWER 5 - 10 secs Temperature will rise slightly. Turn power control to High. COLD 5 - 10 secs TEMPERATURE COLD 10 secs Temperature will rise further. Adjust temperature as required.
-
Page 19: Operation
Operation Read the section “Important Safety Information” first. Push the START/STOP button to turn ON the appliance. Light in the button illuminates. Switch on the electrical supply. HIGH POWER POWER Turn the power control to the desired position. TEMPERATURE TEMPERATURE Adjust temperature as required. - Page 20 * Important! For Dual Head Products. Using the overhead shower during winter months may require the desired outlet temperature to be increased. Cooler room temperatures could cause this to be increased too much and operate the cycling thermal switch. If the shower cycles hot/cold ensure shower heads are clean and reduce temperature at control.
- Page 21 The Effect of Seasonal Changes Incoming mains water temperature is not constant throughout the seasons of the year i.e. cooler during the winter, warmer during the summer. These changes can affect the outlet temperature of the shower, therefore the shower temperature may need to be increased or decreased to maintain the desired showering temperature.
-
Page 22: User Maintenance
User Maintenance Always read the IMPORTANT SAFETY INFORMATION for your shower. In the event of a malfunction of the shower, a fault finding table is provided in this guide detailing possible causes and remedies that may be carried out by non-qualified personnel. -
Page 23: Fault Diagnosis
Fault Diagnosis If the malfunction has not been detailed in the fault finding table or it was not possible to correct the malfunction, professional assistance may be required. Any fault diagnosis remedies MUST be carried out by a competent person or contact Mira Customer Services to arrange a service engineer. - Page 24 Symptom Possible Cause Possible Remedy No hot water Insufficient water supply Contact local water authority. from the shower, pressure. with the controls in ECO/HIGH Potential product fault Contact Mira Customer Services. position Remove and clean the showerhead spray The showerhead spray plate is plate.
- Page 25 Servicing Always read the Important Safety Information before carrying out any servicing or maintenance. Warning! There are no user serviceable parts inside the shower. Servicing of the shower must only be carried out by qualified, competent personnel following the instructions provided in this guide and those provided with any spare part.
-
Page 26: Customer Support
Kohler Mira Limited. Cromwell Road, Kohler France S.A.S. Cheltenham, 30 Boulevard de la Bastille, The company reserves the right Gloucestershire 75012 Paris, to alter product specifications GL52 5EP France without notice. 14648 1561662-W2-A © Kohler Mira Limited, October 2023...
