Beurer BM 93 Cardio - Blood pressure monitor with ECG function Manual

Included in delivery

Check that the exterior of the cardboard delivery packaging is intact and make sure that all contents are present. Before use, ensure that there is no visible damage to the device or accessories and that all packaging material has been removed. If you have any doubts, do not use the device and contact your retailer or the specified Customer Service address.

1x blood pressure monitor with ECG function
1x upper arm cuff
4x 1.5 V AAA batteries
1x storage pouch
1x instructions for use
1x quick start guide
1x annex for attending doctor

Signs and symbols

The following symbols are used on the device, in these instructions for use, on the packaging and on the type plate for the device:

WARNING
Warning notice indicating a risk of injury or damage to health
IMPORTANT
Safety note indicating possible damage to the device/accessory
Note
Note on important information
Application part, type BF
Application part type CF
Direct current
Permissible storage and transport temperature and humidity
Permissible operating temperature and humidity
Protected against solid foreign objects 12.5 mm in diameter and larger, and against vertically falling drops of water
Serial number

Intended use

The blood pressure monitor with ECG function is used to carry out non-invasive measurement and monitoring of the arterial blood pressure values in adults and to calculate the heart rhythm.
This allows you to quickly and easily measure your blood pressure, save the measured values and display the development and average values of the measured values taken. The recorded values are classified and evaluated graphically.
The ECG is used to calculate the heart rhythm. The device provides information about your average pulse value as well as any divergence from a normal ECG.

The BM 93 blood pressure monitor with ECG function provides the following functions:

  • Integration of blood pressure measurement and ECG measurement into a single device.
  • Measurement of systolic and diastolic pressure.
  • Practical ECG measurement with integrated ECG-electrodes.
  • ECG recording of 30 seconds.
  • Transfer of the data via Bluetooth.

Warnings and safety notes

Notes on using the product

  • In order to ensure comparable values, always measure your blood pressure at the same time of day.
  • Do not take a measurement within 30 minutes of eating, drinking, smoking or exercising.
  • Before the initial blood pressure measurement, make sure always to rest for about 5 minutes.
  • Furthermore, if you want to take several measurements in succession, make sure always to wait for at least 1 minute between the individual measurements.
  • Repeat the measurement if you are unsure of the measured value.
  • The measurements taken by you are for your information only – they are no substitute for a medical examination! Discuss the measured values with your doctor and never base any medical decisions on them (e.g. medicines and their administration).
  • Do not use the blood pressure monitor on newborns or patients with preeclampsia. We recom-mend consulting a doctor before using the blood pressure monitor during pregnancy.
  • Cardiovascular diseases may lead to incorrect measurements or have a detrimental effect on measurement accuracy. The same also applies to very low blood pressure, diabetes, circulatory disorders and arrhythmias as well as chills or shaking.
  • This device is not intended for use by people (including children) with restricted physical, sensory or mental skills or a lack of experience and/or a lack of knowledge, unless they are supervised by a person who is responsible for their safety or are instructed by such a person in how to use the device. Supervise children around the device to ensure they do not play with it.
  • The blood pressure monitor must not be used in connection with a high-frequency surgical unit.
  • Only use the unit on people that have the specified upper arm measurement for the unit.
  • Please note that when inflating, the functions of the limb in question may be impaired.
  • During the blood pressure measurement, the blood circulation must not be stopped for an un-necessarily long time. If the device malfunctions remove the cuff from the arm.
  • Avoid any mechanical restriction, compression or bending of the cuff line.
  • Do not allow sustained pressure in the cuff or frequent measurements. The resulting restriction of the blood flow may cause injury.
  • Make sure that the cuff is not placed on an arm in which the arteries or veins are undergoing medical treatment, e.g. intravascular access or intravascular or therapy, or an arteriovenous (AV) shunt.
  • Do not use the cuff on people who have undergone a mastectomy.
  • Do not place the cuff over wounds as this may cause further injury.
  • Place the cuff on your upper arm only. Do not place the cuff on other parts of the body.
  • The blood pressure monitor can only be operated with batteries. Please note that data transfer and data storage is only possible when your blood pressure monitor is supplied with power. As soon as the batteries are empty, the blood pressure monitor loses the date and time.
  • To conserve the batteries, the blood pressure monitor switches off automatically if you do not press any buttons for two minutes.
  • The device is only intended for the purpose described in these instructions for use. The manu-facturer is not liable for damage resulting from improper or careless use.

General notes on using the ECG

  • The ECG measuring device is a single-channel electrocardiogram (ECG) device that you can use to rapidly record an electrocardiogram (ECG). In addition, the device provides a clear evaluation of the recording, particularly as regards any disruption of the heart rhythm.
  • The ECG measuring device displays changes in the heart rhythm, which may have various dif-ferent causes. These may be harmless, but may also be triggered by illnesses or diseases of differing degrees of severity. Please consult a medical specialist if you believe you may have an illness or disease.
  • Electrocardiograms recorded using the ECG measuring device show the heart's function at the time of the measurement. As such, any changes occurring before or after the measurement is taken may not necessarily be detected.
  • ECG measurements, such as those taken with the ECG measuring device, cannot identify all heart diseases. Regardless of the measurement taken, you should consult your doctor immediately if you experience symptoms that could indicate acute heart disease. Such symptoms could include (but are not limited to):
    • pain or pressure on the left of the chest area or abdomen,
    • radiating pain in the area of the mouth/jaw/face, or in the shoulders, arm or hands,
    • back pain,
    • nausea,
    • burning sensation in the chest,
    • tendency to collapse,
    • breathlessness,
    • rapid heartbeat or irregular heart rhythm
    • or, in particular, a combination of these symptoms.
  • ALWAYS consult a doctor IMMEDIATELY if you experience any of these symptoms. If you have any doubts, seek an emergency medical examination.
  • Do not self-diagnose or self-medicate on the basis of the measurement without consulting your doctor. In particular, do not start taking any new medication or change the type and/or dosage of any existing medication without prior approval.
  • The ECG measuring device is not a substitute for a medical examination of your heart func-tion or for medical electrocardiogram recordings, which require more complex measurements.
  • It is not possible to use the ECG measuring device to diagnose illnesses or diseases that may be causing an ECG change. This is exclusively the responsibility of your doctor.
  • We recommend that you record the ECG measurements and provide them to your doctor if re-quired. This applies in particular if the status messages of the ECG measuring device do not show the "OK" symbol.

Important safety notes

  • We recommend against using the device if you have a pacemaker or other implanted devices.
    Follow the advice given by your doctor, if applicable.
  • Do not use the device with a defibrillator.
  • Do not use the device during an MRT examination.
  • Do not expose the device to static electricity. Always ensure that you are free of static electricity before operating the device.
  • Never submerge the device in water or other liquids. Do not clean the device with acetone or other volatile solutions. Clean the device with a cloth dampened with water or a mild cleaning liquid. Then dry the device using a dry cloth.
  • Do not place the device in pressure vessels or gas sterilisation devices.
  • Do not allow the device to fall and do not step on or shake the device.
  • Do not dismantle the device, as this could cause damage or malfunctions or impede the oper-ation of the device.
  • Do not use the device with persons with sensitive skin or allergies.
  • This device is not intended for use by people (including children) with restricted physical, sensory or mental skills or a lack of experience and/or a lack of knowledge, unless they are supervised by a person who is responsible for their safety or are instructed by such a person in how to use the device. Supervise children around the device to ensure they do not play with it.
  • This device is not approved for use with children weighing less than 10 kg.
  • Do not allow the electrodes of the device to come into contact with other conductive parts (in-cluding earth).
  • Do not store the device in the following locations: locations in which the device is exposed to direct sunlight, high temperatures or levels of moisture, or heavy contamination; locations near to sources of water or fire; or locations that are subject to strong electromagnetic influences.
  • Do not inflate the arm cuff when it is not wrapped around your arm.
  • Do not strongly bend the arm cuff or air tube.
  • Do not inflate the arm cuff over 299 mmHg.
  • Do not splash water on the arm cuff or immerse it in water.
  • Do not use this device on people with sensitive skin or allergies.
  • Do not operate this device in a moving vehicle (car, airplane).
  • Do not use mobile phones, or other devices that emit electromagnetic fields near this device which may result in incorrect operation of the device.
  • Remove batteries if won't be using this device for some time, to prevent battery to expand, leak and possibly destroy the device.
  • Store the device in safe place to avoid small parts swallowed by children in any circumstances.
  • Under the environment temperature of 40°C, the temperature of applied part (cuff and ECG electrodes) will reach 42°C highest.
  • Keep the components of the device out of the reach of infants, toddlers or children. This de-vice contains small parts (such as batteries) that may cause a choking hazard if swallowed by infants, toddlers or children.

Notes on storage

  • The blood pressure monitor with ECG function is made from precision and electronic components. The accuracy of the measured values and service life of the device depend on its careful handling:
    • Protect the device from impacts, humidity, dirt, marked temperature fluctuations and direct sunlight.
    • Do not drop the device.
    • Do not use the device in the vicinity of strong electromagnetic fields and keep it away from radio systems or mobile telephones.
    • Only use the cuff included with the delivery or original replacement parts. Otherwise incorrect measured values will be recorded.
  • We recommend that the batteries be removed if the device will not be used for a prolonged period of time.

Notes on handling batteries

  • If your skin or eyes come into contact with battery fluid, rinse the affected areas with water and seek medical assistance.

  • Choking hazard! Small children may swallow and choke on batteries. Store the batteries out of the reach of small children.
  • Observe the plus (+) and minus (-) polarity signs.
  • If a battery has leaked, put on protective gloves and clean the battery compartment with a dry cloth.
  • Protect batteries from excessive heat.

  • Risk of explosion! Never throw batteries into a fire.
  • Do not charge or short-circuit batteries.
  • If the device is not to be used for a relatively long period, take the batteries out of the battery compartment.
  • Use identical or equivalent battery types only.
  • Always replace all batteries at the same time.
  • Do not use rechargeable batteries.
  • Do not disassemble, split or crush the batteries.

Notes on electromagnetic compatibility

  • The device is suitable for use in all environments listed in these instructions for use, including domestic environments.
  • The use of the device may be limited in the presence of electromagnetic disturbances. This could result in issues such as error messages or the failure of the display/device.
  • Avoid using this device directly next to other devices or stacked on top of other devices, as this could lead to faulty operation. If, however, it is necessary to use the device in the manner stated, this device as well as the other devices must be monitored to ensure they are working properly.
  • The use of accessories other than those specified or provided by the manufacturer of this device can lead to an increase in electromagnetic emissions or a decrease in the device's electromagnetic immunity; this can result in faulty operation.
  • Failure to comply with the above can impair the performance of the device.

Device description

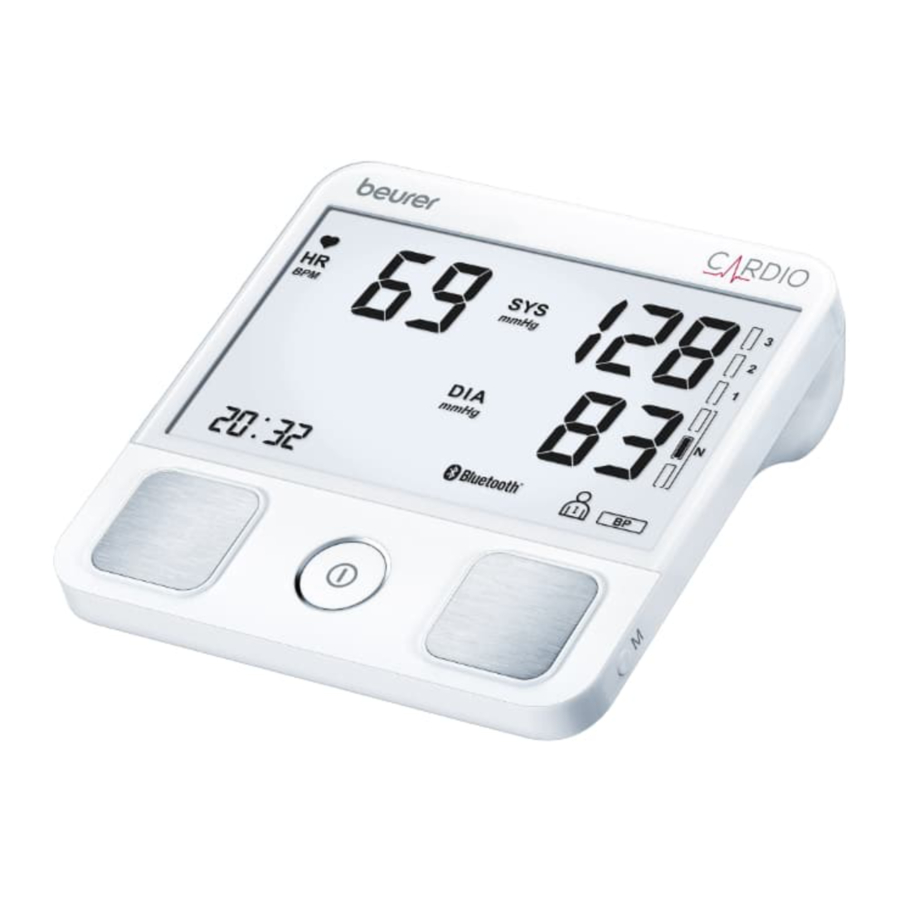

Main unit

Device description - Main unit

  1. Connection for cuff connector
  2. Setting buttons +/− (for date and time/alarm)
  3. ECG Electrodes
  4. Memory button M (to access stored measured values, change user memory)
  5. START/STOP button (ECG measurement / blood pressure measurement)

Display description

Device description - Display description

  1. Systolic blood pressure display
  2. Classification of measured values
  3. Diastolic blood pressure display
  4. Measurement mode (blood pressure = "BP", ECG = "ECG"
  5. Current user memory
  6. Bluetooth connection symbol
  7. Atrial fibrillation indicator (only for blood pressure measurement)
  8. Low battery status symbol
  9. Alarm symbol
  10. Standby mode = time,
    ECG measurement = 30 sec. countdown;
    memory mode = shows the number of measurements/measurement time
  11. ECG result display
  12. Heart rate display: flashes in sync with your heartbeat during the measurement.
  13. Heart rate: shows the average heart rate during the recording process.

Initial use

Insert the batteries

  1. Open the battery compartment lid.
  2. Insert four 1.5V AAA type (LR03) batteries. Make sure that the batteries are inserted the correct way round. Do not use rechargeable batteries.
  3. Close the battery compartment lid again carefully.
  4. The device will emit an acoustic signal and the year will flash on the display.

The batteries must be replaced when appears on the display.

Settings

Set the date and time

It is essential that you set the date and time. Otherwise, you will not be able to save your measured values correctly with a date and time and access them again later.

Press and hold the function button [+] on the device when switched off for approx. 5 seconds.
The year flashes on the display.
In this menu you can adjust the following settings in succession:
Setting the date and time

  1. Set the year using the +/− buttons on the side (you can select a year between 2000 and 2099). To confirm the year, press the memory button M.
  2. The month now flashes on the display. Set the month using the +/− buttons. To confirm the month, press the memory button M.
  3. The day now flashes on the display. Set the day using the +/− buttons. To confirm the day, press the memory button M.
  4. The hour now flashes on the display. Set the hour using the +/− buttons. To confirm the hour, press the memory button M.
  5. The minute now flashes on the display. Set the minute using the +/− buttons. To confirm the minute, press the memory button M.
  6. or now flashes on the display. Switch between the time format using +/ buttons. To confirm the time format, press the memory button M.
  7. The set year appears on the display again. To complete the operation, press the START/STOP button . The device then switches off.

Setting the alarm

An optional alarm can be set on the device. To set the alarm, proceed as follows:

  1. Press and hold the - button on the side for 5 seconds. " " flashes on the display if the alarm is deactivated.
  2. " " flashes on the display if the alarm is active.
  3. Activate or deactivate the alarm using the +/− buttons. Press the memory button M to confirm the selection.
  4. The alarm hour flashes on the display when the alarm has been activated. Set the alarm hour using the +/− buttons. To confirm the alarm hour, press the memory button M.
  5. The alarm minute now flashes on the display. Set the alarm minute using the +/− buttons. To confirm the alarm minute, press the memory button M.
  6. " " appears on the display. To complete the operation, press the START/STOP button . The device then switches off.

Usage

blood pressure measurement

Before commencing blood pressure measurement, observe the "Notes on using the blood pressure monitor" in chapter "Important notes".

Attaching the cuff


Place the cuff onto the bare upper arm. The circulation of the arm must not be hindered by tight clothing or similar.


The cuff must be placed on the upper arm so that the bottom edge is positioned 2 – 3 cm above the elbow and over the artery. The line should point to the centre of the palm.


Now tighten the free end of the cuff, but make sure that it is not too tight around the arm and close the hook-and-loop fastener. The cuff should be fastened so that two fingers can fit under the cuff.


Now insert the cuff line into the connection for the cuff connector.

This cuff is suitable for you if the index mark ( ) is within the MIN/MAX Range after fitting the cuff on the upper arm.

information If the measurement is performed on the right upper arm, the line should be located on the inside of your elbow. Ensure that your arm is not pressing on the line.

Blood pressure may vary between the right and left arm, which may mean that the measured blood pressure values are different. Always perform the measurement on the same arm.
If the values between the two arms are significantly different, please consult your doctor to determine which arm should be used for the measurement.


The unit may only be operated with the original cuff. The cuff is suitable for an arm circumference of 23 up to 43 cm.

Adopting the correct posture

  • Before the initial blood pressure measurement, make sure always to rest for about 5 minutes. Otherwise deviations can occur.
  • You can take the measurement while sitting or lying. Always make sure that the cuff is at heart level.
    Adopting the correct posture for bp measurement
  • To take your blood pressure, make sure you are sitting comfortably with your arms and back leaning on something. Do not cross your legs. Place your feet flat on the ground.
  • To avoid falsifying the measurement, it is important to remain still during the measurement and not to speak.
  • When taking the measurement, please keep the device lying flat (horizontally) on the table.

information Wait for at least 1 minute before taking another measurement.

Select the user memory

The device has two user memories. Each user memory can store up to 60 measured values. Once all memory spaces in a user memory have been used, the oldest measured values are replaced by the most recent.

  • Briefly press the memory button M. The last set user is displayed. Press and hold the memory button M for 5 seconds to switch between the user memories.

Start the blood pressure measurement

  1. As described above, attach the cuff and adopt the correct posture.
  2. Press the START/STOP button to turn on the device. The device is now in ECG measurement mode. You can now switch between the user memory ( ) by press and hold the button M for 3 seconds. Press the START/STOP button again to start the blood pressure measurement. The blood pressure symbol appears on the display and the cuff inflates. The heart symbol begins to flash as soon as the device detects a pulse.
    information You can cancel the blood pressure measurement at any time by pressing the START/STOP button again. Cancelled blood pressure measurements are not stored.
  3. The results are displayed on the display as soon as the blood pressure measurement is complete.
  4. To switch off the device, press the START/STOP button or wait for 2 minutes until the device- switches off automatically.

Evaluating blood pressure measurement results

Atrial fibrillation
This device can identify atrial fibrillation when measuring the blood pressure and if necessary, indicates this after the measurement with the symbol . Atrial fibrillation is defined by an irregular and often rapid heart rate increasing the risk of strokes, heart failure and other heart-related complications. Atrial fibrillation can only be determined through an examination by your doctor. If the symbol is shown on the display after the measurement has been taken, repeat the measurement. Please ensure that you rest for 5 minutes beforehand and do not speak or move during the measurement. If the symbol appears frequently, please consult your doctor. Selfdiagnosis and treatment based on the measurements can be dangerous. Always follow your GPs instructions.

Risk indicator
The measured values can be classified and evaluated in accordance with the following table. However, these standard values serve only as a general guideline, as the individual blood pressure varies in different people and different age groups etc.
It is important to consult your doctor regularly for advice. Your doctor will tell you your individual values for normal blood pressure as well as the value above which your blood pressure is classified as dangerous.
The bar chart on the display shows which category the recorded blood pressure values fall into. If the values of systole and diastole fall into two different categories (e.g. systole in the 'High normal' category and diastole in the 'Normal' category), the graphical classification on the display always shows the higher category; for the example given this would be 'High normal'.

Blood pressure value category Systole (in mmHg) Diastole (in mmHg) Action
Level 3: severe hypertension ≥ 180 ≥ 110 seek medical attention
Level 2: moderate hypertension 160 – 179 100 – 109 seek medical attention
Level 1: mild hypertension 140 – 159 90 – 99 regular monitoring by doctor
High normal 130 – 139 85 – 89 regular monitoring by doctor
Normal 120 – 129 80 – 84 self-monitoring
Optimal < 120 < 80 self-monitoring

Source: WHO, 1999 (World Health Organization)

Saving/displaying and deleting measured values

The device has two user memories. Each user memory can store up to 60 measured values. Once all memory spaces in a user memory have been used, the oldest measured values are replaced by the most recent.

You can access stored measured values on the device at any time. Proceed as follows:

  1. With the device switched off, press the memory buttonM. The last stored measured value in the selected user memory is displayed. To access the measured values in the second user memory, press and hold the memory button M for 5 seconds.
  2. To navigate between the individual measured values, press the memory buttonM. If you want to delete the entire memory of the respective user, press the memory button M again and press and hold it together with START/STOP button for 5 seconds.

ECG measurement

Preparing the ECG measurement

Observe the following before beginning the ECG measurement:

  • If the ECG-electrode surfaces are dirty, clean them with a cotton bud soaked in rubbing alcohol.
  • If your skin or hands are dry, moisten them using a damp cloth before the measurement.
  • Please note that there must be no skin contact between your right and left hand. Otherwise, the measurement cannot be taken correctly.
  • Do not speak or move while carrying out the ECG measurement as this can cause inaccuracies during the measurement.
  • When taking the measurement, please keep the device lying flat (horizontally) on the table.

Measuring ECG

The accuracy of the measurement as well as the ability to perform a measurement with this device depends on the heart configuration (shape of the heart) of each individual user. If it is not possible to take stable measurements using this device, this could have a harmless cause such as the shape of the heart. However, the cause may also be an illness or disease.

information Please note that there must be no skin contact between your right and left hand. Otherwise, the measurement cannot be taken correctly. Stay still during the measurement, do not speak and hold the device still. Movements of any kind will falsify the measurements.
Maintain constant pressure during the measurement. Do not press the electrodes too firmly against the skin as this can cause the muscles to tense and give rise to inaccurate measured values.

Taking the ECG measurement

  1. Press the START/STOP button to turn on the device. The device is now in ECG measurement mode. You can now switch between the user memory ( ) by press and hold the button M for 3 seconds.
  2. Put your index finger and middle finger or your thumbs of both hands on both electrodes. The Measurement starts automatically if there is sufficient contact to the electrodes and the signal is stable.

information

  • The force should be kept constant during the measuring period. Do not press the electrodes too hard. Excessive muscle tension might affect the accuracy of measurement result.
  • Make sure both hand´s index fingers and middle fingers or thumbs are in sufficient contact with the two electrodes.
  1. A countdown on the left side of the display indicates the progress of the measurement. During the measurement, the current heart rate is displayed in real time. The symbol will flash and the sound (if applicable) will beep in sync with your heart beat.
  2. A summary of the ECG measurement and the average heart rate appear on the display after the countdown has elapsed.
  3. To switch off the device, press the START/STOP button . Alternatively, the device will switch off automatically after 2 minutes.
  4. You may repeat the above procedure to take the ECG Measurment.

Evaluating ECG measured values

Once you have taken the measurement, the following results may appear on the LCD display.

ECG recording is OK. Indicates one or more pauses in the cardiac cycle, each of which is longer than 2 seconds.
Indicates a decreased heart rate (bradycardia) of less than 60 [bpm]. Indicates a disruption to the rhythm during the ECG recording.
Indicates an increased heart rate (tachycardia) of greater than 100 [bpm].

Background information and medical statistics for your doctor can be found in the "Annex for attending doctor" document included with your device.

Displaying and deleting ECG measured values

The device has two user memories. Each user memory can store up to 60 measurements. Once all memory spaces in a user memory have been used, the oldest measurements are replaced by the most recent.

You can access stored measurements on the device at any time. Proceed as follows:

  1. With the device switched off, press the memory button M. The last stored measured value in the selected user memory is displayed.
    information To access the measured values in the second user memory, press and hold the memory button M for 3 seconds..
  2. To navigate between the individual measurements, press the memory button M.

If you want to delete the entire memory of the respective user, press the M memory button again and press and hold it together with the START/STOP button for 5 seconds.

Transferring measurements

Transfer via Bluetooth low energy technology
It is also possible to transfer the measured values saved onthe device to your smartphone using Bluetooth low energy technology. You will need the " beurer HealthManager Pro" / " beurer HealthManager" app for this. The app is available free of charge on the Apple App Store and from Google Play.

www.apple.com

play.google.com

System requirements for the " beurer HealthManager Pro" / " beurer H ealthManager" app

  • iOS ≥ 12.0, Android ≥ 8.0
  • Bluetooth ≥ 4.0

List of compatible devices:

Proceed as follows to transfer values:
Data is transferred if Bluetooth has been activated in the settings menu. The Bluetooth® symbol appears on the display.

  1. BM 93
    Bluetooth is always activated when device is turned on.
  2. "beurer HealthManager Pro" / " beurer HealthManager" app
    In the " beurer HealthManager Pro" / "beurer H ealthManager" app, add the BM 93 under "Settings/My devices".
  3. "beurer HealthManager Pro" / " beurer HealthManager" app
    Please follow the instructions in the app.

information The "beurer HealthManager Pro" / "beurer HealthManager" app must be active to allow data transfers.

Cleaning and maintenance

  • Clean the main unit and cuff carefully using a slightly damp cloth only.
  • Do not use any corrosive cleaning agents or solvents.
  • If the surfaces of the ECG electrodes are dirty, clean them with a cotton bud soaked in rubbing alcohol.
  • Under no circumstances should you hold the main unit or cuff under water, as this can cause liquid to enter and damage the device internally.
  • No heavy objects should be placed on top of the device when in storage. Remove the batteries. The cuff line should not be bent sharply.

Accessories and replacement parts

Accessories and replacement parts are available from the corresponding service address (according to the service address list). Please state the corresponding order number.

Designation Item number and/or order number
Universal cuff (23-43 cm) 164.226

What if there are problems?

Problem /
Error Message
Possible cause Solution
The blood pressure measurement result shows
  1. Inflating too slow or cannot inflate normally.
  2. Air leakage of Cuff
Please repeat the measurement. Make sure that the cuff tube is properly inserted and that you do not move or talk. Re-insert the batteries if necessary, or else replace them.
The blood pressure measurement result shows Abnormality found in air releasing of arm cuff.
The blood pressure measurement result shows
Abnormality found in blood pressure readings.
The blood pressure measurement result shows Low battery.
The ECG measurement flashes on the display. The ECG signal is unstable or too weak. Repeat the measurement as per the instructions in these Instructions for use.
The ECG measurement shows EE on the display.
  • Contact pressure on the skin is too weak.
  • The measurement was interrupted.
  • The sound level was too high during the measurement.
Repeat the measurement as perthe instructions in these Instructions for use.
The batteries are almost empty. Replace the batteries.
The device will not switch on. The batteries are flat. Replace the batteries.
The batteries have been inserted incorrectly. Re-insert the batteries, observing the correct polarity (-/+).
The cuff does not inflate. The cuff line is not correctly inserted into the device. Ensure that the cuff line is correctly inserted into the device.
The cuff is ruptured. Replace the cuff. Contact Customer Services.
The blood pressure measurements are very high/low. The cuff was not attached correctly. Re-attach the cuff.
You moved or talked during the measurement. Do not move or talk during the measurement.
The measurement was obstructed by clothing. Ensure that clothing cannot obstruct the arm cuff during the measurement.
Stored measured values can no longer be retrieved from the memory. Old measured values have been overwritten by more recent values as the memory is full. Download the stored measured values to your computer every so often.
The ECG measurement does not start even though there is contact with the skin. Insufficient contact pressure. Ensure that you press firmly on the electrodes.
Bluetooth connection failed. Connection problems between the smartphone/tablet and the app. Switch off the main unit, close the app, and deactivate and reactivate Bluetooth on your smartphone/tablet. Try to re-establish the connection.

Technical specifications

Model No. BM 93
Measurement method Oscillometric, non-invasive blood pressure measurement on the upper arm.
Single-channel ECG in freely selectable front positions / ECG signal ground (earth) referenced.
Measurement range (blood pressure measurement) Cuff pressure 0 – 300 mmHg,
systolic 50 – 280 mmHg,
diastolic 40 – 150 mmHg,
Pulse 40 –199 beats/minute
ECG bandwidth/sample rate 0.05 to 40 Hz/125 Hz
ECG Heart Rate range 5 –199 beats/minute
Display accuracy Systolic ± 3 mmHg,
Diastolic ± 3 mmHg,
Pulse ± 5% of the value shown
Measurement inaccuracy Max. permissible standard deviation according to clinical testing:
Systolic 8 mmHg/diastolic 8 mmHg
Memory 2x 60 memory spaces
Dimensions Main unit: L 128 mm x W 128 mm x H 40 mm
Weight Main unit: Approximately 300 g (without batteries, with cuff)
Cuff size 23 to 43 cm
Permissible operating conditions +5°C to +40°C, 15 to 93% relative humidity (non-condensing)
Permissible storage and transport conditions -25°C to +70°C, up to 93% relative humidity
Power supply 4x 1.5 V AAA batteries
Battery life For approx. 240 measurements, depending on levels of blood pressure and pump pressure
Classification Internal supply, IP21, no AP or APG, continuous operation
Blood pressure: Application part, type BF
ECG electrodes: Application part type CF
Data transfer via Bluetooth wireless technology The product uses Bluetooth low energy technology, frequency band 2.400 - 2.483 GHz, maximum transmission power radiated in the frequency band < 20 dBm, compatible with Bluetooth ≥ 4.0 smart phones /tablets

The serial number is located on the device or in the battery compartment.
Technical information is subject to change without notification to allow for updates.

Documents / Resources

References

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Beurer BM 93 Cardio - Blood pressure monitor with ECG function Manual

Advertisement

Need Assistance?

Do you have a question about the BM 93 Cardio that isn't answered in the manual? Leave your question here.

Error while submitting your question. Please, reload page and try again.

Thank you! Your question has been received!

Table of Contents
