Check that the device packaging has not been tampered with and make sure that all contents are present. Before use, ensure that there is no visible damage to the device or accessories and that all packaging material has been removed. If you have any doubts, do not use the device and contact your retailer or the specified Customer Services address.

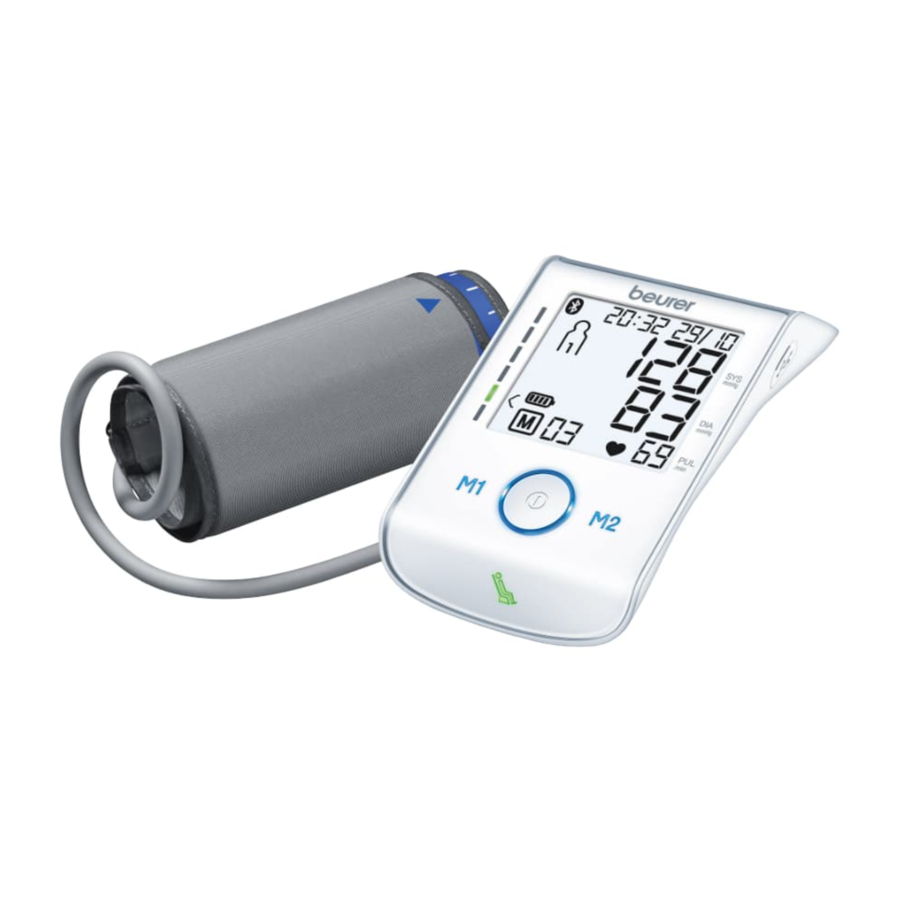

The upper arm blood pressure monitor is used to carry out non-invasive measurement and monitoring of the arterial blood pressure values in adults.
This allows you to quickly and easily measure your blood pressure, save the measurements and display the development and average values of the measurements taken.
You are also warned of possible existing cardiac arrhythmia.
The recorded values are classified and evaluated graphically. This blood pressure monitor also has a hemodynamic stability display, which is referred to as a resting indicator throughout these instructions for use. This shows whether you, and consequently your circulatory system, are sufficiently at rest when the blood pressure measurement is being taken and is therefore a more precise indicator of your resting blood pressure. Read more about this in section "Evaluating results".
Signs and symbols
The following symbols are used in these instructions for use, on the packaging and on the type plate for the device and the accessories:
Attention | |
Note Note on important information | |
Observe the instructions for use | |
Application part, type BF | |
Direct current | |
Disposal in accordance with EC Directive WEEE (Waste Electrical and Electronic Equipment) | |
Dispose of packaging in an environmentally friendly manner | |
Separate the product and packaging elements and dispose of them in accordance with local regulations. | |
Marking to identify the packaging material. A = material abbreviation, B = material number: 1-6 = plastics, 20-22 = paper and cardboard | |
Manufacturer | |
Permissible storage and transport temperature and humidity | |
Permissible operating temperature and humidity | |
Protect from moisture | |
Serial number | |
Item number | |
Medical device | |
CE labelling This product satisfies the requirement of the applicable European and national directives. |
Information on the display:
Completely charge up the blood pressure monitor before taking your first measurement:
The symbol is shown once the device is fully charged.
Charge the battery if the battery level symbol flashes. If the device's battery has been completely drained and you are unable to switch it on again, you must reset the date, time and Bluetooth® settings. In this process, any saved measurements are retained.
The following section describes the functions and settings available on the blood pressure monitor.
It is essential to set the correct date and time. Otherwise, you will not be able to save your measured values correctly with a date and time and access them again later.
If you press and hold the M1 or M2 memory button, you can set the values more quickly.
Press and hold the START/STOP button for 5 seconds.
Hour format
The hour format now flashes on the display.
Date
The year flashes on the display.
The month flashes on the display.
The day flashes on the display.
If you have set the 12h hour format, the month is displayed before the day.
Time
The hours flash on the display.
The minutes flash on the display.
Bluetooth® settings
The Bluetooth® symbol flashes on the display.
Bluetooth® transfers will reduce the rechargeable battery capacity.
Please ensure the unit is at room temperature before measuring. The measurement can be performed on the left or right arm.
Place the cuff on to the bare upper arm. The circulation of the arm must not be hindered by tight clothing or similar.
The cuff must be placed on the upper arm so that the bottom edge is positioned 2 – 3 cm above the elbow and over the artery. The line points to the centre of the palm.
Now place the free end of the cuff snugly, but not too tightly, around the arm, and fix it with the hook and loop fastener. The cuff should be fitted tight enough to allow just two fingers to fit beneath the cuff.
Now insert the cuff line into the connection for the cuff connector.
This cuff is suitable for you if the index mark () is within the OK range after fitting the cuff on the upper arm.
If the measurement is performed on the right upper arm, the line should be located on the inside of your elbow. Ensure that your arm is not pressing on the line.
Blood pressure may vary between the right and left arm, which may mean that the measured blood pressure values are different. Always perform the measurement on the same arm.
If the values between the two arms are significantly different, please consult your doctor to determine which arm should be used for the measurement.
The unit may only be operated with the original cuff. The cuff is suitable for an arm circumference of 22 to 42 cm.
Measurement
As described above, attach the cuff and adopt the posture in which you want to perform the measurement.
The blood pressure monitor will begin the measurement automatically after 3 seconds.
The measurement is taken during the inflation phase.
You can cancel the measurement at any time by pressing the START/STOP button .
As soon as a pulse is found, the pulse symbol is displayed.
If Bluetooth® data transfer has been activated, data is transferred to the "beurer HealthManager Pro"-app after confirming the user memory (see chapter "Transferring measured values"). The blood pressure monitor shows the Bluetooth® symbol during data transfer. Press the START/STOP button again to switch off the blood pressure monitor.
If you forget to turn off the blood pressure monitor, it will switch off automatically after approximately 3 minutes. In this case too, the value is stored in the selected or most recent user memory and the data is transferred if Bluetooth® data transfer has been activated. The Bluetooth® symbol appears on the blood pressure monitor display during data transfer.
This unit can identify potential disruptions of the heart rhythm when measuring and if necessary, indicates this after the measurement with the symbol .
This can be an indicator for arrhythmia. Arrhythmia is a condition in which the heart rhythm is abnormal because of flaws in the bioelectrical system that regulates the heartbeat. The symptoms (skipped or premature heart beats, pulse being slow or too fast) can be caused by factors such as heart disease, age, physical make-up, excess stimulants, stress or lack of sleep. Arrhythmia can only be determined through an examination by your doctor.
If the symbol is shown on the display after the measurement has been taken, it should be repeated. Please ensure that you rest for 5 minutes beforehand and do not speak or move during the measurement. If the symbol appears frequently, please consult your doctor.
Self-diagnosis and treatment based on the measurements can be dangerous. Always follow your GP's instructions.
The measurements can be classified and evaluated in accordance with the following table.
However, these standard values serve only as a general guideline, as the individual blood pressure varies in different people and different age groups etc.
It is important to consult your doctor regularly for advice. Your doctor will tell you your individual values for normal blood pressure as well as the value above which your blood pressure is classified as dangerous.
The classification on the display and the scale on the unit show which category the recorded blood pressure values fall into. If the values of systole and diastole fall into two different categories (e.g. systole in the "High normal" category and diastole in the "Normal" category), the graphical classification on the device always shows the higher category; for the example given this would be "High normal".
Blood pressure value category | Systole (in mmHg) | Diastole (in mmHg) | Action |
Grade 3: severe hypertension | ≥ 180 | ≥ 110 | seek medical attention |
Grade 2: moderate hypertension | 160 – 179 | 100 – 109 | seek medical attention |
Grade 1: mild hypertension | 140 – 159 | 90 – 99 | regular monitoring by doctor |
High normal | 130 – 139 | 85 – 89 | regular monitoring by doctor |
Normal | 120 – 129 | 80 – 84 | self-monitoring |
Optimal | < 120 | < 80 | self-monitoring |
Source: WHO, 1999 (World Health Organization)
The most frequent error made when measuring blood pressure is taking the measurement when not at rest (haemodynamic stability), which means that both the systolic and the diastolic blood pressures are distorted.
While measuring the blood pressure, the device automatically determines whether you are at rest or not.
If there is no indication that your circulatory system is not sufficiently at rest, the symbol (haemodynamic stability) lights up green and the measurement can be recorded as a reliable resting blood pressure value.
GREEN: Haemodynamic stability
Measurement of the systolic and diastolic pressure is increased when the circulatory system is sufficiently at rest and is a very reliable indicator of resting blood pressure. However, if there is an indication that the circulatory system is not sufficiently at rest (haemodynamic instability), the symbol lights up red.
In this case, the measurement should be repeated after a period of physical and mental rest. The blood pressure measurement must be taken when the patient is physically and mentally rested, as it will be the basis for diagnosing the blood pressure level and regulating the patient's medical treatment.
RED: Lack of haemodynamic stability
It is very probable that the systolic and diastolic blood pressures have not been measured whilst the patient is at rest and the resting blood pressure measurement has therefore been distorted. Repeat the measurement after a rest and relaxation period of at least five minutes. Go to a sufficiently quiet and comfortable spot and remain there calmly; close your eyes, breathe deeply and evenly and try to relax.
If the next measurement also shows insufficient stability, you can repeat the measurement after another resting period. If the measurements continue to show some instability, identify these blood pressure measurements as having been taken when the circulatory system had not been sufficiently rested.
In this case, nervousness or inner anxiety may be the cause and this cannot be cured by brief periods of rest. Existing cardiac arrhythmias may also prevent a stable blood pressure measurement. A lack of resting blood pressure can have various causes, such as physical or mental strain or distraction, speaking or experiencing cardiac arrhythmias during the measurement.
In an overwhelming number of cases, the HSD diagnosis will give a very good guide as to whether the circulatory system is rested when taking the measurement. Certain patients suffering from cardiac arrhythmia or chronic mental conditions can remain haemodynamically unstable in the long-term, something which persists even after repeated periods of rest. The accuracy of the resting blood pressure results is reduced in these users. Like any medical measurement method, the precision of the HSD diagnosis is limited and can lead to incorrect results in some cases. The blood pressure measurements taken when the circulatory system was at rest represent particularly reliable results.
User memory
The results of every successful measurement are stored together with the date and time. The oldest measurement is overwritten in the event of more than 60 measurements.
Press the M1 memory button if you have selected user memory 1.
Press the M2 memory button if you have selected user memory 2.
Average values
flashes on the display.
The average value of all saved measured values in this user memory is displayed.
flashes on the display.
The average value of the morning measurements for the last 7 days is displayed (morning: 5.00 a.m. – 9.00 a.m.)
flashes on the display.
The average value of the evening measurements for the last 7 days is displayed (evening: 6.00 p.m. – 8.00 p.m.).
Individual measured values
You can exit the menu at any time by pressing the START/STOP button .
Deleting measured values
All the values in the current user memory are deleted.
It is not possible to delete individual measurements.
List of system requirements and compatible devices
* This product satisfies the requirements of the applicable European directives.
You can also use the device to transfer your measured values via USB. You will need the "beurer HealthManager Pro" USB uploader to do so.
Download it at the following link:
connect.beurer.com/download/software
You can then view your measurements in the "beurer HealthManager Pro" app and web view.
System requirements for the "beurer HealthManager Pro USB-Uploader" PC software
is shown on the display.
Begin the data transfer in the "beurer HealthManager Pro USB-Uploader" PC software.
During the data transfer, an animation is shown on the display. A successful data transfer is displayed as in figure 1. If the data transfer is unsuccessful, an error message appears as in figure 2. In this case, interrupt the PC connection and start the data transfer again.
In case of faults, the message appears in the display.
Error messages may appear if:
In such cases, repeat the measurement and/or the data transfer. Ensure that the cuff line is correctly attached and that you do not move or speak during the measurement.
Technical alarm – description
Should the recorded blood pressure (systolic or diastolic) lie outside the limits specified in the section "Technical specifications", the technical alarm will appear on the display indicating either "" or "". In such cases, you should seek medical assistance and check the accuracy of your procedure.
The limit values for the technical alarm are factory set and cannot be adjusted or deactivated. These alarm limit values are accorded second priority under the standard IEC 60601-1-8.
The technical alarm is a non-locking alarm and must not be reset. The signal shown on the display will disappear automatically after about 8 seconds.
The BM 85 is equipped with a lithium ion battery (3.7V/400 mAh). If the symbol flashes, you must charge the battery for a minimum of two hours using the enclosed cable. Recharge the battery to between 50 and 75% of its capacity at least twice a year to achieve a maximum battery service life.
Device charged (75% - 100%) | |
Device charged (50% – 75%) | |
Device charged (25% - 50%) | |
< 25% | |
You can take a maximum of 10 measurements (flashes) |
Model no. | BM 85 |
Measurement m ethod | Oscillometric, non-invasive blood pressure measurement on the upper arm |
Measurement range | Cuff pressure 0 – 300 mmHg, systolic 60 – 260 mmHg, diastolic 40 – 199 mmHg, pulse 40 –180 beats/minute |
Display accuracy | Systolic ± 3 mmHg, diastolic ± 3 mmHg, pulse ± 5% of the value shown |
Measurement inaccuracy | Max. permissible standard deviation according to clinical testing: systolic 8 mmHg / diastolic 8 mmHg |
Memory | 2 x 60 memory spaces |
Dimensions | L 180 mm x W 99 mm x H 40 mm |
Weight | Approximately 456 g (with cuff) |
Cuff size | 22 to 42 cm |
Permissible operating conditions | + 10°C to + 40°C, ≤ 90% relative humidity (non-condensing) |
Permissible storage conditions | -20°C to + 55°C, ≤ 90% relative humidity, 800 –1050 hPa ambient pressure |
Power supply | DC 5V ⎓ 600mA lithium ion battery 3.7 V/400mAh |
Battery life | For approx. 50 measurements, depending on levels of blood pressure and pump pressure |
Classification | Internal supply, IPX0, no AP or APG, continuous operation, application part type BF |
Data transfer | 2402 MHz – 2480 MHz frequency band Transmission power max. 2.8 dBM The blood pressure monitor uses Bluetooth® low energy technology Compatible with Bluetooth® 4.0 smartphones/tablets |
Technical information is subject to change without notification to allow for updates.
The serial number is located on the device or in the battery compartment.
Model No. | OH-1048A0500600U2 VDE |
Input | 100 – 240 V AC, 50 – 60 Hz; 120-60 mA |
Output | 5 V DC, 600 mA, in conjunction with Beurer blood pressure monitors only |
Manufacturer | Dongguan Oriental Hero Ele. Co., LTD. |
Protection | The device is double protected and has a primary-side cutout switch which disconnects the device from the mains in case of malfunction. |
Polarity of the the DC voltage connection | |
Insulated/protection class 2 | |
Housing and protective covers | The housing of the mains part protects users from touching live parts or parts that could be live (for example with their fingers, or with a needle or checking hook). The user must not touch the patient and the output connector of the AC mains part at the same time. |
Replacement parts and wearing parts are available from the corresponding listed service address under the stated material number.
Designation | Item number and/or order number |
Universal cuff (22-42 cm) | 163.946 |
Mains part (EU) | 071.62 |
USB cable | 163.484 |
Notes on use
Instructions for storage and maintenance
Notes on handling rechargeable batteries
