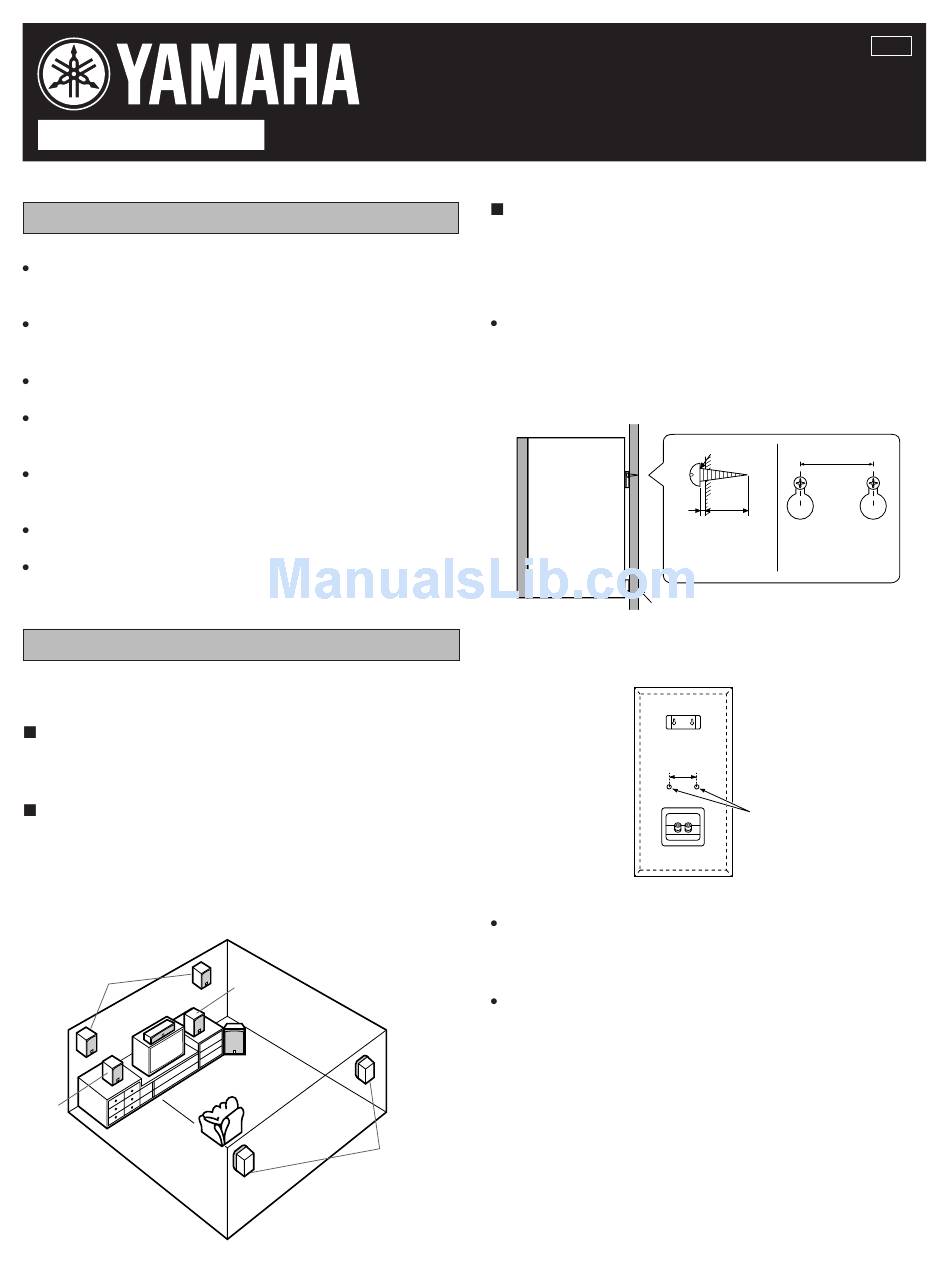

OWNER'S MANUAL
PRECAUTIONS
Read these precautions carefully before using your speaker.
Any time you note distortion, reduce the volume control on your
amplifier to a lower setting. Never allow your amplifier to be
driven into "clipping". Otherwise the speaker may be damaged.
When using an amplifier with a rated output power higher than
the nominal input power of the speaker, care should be taken
never to exceed the speaker's maximum input.
Do not attempt to clean the speaker with chemical solvents as
this might damage the finish. To clean, wipe with a dry, soft cloth.
To prevent the enclosure from warping or discoloring, do not
place the speaker where it will be exposed to direct sunlight or
excessive humidity.
Do not place the speaker where it is liable to be knocked over or
struck by falling objects. Stable placement will also ensure better
sound performance.
Placing the speakers on the same shelf or rack as the turntable
can result in feedback.
Secure placement or installation is the owner's responsibility.
YAMAHA shall not be liable for any accident caused by improper
placement or installation of the speaker.

PLACING THE SPEAKERS

Place the speakers on a sturdy, vibration-free surface, on a well-
built stand.
Using as 2ch stereo speakers
Better stereo images will be obtained when the speakers are
slightly angled in towards the listeners.
Using as main speakers in a multi channel
system
Position the speakers on both sides of the TV. The positioning of
speakers is important, because it controls the whole sound quality
of a multi channel system. Set up the speakers on the basis of your
listening position by following the owner's manual supplied with
your amplifier.
Front Effect
Speakers
Center
NS-90
(Main L)
Thank you for selecting this YAMAHA NS-90 speaker system.
NS-90
(Main R)
Subwoofer
Rear Speakers
NS-90
Using as front effect or rear speakers
Install on a wall or place on a shelf and angle toward the main
listening position for a fuller surround sound in a multi channel
system. Determine the best position and angle for the speakers by
following the guidelines in the owner's manual supplied with your
amplifier.
Mounting the speaker on a wall
Mount the speakers on a wall by using the bracket provided on
the back of the speaker. Fasten screws into a firm wall or wall
support as shown in the diagram, and hang the holes of the
mounting bracket on the protruding screws.
You can also use the screw holes on the back of the speaker to
mount the speakers on a wall.
Notes
Be sure to check the wall before attempting to mount these
speakers on a wall. If necessary, please consult an
installation specialist or the shop where the speakers were
purchased.
Wall hanging screws are not supplied with these speakers.
When installing, please only use screws that are appropriate
for the weight of the speakers, the thickness of the wall, etc.
Speaker System
Diam. 4 - 5 mm
40 mm
Min.
20 mm
2 mm
Tapping screw
(Available at a
hardware store)
Wall or wall support
60 mm
A screw with a diameter
of 4 mm and a pitch of
0.7 mm can be used.
(Depth of hole : 10 mm)
