- Page 1 1000BASE-X SFP PCI Express Gigabit Ethernet Adapter ENW-9701 Quick Installation Guide...
- Page 2 Table of Contents 1. Package Contents ................. 4 2 Hardware Installation ................5 3. Installation on Windows ................ 6 Customer Support ..................10...
- Page 3 Thank you for purchasing PLANET ENW-9701 1000BASE-X SFP PCI Express Gigabit Ethernet Adapter. It supports x1 PCI Express interfaces. The Gigabit Ethernet adapter provides a highly cost-effective solution. Operating System Support: Windows Server 2008R2/2012R2/2016R2/2019R2/2022R2 64bits Windows 7/8/8.1/10 32/64bits Windows 11 64bits Linux (Kernel version 2.6.x/3.x/4.x or later)
-
Page 4: Package Contents

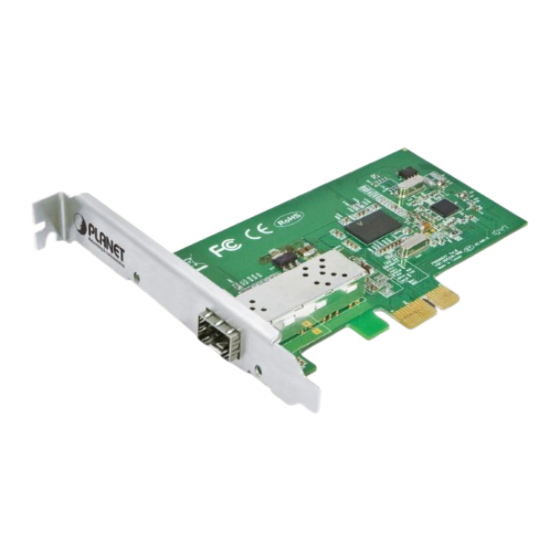

1. Package Contents z 1 x ENW-9701 Gigabit Ethernet Adapter (with long profile bracket) z 1 x Quick Installation Guide ENW-9701 Adapter Quick Installation Guide Let’s get started with your PLANET product ENW-9701 Please scan the QR code to browse our online User’s Manual or Quick Installation Guide and follow the instructions to complete the setup. -
Page 5: Hardware Installation
2 Hardware Installation Step 1: Please turn off your PC. Step 2: Remove any metal decorations from your hands and wrists. Step 3: Remove the cover from your PC. Step 4: Locate an empty PCI Express slot and remove the corresponding back plate. -
Page 6: Installation On Windows
Windows Server 2008/Windows Server 2012/Windows Server 2016/Windows Server 2019/Windows Server 2022. 1. After installing the ENW-9701 to your PC and booting it up, Windows 7 will detect it and you have to install driver. For window 7 and later windows-based operation system, the operation system will detect adapter and install driver automati- cally. - Page 7 If you want to download the driver manually, please visit PLANET ENW-9701 web pages to download the drivers for your operation system. https://www.planet.com.tw/en/support/downloads?&method=keyword&keyword =ENW-97&view=4#list 2. Please move and right-click the mouse button for Ethernet Controller item and select “Update Driver Software”.
- Page 8 4. Please click “Browse” to specify the driver location to install. (Assume “E:\ DR-ENW-9701 Gigabit Fiber Adapter” is the directory where driver files are located.) Click “Next” to continue. The driver is being installed.
- Page 9 5.Click the “Close” button to complete the driver installation.
-
Page 10: Customer Support
Customer Support Thank you for purchasing PLANET products. You can browse our online FAQ resource and User’s Manual on PLANET Web site first to check if it could solve your issue. If you need more support information, please contact PLANET switch support team.
