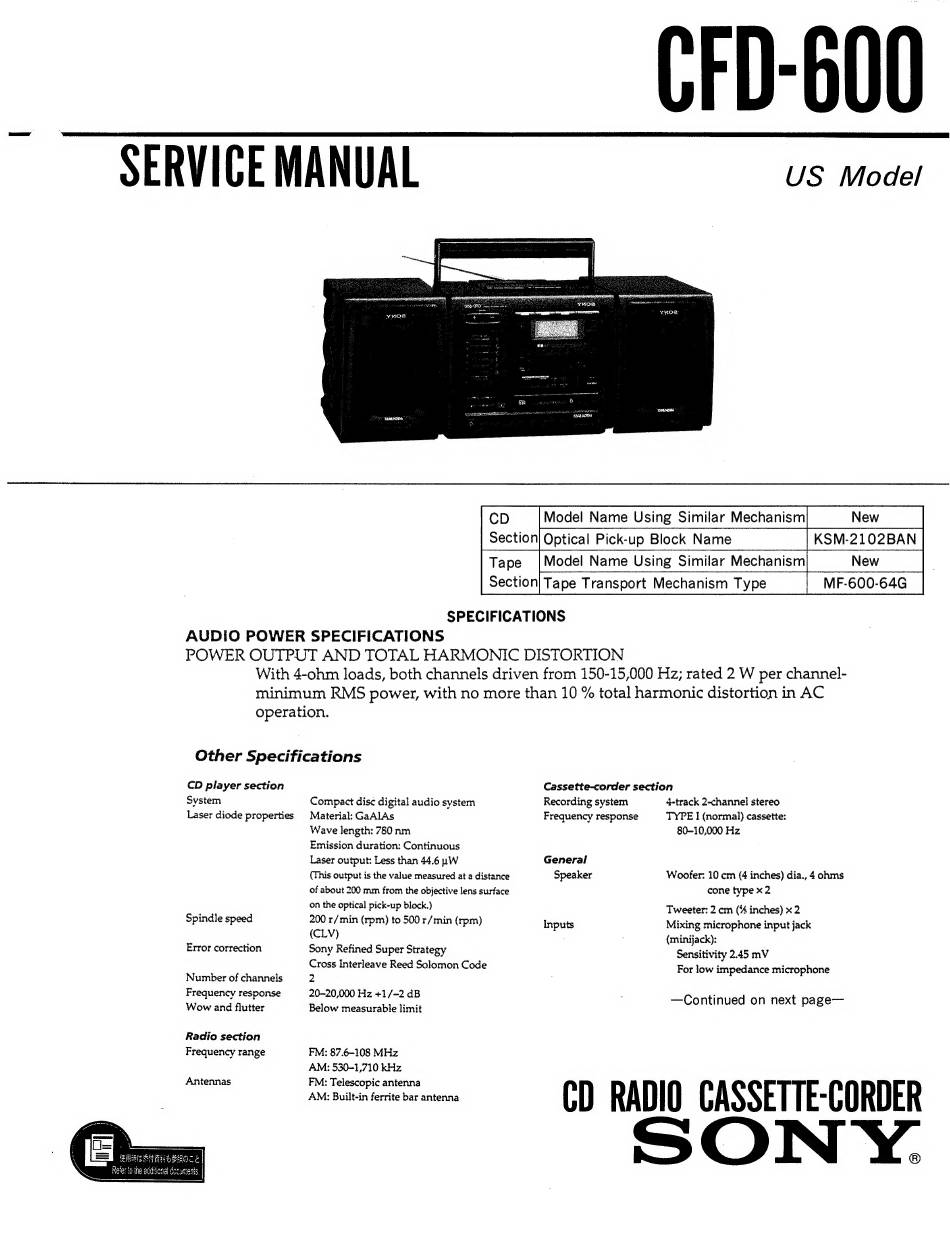

Sony CFD-600 Service Manual

CFD-600
SERVICE MANUAL US Model
CD Model Name Using Similar Mechanism] New |
Optical Pick-up Block Name
Tape |Model Name Using Similar Mechanism
Section] Tape Transport Mechanism Type
SPECIFICATIONS
AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND TOTAL HARMONIC DISTORTION
With 4-ohm loads, both channels driven from 150-15,000 Hz; rated 2 W per channel-
minimum RMS power, with no more than 10 % total harmonic distortion in AC
operation.
Other Specifications
CD player section Cassette-corder section
System Compact disc digital audio system Recording system 4-track 2-channel stereo
Laser diode properties
Material: GaAlAs
Frequency response
TYPE I (normal) cassette:
Wave length: 780 nm 80-10,000 Hz
Emission duration: Continuous
Laser output: Less than 44.6 pW General
(This output is the value measured at a distance Speaker Woofer: 10 cm (4 inches) dia., 4 ohms
of about 200 mm from the objective lens surface
cone type x2
on the optical pick-up block.) Tweeter: 2 cm (% inches) x 2
Spindle speed
200 r/min (rpm) to 500 r/min (rpm)
Inputs
Mixing microphone input jack
(CLV) : (minijack):
Error correction Sony Refined Super Strategy Sensitivity 2.45 mV
Cross Interleave Reed Solomon Code For low impedance microphone
Number of channels 2
Frequency response
20-20,000 Hz +1/-2 dB
;
aan
Wow and ie
Below measurable limit
= VOntined
Orenext Page
Radio section
Frequency range FM: 87.6~-108 MHz
AM: 530-1,710 kHz
