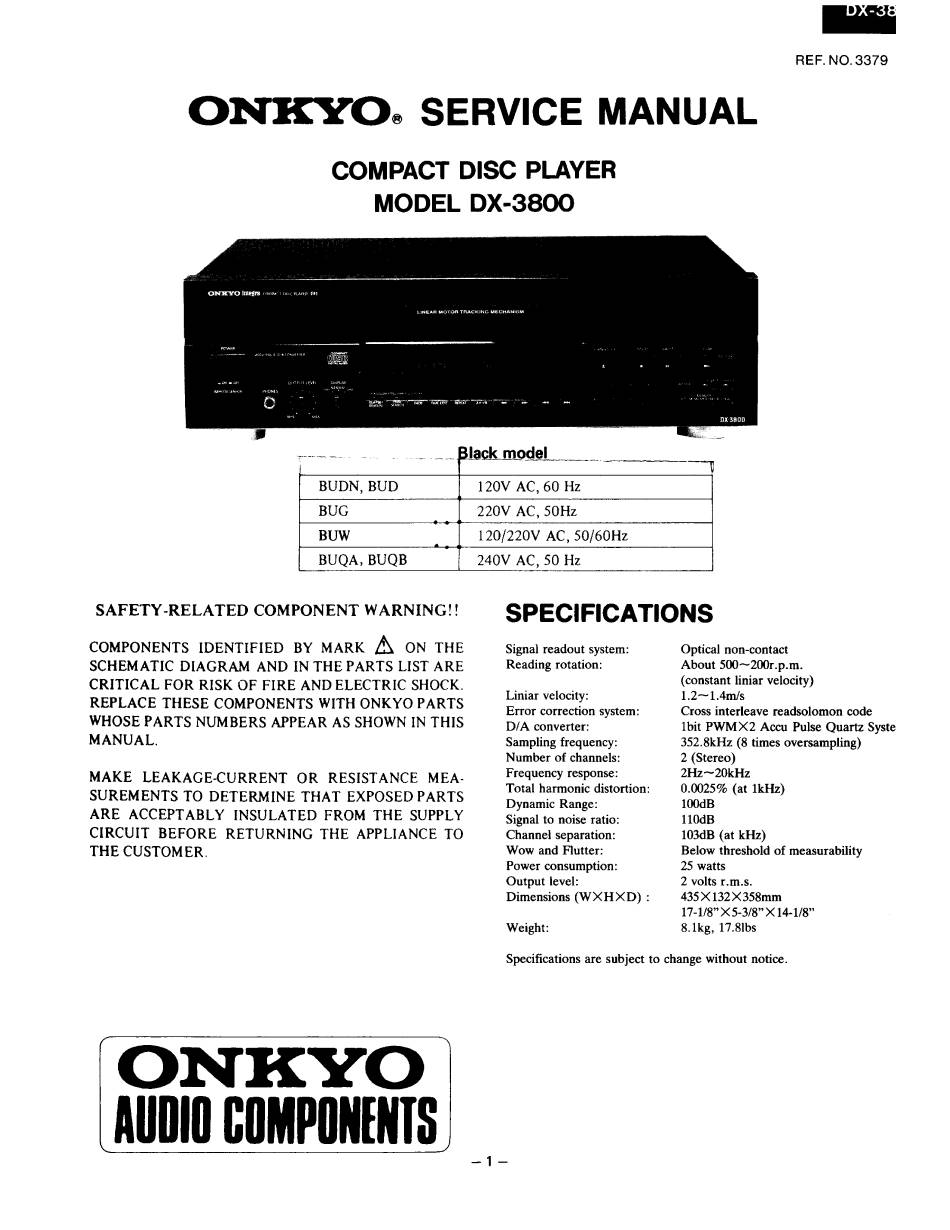

Onkyo DX-3800 Service Manual

REF. NO. 3379
ONKYO. SERVICE MANUAL
COMPACT DISC PLAYER
MODEL DX-3800
LINEAR MOTOR TRACKING MECHANIGM
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK /A\ ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO PARTS
WHOSE PARTS NUMBERS APPEAR AS SHOWN IN THIS
MANUAL.
MAKE LEAKAGE-CURRENT OR RESISTANCE MEA-
SUREMENTS TO DETERMINE THAT EXPOSED PARTS
ARE ACCEPTABLY INSULATED FROM THE SUPPLY
CIRCUIT BEFORE RETURNING THE APPLIANCE TO
THE CUSTOMER.
ONKYO
AUDIO COMPONENTS
Black model
Bx-3800
A a Se nt 7
BUDN, BUD 120V AC, 60 Hz
BUG 220V AC, 50Hz
BUW 120/220V AC, 50/60Hz
BUQA, BUQB 240V AC, 50 Hz
SPECIFICATIONS
Signal readout system:
Reading rotation:
Liniar velocity:
Error correction system:
D/A converter:
Sampling frequency:
Number of channels:
Frequency response:
Total harmonic distortion:
Dynamic Range:
Signal to noise ratio:
Channel separation:
Wow and Flutter:
Power consumption:
Output level:
Dimensions (W XH XD) :
Weight:
Optical non-contact
About 500-~~200r.p.m.
(constant liniar velocity)
1.2~1.4m/s
Cross interleave readsolomon code
lbit PWM X2 Accu Pulse Quartz Syste
352.8kHz (8 times oversampling)
2 (Stereo)
2Hz~20kHz
0.0025% (at 1kHz)
100dB
110dB
103dB (at kHz)
Below threshold of measurability
25 watts
2 volts r.m.s.
435 X 132 X358mm
17-1/8" K 5-3/8" X 14-1/8"
8.1kg, 17.8lbs
Specifications are subject to change without notice.
