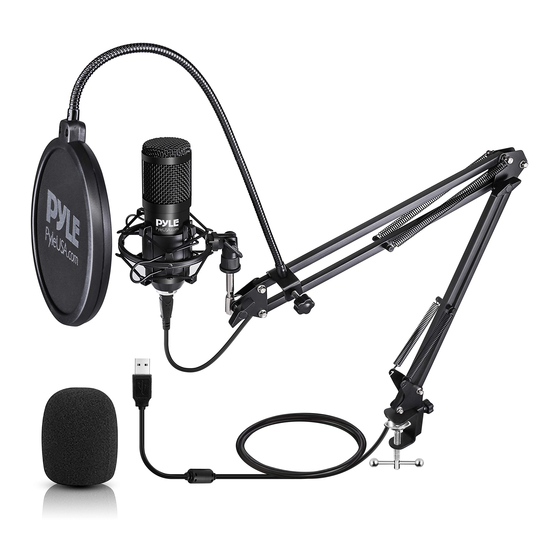

- Page 1 PDMIKT140 Professional USB Podcast Microphone Kit High-Res. Mic with USB Cable, Pop Filter, Mic Stand, Shock Mount...
-
Page 2: Parts List
INSTRUCTION Thoroughly read the instruction manual before assembly. Retain the instruction manual for future reference. PARTS LIST 1. Condenser Microphone 2. Adjustable Suspension Scissor Arm 3. Desk Mount Clamp 4. Shock Mount 5. Pop Filter 6. Ball-type Foam Cap 7. USB cable www.PyleUSA.com... -
Page 3: Installation
INSTALLATION 1. Unpack the microphone set and ensure all the parts and accessories are present. 2. Fix the Desk Mount Clamp on the edge of a desk. Note: The desktop must be less than 1.85 inches in thickness. www.PyleUSA.com... - Page 4 3. Insert the foot base (black) of the Adjustable Arm 4. Screw the Shock Mount onto the threaded end of Stand into the Desk Mounting Clamp and tighten the Adjustable Arm Stand. the screw. www.PyleUSA.com...
- Page 5 5. Insert the Condenser Microphone into the Shock 6. Fix the Pop Filter on the Adjustable Arm Stand to Mount. complete the assembly. www.PyleUSA.com...
- Page 6 7. Microphone Direction Back Front www.PyleUSA.com...
- Page 7 8. Microphone Level Option 1 Option 2 www.PyleUSA.com...
- Page 8 9. Setup www.PyleUSA.com...
- Page 9 10. Windows 10/8/7 Windows 8 Start here: Windows 10/8/7 Pyle USB Microphone www.PyleUSA.com...
- Page 10 11. Microphone Level Pyle USB Microphone www.PyleUSA.com...
- Page 11 Features: Technical Specs: • Pro Audio Broadcasting Desktop Microphone • Connection Interface: USB Mini 2.0 • Simple USB ‘Plug-and-Play’ Operation • Microphone Type: Back Electret Condenser • Connects to Your Computer for Hassle-Free Sound • Microphone-core: Dia. 0.63'' (16mm) Condenser Control •...
- Page 12 Questions? Issues? We are here to help! Phone: (1) 718-535-1800 Email: support@pyleusa.com...
