Gigabyte R113-X30-AA02 User Manual

Gigabyte R113-X30-AA02 User Manual

Intel xeon e-2400 - 1u up 4-bay sata single 400w 80 plus gold power supply rack server
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

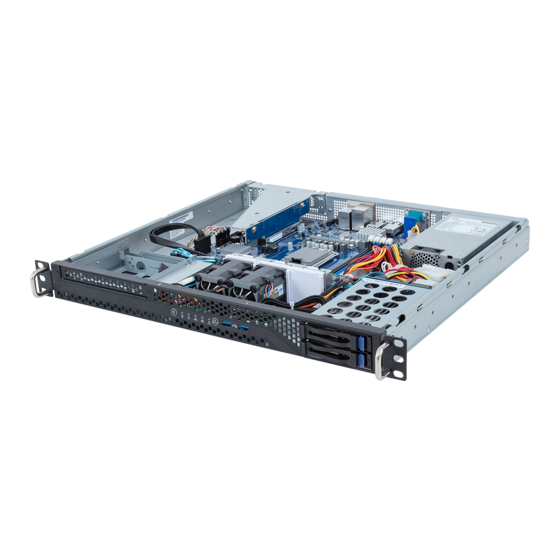

R113-X30-AA02
Rack Server - Intel® Xeon® E-2400 - 1U UP 4-Bay SATA
Single 400W 80 PLUS Gold power supply
User Manual
Rev. 1.0

Advertisement

Table of Contents
loading

Related Manuals for Gigabyte R113-X30-AA02

Summary of Contents for Gigabyte R113-X30-AA02

  • Page 1 R113-X30-AA02 Rack Server - Intel® Xeon® E-2400 - 1U UP 4-Bay SATA Single 400W 80 PLUS Gold power supply User Manual Rev. 1.0...
  • Page 2 For GIGABYTE distributors and resellers, additional sales & marketing materials are available from our reseller portal: http://reseller.b2b.gigabyte.com For further technical assistance, please contact your GIGABYTE representative or visit https://esupport.gigabyte.com/ to create a new support ticket For any general sales or marketing enquiries, you may also message GIGABYTE server directly by email: server.grp@gigabyte.com...
  • Page 3 Conventions The following conventions are used in this user's guide: NOTE! Pieces of additional information related to the current topic. CAUTION! Precautionary measures to avoid possible hardware or software problems. WARNING! Alerts to any damage that might result from doing or not doing specific actions.
  • Page 4 Server Warnings and Cautions Before installing a server, be sure that you understand the following warnings and cautions. WARNING! To reduce the risk of electric shock or damage to the equipment: • Do not disable the power cord grounding plug. The grounding plug is an important safety feature.
  • Page 5 Electrostatic Discharge (ESD) CAUTION! ESD CAN DAMAGE DRIVES, BOARDS, AND OTHER PARTS. WE RECOMMEND THAT YOU PERFORM ALL PROCEDURES AT AN ESD WORKSTATION. IF ONE IS NOT AVAILABLE, PROVIDE SOME ESD PROTECTION BY WEARING AN ANTI-STATIC WRIST STRAP AT- TACHED TO CHASSIS GROUND -- ANY UNPAINTED METAL SURFACE -- ON YOUR SERVER WHEN HANDLING PARTS.
  • Page 6 Installing or removing jumpers: A jumper is a small plastic encased conductor that slips over two jumper pins. Some jumpers have a small tab on top that can be gripped with fin-gertips or with a pair of fine needle nosed pliers. If the jumpers do not have such a tab, take care when us- ing needle nosed pliers to remove or install a jumper;...

  • Page 7: Table Of Contents

    Table of Contents Chapter 1 Hardware Installation ...................10 Installation Precautions .................. 10 Product Specifications ..................11 System Block Diagram ................... 14 Chapter 2 System Appearance ..................15 Front View ...................... 15 Rear View ....................... 16 Front Panel LED and Buttons ................ 17 Rear System LAN LEDs .................
  • Page 8 5-2-7 SIO Configuration ....................55 5-2-8 Option ROM Dispatch Policy ..................56 5-2-9 USB Configuration ....................57 5-2-10 Network Stack Configuration ..................58 5-2-11 CSM Configuration ....................59 5-2-12 NVMe Configuration ....................60 5-2-13 Chipset Configuration .....................61 5-2-14 Tls Auth Configuration ....................62 5-2-15 iSCSI Configuration ....................63 5-2-16 Intel(R) I210 Gigabit Network Connection ..............64 5-2-17 VLAN Configuration ....................66 5-2-18 Driver Health ......................67...
  • Page 9 This page intentionally left blank - 9 -...

  • Page 10: Chapter 1 Hardware Installation

    Chapter 1 Hardware Installation Installation Precautions The motherboard/system contain numerous delicate electronic circuits and components which can become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the service guide and follow these procedures: • Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or warranty sticker provided by your dealer.

  • Page 11: Product Specifications

    Product Specifications NOTE: We reserve the right to make any changes to the product specifications and product-related information without prior notice. System Security Server Socket Operating Properties Š 1U Dimension Š 430 (W) x 43.5 (H) x 393.2(D) mm System fan Power Supply Š...
  • Page 12 Expansion Slot Riser Card CRS101R: 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU Š 1 x M.2 slot: M-key Š PCIe Gen4 x4, from CPU Š Supports 2280 cards Š Internal I/O Š 1 x M.2 slot Š 1 x TPM header Front I/O Š...
  • Page 13 System Š Aspeed® AST2600 management controller Management Š GIGABYTE Management Console (AMI MegaRAC SP-X) web interface Š Dashboard Š HTML5 KVM Š Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.) Š Sensor Reading History Data Š FRU Information Š SEL Log in Linear Storage / Circular Storage Policy Š...

  • Page 14: System Block Diagram

    System Block Diagram 2-Channel DDR5, 4 x UDIMM slots Up to 4400 MHz , 4000 MHz (2DPC/1R) (1DPC) Riser CRS101R 3600 MHz (2DPC/2R) PCIe 5.0 x16 1 x FHHL PCIe 5.0 x16 slot Intel Xeon E-2400 M.2 slot PCIe 4.0 x4 Socket LGA 1700 SPI Flash 64 MB...

  • Page 15: Chapter 2 System Appearance

    Chapter 2 System Appearance Front View HDD0 HDD1 Description Front Panel LEDs and Buttons USB 3.2 Gen1 Port x 2 3.5" Drive Bays • Refer to section 2-3 Front Panel LEDs and Buttons for a detailed description of the function of the LEDs.

  • Page 16: Rear View

    Rear View 4 5 6 7 SLOT1 Description VGA Port Serial Port USB 3.2 Gen1 Port x 2 Server Management LAN Port 1 GbE LAN Port #1 1 GbE LAN Port #2 ID Button with LED PCIe Card Slot System Appearance - 16 -...

  • Page 17: Front Panel Led And Buttons

    Front Panel LED and Buttons Reset No. Name Color Status Description Power button Press the button to power on the system. with LED Green System is powered on Green Blink System is in ACPI S1 state (sleep mode) Power LED •...

  • Page 18: Rear System Lan Leds

    Rear System LAN LEDs Name Color Status Description Yellow 1 Gbps data rate 1GbE Speed Green 100 Mbps data rate 10 Mbps data rate Link between system and network or no access Green 1GbE Link / Blink Data transmission or reception is occurring. Activity LED No data transmission or reception is occurring.

  • Page 19: Hard Disk Drive Leds

    Hard Disk Drive LEDs HDD Present RAID SKU LED #1 Locate Rebuilding HDD Access Fault (No Access) Green ON(*1) BLINK (*2) Disk LED (LED on Back Panel) Amber No RAID configuration Removed HDD Green ON(*1) (via HBA) Slot (LED on Amber Back Panel) Green...

  • Page 20: Chapter 3 System Hardware Installation

    Chapter 3 System Hardware Installation Pre-installation Instructions Computer components and electronic circuit boards can be damaged by discharges of static electricity. Working on computers that are still connected to a power supply can be extremely dangerous. Follow the simple guidelines below to avoid damage to your computer or injury to yourself.

  • Page 21: Removing And Installing The Chassis Cover

    Removing and Installing the Chassis Cover Before you remove or install the system cover • Make sure the system is not turned on or connected to AC power. Follow these instructions to remove the chassis cover: Remove the two screws securing the top cover. Slide the cover to the rear of the system and then remove the cover in the direction indicated by the arrow.

  • Page 22: Removing And Installing The Hard Disk Drive

    Removing and Installing the Hard Disk Drive Read the following guidelines before you begin to install the hard disk drive: • Take note of the HDD tray orientation before sliding it out. • The tray will not fit back into the bay if it is inserted incorrectly. •...
  • Page 23 Follow these instructions to install one Hard disk drive: Loosen and remove the screws securing the HDD cage. Slide the HDD into the HDD cage. Replace the HDD cage to system and secure it with screw. Connect necessary cables. System Hardware Installation - 23 -...

  • Page 24: Removing And Installing The Heat Sink

    Removing and Installing the Heat Sink Read the following guidelines before you begin to install the heat sink: • Always turn off the computer and unplug the power cord from the power outlet before installing the heat sink to prevent hardware damage. •...

  • Page 25: Installing And Removing The Cpu

    Installing and Removing the CPU Read the following guidelines before you begin to install the CPU: • Make sure that the motherboard supports the CPU. • Always turn off the computer and unplug the power cord from the power outlet before installing the CPU to prevent hardware damage.
  • Page 26 NOTE! • When installing the heatsink to CPU,use T30-Lobe driver to tighten 4 captive nuts in sequence as 1-4. • The screw tightening torque: 8 ± 0.5 kgf-cm. System Hardware Installation - 26 -...

  • Page 27: Removing And Installing Memory

    Removing and Installing Memory Read the following guidelines before you begin to install the memory: • Make sure that the motherboard supports the memory. It is recommended that memory of the same capacity, brand, speed, and chips be used. • Always turn off the computer and unplug the power cord from the power outlet before installing the memory to prevent hardware damage.

  • Page 28: Installing And Removing A Memory Module

    3-5-2 Installing and Removing a Memory Module Before installing a memory module, make sure to turn off the computer and unplug the power cord from the power outlet to prevent damage to the memory module. Be sure to install DDR5 DIMMs on this motherboard. Make sure your DIMM slots have a single latch or a double latch.

  • Page 29: Dimm Population Table

    3-5-3 DIMM Population Table Memory Type DDR5 Connector UDIMM Speed Up to 4800 MT/s Supported Channels DIMM Per Channel DIMM Capacity (GB) 8,16,32 3-5-4 Processor and Memory Module Matrix Table CPU0 Memory Q’ty for each CPU 1 DIMM 2 DIMM 4 DIMM System Hardware Installation - 29 -...

  • Page 30: Removing And Installing The Pcie Card

    Removing and Installing the PCIe Card • Voltages can be present within the server whenever an AC power source is connected. This voltage is present even when the main power switch is in the off position. Ensure that the system is powered off and all power sources have been disconnected from the server prior to installing a PCIe card.

  • Page 31: Installing The M.2 Device

    Installing the M.2 Device CAUTION The position of the stand-off screw will depend on the size of the M.2 device. The stand-off screw is pre-installed for 2280 cards as standard. Refer to the size of the M.2 device and change the position of the stand-off screw accordingly.

  • Page 32: Cable Routing

    Cable Routing Motherboard: FP_1 Front Panel LEDs and Buttons Cable Front IO Board: J2 Motherboard: F_U32 Front USB Cable Front IO Board: J1 Motherboard: ATX System Power Cable Power Supply Cable System Hardware Installation - 32 -...
  • Page 33 Motherboard: SATA3_0_1 Front HDD Backplane Board: HDD1 Motherboard: SATA3_2_3 SATA Cable Front HDD Backplane Board: HDD2 Motherboard: SATA3_4_5 Reserved for internal Hard drives System Hardware Installation - 33 -...
  • Page 34 Motherboard: SATA_SGP1 HDD Backplane Signal Cable Front HDD Backplane Board: -- Motherboard: ATX12V_2X4 HDD Backplane Power Cable Front HDD Backplane Board: -- System Hardware Installation - 34 -...

  • Page 35: Chapter 4 Motherboard Components

    Chapter 4 Motherboard Components Motherboard Components Item Description 2 x 4 Pin 12V ATX Power Connector PMBus Connector 2 x 12 Pin ATX Power Connector SATA SGPIO1/2 Connector (Top #1/Bottom#2) SSATA III 6Gb/s Connectors (SATA_6_7) SATA III 6Gb/s Connectors (SATA_4_5) SATA III 6Gb/s Connectors (SATA_2_3) SATA III 6Gb/s Connectors (SATA_0_1) Password Clear Jumper...
  • Page 36 Item Description Front Panel USB 3.2 Gen1 Connector Front Panel Header TPM Connector BIOS Flash ROM IPMB Connector HDD Backplane Board Connector PCIe x8 Slot (Gen4 x4) BMC Firmware Readiness LED NCSI Connector BIOS Advanced Mode PCIe x16 Slot (Gen5 x16) M.2 Slot (PCIe Gen4 x4, Support NGFF-2280) System Battery Socket PCIe Configuration Switch...

  • Page 37: Jumper Settings

    Jumper Settings NCSI_SW LAN1 CN_NCSI Default Enable BIOS Enable Default Advanced Mode Power On 1 2 3 BIOS_ADV 1 2 3 Select S3_MASK 1-2 Close: Normal Mode (Default) 2-3 Close: BIOS Core Tree Execu on Default Enable Recovery 1 2 3 ME_RCVR Default Enable Force Update...

  • Page 38: Chapter 5 Bios Setup

    Chapter 5 BIOS Setup BIOS (Basic Input and Output System) records hardware parameters of the system in the EFI on the motherboard. Its major functions include conducting the Power-On Self-Test (POST) during system startup, saving system parameters, loading the operating system etc. The BIOS includes a BIOS Setup program that allows the user to modify basic system configuration settings or to activate certain system features.
  • Page 39  Main This setup page includes all the items of the standard compatible BIOS.  Advanced This setup page includes all the items of AMI BIOS special enhanced features. (ex: Auto detect fan and temperature status, automatically configure hard disk parameters.) ...

  • Page 40: The Main Menu

    The Main Menu Once you enter the BIOS Setup program, the Main Menu (as shown below) appears on the screen. Use arrow keys to move among the items and press <Enter> to accept or enter other sub-menu. Main Menu Help The on-screen description of a highlighted setup option is displayed on the bottom line of the Main Menu.
  • Page 41 Parameter Description BIOS Information Project Name Displays the project name information. Project Version Displays version number of the BIOS setup utility. Build Date and Time Displays the date and time when the BIOS setup utility was created. BMC Information (Note1) BMC Firmware Version Displays BMC firmware version information.
  • Page 42 Parameter Description Onboard LAN Information LAN1 MAC Address Displays LAN MAC address information. (Note) LAN2 MAC Address (Note) Displays LAN MAC address information. ME FW Version Displays the ME firmware version information. System Language Default setting is English. System Date Sets the date following the weekday-month-day-year format.

  • Page 43: Advanced Menu

    Advanced Menu The Advanced Menu displays submenu options for configuring the function of various hardware components. Select a submenu item, then press <Enter> to access the related submenu screen. BIOS Setup - 43 -...

  • Page 44: Cpu Configuration

    5-2-1 CPU Configuration Parameter Description CPU Configuration Performance-core Information Press [Enter] to view the P-core information. ID/Brand String/SMX/TXT/CPU Displays the technical information for the installed processor(s). Flex Ratio Settings Enable/Disable this item to turn on/off the MLC streamer prefetcher. Hardware Prefetcher Options available: Disabled, Enabled.

  • Page 45: Server Me Configuration

    5-2-2 Server ME Configuration BIOS Setup - 45 -...
  • Page 46 Parameter Description General ME Configuration Oper./Backup/Recovery Displays the ME firmware version information. Firmware Version ME Firmware Status 1/2 Displays the ME firmware status 1/2 information. Current State/Error Code/ Recovery Cause/ Intel ME Displays the ME firmware information. Target Image Boot The altitude of the platform location above the sea level, expressed Altitude in meters.

  • Page 47: System Event Log

    5-2-3 System Event Log Parameter Description System Errors (Note) Options available: Disabled, Enabled. Default setting is Enabled. Enable/Disable Whea Driver Support. This option may be not effective Whea Driver Support with some OS. Options available: Disabled, Enabled. Default setting is Enabled. Enable/Disable Whea FFM logging of errors.
  • Page 48 Parameter Description Fatal Error Enable Š – Options available: Disabled, Enabled. Default setting is Enabled. Uncorrected Error Enable Š – Options available: Disabled, Enabled. Default setting is Enabled. PCI/PCI Error Enabling Corrected Error Enable Š (continued) – Options available: Disabled, Enabled. Default setting is Enabled.

  • Page 49: Trusted Computing

    5-2-4 Trusted Computing Parameter Description Configuration Enable/Disable BIOS support for security device. OS will not show security device. TCG EFI protocol and INT1A interface will not be Security Device Support available. Options available: Enable, Disable. Default setting is Enable. BIOS Setup - 49 -...

  • Page 50: S5 Rtc Wake Settings

    5-2-5 S5 RTC Wake Settings Parameter Description Enable/Disable system wake on alarm event. Options available: Disabled, Fixed Time. When Fixed Time is selected, Wake System from S5 system will wake on the hr::min::sec specified. Default setting is Disabled. BIOS Setup - 50 -...

  • Page 51: Serial Port Console Redirection

    5-2-6 Serial Port Console Redirection Parameter Description Console redirection enables the users to manage the system from a COM Console remote location. Redirection (Note) Options available: Enabled, Disabled. Default setting is Disabled. Press [Enter] to configure advanced items. Please note that this item is configurable when COM Console Redirection is set to Enabled.
  • Page 52 Parameter Description Parity Š – A parity bit can be sent with the data bits to detect some transmission errors. – Even: parity bit is 0 if the num of 1's in the data bits is even. – Odd: parity bit is 0 if num of 1's in the data bits is odd. –...
  • Page 53 Parameter Description Legacy Console Redirection Press [Enter] to configure advanced items. Redirection COM Port Š – Selects a COM port for Legacy serial redirection. – Default setting is COM1. Resolution Š – Selects the number of rows and columns used in Console Redirection for legacy OS support.
  • Page 54 Parameter Description Flow Control EMS Š – Flow control can prevent data loss from buffer overflow. When sending data, if the receiving buffers are full, a 'stop' signal can Serial Port for Out-of-Band be sent to stop the data flow. Once the buffers are empty, a 'start' EMS Console Redirection signal can be sent to re-start the flow.

  • Page 55: Sio Configuration

    5-2-7 SIO Configuration Description Parameter Displays the AMI SIO driver version information. AMI SIO Driver Version Super IO Chip Logical Device(s) Configuration Press [Enter] to configure advanced items. Use This Device Š – When set to Enabled allows you to configure the serial port settings. When set to Disabled, displays no configuration for the serial port.

  • Page 56: Option Rom Dispatch Policy

    5-2-8 Option ROM Dispatch Policy Parameter Description If system fails to boot and this option is set to Enabled, software will reset settings of this page as well as CSM page to its default Restore if Failure values automatically. Options available: Disabled, Enabled. Default setting is Enabled. If software will detect that due to the Policy settings, Option ROM of Primary Video Device will not dispatch, it will ignore this device Primary Video Ignore...

  • Page 57: Usb Configuration

    5-2-9 USB Configuration Parameter Description USB Configuration USB Devices: Displays the USB devices connected to the system. Enable/Disable the XHCI (USB 3.0) Hand-off support. XHCI Hand-off Options available: Disabled, Enabled. Default setting is Enabled. USB hardware delays and time-outs Select the time-out value for USB Control/Bulk/Interrupt transfers. USB transfer time-out Options available: 1 sec, 5 sec, 10 sec, 20 sec.

  • Page 58: Network Stack Configuration

    5-2-10 Network Stack Configuration Parameter Description Enable/Disable the UEFI network stack. Network Stack Options available: Enabled, Disabled. Default setting is Enabled. Enable/Disable the Ipv4 PXE feature. Ipv4 PXE Support Options available: Enabled, Disabled. Default setting is Enabled. Enable/Disable the Ipv4 HTTP feature. Ipv4 HTTP Support Options available: Enabled, Disabled.

  • Page 59: Csm Configuration

    5-2-11 CSM Configuration Parameter Description Compatibility Support Module Configuration CSM Support (Note) Options available: Enabled, Disabled. Default setting is Disabled. Options available: UEFI and Legacy, Legacy only, UEFI only. Default setting Boot option filter is UEFI and Legacy. Option ROM execution - Network/Storage/Video/ Options available: UEFI, Legacy.

  • Page 60: Nvme Configuration

    5-2-12 NVMe Configuration Parameter Description NVMe Configuration Displays the NVMe devices connected to the system. BIOS Setup - 60 -...

  • Page 61: Chipset Configuration

    5-2-13 Chipset Configuration Parameter Description Defines the power state to resume to after a system shutdown that is due to an interruption in AC power. When set to Last State, the system will return to the active power state prior to shutdown. When set to Restore on AC Power Loss (Note) Power Off, the system remains off after power shutdown.

  • Page 62: Tls Auth Configuration

    5-2-14 Tls Auth Configuration Parameter Description Press [Enter] for configuration of advanced items. Enroll Cert Š – Press [Enter] to enroll a certificate • Enroll Cert Using File • Cert GUID Server CA Configuration Input digit character in 1111111-2222-3333-4444-1234567890ab format. –...

  • Page 63: Iscsi Configuration

    5-2-15 iSCSI Configuration Parameter Description Press [Enter] to configure advanced items. iSCSI Initiator Name Š – Only IQN format is accepted. Range: from 4 to 223 Host iSCSI Configuration Add an Attempt Š Delete Attempts Š Change Attempt Order Š BIOS Setup - 63 -...

  • Page 64: Intel(R) I210 Gigabit Network Connection

    5-2-16 Intel(R) I210 Gigabit Network Connection BIOS Setup - 64 -...
  • Page 65 Description Parameter Press [Enter] to configure advanced items. Link Speed Š – Allows for automatic link speed adjustment. – Options available: Auto Negotiated, 10 Mbps Half, 10 Mbps Full, 100 Mbps Half, 100 Mbps Full. Default setting is Auto Negotiated. Wake On LAN NIC Configuration Š...

  • Page 66: Vlan Configuration

    5-2-17 VLAN Configuration Parameter Description Press [Enter] to configure advanced items. Create new VLAN Š VLAN ID Š – Sets VLAN ID for a new VLAN or an existing VLAN. – Press the <+> / <-> keys to increase or decrease the desired values. –...

  • Page 67: Driver Health

    5-2-18 Driver Health Parameter Description Driver Health Displays driver health status of the devices/controllers if installed. BIOS Setup - 67 -...

  • Page 68: Chipset Menu

    Chipset Menu Chipset Setup menu displays submenu options for configuring the function of Platform Controller Hub(PCH). Select a submenu item, then press <Enter> to access the related submenu screen. BIOS Setup - 68 -...

  • Page 69: System Agent (Sa) Configuration

    5-3-1 System Agent (SA) Configuration Parameter Description Press [Enter] to configure advanced items. Memory Š – Press [Enter] to view/configure memory overclocking menu. Memory Configuration Š Memory Frequency Š – Displays the frequency information of installed memory. Channel and slot information of memory DIMMs. Š...
  • Page 70 Parameter Description VT-d Options available: Enabled, Disabled. Default setting is Enabled. Enable/Disable IOMMU in Pre-boot environment (If DMAR table is installed in DXE and if VTD_INFO_PPI is installed in PEI.) Control Iommu Pre-boot Behavior Options available: Disable IOMMU, Enable IOMMU during boot. Default setting is Disable IOMMU.

  • Page 71: Pch-Io Configuration

    5-3-2 PCH-IO Configuration Parameter Description PCH-IO Configuration Press [Enter] to configure advanced items. SATA Controller(s) Š – Enable/Disable SATA controller. – Options available: Enabled, Disabled. Default setting is Enabled. SATA Mode Selection Š – Determines how SATA controller(s) operate. – Options available: AHCI, Intel RSTe Premium with Intel Optane SATA And RSTe System Acceleration.

  • Page 72: Server Management Menu

    Server Management Menu Parameter Description Enable/Disable FRB-2 timer (POST timer). FRB-2 Timer Options available: Enabled, Disabled. Default setting is Disabled. FRB-2 Timer Enter value between 1 to 30 min for FRB-2 Timer Expiration. Default setting is 6. timeout (Note1) Configures the FRB2 Timer policy. FRB-2 Timer Options available: Do Nothing, Reset, Power Down, Power Cycle.
  • Page 73 Parameter Description System Event Log Press [Enter] to configure advanced items. View FRU Press [Enter] to view the FRU information. Information BMC network Press [Enter] to configure advanced items. Configuration IPv6 BMC Network Press [Enter] to configure advanced items. Configuration BIOS Setup - 73 -...

  • Page 74: System Event Log

    5-4-1 System Event Log Parameter Description Enabling / Disabling Options Change this item to enable or disable all features of System Event SEL Components Logging during boot. Options available: Enabled, Disabled. Default setting is Enabled. Erasing Settings Choose options for erasing SEL. Erase SEL Options available: No;...

  • Page 75: View Fru Information

    5-4-2 View FRU Information The FRU page is a simple display page for basic system ID information, as well as System product information. Items on this window are non-configurable. (Note) The model name will vary depends on the product you purchased. BIOS Setup - 75 -...

  • Page 76: Bmc Network Configuration

    5-4-3 BMC Network Configuration Parameter Description BMC network configuration Select NCSI and Dedicated Options available: Do Nothing, Model1(Dedicated), Model2(NCSI), Mode3(Failover). Default setting is Do Nothing. Lan Channel 1 Selects to configure LAN channel parameters statically or dynamically (DHCP). Configuration Address source Options available: Unspecified, Static, DynamicBmcDhcp.

  • Page 77: Ipv6 Bmc Network Configuration

    5-4-4 IPv6 BMC Network Configuration Parameter Description IPv6 BMC network configuration IPv6 BMC Lan Channel 1 Enable/Disable IPv6 BMC LAN channel function. When this item is disabled, the system will not modify any BMC network during BIOS IPv6 BMC Lan Option phase.

  • Page 78: Security Menu

    Security Menu The Security menu allows you to safeguard and protect the system from unauthorized use by setting up access passwords. There are two types of passwords that you can set: • Administrator Password Entering this password will allow the user to access and change all settings in the Setup Utility. •...

  • Page 79: Secure Boot

    5-5-1 Secure Boot The Secure Boot submenu is applicable when your device is installed the Windows 8 (or above) operating ® system. Parameter Description System Mode Displays if the system is in User mode or Setup mode. Enable/ Disable the Secure Boot function. Secure Boot Options available: Enabled, Disabled.
  • Page 80 Parameter Description Press [Enter] to configure advanced items. Please note that this item is configurable when Secure Boot Mode is set to Custom. Factory Key Provision Š – Allows to provision factory default Secure Boot keys when system is in Setup Mode.
  • Page 81 Parameter Description Authorized TimeStamps (DBT) Š – Displays the current status of the Authorized TimeStamps Database. – Press [Enter] to configure a new DBT or load additional DBT from storage devices. Key Management – Options available: Update, Append. (continued) OsRecovery Signatures Š...

  • Page 82: Boot Menu

    Boot Menu The Boot menu allows you to set the drive priority during system boot-up. BIOS setup will display an error message if the legacy drive(s) specified is not bootable. Parameter Description Boot Configuration Number of seconds to wait for setup activation key. 65535 (0xFFFF) Setup Prompt Timeout means indefinite waiting.
  • Page 83 Parameter Description FIXED BOOT ORDER Priorities Press [Enter] to configure the boot priority. By default, the server searches for boot devices in the following sequence: Hard drive. Boot Option #1 / #2 / #3 / #4 / #5 CD-COM/DVD drive. USB device.

  • Page 84: Save & Exit Menu

    Save & Exit Menu The Save & Exit menu displays the various options to quit from the BIOS setup. Highlight any of the exit options then press <Enter>. Parameter Description Save Options Restarts the system after saving the changes made. Save Changes and Reset Options available: Yes, No.

  • Page 85: Bios Recovery

    BIOS Recovery The system has an embedded recovery technique. In the event that the BIOS becomes corrupt the boot block can be used to restore the BIOS to a working state. To restore your BIOS, please follow the instructions listed below: Recovery Instruction: 1.

  • Page 86: Bios Post Beep Code (Ami Standard)

    BIOS POST Beep code (AMI standard) 5-9-1 PEI Beep Codes # of Beeps Description Memory not Installed. Memory was installed twice (InstallPeiMemory routine in PEI Core called twice) Recovery started DXEIPL was not found DXE Core Firmware Volume was not found Recovery failed S3 Resume failed Reset PPI is not available...
