Washing Machine

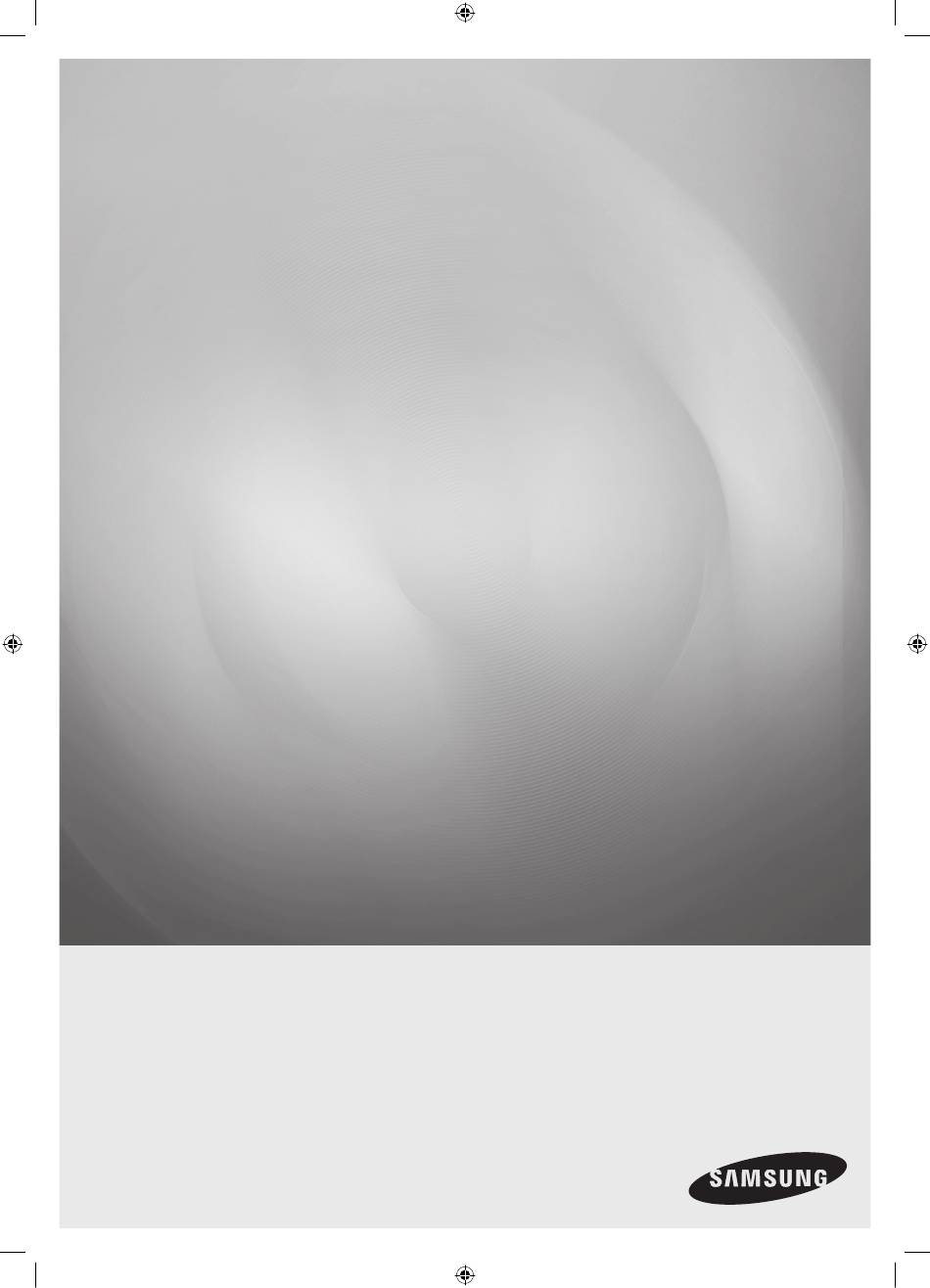

WF8752SP-02701D_EN.indd 1
WF8854GP(A/F/G/H/S/V/W/Z)
WF8852GP(A/F/G/H/S/V/W/Z)
WF8850GP(A/F/G/H/S/V/W/Z)
WF8754GP(A/F/G/H/S/V/W/Z)
WF8752GP(A/F/G/H/S/V/W/Z)
WF8750GP(A/F/G/H/S/V/W/Z)
user manual
imagine
the possibilities
Thank you for purchasing this Samsung product.
To receive a more complete service, please
register your product at
www.samsung.com/register
WF8854SP(A/F/G/H/S/V/W/Z)
WF8852SP(A/F/G/H/S/V/W/Z)
WF8850SP(A/F/G/H/S/V/W/Z)
WF8754SP(A/F/G/H/S/V/W/Z)
WF8752SP(A/F/G/H/S/V/W/Z)
WF8750SP(A/F/G/H/S/V/W/Z)
WF8854BP(A/F/G/H/S/V/W/Z)
WF8852BP(A/F/G/H/S/V/W/Z)
WF8850BP(A/F/G/H/S/V/W/Z)
WF8754BP(A/F/G/H/S/V/W/Z)
WF8752BP(A/F/G/H/S/V/W/Z)
WF8750BP(A/F/G/H/S/V/W/Z)
2010-9-7 15:47:28
Advertisement
Table of Contents
Related Manuals for Samsung WF8754SP
Summary of Contents for Samsung WF8754SP
- Page 1 WF8752GP(A/F/G/H/S/V/W/Z) WF8752SP(A/F/G/H/S/V/W/Z) WF8750GP(A/F/G/H/S/V/W/Z) WF8750SP(A/F/G/H/S/V/W/Z) WF8854BP(A/F/G/H/S/V/W/Z) WF8852BP(A/F/G/H/S/V/W/Z) WF8850BP(A/F/G/H/S/V/W/Z) WF8754BP(A/F/G/H/S/V/W/Z) WF8752BP(A/F/G/H/S/V/W/Z) WF8750BP(A/F/G/H/S/V/W/Z) Washing Machine user manual imagine the possibilities Thank you for purchasing this Samsung product. To receive a more complete service, please register your product at www.samsung.com/register WF8752SP-02701D_EN.indd 1 2010-9-7 15:47:28...
- Page 2 Service Technician if needed. • Baby Care System Your Samsung washing machine includes wash programs that adds protection to the clothing of children with sensitive skin. These programs reduce skin irritation in children by minimizing detergent residue. In addition,...
- Page 3 This manual contains important information on the installation, use, and care of your new Samsung washing machine. Refer to it for descriptions of the control panel, instructions on how to use the washing machine, and tips for making the most of its state-of-the-art features and functions.
- Page 4 Congratulations on your new Samsung ActivFresh™ washer. This manual contains important information on the installation, use and care of your appliance. Please take time to read this manual to take full advantage of your washer’s many benefits and features.
- Page 5 Do not let children (or pets) play on or in your washing machine. The washing machine door does not open easily from the inside, and children may be seriously injured if trapped inside. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or WARNING instruction concerning use of the appliance by a person responsible for their safety.
- Page 6 safety information SEVERE WARNING SIGNS FOR INSTALLATION WARNING The installation of this appliance must be performed by a qualified technician or service company. - Failure to do so may result in electric shock, fire, an explosion, problems with the product, or injury. The appliance is heavy, take care upon lifting it Plug the power cord into an AC 220-240V / 60Hz wall socket or higher and use the socket for this appliance only.
- Page 7 Do not hook the power cord over a metal object, place a heavy object on the power cord, insert the power cord between objects, or push the power cord into the space behind the appliance. - This may result in electric shock or fire. Do not pull the power cord, when unplugging the power plug.
- Page 8 safety information Do not wash items contaminated with gasoline, kerosene, benzene, paint thinner, alcohol or other flammable or explosive substances. - This may result in electric shock, fire or an explosion. Do not open the washer door by force while it is operating (high-temperature washing/ drying/spinning).
- Page 9 CAUTION SIGNS FOR USING CAUTION When the washer is contaminated by a foreign substance such as detergent, dirt, food waste, etc., unplug the power plug and clean the washer using a damp and soft cloth. - Failure to do so may result in discoloration, deformation, damage or rust. The front glass may be broken by a strong impact.
- Page 10 safety information Do not stand on top of the appliance or place objects (such as laundry, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance. - This may result in electric shock, fire, problems with the product, or injury. Do not spray volatile material such as insecticide onto the surface of the appliance.
- Page 11 Do not use natural hand-washing soap for the washer. - If it hardens and accumulates inside the washer, it may result in problems with the product, discoloration, rust or bad odors. Do not wash large laundry items such as bedding in the washing net. - Place socks and brassieres into the washing net and wash them with the other laundry.
-
Page 12: Table Of Contents
contents SETTING UP YOUR WASHING Checking the parts MACHINE Meeting installation requirements Electrical supply and grounding Water Supply Drain Flooring Surrounding temperature Alcove or closet installation Installing your washing machine WASHING A LOAD OF LAUNDRY Washing for the first time Basic instructions Using the control panel Child lock... -
Page 13: Setting Up Your Washing Machine
Carefully unpack your washing machine, and make sure you’ve received all of the parts shown below. If your washing machine was damaged during shipping, or if you do not have all of the parts, contact Samsung Customer Service or your Samsung dealer. Release lever... -
Page 14: Meeting Installation Requirements
setting up your washing machine MEETING INSTALLATION REQUIREMENTS Electrical supply and grounding To prevent unnecessary risk of fire, electrical shock, or personal injury, all wiring and grounding must be done in accordance with the National Electrical Code ANSI/FNPA, No. 70 Latest Revision and local codes and ordinances. -
Page 15: Drain
Drain Samsung recommends a standpipe height of 65 cm. The drain hose must be routed through the drain hose clip to the standpipe. The standpipe must be large enough to accept the outside diameter of the drain hose. The drain hose is attached at the factory. - Page 16 setting up your washing machine STEP 2 Removing the shipping bolts Before installing the washing machine, you must remove all shipping bolts from the back of the unit. 1. Loosen all the bolts with the supplied wrench. 2. Hold the bolt with the spanner and pull it through the wide section of the hole.
- Page 17 STEP 3 Adjusting the levelling feet When installing your washing machine, ensure that the power plug, the water supply and the drain are easily accessible. 1. Slide the washing machine into position. 2. Level your washing machine by turning the leveling feet in and out as necessary by hand.
- Page 18 setting up your washing machine Connecting the water supply hose (selected models) 1. Remove the adaptor from the water supply hose. Adoptor Water supply hose 2. First, using a ‘+’ type screwdriver, loosen the four screws on the adaptor. Next, take the adaptor and turn part (2) following the arrow until there is a 5 mm gap.
- Page 19 6. Turn on the water supply and ensure that no water leaks ✗ from the water valve, tap or adaptor. If there is a water leaks, repeat the previous steps. Do not use your washing machine if there is a water leak. This may cause electric shock or injury.
- Page 20 setting up your washing machine Connecting the drain hose The end of the drain hose can be positioned in three ways: 1. Over the edge of a wash basin: The drain hose must be placed at a height of between 60 and 90 cm.
-
Page 21: Washing A Load Of Laundry
With your new Samsung washing machine, the hardest part of doing laundry will be deciding which load to wash first. WASHING FOR THE FIRST TIME Before washing laundry for the first time, you must run a complete empty cycle (i.e. no laundry). -
Page 22: Using The Control Panel
washing a load of laundry USING THE CONTROL PANEL DIGITAL GRAPHIC Displays the remaining wash cycle time, all cycle information, and error DISPLAY messages. Select the tumble pattern and spin speed for the cycle. For detailed information, refer to “Washing clothes using the cycle selector”. - Page 23 Daily Wash - Use for everyday items such as underwear and shirts. Quick 29’ - For lightly soiled garments that you require quickly. Drain - Just drain the water from washing machine without spinning. Spin - Performs an additional spin cycle to remove more water. Rinse + Spin - Use for a load that needs rinsing only or to add rinse- added fabric softener to a load.
-
Page 24: Child Lock
washing a load of laundry Child lock The Child Lock function allows you to lock the buttons so that the wash cycle you’ve chosen can’t be changed. Activating/Deactivating If you want to activate or deactivate the Child Lock function, press the Temp. and Rinse buttons at the same time for 3 seconds. -
Page 25: Washing Clothes Using The Cycle Selector
Washing clothes using the cycle selector Your new washing machine makes washing clothes easy, using Samsung’s “Fuzzy Control” automatic control system. When you select a wash program, the machine will set the correct temperature, washing time, and washing speed. 1. Turn on your sink’s water tap. -
Page 26: Washing Clothes Manually
washing a load of laundry Washing clothes manually You can wash clothes manually without using the Cycle Selector. 1. Turn the water supply on. 2. Press the Power button on the washing machine. 3. Open the door. 4. Load the articles loosely into the drum one at a time, without overfilling it. 5. - Page 27 Determining the load capacity Do not overload the washing machine or your laundry may not wash properly. Use the chart below to determine the load capacity for the type of laundry you are washing. Fabric Type Load Capacity WF8854/ WF8754/ Model WF8852/ WF8752/...
-
Page 28: Detergent And Additives Information
washing a load of laundry DETERGENT AND ADDITIVES INFORMATION Which detergent to use The type of detergent you should use is based on the type of fabric (cotton, synthetic, delicate items, wool), colour, wash temperature, and degree of soiling. Always use “low suds” laundry detergent, which is designed for automatic washing machines. -
Page 29: Cleaning And Maintaining Your Washing Machine
cleaning and maintaining your washing machine Keeping your washing machine clean improves its performance, wards off unnecessary repairs, and lengthens its life. DRAINING THE WASHING MACHINE IN AN EMERGENCY 1. Unplug the washing machine from the power supply. 2. Open the filter cover using a coin or a key. Filter cover 3. -
Page 30: Cleaning The Detergent Drawer And Drawer Recess
cleaning and maintaining your washing machine CLEANING THE DETERGENT DRAWER AND DRAWER RECESS 1. Press the release lever on the inside of the Release lever detergent drawer and pull the drawer out. Liquid detergent divider 2. Remove the liquid detergent divider from the detergent drawer 3. -
Page 31: Cleaning The Debris Filter
CLEANING THE DEBRIS FILTER We recommend cleaning the debris filter 5 or 6 times a year, or when the error message of “5E” is displayed. (Refer to “Draining the washing machine in an emergency” in the previous page.) Before cleaning the debris filter, make sure to unplug the power cord. CAUTION 1. -
Page 32: Repairing A Frozen Washing Machine
cleaning and maintaining your washing machine REPAIRING A FROZEN WASHING MACHINE If the temperature drops below freezing and your washing machine is frozen: 1. Unplug the washing machine. 2. Pour warm water over the tap to loosen the water supply hose. 3. -
Page 33: Troubleshooting And Information Codes
Door is locked shut or will • The door will not open until 3 minutes after the machine stops or the not open. power turns off. If the problem persists, contact your local Samsung Customer Service. troubleshooting and information codes _33 WF8752SP-02701D_EN.indd 33 2010-9-7 15:48:22... - Page 34 • Call the after-sales service. cE/3E For any codes not listed above, or if the suggested solution doesn’t fix the problem, call your Samsung Service Centre or local Samsung dealer. 34_ troubleshooting and information codes WF8752SP-02701D_EN.indd 34...
- Page 35 cycle chart CYCLE CHART user option) Max load(kg) DETERGENT Max Temp WF8854/ WF8754/ PROGRAM Silver wash (˚C) WF8852/ WF8752/ Pre-wash wash Softener WF8850 WF8750 Cotton Synthetics Denim Sports Wear ...
-
Page 36: Appendix
appendix FABRIC CARE CHART The following symbols provide garment care directions. The care labels include four symbols in this order: washing, bleaching, drying and ironing, and dry cleaning when necessary. The use of symbols ensures consistency among garment manufacturers of domestic and imported items. Follow the care label directions to maximize garment life and reduce laundering problems. - Page 37 SPECIFICATIONS TYPE FRONT LOADING WASHING MACHINE WF8854SP/WF8854BP/WF8854GP WF8852SP/WF8852BP/WF8852GP DIMENSIONS WF8850SP/WF8850BP/WF8850GP W598mm X D600mm X H844mm WATER PRESSURE 50 kPa ~ 800 kPa WATER VOLUME ℓ WF8854SP/ WF8854BP/ WF8854GP/ WF8852SP/ WF8852BP/ WF8852GP/ WF8850SP WF8850BP WF8850GP NET WEIGHT 68 kg / 69 kg / 71 kg 73 kg 71 kg...
- Page 38 SPECIFICATIONS TYPE FRONT LOADING WASHING MACHINE WF8754SP/WF8754BP/WF8754GP WF8752SP/WF8752BP/WF8752GP DIMENSIONS WF8750SP/WF8750BP/WF8750GP W598mm X D600mm X H844mm WATER PRESSURE 50 kPa ~ 800 kPa WATER VOLUME ℓ WF8754SP/ WF8754BP/ WF8754GP/ WF8752SP/ WF8752BP/ WF8752GP/ NET WEIGHT WF8750SP WF8750BP WF8750GP 68 kg 69 kg WASH AND SPIN CAPACITY 7.5 kg...
- Page 39 memo WF8752SP-02701D_EN.indd 39 2010-9-7 15:48:27...
- Page 40 QUESTIONS OR COMMENTS? Country CALL OR VISIT US ONLINE AT 1-800-10-SAMSUNG(726-7864) 1-800-3-SAMSUNG(726-7864) PHILIPPINES www.samsung.com 1-800-8-SAMSUNG(726-7864) 02-5805777 Code No. DC68-02701D_EN WF8752SP-02701D_EN.indd 40 2010-9-7 15:48:27...
