SECO-LARM ENFORCER SA-025Q Installation Manual

Multi-purpose programmable timer

Download this manual

Multi-Purpose

Programmable Timer

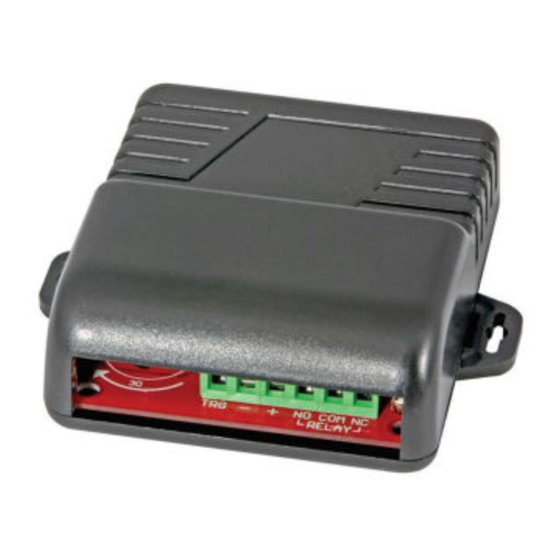

SA-025Q

Installation Manual

The SA-025Q Programmable Timer Module is suitable for a wide range of timed security and

access control operations. Auto-sensing of input voltage and DIP switches for programming make

installation easy.

 Timer can be set from 1 second to 60 minutes

 Can be triggered via an N.O. positive (+) trigger input signal or an N.C. negative (-) trigger

device or by powering up the unit

 Relay can be programmed to activate at the start or at the end of the timing cycle

 Relay can also be set to activate for one second at the end of the timing cycle

 Relay can be programmed to pulse (flash) or be steady on

 Built-in reset function to manually reset timing cycle

 Form-C relay, contact rated 10A@24VDC/250VAC

 LED indicates relay is energized

 12~24VDC operation (auto sensing)

 Current draw – Less than 1mA (standby) or 40mA (relay energized)

 Functions programmed via DIP switches – no jumpers to cut

Page 1 Multi-Purpose Programmable Timer SA-025Q Installation Manual The SA-025Q Programmable Timer Module is suitable for a wide range of timed security and access control operations. Auto-sensing of input voltage and DIP switches for programming make installation easy.  Timer can be set from 1 second to 60 minutes ...
Page 2 2. Turn the thumbwheel clockwise to increase duration or counter-clockwise to decrease duration. 3. Test the duration and make adjustments as needed. NOTE: Be sure to carefully test the duration to ensure that it is suitable for your needs. SECO-LARM U.S.A., Inc.
Page 3 Action – If the TRG terminal is momentarily connected to (+), the relay output immediately turns on and stays on for as long as the TRG terminal is connected to (+). Once the TRG connection is broken, the relay output remains activated for the timer's set duration and then turns off. SECO-LARM U.S.A., Inc.
Page 4 SECO-LARM’s obligation is limited to the repair or replacement of any defective part if the unit is returned, transportation prepaid, to SECO-LARM. This Warranty is void if damage is caused by or attributed to acts of God, physical or electrical misuse or abuse, neglect, repair or alteration, improper or abnormal usage, or faulty installation, or if for any other reason SECO-LARM determines that such equipment is not operating properly as a result of causes other than defects in material and workmanship.
