Features:
• 12~24VDC (auto-sensing) operation
• Low current draw
• Form C relay output (10A@24VDC)
• 7 modes easily programmable with
pushbuttons and LED display (auto door
closure, guard timer, pulse extender / false
trigger avoidance, timed relay output, timed
pulse relay output, input counter, input timer)
• Mode and last programmed settings remain
after power loss

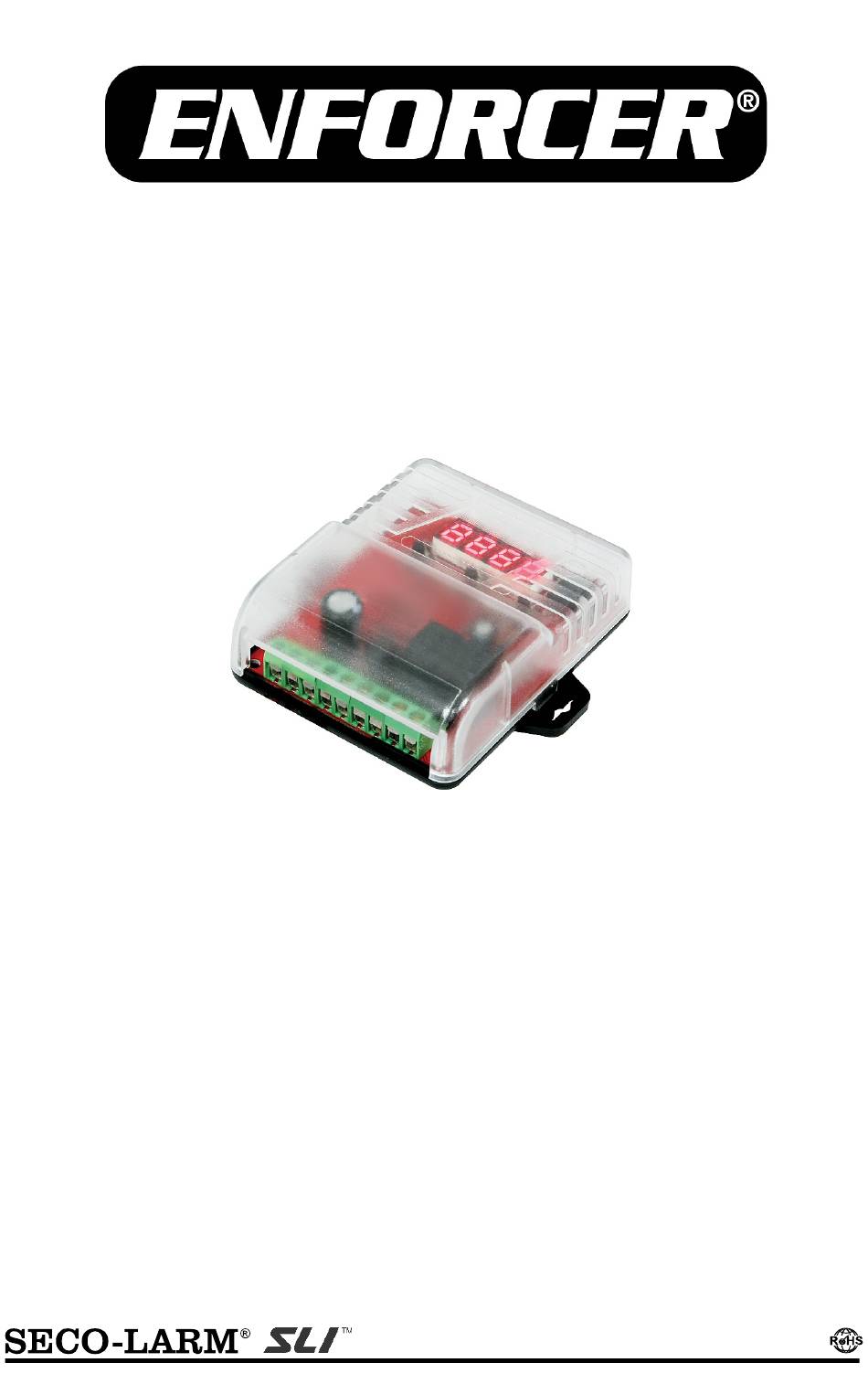

SA-025MQ
Multi-Function Timer/Counter
Manual
• Timer can be set from 1sec~11h 59min
• Can be set to trigger notification (red LED
and/or buzzer) and/or relay output
• Can be triggered by N.O.+ or N.C.– input
• Relay can be programmed to trigger at the
start or end of the timing cycle, or to toggle
• Relay can be programmed to pulse (0.5sec
on / 0.5sec off) or steady on
• Includes reset input (N.O.–) to manually
reset cycle

Advertisement

Table of Contents
loading

Related Manuals for SECO-LARM SLI ENFORCER SA-025MQ

Summary of Contents for SECO-LARM SLI ENFORCER SA-025MQ

  • Page 1 SA-025MQ Multi-Function Timer/Counter Manual Features: • 12~24VDC (auto-sensing) operation • Timer can be set from 1sec~11h 59min • Low current draw • Can be set to trigger notification (red LED and/or buzzer) and/or relay output • Form C relay output (10A@24VDC) •...

  • Page 2: Parts List

    For a manual reset option, a reset button (N.O.–, not included) must be connected between the reset input (N.O.–) and the power supply’s negative terminal (see "Sample Applications," pg. 3). SECO-LARM U.S.A., Inc.

  • Page 3: Sample Applications

    Sensors to detect any door/gate obstruction and override the door closer should be installed when connected to a door closer relay. SECO-LARM will not be held responsible for the use of this product in violation of any current laws or statutes nor any injuries or damage that may result from its use.
  • Page 4 The process can also be interrupted using a manual reset button (see Fig. 4 for sample wiring diagram). SECO-LARM U.S.A., Inc.
  • Page 5 00:01 to set the time units to hours:minutes 4. Use the "Up" or "Down" buttons while viewing the display to set the relay output duration (according to the units set in step 3). Press "Enter" to confirm. SECO-LARM U.S.A., Inc.
  • Page 6 1. After entering programming mode, use the Power (optional, "Up" or "Down" buttons to set the display N.O.–) Supply to 00:06 to choose "Mode 6" and press *Notification (internal LED/Buzzer or external) only "Enter" to confirm. for countdown counter/timer. SECO-LARM U.S.A., Inc.
  • Page 7 4. The buzzer will sound 3 times and the display will flash through the settings in order (00:07 for Mode 7, timer mode type, countdown duration) and automatically exit the programming mode returning to display the time remaining. SECO-LARM U.S.A., Inc.

  • Page 8: Troubleshooting

    WARRANTY: This SECO-LARM product is warranted against defects in material and workmanship while used in normal service for one (1) year from the date of sale to the original customer. SECO-LARM’s obligation is limited to the repair or replacement of any defective part if the unit is returned, transportation prepaid, to SECO-LARM. This Warranty is void if...
