- Page 1 SAMSUNG ML 1630 ™ CARTRIDGE REMANUFACTURING INSTRUCTIONS SAMSUNG ML 1630 LASER PRINTER TONER CARTRIDGE...

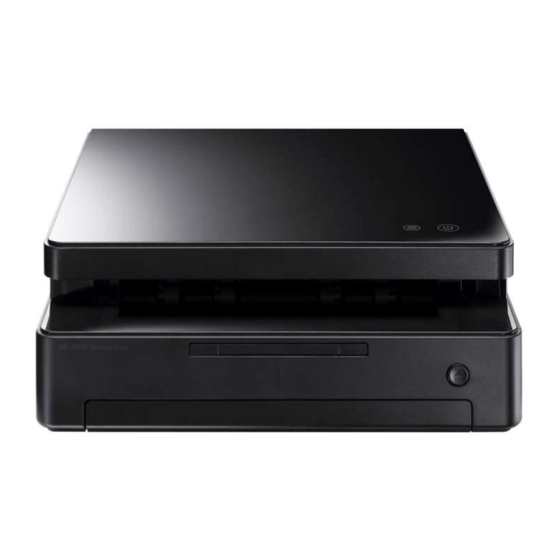

- Page 2 First released in October 2007, Samsung ML-1630, ML-1631, ML-1630S, and SCX-4500 Printers are based on one of Samsung’s newest engines. The ML-1630 series runs at 17 ppm with a maximum resolution of 600 dpi. The design is new for Samsung and all other printer manufacturers for that matter.
-
Page 3: Required Tools
UNINET IMAGING INC. • SAMSUNG ML 1630 CARTRIDGE REMANUFACTURING INSTRUCTIONS REQUIRED TOOLS NOTES 1. Toner Approved Vacuum 2. A Small Common Screw Driver 3. A Phillips Head Screwdriver 4. Needle Nose Pliers REQUIRED SUPPLIES 1. 40g Toner 2. New Replacement Chip 3. - Page 4 UNINET IMAGING INC. • SAMSUNG ML 1630 CARTRIDGE REMANUFACTURING INSTRUCTIONS 3. While still on the left end cap, locate the top and bottom 4. Press in on these tabs, and remove the end cap. tabs. NOTES 5. End cap removed.
- Page 5 UNINET IMAGING INC. • SAMSUNG ML 1630 CARTRIDGE REMANUFACTURING INSTRUCTIONS 6. On the right side end cap, press in on the top tab and remove the end cap. The right side does not have a bottom tab, but it fits on very tight and must be carefully pried off.
- Page 6 UNINET IMAGING INC. • SAMSUNG ML 1630 CARTRIDGE REMANUFACTURING INSTRUCTIONS 8. Pull the metal drum axle from the toner hopper clips on both sides. NOTES 9. Remove the drum/waste assembly.
- Page 7 UNINET IMAGING INC. • SAMSUNG ML 1630 CARTRIDGE REMANUFACTURING INSTRUCTIONS NOTES 10. On the top cover, lift up on the PCR. Remove the PCR from the assembly. Clean the PCR with your normal PCR cleaner. WARNING: Do not clean the OEM PCR with alcohol, as this will remove the conductive coating from the roller.
- Page 8 UNINET IMAGING INC. • SAMSUNG ML 1630 CARTRIDGE REMANUFACTURING INSTRUCTIONS 12. Remove the drum axle from the clips on both sides of the waste assembly. Remove the drum. 13. Remove the two screws from the doctor blade, remove the 14. Remove the two screws from the doctor blade, remove the blade.
- Page 9 UNINET IMAGING INC. • SAMSUNG ML 1630 CARTRIDGE REMANUFACTURING INSTRUCTIONS 15. Install the cleaned or new doctor blade and two screws. 16. The gear side of the drum axle shaft has conductive grease on it. Regardless of if you are replacing the drum or not, clean the old grease off, and replace with new.
- Page 10 UNINET IMAGING INC. • SAMSUNG ML 1630 CARTRIDGE REMANUFACTURING INSTRUCTIONS 19. On the fill plug side of the hopper, locate the double plas- 20. Take the long tail of the spring and move it off the devel- oper roller shaft so it sits against the bushing.
- Page 11 UNINET IMAGING INC. • SAMSUNG ML 1630 CARTRIDGE REMANUFACTURING INSTRUCTIONS 22. Slide the developer roller over, and lift out to remove. 23. Remove the 2 screws from the doctor blade, remove the blade. Clean out all the remaining toner from the hopper.
- Page 12 UNINET IMAGING INC. • SAMSUNG ML 1630 CARTRIDGE REMANUFACTURING INSTRUCTIONS 26. Install the doctor blade and two screws. 27. Clean the developer roller with a dedicated DVR cleaner, and replace into the hopper. Install the gear side first. 28. While holding the DVR contact spring back, install the double bushing. Make sure it snaps into place.
- Page 13 UNINET IMAGING INC. • SAMSUNG ML 1630 CARTRIDGE REMANUFACTURING INSTRUCTIONS 29. Set the long tail of the contact spring so it touches the 30. Fill the hopper with 40g ML-1630 toner, replace the fill shaft of the developer roller. plug and check for leaks.
- Page 14 UNINET IMAGING INC. • SAMSUNG ML 1630 CARTRIDGE REMANUFACTURING INSTRUCTIONS 32. Slide the middle top cover/PCR assembly into place. Make sure the two middle tabs fit under the edge of the waste hopper. 33. Take the right side end cap align the drum axle keyed end so it will fit into the keyed slot of the end cap. Snap the end cap...
- Page 15 UNINET IMAGING INC. • SAMSUNG ML 1630 CARTRIDGE REMANUFACTURING INSTRUCTIONS NOTES 34. Install the three screws into the end cap. 35. Clean the contacts on the left side end cap, and replace the conductive grease. Snap the end cap into place, and replace the...
- Page 16 UNINET IMAGING INC. • SAMSUNG ML 1630 CARTRIDGE REMANUFACTURING INSTRUCTIONS 36. To replace the chip, drill out the two plastic rivets with a small drill, remove the cover, and chip. I used a 5/64” bit. 37. Install the new chip and cover, insert 2 small screws that correspond to the holes drilled to hold everything in place.
- Page 17 UNINET IMAGING INC. • SAMSUNG ML 1630 CARTRIDGE REMANUFACTURING INSTRUCTIONS REPETITIVE DEFECT CHART Upper Heat Roller 77.09mm Lower Pressure Roller 75.36 OPC Drum 62.8mm Transfer Roller 47.1mm Supply Roller 46.9mm Developer Roller 35.2mm 26.7mm PRINTER ERROR MESSAGES !!T1 Toner Exhausted !!T2 Invalid toner.
