DAILY REFERENCE
GUIDE
THANK YOU FOR BUYING A ARISTON PRODUCT.
In order to receive a more complete assistance,
please register your appliance on:
www.aristonchannel.com
Before using the appliance carefully read Safety Instructions.

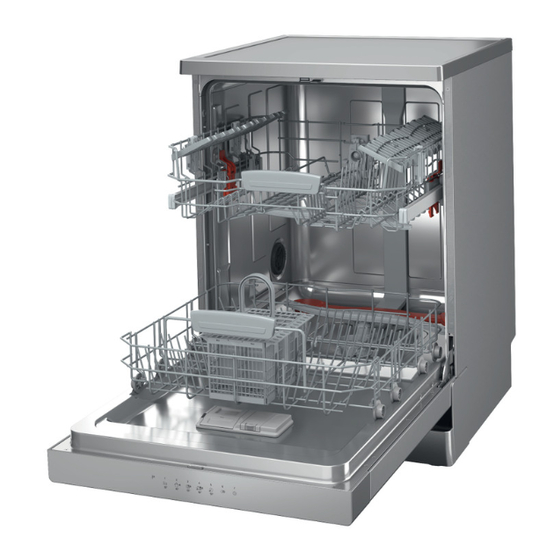

PRODUCT DESCRIPTION
APPLIANCE
7
8
9
11
Service:
0000 000 00000
12
CONTROL PANEL
1
1.
On-Off / Reset button with indicator light
2.
Program selection button with indicator light
3.
Zone Wash 3D button with indicator light / Keylock
4.
Eco program indicator light
5.
Keylock indicator light
6.
Display
7.
Program number and remaining time indicator
2
3
4
5
6
You can download the Safety Instructions and the User
Manual, by visiting our website www.aristonchannel.com
and following the Instructions on the back of this booklet.
1
1.
Upper rack
2
2.
Foldable flaps
3.
Upper rack height adjuster
4.
Upper spray arm
5.
Lower rack
3
6.
Cutlery basket
4
7.
Lower spray arm
5
8.
Filter Assembly
9.
Salt reservoir
6
10. Detergent and Rinse Aid dispensers
11. Rating plate
10
12. Control panel
7
8
9 10
11
12
8.
Tablet (Tab) indicator light
9.
Closed water tap indicator light
10. Rinse Aid refill indicator light
11. Salt refill indicator light
12. Short Time button with indicator light / Tablet (Tab)
13. Delay button with indicator light
14. Start/Pause button with indicator light / Drain out
LFC 3C26 W X 60HZ
13
14
EN
1

Advertisement

Table of Contents
loading

Related Manuals for Ariston LFC 3C26 W X 60HZ

Summary of Contents for Ariston LFC 3C26 W X 60HZ

  • Page 1 DAILY REFERENCE GUIDE LFC 3C26 W X 60HZ THANK YOU FOR BUYING A ARISTON PRODUCT. You can download the Safety Instructions and the User In order to receive a more complete assistance, Manual, by visiting our website www.aristonchannel.com please register your appliance on: and following the Instructions on the back of this booklet.
  • Page 2 FIRST TIME USE SALT, RINSE AID AND DETERGENT ADVICE REGARDING THE FIRST TIME USE FILLING THE RINSE AID DISPENSER Rinse aid makes dish DRYING easier. The rinse aid dispenser A should After installation, remove the stoppers from the racks and the retaining be filled when the RINSE AID REFILL indicator light in the control elastic elements from the upper rack.

  • Page 3: Programs Table

    PROGRAMS TABLE Duration Water Energy of wash Program Available options consumption consumption program (litres/cycle) (kWh/cycle) (h:min) 1. Eco 50° 3:10 0.95 2. Auto Intensive 65° 2:00 - 3:10 14.0 - 17.0 1.50 - 1.85 3. Auto Mixed 55° 1:30 - 2:30 14.5 - 16.0 1.15 - 1.30 4.
  • Page 4 OPTIONS AND FUNCTIONS OPTIONS can be selected directly by pressing the corresponding button (see CONTROL PANEL). If an option is not compatible with the selected program see PROGRAMS TABLE, the corresponding LED flashes rapidly 3 times and beeps will sound. The option will not be enabled. ZONE WASH 3D DELAY Option works with one rack at once.

  • Page 5: Loading The Racks

    LOADING THE RACKS UPPER RACK LOWER RACK Load delicate and light dishes: For pots, lids, plates, salad bowls, cutlery etc. Large plates and lids glasses, cups, saucers, low salad should ideally be placed at the sides to avoid interferences with the bowls.

  • Page 6: Daily Use

    DAILY USE 1. CHECK WATER CONNECTION MODIFYING A RUNNING PROGRAM Check that the dishwasher is connected to the water supply and If a wrong program was selected, it is possible to change it, provided that the tap is open. that it has only just begun: press and hold the ON/OFF button, the machine will switch off.

  • Page 7: Care And Maintenance

    CARE AND MAINTENANCE CLEANING THE FILTER ASSEMBLY CLEANING THE SPRAY ARMS Regularly clean the filter assembly so that the filters do not clog and On occasions, food residue may become encrusted onto the spray arms that the waste water flows away correctly. and block the holes used to spray the water.

  • Page 8: Troubleshooting

    TROUBLESHOOTING In case your dishwasher doesn’t work properly, check if the problem can be solved by going through the following list. For other errors or issues please contact authorized After-sales Service which contact details can be found in the warranty booklet. The manufacturer ensures the availability of spare parts for at least 10 years after production date of this appliance.
