1.4

System memory

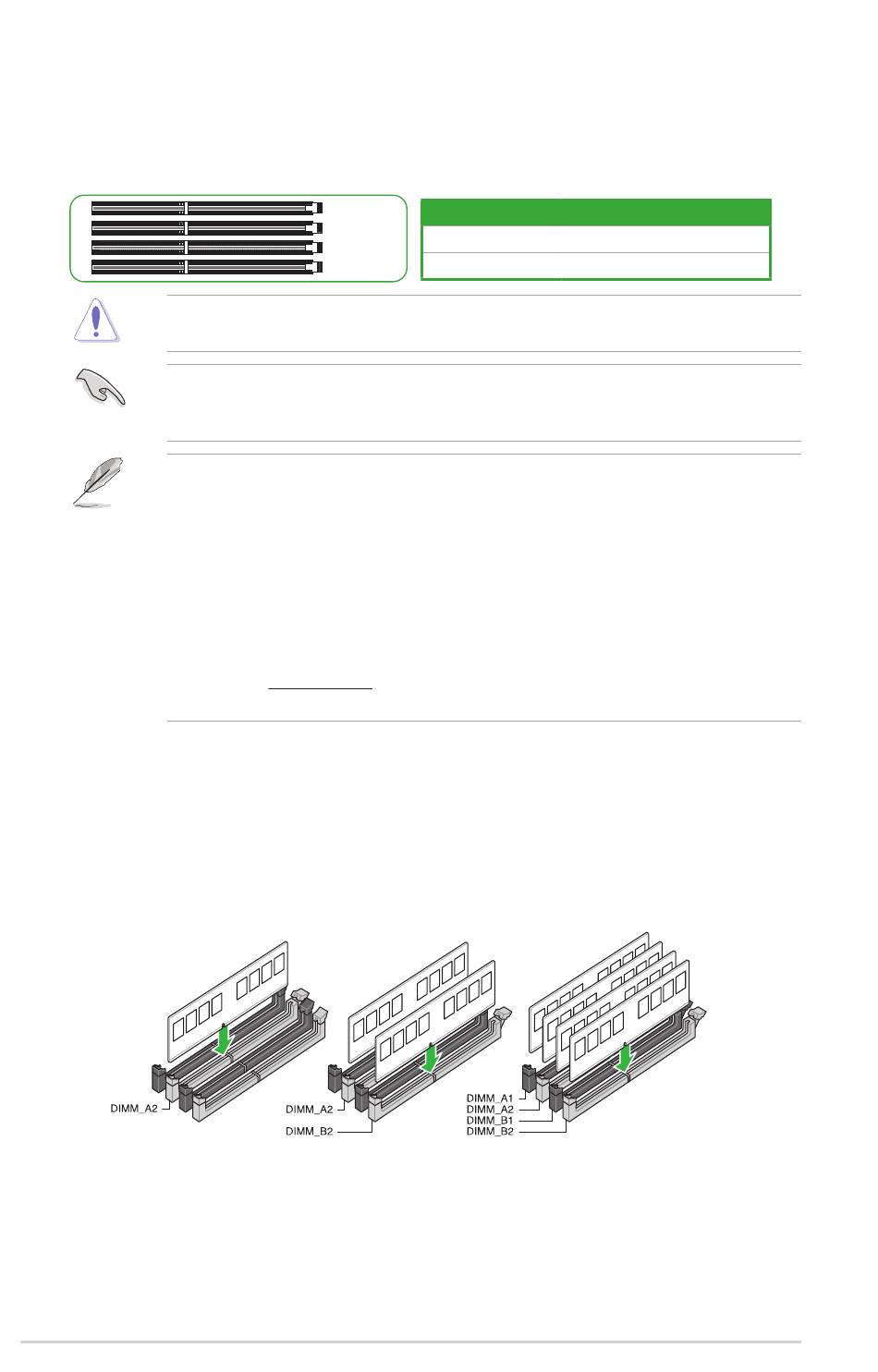

The motherboard comes with Dual Inline Memory Modules (DIMM) slots designed for DDR5
(Double Data Rate 5) memory modules. The figure illustrates the location of the DDR5 DIMM
sockets:
A DDR5 memory module is notched differently from a DDR, DDR2, DDR3 or DDR4
module. DO NOT install a DDR, DDR2, DDR3 or DDR4 memory module to the DDR5 slot.
You may install varying memory sizes in Channel A and Channel B. The system maps the
total size of the lower-sized channel for the dual-channel configuration. Any excess memory
from the higher-sized channel is then mapped for single-channel operation.
•
•
•
•
Recommended memory configurations
1-12
DIMM_A1
DIMM_A2
DIMM_B1
DIMM_B2
The default memory operation frequency is dependent on its Serial Presence Detect
(SPD), which is the standard way of accessing information from a memory module.
Under the default state, some memory modules for overclocking may operate at a
lower frequency than the vendor-marked value.
For system stability, use a more efficient memory cooling system to support a full
memory load.
Always install DIMMs with the same CAS latency. For optimal compatibility, we
recommend that you install memory modules of the same version or date code (D/C)
from the same vendor. Check with the retailer to get the correct memory modules.
Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory
frequency support depends on the CPU types.
Channel
Channel A DIMM_A1 & DIMM_A2
Channel B DIMM_B1 & DIMM_B2
Chapter 1: Product Introduction
Sockets
