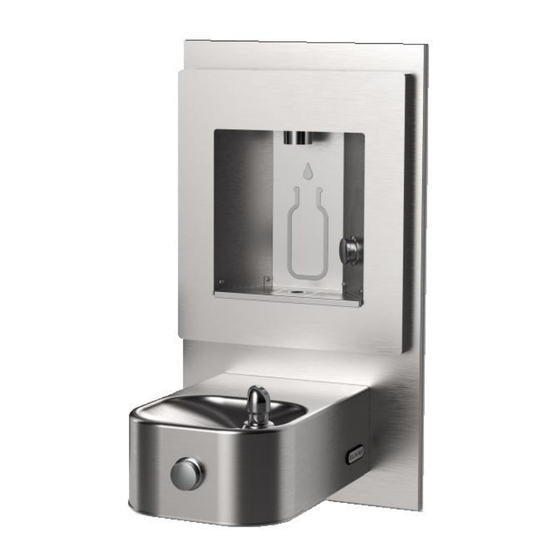

SOFT SIDES
and Vandal Resistant Water Dispenser
EZLMSN-EDFPVM214DK
INSTALLER
Review these instructions before beginning installation. Be sure that installation
conforms to all plumbing, electrical and other applicable codes.
When installation is complete, ensure these instructions are left in the plastic bag
provided inside the installed unit for future reference.
Service to be performed by authorized service personnel only.
NOTE: It is common practice to ground electrical hardware such as telephones, computers and other devices
to available water lines. This can, however, cause electrical feedback in the plumbing circuit, which
results in an "electrolysis" effect occurring in the fountain. This may result in water which has a
metallic taste to it or has a noticeable increase in the metallic content of the water.
When inspecting plumbing circuit, remember the line may be grounded some distance from the
installation, and may occur outside the building or area in which the unit is being installed.
This condition can be avoided (in most cases) by using recommended materials during installation.
Any drain fittings provided by the installer should be made of plastic which will electronically isolate
the fountain from the remainder of the building's plumbing circuits.
Patent zurn-elkay.com/patents
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
ADVERTENCIA: Cáncer y daño reproductivo - www.P65Warnings.ca.gov
AVERTISSEMENT: Cancer et effets néfastes sur la reproduction - www.P65Warnings.ca.gov
EZLMSN-EDFPVM214DK
INSTALLATION & USE MANUAL
Fountain with Vandal Resistant Bubblers
®
LZLMSN-EDFPVM214DK
LZLMSN-EDFPVM214DK
Page 1
Advertisement
Related Manuals for Elkay SOFT SIDES EZLMSN-EDFPVM214DK
Summary of Contents for Elkay SOFT SIDES EZLMSN-EDFPVM214DK
- Page 1 Any drain fittings provided by the installer should be made of plastic which will electronically isolate the fountain from the remainder of the building’s plumbing circuits. Patent zurn-elkay.com/patents WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov ADVERTENCIA: Cáncer y daño reproductivo - www.P65Warnings.ca.gov AVERTISSEMENT: Cancer et effets néfastes sur la reproduction - www.P65Warnings.ca.gov...
- Page 2 REDUCE HEIGHT BY 3 INCHES FOR INSTALLATION OF CHILDREN’S ADA FOUNTAIN...
-
Page 3: Required Tools And Materials
EZLMSN-EDFPVM214DK LZLMSN-EDFPVM214DK TO BUBBLER REQUIRED TOOLS AND MATERIALS These tables show special tools and/or additional materials (not provided) which are necessary to complete installation of these units: Special Tools Description Quantity Item NONE Additional Materials Not Included TO BOTTLE Quantity Item Description FILLER... - Page 4 EZLMSN-EDFPVM214DK LZLMSN-EDFPVM214DK Connecting Catch Basin Waste Drain 3. Trial fi t the strainer. If the strainer does not fi t, carefully open the size of the hole. If it fi ts well, place a small Installing the drain is highly recommended to prevent amount of plumbers putty around the lip of the strainer basin overfl ow.
- Page 5 EZLMSN-EDFPVM214DK LZLMSN-EDFPVM214DK 8. Connect the drain adapter into the household waste drain pipe. If the p-trap is located inside a sealed walled, it must have permanently-glued joints. If the p-trap is in an accessible location, a standard non-glued p-trap is acceptable.
- Page 6 EZLMSN-EDFPVM214DK LZLMSN-EDFPVM214DK WATERSENTRY PLUS FILTER PARTS LIST ® 3/8” (See Fig. 7) Water Inlet ITEM PART NO. DESCRIPTION 51300C Filter Assy-3000 Gal. 51469C Assy-Filter & Brkt includes Fltr Head/ Mtg Brkt/John Guest Fittings/Screws Figure 7 - Filter Detail BASIN 1/4” tube (if required –...
-
Page 7: Parts List
EZLMSN-EDFPVM217DK LZLMSN-EDFPVM217DK PARTS LIST ITEM PART NO. DESCRIPTION 98481C Kit - Vandal-Resistant Bubbler Assy Fountain Arm - Long 28783C LK464 Drain 98530C Kit - Regulator/Nut/Holder 45960C Push Button 45663C Push Button Sleeve 75672C Screw - Cap #6-32 x 5/16 112627543890 Screw - #10-24 x .50 PHTC Screw - 111008343890 #10-24 x .62 HHSM... -
Page 8: Troubleshooting And Maintenance
FOR PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR CALL 1.800.834.4816 REPAIR SERVICE INFORMATION TOLL FREE NUMBER 1.800.260.6640 ELKAY MANUFACTURING COMPANY • 1333 BUTTERFIELD ROAD SUITE 200 DOWNERS GROVE, IL 60515 • 630.574.8484 • www.elkay.com Page 9 2000001276 (Rev. A - 01/24)
