Summary of Contents for Bosch DFL063W56

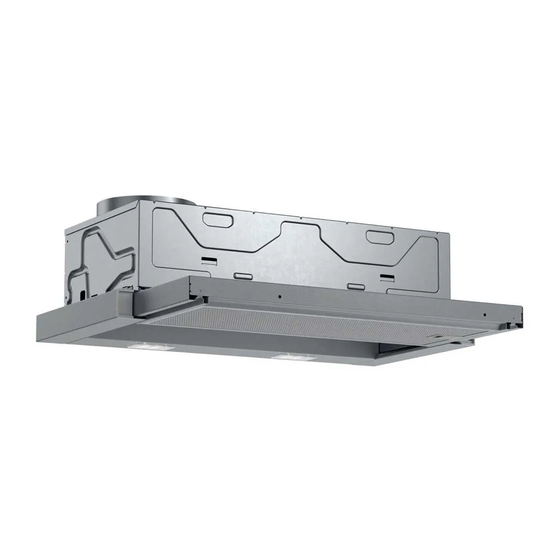

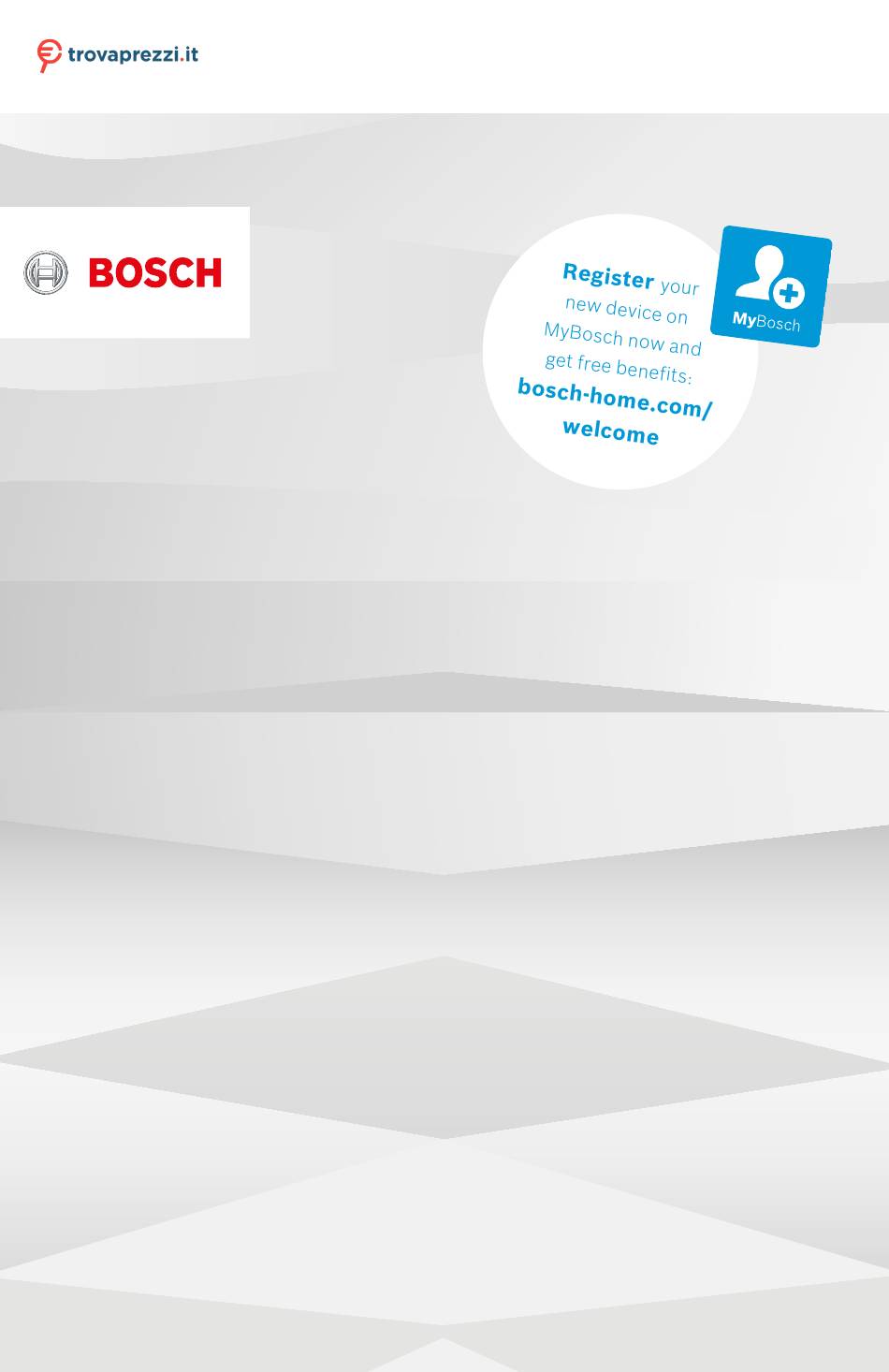

- Page 1 Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Bosch DFL063W56 o cerca il tuo prodotto tra le migliori offerte di Cappe da Cucina Extractor hood DFM06… DFL06… DFL09… [en] User manual and assembly instructions...
-
Page 2: Table Of Contents
en Safety The appliance can only be used safely if it is Table of contents correctly installed according to the safety in- structions. The installer is responsible for en- suring that the appliance works perfectly at its USER MANUAL installation location. Only use this appliance: Safety ................ - Page 3 Safety en into the open through an exhaust gas sys- ▶ Do not install the appliance near a tem (e.g. a chimney). With the extractor solid fuel heating appliance (e.g. wood- hood switched on, air is extracted from or coal-burning) unless the heating ap- the kitchen and the adjacent rooms.
-
Page 4: Avoiding Material Damage
en Avoiding material damage ¡ Changes to the electrical or mechanical ¡ Incorrect repairs are dangerous. assembly are dangerous and may lead to ▶ Repairs to the appliance should only malfunctions. be carried out by trained specialist ▶ Do not make any changes to the elec- staff. -
Page 5: Operating Modes
Operating modes en Information about current disposal methods are If cooking produces large amounts of steam, select a available from your specialist dealer or local author- higher fan speed in good time. ity. The odours are distributed around the room less. Switch the appliance off when you are not using it. -
Page 6: Familiarising Yourself With Your Appliance
en Familiarising yourself with your appliance Familiarising yourself with your appliance Familiarise yourself with the parts of your appliance. Controls, variant 3 The controls are used to configure all functions of your Controls, variant 1 and 2 appliance and to obtain information about the operat- The controls are used to configure all functions of your ing status. -
Page 7: Cleaning And Servicing
Cleaning and servicing en Cleaning and servicing To keep your appliance working efficiently for a long Observe the information regarding the cleaning time, it is important to clean and maintain it carefully. agents. → "Cleaning products", Page 7 Cleaning products Clean as follows, depending on the surface: Clean stainless steel surfaces in the direction of ‒... -
Page 8: Troubleshooting
en Troubleshooting Requirement: The grease filters have been removed. Requirement: The grease filters have been removed. → "Removing the grease filter", Page 7 → "Removing the grease filter", Page 7 Observe the information regarding the cleaning Observe the information regarding the cleaning agents. agents. → "Cleaning products", Page 7 → "Cleaning products", Page 7 Place the grease filters loosely into the dishwasher. -
Page 9: Accessories
DSZ4545 You will find a comprehensive range of products for your appliance in our brochures and online: Stainless steel handle DSZ4685 www.bosch-home.com strip, 60 cm Accessories vary from one appliance to another. When Stainless steel handle DSZ4985 purchasing accessories, always quote the exact strip, 90 cm... -
Page 10: Installation Instructions
en Installation instructions Installation instructions Observe this information when installing the appliance. WARNING ‒ Risk of poisoning! Risk of poisoning from flue gases being drawn back in. Room-air-dependent heat- producing appliances (e.g. gas, oil, wood or coal-operated heaters, continuous flow heaters or water heaters) obtain combus- tion air from the room in which they are Included with the appliance installed and discharge the exhaust gases... - Page 11 Installation instructions en ▶ Unrestricted operation is possible if the ¡ Changes to the electrical or mechanical appliance is operated exclusively in air assembly are dangerous and may lead to recirculation mode. malfunctions. ▶ Do not make any changes to the elec- WARNING ‒ Risk of suffocation! trical or mechanical assembly.
- Page 12 en Installation instructions The permanent electrical installation must only ▶ When the appliance is installed, the ▶ be wired by a professional electrician. We recom- mains plug of the power cord must be mend installing a residual-current circuit breaker freely accessible. If free access is not (RCCB) in the appliance's power supply circuit.
- Page 13 Installation instructions en Create the cut-out for the pipe connection. Use the screws provided to secure the handle strip to the filter pull-out. If the cabinet base is in place, remove it. Remove any shavings. Connect the enclosed power cord to the appliance Use the enclosed template to mark the fastening and secure the stain relief.
- Page 14 en Installation instructions Appliance width 90 cm: Pull the filter pull-out out Shorten the spacers to the required dimension and completely towards the front. Also use two screws insert them into the slot specified. each on the left and right to screw the appliance to the side upper cabinets from below.
- Page 16 Expert advice for your Bosch home appliances, help with problems or a repair from Bosch experts. Find out everything about the many ways Bosch can support you: www.bosch-home.com/service Contact data of all countries are listed in the attached service directory.
