Summary of Contents for HELIX Permanent Jewelry Welder
- Page 1 2024 V1.0 Helix Permanent Jewelry Welder User Guide Prior to utilizing the product please thoroughly review this manual. COPYRIGHT Pepetools, INC - USA © 2024 Reserves the right to make modifications to this product without prior notice.
- Page 2 Manufactured by Pepetools support@pepetools.com 1-405-745-4054 pepetools.com...
- Page 3 2. Refrain from exposing it to fire, and steer clear of usage or storage in high temperatures. 3. Do not try to modify or repair this product independently. 4. Keep the product away from water and prevent liquids from entering. Permanent Jewelry Welder User Guide 01...
-
Page 4: Specification

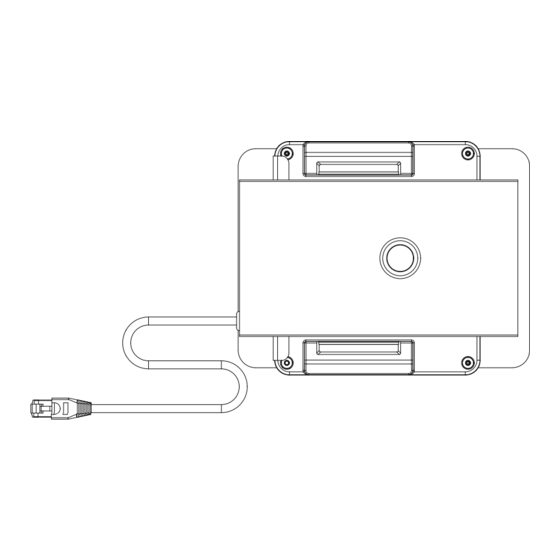

Aluminum Contents Ａ．Helix Permanent Jewelry Welder Ｂ．Stylus Handpiece Ｃ．Alligator Clip with Banana Plug, Stackable (Plug in Multiple Leads) Ｄ．Precision Copper Alligator Clip If You Purchased the Darkening Screen Stand Ｅ．Darkening Screen Stand with RJ45 Cable Permanent Jewelry Welder User Guide 02... - Page 5 4. If desired, insert the argon gas tube into the argon gas port (optional, as the machine operates effectively even without it). Permanent Jewelry Welder User Guide 03...
- Page 6 1. Ensure that the electrode rods extend beyond the stylus cap by 1/8 to 1/4 inch (3.175 to 6.35mm). 2. After several uses, oxidation may develop on the electrode rods. If welding performance diminishes, it is advisable to delicately sand the rods using 1000-grit sponge sandpaper. Permanent Jewelry Welder User Guide 04...
- Page 7 Position the welding machine stand on a flat and stable work surface. Unfold the stand and adjust it to the preferred angle. Secure the Stylus handpiece in the holder. Connect the RJ45 connector to the welding machine's darkening screen port. Warning Permanent Jewelry Welder User Guide 05...
- Page 8 5. While securely holding the tube and stylus shaft, firmly rotate the end cap counterclockwise to prevent wire distortion during tightening. 6. Push down on the end grommet while inserting the tube to its lowest position. 7. Reattach the electrode rod and stylus cap. Permanent Jewelry Welder User Guide 06...
