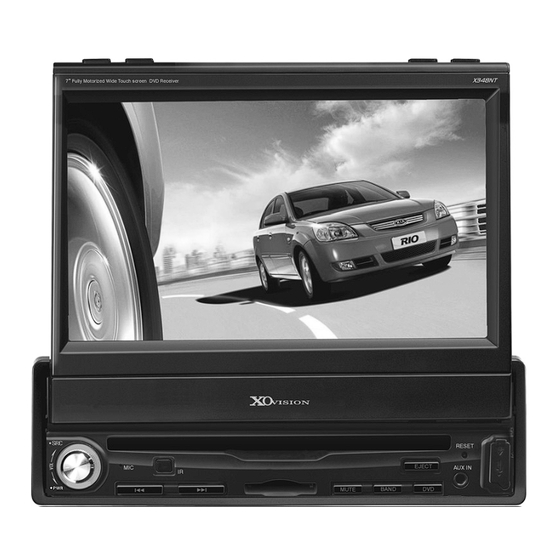

- Page 1 X348NT TOUCH SCREEN 1-DIN 7 TFT LCD DVD PLAYER MADE IN CHINA...
-
Page 2: Table Of Contents
Contents Warning and Precautions...2 Electric Connection...4 Receiption collection Speaker collection Installation...5 Install the unit Remove the unit General Features...6 Remote Control...7 Loading and Replacing the battery Basic operation Play Operation...9 Open/Close Source/Power Mute play/pause Eject TFT-LCD adjustment Display position adjustment Setup Operation...11 General operation Video operation... -
Page 3: Warning And Precautions
Warnings and Precautions Warnings 1 Only connect the unit to a 12V power supply with negative grounding. Never install the unit where the operation for safety driving is restrained. Never use the video display function in the front when driving to prevent the violation of laws regulations and also to reduce the risk of traffic accident except using for rear view video camera. -
Page 4: Warnings And Precautions
Warnings and Precautions Precautions Never disassemble or adjust the unit without any professional guide. For details, please consult any professional car shop/ dealer for inquiry. If the front panel or the TFT monitor is squalid, please use a clean silicone cloth and neutral detergent to wipe off the spot. Using a rough cloth and non-neutral detergent such as alcohol for cleaning may result in scratching or decoloration to the applicant. -
Page 5: Electric Connection
FRONT RIGHT RCA OUT (WHITE) FRONT LEFT RCA OUT (BLUE) REAR RIGHT RCA OUT (PURPLE) REAR LEFT RCA OUT (YELLOW) VIDEO OUT YELLOW BACK CAR VIDEO IN (WHITE) AUX LEFT IN (RED) AUX RIGHT IN (YELLOW) VIDEO IN White/Black To front left speaker... -
Page 6: Installation
Installation Before installing the receiver permanently, fit it in the approximate place in your car ,and connect the equipment according to the speakers and electrical connections. When your system is operated properly,(preferably with the car engine running), follow the instructions for permanent installation of your system. -
Page 7: General Features
General Features Stop/Clock CLOCK STOP RPT/ST Adjust angle Adjust angle RESET EJECT AUX IN MUTE BAND... -
Page 8: Remote Control
General Features Adjust angle Stop/Clock RPT/ST CLOCK STOP Adjust angle RESET EJECT AUX IN MUTE BAND VOL/SRC/PWR Button: Rotate the VOL button to adjust the volume; press it to make confirmation./Play source switch. MIC. [ ]/[ ]Button: Rewind, Last chapter/Forward,Next chapter. Signal received window. - Page 9 Remote Control Button and Function Mute Sub-T Band Language Angle EQ EQ S T S T Enter Setup Title Title I D3 I D3 PQRS WXYZ RO/SN Goto Note: This unit doesn't have RDS function, AF/TA/PTY neither. This unit doesn't have bluetooth function, [ If the unit hasn't some functions , some buttons won't be affected.
-
Page 10: Play Operation
Play operation Adjust angle Stop/Clock RPT/ST CLOCK STOP MUTE BAND ON.OFF Press [PWR] button shortly will turn the unit on. Hold [PWR] button down will turn off the unit. NOTE: When the power is on, the screen enters RADIO mode automatically;... -
Page 11: Mute
Play operation Display position Adjustment For smooth adjustment, make sure that you return the lateral angle to the neutral position and then adjust the tilt angle. Avoid physical shock on the display. Tilt angle Press [ADJ] button ,it can adjust the Stop/Clock Stop/Clock RPT/ST... -
Page 12: Setup Operation
Setup Operation MENU ENTER MENU: Press [MENU] button, then touch setting button, it will show in screen follows: Video mode: VIDEO Menu operation BRIGHT COLOR CONTRAST 13 Touch [ ] to choose menu. TINT VMODE STND Touch [ ]to adjust parameter. Touch [ ] to back main menu. -
Page 13: Radio Operation
Radio Operation Adjust angle Stop/Clock RPT/ST CLOCK STOP Adjust angle EJECT MUTE BAND Note: If the unit doesn't have RDS function, the touch-screan won't show "AF, TA and PTY". Band Press [BAND] button to transfer band. Select station Press [AS/PS] button Seek Tune: In radio playing mode, holding down the [AS/PS] icon will seek and store strong frequency stations automatically. - Page 14 Radio Operation AF(Alternative Frequency) Press AF and then press[ ],the machine will scan signal get the best frequency of the local radio station. If meet a stronger signal of the same program. letter TP will appear on LCD, and unit will automatically choose the stronger signal sought. Before auto scan the radio station, please turn off firstly.
-
Page 15: Sound Operation
Sound Operation Play/pause In play mode, press [ ] button to switch to play or pause mode. Select chapter or section: In the DVD mode, choose last chapter, press [ ]to choose next. Forward: Hold [ ] button down; Rewind: Hold [ ] button down. -
Page 16: Sd/Usb
SD/USB Operation CLOCK STOP MUTE BAND USB/SD mode USB/SD mode Inset USB/SD,the play will to the USB/SD playing mode antomaticly. USB/SD play operation PLAY/PAUSE: Adjust angle Press [ ] button to play or pause. RESET EJECT AUX IN Select: Under USB or SD play, press[ REPEAT Press [ST/RPT] button first to repeat the playing track RPT DIR... -
Page 17: Bluetooth
Bluetooth The Bluetooth is wireless mode of transmission in short distance. Through Bluetooth function, the DVD unit establishes connection with Bluetooth handset. And then, these units can realize mutually controling and file transfering. Choose the Bluetooth Mode Method : A: Press the [SOURCE] button, to return to main menu.. - Page 18 Bluetooth Mobile phone After connected, you can make phone call through, touch screen or phone record. A: Making mobile phone call After making phone call, the [ ]will shining. B: Making touch screen call Input the numbers on the screen, press [ ] icon can correct the numbers;...
-
Page 19: Tv Operation
TV Operation CLOCK STOP MUTE BAND TV operation You need install TV antenna, when receive program. TV mode: Press [SRC] to enter main menu, then press TV icon on TFT screen to enter. Channel search: Press [APS] or press [AMS] to search and store TV station automatically. -
Page 20: Accessories
Accessories External view External view ... Number of items ... Number of items ...2 The use of any accessories except of those provided might result in damage to the unit .Make sure only to use the accessories shipped with the unit ,as shown above. -
Page 21: Av Input Operation
Troubleshooting What appears to be trouble is not always serious. Please check the following points before calling a service center. Familiar characters and their meanings Causes Characters Disc is too dirty. NO Disc Disc is inserted upside down. No disc in the unit. Disc is extreme dirty. -
Page 22: Troubleshooting
Troubleshooting General problems Symptoms The fuse of the unit has been broken. The unit cannot be The fuse of car battery has been broken. powered on. False operations and etc. Battery has been exhausted. Remote controller does not work. Battery is not installed correctly. Audio output connection is not correct. -
Page 23: Tft Monitor
Troubleshooting TFT Monitor Symptoms No image appears on the monitor and warning Incorrect connection of Breaking wire. information is shown at all times. The color system of DVD disc is not suited with the monitor. The actual color system is not the same as the marked color system on the label Abnormal display like for some piratic discs. -
Page 24: Radio Tuner
Troubleshooting Radio Tuner Symptoms Auto antenna is not extended completely. It's hard to receive stations. Auto antenna is not connected with the unit firmly. LOCAL function is on. Mp3 playback Symptoms Disc is scratched. Disc is too dirty or wet. Disc cannot be played back. -
Page 25: Dvd Player
Troubleshooting DVD player Symptoms Disc cannot be inserted. There is a disc in the unit already. Disc is scratched. Disc is too dirty or wet. The pickup is dirty. Disc is not compatible with the unit. Disc cannot be played back. Parental lock class is too high. -
Page 26: Specifications
Specifications Specifications subject to change without notice. DISPLAY UNIT Liquid crystal panel...7 inches wide Display weight ...1.7kg Number of pixels...33,6960 pixels Display method...Transparent color filter format Drive method...TFT (thin film transistor) active matrix format Light source...internal light (built-in small fluorescent lamp) GENERAL Operating power...12 Volts DC, negative %10THD output wiring...Designed for using four... - Page 27 Customer is responsible for shipping the product to us; we cover shipping back to the customer. If you are having trouble with your unit, please email us at: CustomerService@XOVision.com In your email, please include the model number, date and place of purchase and the problem. Thank you for purchasing XO Vision.
