Receiver
CQUARTZ
Synthesizer
AM/FM
Stereo Receiver
SPECIFICATIONS
(DIN 45 500)
@ AMPLIFIER SECTION
Power output
DIN 1 kHz
2x 40W(4Q)
40 Hz~20 kHz continuous power output
'ntermodulation distortion
rated power at 60 Hz: 7 kHz=4:1, SMPTE, 8 ©
0.5 %
Power bandwidth
rated power (8 ©)
PHONO
70 dB (IHF, A: 80 dB)
. _ Frequency response
PHONO
RIAA standard curve
+0.8 dB (30 Hz~15 kHz)
CD, VCR 1, TAPE/VCR 2
10 Hz~40 kHz (+3 dB)
Bass
50 Hz,
+10 dB~—10 dB
Treble
20 kHz, +10 dB~—10 dB

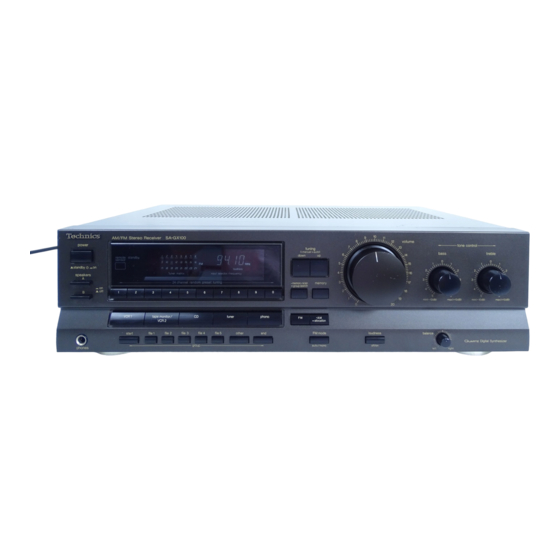

Technics
SA-GX100
Color
(K)... Black Type
Area
Loudness control (volume at —30 dB)
50 Hz, +9 dB
Output voltage
VCR 1 AUDIO OUT, TAPE/VCR 2 REC OUT
200 mV
Channel balance, 250 Hz~6,300 Hz
+1 dB
Channel separation
§5 dB
Headphones output level and impedance
430 mMW/BO Q
Load impedance
AorB
40O™M6Q
A and B
8N™60
MM FM TUNER SECTION
Sensitivity
SIN 30 dB
;
1.5 uv (15 Q)
SIN 26 dB
;
1.3 yV (15 Q)
S/N 20 dB
1.2 uV (15 Q)
IHF usable sensitivity
1.5 pV (IHF'58, 156 )
IHF 46 dB stereo quieting sensitivity
22 wr
Q
Total harmonic distortion
MONO
C2 %
STEREO
(3 %
SIN
MONO
;
60 dB (75 dB, IHF)
STEREO
58 dB (71 dB FF)
Frequency response
20 Hz~15 kHz, +1 dB~~-2
dB
Matsushita Electric Industrial Co., _ td.
Central P.O. Box 288, Osaka 530-91, Jipan
'
Country
(EG)
F.R. Germany & Italy.
S
ae
L ye
