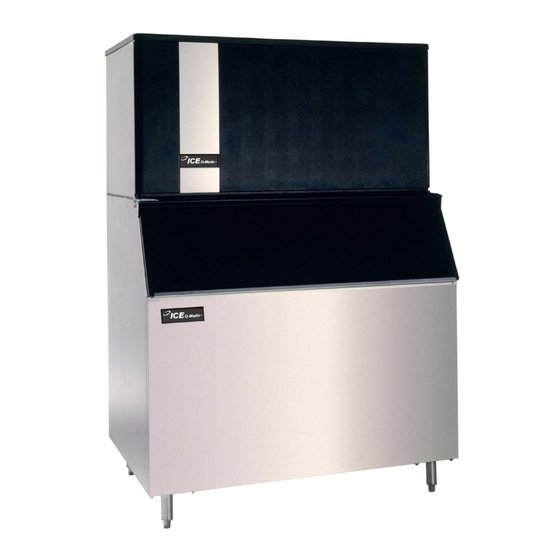

- Page 1 SERVICE PARTS MANUAL ICE SERIES CUBERS MODEL-ICE1406V1-V2, ICE1806V1-V2, ICE2106V1-V2 Includes 50hz. and 3 Phase Units 14-1012 Date 7/25/18 11100 E. 45th Avenue • Denver , CO 80239 • WWW.iceomatic.com...
- Page 2 Table Of Contents This parts list contains the service parts available for the ICE Series icemakers listed below: ICE0250 A4, T4 and W4, Includes 50 hz. Models ICE0400 A3, T3 and W3, Includes 50 hz. Models ICE0500 A3, T3, W3 and R4 ICE0606 A3, T3, W3 and R4 Includes 50 hz.
- Page 3 ICE Series Service Parts This parts list contains the service parts available for the ICE Series icemakers. Check the model number on the data plate and refer to the correct listing for the specific component. Check carefully that the correct part is identified and ordered.
-
Page 4: Exterior Components
ICE Series Service Parts Exterior Components Page 2... - Page 5 ICE Series Service Parts Exterior Components Item Model Number ICE1806 ICE1807 ICE2005 ICE2106 ICE2107 Description 9051469-01 9051469-01 9051469-01 9051469-01 9051469-01 Top Panel NLA-NR 9031098-02 9031098-02 9031098-02 9031098-02 9031098-02 Top Panel Screw 2031465-05 2031465-05 2031465-05 2031465-05 2031465-05 Front Panel NLA-NR 9031098-02...
-
Page 6: Front Interior
ICE Series Service Parts Front Interior PUSH TO PURGE WASH PUSH TO PURGE WASH Page 4... - Page 7 ICE Series Service Parts Front Interior Item Model Number ICE1806 ICE1807 ICE2005 ICE2106 ICE2107 Description 2021547-01 2021547-01 2021547-01 2021547-01 2021547-01 Left Hand Frame Panel NLA-NR 3012874-01 3012874-01 3012874-01 3012874-01 3012874-01 Right Hand Frame Panel NLA-NR 2051125-81 2051125-81 2051125-81 2051125-81 2051125-81 Evaporator-Full Cube...
-
Page 8: Air Cooled
ICE Series Service Parts Air Cooled Page 6... - Page 9 ICE Series Service Parts Air Cooled Item Model Number ICE1405 ICE1406 ICE1407 Description 9181094-12 9181108-11 (NLA See Below) 9181111-12 Compressor 9151123-04 9151123-04 9151123-04 Hot Gas Valve Coil 9151123-01 9151123-01 9151123-01 Hot Gas Valve Body 9041104-101A 9041104-101A 9041104-101A Low Pressure Control...
-
Page 10: Water Cooled
ICE Series Service Parts Water Cooled ICE1800/2100 Water Cooled Machine Shown Page 8... - Page 11 ICE Series Service Parts Water Cooled Item Model Number ICE1806 ICE1807 ICE2005 ICE2106 ICE2107 Description 9181108-11 9181110-13 (NLA See Below) 9181123-12 Compressor 9181108-12 9181123-11 9151123-04 9151123-04 9151123-04 9151123-04 9151123-04 Hot Gas Valve Coil 9151123-01 9151123-01 9151123-01 9151123-01 9151123-01 Hot Gas Valve Body...
- Page 12 ICE Series Service Parts Remote ICE1800/2100 Remote Machine Shown Page 10...
- Page 13 ICE Series Service Parts Remote Item Model Number ICE1806 ICE1807 ICE2005 ICE2106 ICE2107 Description (NLA See Below) 9181108-11 9181110-13 9181108-12 9181110-11 9181123-12 Compressor 9151123-04 9151123-04 9151123-04 9151123-04 9151123-04 Hot Gas Valve Coil 9151123-01 9151123-01 9151123-01 9151123-01 9151123-01 Hot Gas Valve Body...
-
Page 14: Control Box
ICE Series Service Parts Control Box Page 12... - Page 15 ICE Series Service Parts Control Box Item Model Number ICE1806 ICE1807 ICE2005 ICE2106 ICE2107 Description 9101139-03 9101139-03 9101139-03 9101139-03 9101139-03 Purge Switch 1051208-01 NLA 9101195-01 9101195-01 9101195-01 9101195-01 9101195-01 ON-OFF-WASH Switch 9101349-01 NLA 9101083-01 9101083-01 9101083-01 9101083-01 9101083-01 Relay Socket...
-
Page 16: Harvest Assist Assembly
ICE Series Service Parts Harvest Assist Assembly 1051210-XX Reference Page 15 for Specific Model Number and Part Number 1051210-XX •The assembly will fit all ICE Models from October 1999 and EC Models. •Units installed with a double cam switch, either Field installed or Factory installed will require the complete assembly and a potential wiring change as per the New Wiring Diagram included with the assembly. - Page 17 ICE Series Service Parts Harvest Assist Assembly Item Model Number ICE1806 ICE1807 ICE2005 ICE2106 ICE2107 Description 1051210-03B 1051210-03B 1051210-03B 1051210-03B 1051210-03B Complete Assembly 2061962-03S 2061962-03S 2061962-03S 2061962-03S 2061962-03S No Longer Available ICE1405 ICE1406 ICE1407 Description 1051210-03B 1051210-03B 1051210-03B Complete Assembly...
-
Page 18: Remote Condenser
ICE Series Service Parts Remote Condenser Page 16... - Page 19 ICE Series Service Parts Remote Condenser Item Model Number ICE1806 ICE1807 ICE2106 ICE2107 Description ERC4061 ERC4061 ERC5061 ERC5061 9141110-02 9141110-02 9141111-01 9141111-01 Condenser 9131357-01 9131357-01 9131357-01 9131357-01 Fan Blade 9161110-02 9161110-02 9161110-02 9161110-02 Fan Motor 9161110-92 9161110-92 9161110-92 9161110-92 Capacitor...
-
Page 20: Water Pump And Float
ICE Series Service Parts Water Pump and Float Page 18... - Page 21 ICE Series Service Parts Water Pump and Float Item Model Number ICE1806 ICE1807 ICE2005 ICE2106 ICE2107 Description 3012877-01 3012877-01 3012877-01 3012877-01 3012877-01 Pump Bracket 9131111-101 9131111-101 9131111-101 9131111-101 9131111-101 Float Assembly 9131026-02 9131026-02 9131026-02 9131026-02 9131026-02 Cap Plug 9091081-01 9091081-01...
-
Page 22: Compressor Data
ICE Series Service Parts Compressor Data Compressor Components RED=NO LONGER AVAILABLE Model Number ICE1406 ICE1806 9181108-11 Compressor 9181003-21 Start Capacitor 9181009-20 Run Capacitor 9181010-10 Relay ICE1406 ICE1806 9181143-11 Compressor 9181003-21 Start Capacitor 9181009-20 Run Capacitor 9181010-10 Relay ICE1405 9181094-12 Compressor...
