X10 DW534 Operating Instructions

Door/Window Sensor, Model DW534 Set Up and Operating Instructions
Installation
1. Secure the magnet and switch on the DW534 together
with a rubber band.
2. Install a 9V alkaline battery in the battery compartment
on the DW534.
3. Make sure the switch inside the battery compartment
is set to N.C. (Normally Closed). This is the type of
magnetic switch supplied with the DW534.
4. Press the CODE button on the DW534 with the point
of a pencil.
5. Set the INSTALL/RUN switch on the Security
Console to INSTALL.
6. Press TEST on the DW534. The Console emits a tone
and the next unused zone indicator lights up.
7. Set the Console's slide switch back to RUN1 or RUN2.
8. To set up additional Door/Window Sensors (up to 16*)
repeat the above steps.
9. Set the DW534's DELAY switch to MAX to protect a
door or to MIN to protect a window.
10. Remove the rubber band and attach the DW534 to the
door or window frame using the double sided tape or
screws supplied.
*Note: you can install a total of 16 zones in the Console.
This can be a combination of Door/Window Sensors and
Motion Detectors. E.G. 8 Door/Window Sensors AND 8
Motion Detectors. See your Security System Owner's
Manual for more information.
Operation
When the security system is NOT armed and the Console
is set to RUN2, the Console chimes when you open a door
or window protected by the DW534. The red indicator light
for that zone on the Console also lights up. In RUN1 mode
there are no chimes.
X-10 (USA) Inc., 91 Ruckman Rd., Closter, NJ 07624. http://www.x10.com

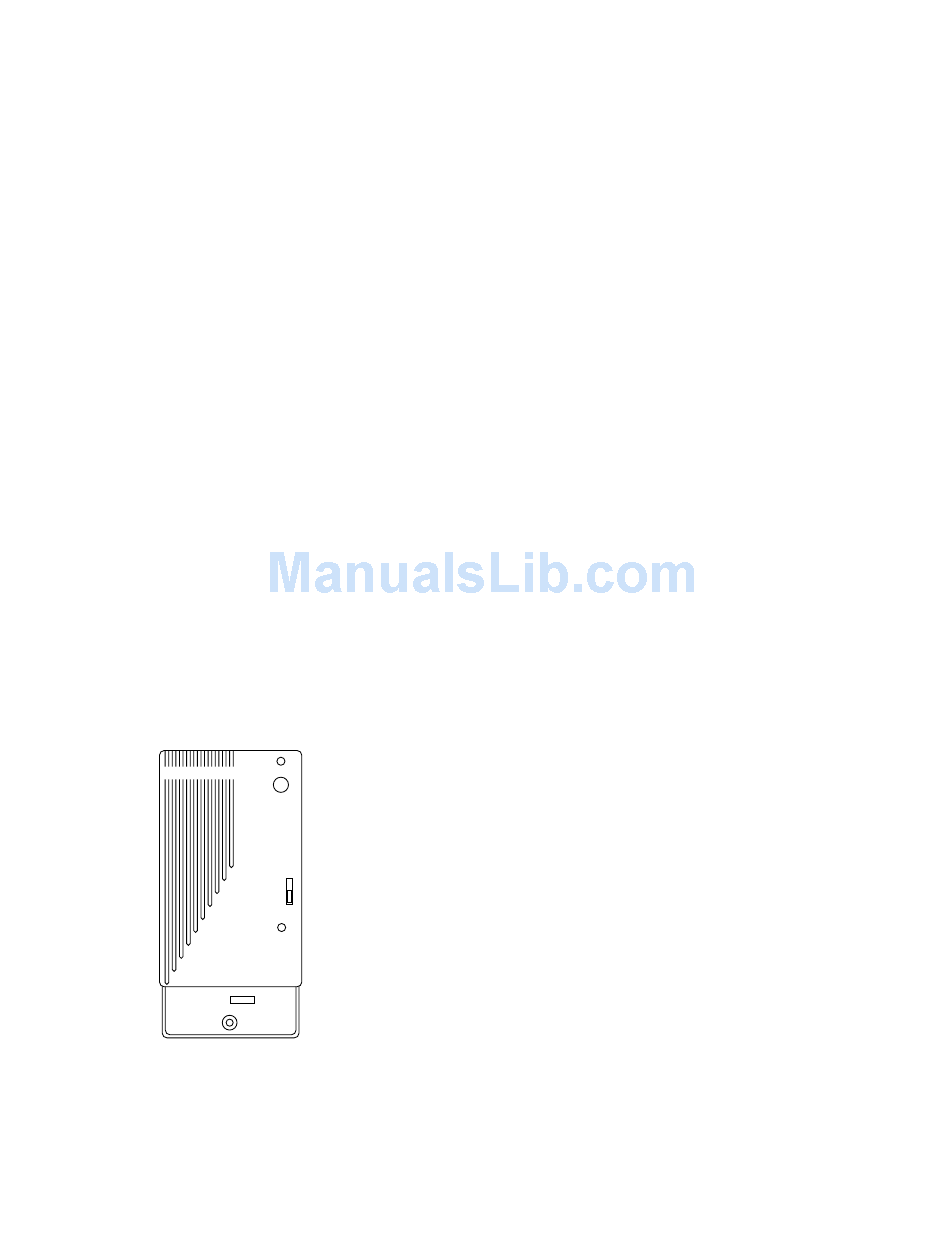

TEST
MAX
DELAY
MIN
CODE
Door/Window
Sensor
When the security system IS armed, opening a door or
window trips the alarm. If the DW534 is set to MIN the
alarm trips instantly. If the DW534 is set to MAX there is
a 30 second delay before the alarm trips after you open the
door or window.
Replacing batteries
Slide the battery compartment cover off and replace the
battery with a 9V alkaline type. After replacing the battery,
the following steps are necessary to determine that the
Console still recognizes the DW534.
1. Place the Console's slide switch to RUN2.
2. Press TEST on the DW534. If the Console chimes, it
recognizes the DW534 and no further action is
necessary.
If the Console did not chime:
1. Place the Console's slide switch to INSTALL.
2. Press TEST on the DW534. The DW534's red indicator
light flashes once, and DW534 transmits a random code
to the console. The Console acknowledges this with a
beep and logs in the DW534 to the next available zone.
To make sure the Console logs the DW534 back into
the same zone it was allocated to before you changed
the battery, wait 4 hours after removing the old battery
before reinstalling (until the zone indicator on the
Console starts flashing).
