TRUE
food service equipment
CONGRATULATIONS!
You have just purchased the finest commercial refrigerator
available. You can expect many years of trouble-free operation.
TABLE OF CONTENTS
OPERATION
WARRANTY
Warranty
TRUE FOOD SERVICE EQUIPMENT, INC.
2001 East Terra Lane • O'Fallon, Missouri 63366-4434
(636)-240-2400 • FAX (636)-272-2408 • INT'L FAX (636)272-7546 • (800)-325-6152
Parts Department (800)-424-TRUE • Parts Department FAX# (636)-272-9471
Web: www.truemfg.com
,
.
inc
1
2
3
4
4
5
6
8
11
13
14
18
20
21
22
22
23
24
28

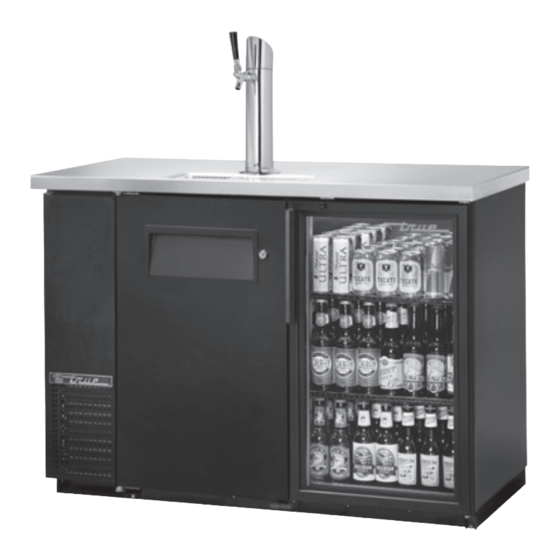

underbar refrigeration
INSTALLATION MANUAL
underbar refrigeration
TDB-24-48-1-G-1
TBB-2
TDD-4
INSTALLATION MANUAL
AC • 05.03.2017 • MISC1914
Advertisement
Table of Contents
Related Manuals for True TBB-2G-HD-LD
Summary of Contents for True TBB-2G-HD-LD
-
Page 1: Table Of Contents
TRUE FOOD SERVICE EQUIPMENT, INC. 2001 East Terra Lane • O’Fallon, Missouri 63366-4434 (636)-240-2400 • FAX (636)-272-2408 • INT'L FAX (636)272-7546 • (800)-325-6152 Parts Department (800)-424-TRUE • Parts Department FAX# (636)-272-9471 Web: www.truemfg.com AC • 05.03.2017 • MISC1914... -
Page 2: Safety Information
You have selected one of the finest commercial refrigeration units made. It is manufactured under strict quality controls with only the best quality materials available. Your TRUE cooler when properly maintained will give you many years of trouble-free service. WARNING: Use this appliance for its intended purpose as described in this Owner Manual. -
Page 3: Proper Disposal, Connecting Electricity, & Adapter Plugs
NEMA plugs TRUE uses these types of plugs. If you do not have the right outlet have a certified electrician install the correct power source. NOTE: International plug configurations vary by voltage and country. -
Page 4: Installation
• Lamps must be replaced by identical lamps only. Before you start to install your TRUE unit, carefully inspect it for freight damage. If damage is discovered, immediately file a claim with • Appliance tested according to the climate classes 5 and 7 the delivery freight carrier. -
Page 5: Wire Gauge Chart
TRUE underbar refrigeration truemfg WIRE GAUGE CHART 115 Volt s Distance In Feet To Center of Load 230 Volts Distance In Feet To Center of Load Amps 20 30 40 50 60 70 80 90 100 120 140 160 Amps... -
Page 6: Sealing Cabinet To The Floor 5 Td-50-18-S
INSUFFICIENT. the floor. Proper leveling of your TRUE cooler is critical to operating success (for non-mobile models). Effective condensate removal NSF APPROVED SEALANTS: and door operation will be effected by leveling. -
Page 7: Setup
TRUE underbar refrigeration truemfg SETUP STANDARD ACCESSORIES SHELF INSTALLATION: For Proper Shelf Clip Installation Please Read The Following SHELVING AND BIN DIVIDER INSTALLATION / Instructions. OPERATION STEP 1 Install the top tab of the shelf clip into the proper hole. Push up on the bottom of the clip. - Page 8 TRUE underbar refrigeration truemfg HORIZONTAL BOTTLE COOLER BIN DIVIDER INSTALLATION: Horizontal bottle coolers are shipped with bin dividers in place. If it is necessary to adjust spacing the following procedure is recommended. A. Dividers are spring loaded - push divider towards rear of the cooler to release from front grommeted holes.
-
Page 9: Direct Draw Draft Arm Installation
TRUE underbar refrigeration truemfg INSTALL DRAFT ARM DIRECT DRAW DRAFT ARM INSTALLATION Place rubber washer over draft arm mounting holes in cabinet, put On direct draws, the drain is located at the front of the cabinet. To beer line connector down through hole. Next, secure draft arm with plumb in the drain, connect 3⁄4"... - Page 10 TRUE underbar refrigeration truemfg TDD-1 CO2 KNOCK-OUT This instruction is TRUE’s recommended procedure for installing a Knockout Plug can remote CO2 container. be located at either location. REQUIRED TOOLS • Pliers • Power Drill • Silicone Sealer • Drill bit, 1/2"...
- Page 11 TRUE underbar refrigeration truemfg TDD-2, -3 AND -4 (AND CLUB-TOP MODELS) CO2 KNOCK-OUT This instruction is TRUE’s recommended procedure for installing a remote CO2 container. REQUIRED TOOLS • Pliers • Power Drill • Silicone Sealer • Drill bit, 1/2" STEP 1 - Remove black knockout plug with a pair of pliers.
-
Page 12: Cabinet Adjustment
TWO DOOR UNITS SKIP TO STEP 6 STEP 4 - Slide right door to the left so left edge lines up with the left edge of TRUE Logo located above the door. See image 5. Then lift door out of track same way as image 4. - Page 13 STEP 5 - Slide left door to the right so right edge lines up with the TO ADJUST SLIDE DOOR end of the TRUE Logo located at the top of the door frame. See STEP 1 - After cabinet is installed in a final location and correctly lev- image 6.
-
Page 14: Startup
RECOMMENDATION - Before loading product we recommend Temperature controls are factory-set to give refrigerators an you run your TRUE unit empty for two to three days. This allows you approximate temperature of 35°F and glass chiller frosters have to be sure electrical wiring and installation are correct and no ship- an approximate temperature of 0°F. -
Page 15: Mechanical Temperature Controls Sequence Of Operation
TRUE underbar refrigeration truemfg MECHANICAL TEMPERATURE CONTROLS COIL SENSING An evaporator coil sensing temperature control ensures that the evaporator coil will remain clear of frost and ice by not allowing the compressor to restart until the coil temperature is above the freezing temperature. - Page 16 TRUE underbar refrigeration truemfg WHEN TO MAKE AN ADJUSTMENT TO A MECHANICAL TEMPERATURE CONTROL We advise to make a mechanical temperature control adjustment only for a high altitude location. HOW TO ADJUST A MECHANICAL TEMPERATURE CONTROL OPERATION INSTRUCTIONS: Scale Guide for Measuring...
- Page 17 TRUE underbar refrigeration truemfg INSTRUCTIONS: DANFOSS TEMPERATURE CONTROL ADJUSTMENT FOR HIGH ALTITUDE APPLICATIONS STEP 1 - Unplug cooler. STEP 2 - Remove the screws that secure the temperature control to the inset box. STEP 3 - To make these adjustments it may be necessary to remove the temperature control from the housing.
- Page 18 TRUE underbar refrigeration truemfg CHART CCW Adjustment (based on 360°/ Height complete turn) 2000' 42° 3000' 78° 4000' 114° 5000' 150° 6000' 186° 7000' 222° 8000' 258° 9000' 294° 10,000' 330° BUL. NO.
-
Page 19: Electronic Temperature Controls Sequence Of Operation
TRUE underbar refrigeration truemfg ELECTRONIC TEMPERATURE CONTROLS DANFOSS ELECTRONIC TEMPERATURE CONTROL GENERAL SEQUENCE OF OPERATION control probe = return air defrost probe = coil DANFOSS ELECTRONIC CONTROL REFRIGERATOR WITHOUT DIGITAL DISPLAY GENERAL SEQUENCE OF OPERATION 1. Cabinet is plugged in. - Page 20 TRUE underbar refrigeration truemfg DANFOSS ELECTRONIC CONTROL FREEZER / GC WITHOUT DIGITAL DISPLAY GENERAL SEQUENCE OF OPERATION 1. Cabinet is plugged in. a. Interior lights will illuminate on glass door models only. If the lights do not come on verify the light switch is in the “ON”...
-
Page 21: Sollatek Electronic Temperature Control
TRUE underbar refrigeration truemfg SOLLATEK ELECTRONIC TEMPERATURE CONTROL GENERAL SEQUENCE OF OPERATION control probe = return air defrost probe = coil SOLLATEK ELECTRONIC TEMPERATURE CONTROL GENERAL SEQUENCE OF OPERATION 1. Cabinet is plugged in. a. Interior lights will illuminate on glass door models only. If the lights do not come on verify the light switch is in the “ON”... -
Page 22: Storage & Handling
TRUE underbar refrigeration truemfg STORAGE AND HANDLING PRESSURE Draft beer should be treated as a food product. In most instances Dispensing pressures differ according to: draft beer is not pasteurized. It is very important that you store and • The type of draft dispensing system handle it properly. -
Page 23: Maintenance, Care, Cleaning Tbb-3G-S
When finished be sure to replace the louvered grill. The grill protects the condenser. Reconnect the electrical power to the unit. If you have any questions, please call TRUE Manufacturing at 636- 240-2400 or 800-325-6152 and ask for the Service Department. Direct to Service Department 1(855)372-1368. Service Department Availability Monday-Thursday 7:00 a.m. -
Page 24: Stainless Steel Equipment Care And Cleaning
TRUE underbar refrigeration truemfg STAINLESS STEEL EQUIPMENT CARE 8 STEPS THAT CAN HELP PREVENT RUST ON AND CLEANING STAINLESS STEEL: CAUTION: Do not use any steel wool, abrasive or chlorine based USING THE CORRECT CLEANING TOOLS products to clean stainless steel surfaces. -
Page 25: General Maintenance
TRUE underbar refrigeration truemfg GENERAL MAINTENANCE CLOUDY BEER - DESCRIPTION: BEER IN THE GLASS APPEARS HAZY. NOT CLEAR. • Dirty glass or faucet. DRAFT BEER PROBLEMS • Beer over chilled. To minimize draft beer problems, always follow the recommended •... - Page 26 TRUE underbar refrigeration truemfg CHANGING CO 2 GAS CYLINDER NOTE • Don't lay CO 2 cylinders flat. FOLLOW THESE INSTRUCTIONS AT ALL TIMES WHEN YOU REPLACE A CO GAS CYLINDER: • Don't drop CO 2 cylinders. It requires 1/2 pound CO 2 to dispense 1/2 barrel of beer at 38˚F Close cylinder at "A".
- Page 27 8. Use supplied brush to clean beer faucet par ts. (f igure3). Use cleaners approved by your beer supplier and follow their instruc- 9. Rinse par ts thoroughly. tions. If you are using the cleaning kit purchased from TRUE follow 10. Rinse bucket, pump bottle and hose thoroughly with these instructions: clean cool water.
- Page 28 TRUE underbar refrigeration truemfg LIGHT BULB REPLACEMENT (IDL) INTEGRATED DOOR LIGHTING WARNING: When replacing a light bulb make sure power to the unit is either turned off or unplugged. IDL (INTEGRATED DOOR LIGHTING): • Squeeze the plastic lampshield together and pull away from the door (See Image 1).
- Page 29 TRUE and upon proper installation and start-up in accordance with the instruction packet supplied with each TRUE unit. TRUE’s obligation under this warranty is limited to a period of three (3) years from the date of original installation or 39 months after shipment date from TRUE, whichever occurs first.
