Wolf PW362418 Planning Information

Pro 24" (610) deep wall ventilation hood
Hide thumbs Also See for PW362418:
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual See also: User Manual, Instruction and Installation Manual

Advertisement

loading

Related Manuals for Wolf PW362418

Summary of Contents for Wolf PW362418

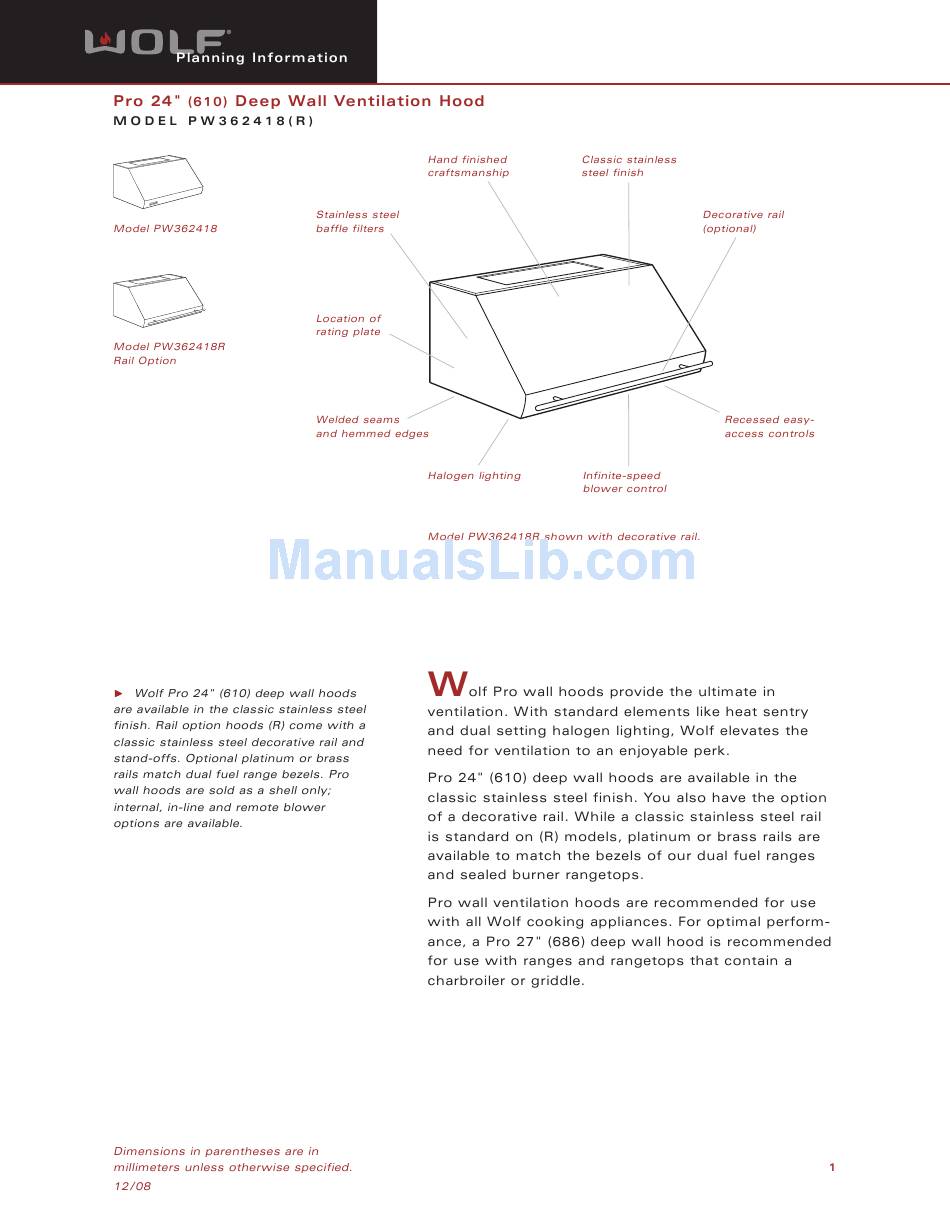

  • Page 2 18" (457) OVERALL HEIGHT 36" (914) OVERALL WIDTH 18" (457) OVERALL HEIGHT 4" (102) 36" (914) OVERALL WIDTH 12" (305) 4" (102) 24" (610) OVERALL DEPTH 12" (305) " (19) DIAMETER OF RAIL 24" 2" (610) OVERALL DEPTH (51)
  • Page 4 6" LOCATION OF ELECTRICAL (152) 5" (127) 18" (457) HEIGHT OF HOOD 36" (914) WIDTH OF HOOD 30" 36" 30" 36" 24" ( 610 ) (762–914) (762–914) DEPTH OF HOOD TO COUNTERTOP TO COUNTERTOP NOTE: 24" (610) deep wall hoods can be vertical or horizontal discharge.
  • Page 6 ROOF CAP OR REMOTE BLOWER 10" (254) ROUND DUCT SOFFIT OR CABINET OR DUCT COVER 18" (457) HEIGHT OF HOOD WALL HOOD 24" (610) DEPTH OF HOOD 30" 36" (762–914) COUNTERTOP TO BOTTOM OF VENTILATION HOOD 36" (914) STANDARD FLOOR TO COUNTERTOP HEIGHT NOTE: HORIZONTAL DISCHARGE REQUIRES AN ACCESSORY KIT.
  • Page 7 " (619) " (298) " (470) " (114) " (546) " (311) 3 /4 " (527) 1 /4 " (718) 10" (254) Diameter 1 /2 " (394) 1 /2 " (622) 14" (356) 3 /4 " 3 /4 (121) " (629) 7 /8 "...
