This service information is designed for experienced repair technicians only and is not designed for use by the general public.
It dose not contain warnings or cautions to advise non -technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to ser-
vice or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.
There are special components used in this equipment which are important for safety. These parts are marked by 7 in the schematic
diagram, circuit board diagrams, exploded views and replacement parts list. It is essential that these critical parts should be replaced
with manufacturer's specified parts to prevent shock, fire, or other hazards. Do not modify the original design without permission of
manufacturer.
Model No. TH-75GX636M/MF
Chassis. 9K04T
WARNING
IMPORTANT SAFETY NOTICE

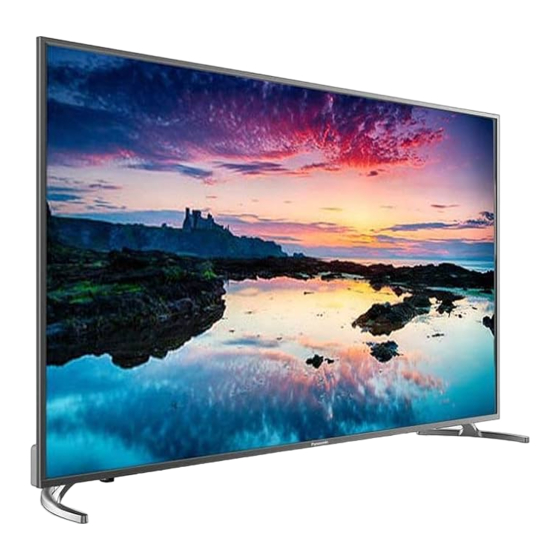

LED Television
© Panasonic Corporation 2015. Unauthorized
copying and distribution is a violation of law.
