Operating Instructions
LED TV
Model No.
Australia
New Zealand
TH-75GX880A
TH-75GX880Z
For more detailed instructions, please refer to [eHELP]
(Built-in Operating Instructions).
●
How to use [eHELP]
Thank you for purchasing this Panasonic product.
Please read these instructions carefully before operating this product and retain them
for future reference.
Please carefully read the "Safety Precautions" of this manual before use.
The images shown in this manual are for illustrative purposes only.
M0419-0

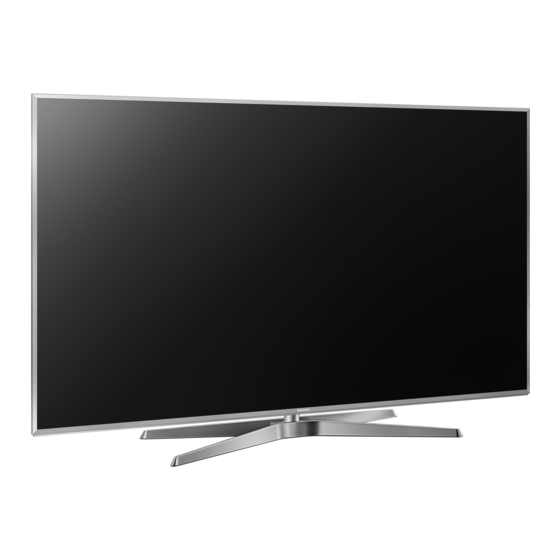

(image: TH-75GX880A)
(p. 19)
English
TQB4GD0185
English
Advertisement
Table of Contents
Related Manuals for Panasonic TH-75GX880A
Summary of Contents for Panasonic TH-75GX880A
- Page 1 ● How to use [eHELP] (p. 19) Thank you for purchasing this Panasonic product. Please read these instructions carefully before operating this product and retain them for future reference. Please carefully read the “Safety Precautions” of this manual before use.
-
Page 2: Table Of Contents
Contents Be Sure to Read Important Notice··················································· 3 Safety Precautions ··············································· 4 Accessories ························································ 7 Installing the TV ··················································· 7 Installing the wall-hanging bracket ··························· 9 Connections ·······················································10 Identifying Controls ··············································16 First time Auto Tuning···········································18 Watching TV·······················································19 How to Use eHELP ··············································19 FAQs ································································21 Maintenance ······················································22 Specifications ·····················································22... -
Page 3: Important Notice
(excerpted from our privacy policy). We do this to protect our customers and the integrity of our Service as well as to protect the rights or property of Panasonic. If you wish ● For information about the trademarks, refer to to know more about the processing of your information [eHELP] (Search by Purpose >... -
Page 4: Safety Precautions
Warning Panasonic has no authority to and does not grant you that permission and explicitly disclaims any right, If you detect anything unusual,... - Page 5 Keep these parts ● Do not use an unapproved pedestal / mounting out of reach of young children. equipment. Be sure to ask your local Panasonic ■ dealer to perform the setup or installation of approved Pedestal wall-hanging brackets.
- Page 6 ■ ■ Built-in wireless LAN Moving the TV Caution Caution ● Do not use the built-in wireless LAN to connect to any Before moving the TV, disconnect all cables. wireless network (SSID*) for which you do not have ● At least two people are required to move the TV to usage rights.
-
Page 7: Accessories
Accessories Installing the TV Standard accessories Assembling / Removing the pedestal Remote Control Pedestal (p. 16) ● N2QAYB001189 Assembly screw (4) M4 × 14 (mm) Pedestal Cover (p. 7) Cable clamp (p. 14) Preparations Cable tie (4) ● Do not hold the screen panel part. (p. - Page 8 Assembling the pedestal ● Insert the pedestal firmly, otherwise it may come off when setting up the TV. ● Do not assemble the pedestal by any method other than those specified below. ● Do not remove the tapes fixing the fall-prevention band until the installation is completed.
-
Page 9: Installing The Wall-Hanging Bracket
■ Installing the wall- Preventing the TV from falling over It is recommended to secure the pedestal to a furniture as shown to prevent the TV from falling over. hanging bracket ● This information is designed to reduce the risk of injuries caused by the TV falling over. -
Page 10: Connections
Connections Terminals Australia ● External equipment and cables shown are not supplied with this TV. ● Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any cables. ● Check the terminal type and cable plugs are correct for connection. - Page 11 ■ Satellite dish 4 USB 1 - 3 port New Zealand This symbol indicates DC operation. 5 ETHERNET terminal (p. 12) 6 Aerial terminal (p. 11) Satellite terminal (p. 11) New Zealand 7 DIGITAL AUDIO OUT (p. 13) 8 AV IN (COMPONENT / VIDEO) (p.
- Page 12 ● Setup of the network connection will start when first Other connections using the TV. (p. 18) ■ ■ DVD Player Wired connection (COMPONENT equipment) Internet environment LAN cable (Shielded) (Viewing) ● Use Shielded Twist Pair (STP) LAN cable. ■ Wireless connection (Listening) Internet...
- Page 13 ■ ■ Amplifier (listening with external speakers) Subwoofer ● To enjoy multi-channel sound from external ● To use the subwoofer, set [Headphone Terminal equipment (e.g. Dolby Digital 5.1ch), connect the Output] to [Sub Woofer]. equipment to the amplifier. For information about the ●...
- Page 14 ■ Fixing the cables using the cable tie Cable arrangement Fix the cables using the cable clamp, cable tie, etc. and then attach the cable cover / terminal cover to the TV. ■ Fixing the Mains lead using the cable clamp Attach the cable tie Insert the cable tie in a hole Hole...
- Page 15 ■ Attaching the cable cover / terminal cover ● Be careful not to nip the cables between the TV and the cable cover / terminal cover. ● When using USB 2 port, USB 3 port, HDMI3 terminal or HDMI4 terminal, you cannot attach the cable cover. Keep the removed cable cover for future use.
-
Page 16: Identifying Controls
Identifying Controls 7 OK ● Confirms selections and choices. ● Press after selecting channel positions to quickly change channel. ● Displays channel list. Remote Control 8 [Option Menu] ● Easy optional setting for viewing, sound, etc. 9 Coloured buttons (red-green-yellow-blue) ●... - Page 17 25 Off Timer 4 Input mode selection ● ● Sets the time for the TV to automatically turn off. Press repeatedly until you reach the desired mode. 26 Operations for contents, connected equipment, [Main Menu] etc. ● Press and hold for about 3 seconds to display main 27 Aspect menu.
-
Page 18: First Time Auto Tuning
First time Auto Tick the TV signal mode to tune, and then select [Start Auto Tuning] Select your region (Satellite) Tuning New Zealand Auto Tuning is now complete and the TV is ready for viewing. When the TV is turned on for the first time, it will If tuning has failed check the Satellite cable, RF cable, automatically search for available TV channels and give and the network connection, and then follow the on-... -
Page 19: Watching
Watching TV How to Use eHELP [eHELP] is the detailed operating instructions built into Turn power on the TV, and gives a more detailed explanation for a better understanding of the operation of each feature. (TV) Display [eHELP] (Remote Control) ●... - Page 20 ● To scroll the description (if more than 1 page) While the description is highlighted ● To open the reference screen ( ● To display the menu related to the description (only for some descriptions) (red) ● To check the features of this TV Search by Purpose >...
-
Page 21: Faqs
● Check the mains lead is plugged into the TV and the mains socket. About the inquiry ● Please contact your local Panasonic dealer for The TV goes into Standby mode assistance. ● Auto power standby function is activated. If you make an inquiry from a place where this TV... -
Page 22: Maintenance
Specifications ■ First, remove the mains plug from the mains socket. Model No. TH-75GX880A, TH-75GX880Z Display panel, Cabinet, Pedestal Dimensions (W × H × D) Regular care: Gently wipe the surface of the display panel, cabinet, 1 680 mm × 1 046 mm × 413 mm (With Pedestal) or pedestal by using a soft cloth to remove dirt or 1 680 mm ×... - Page 23 Aerial input ±0.35 V[p-p] Standard Belling & Lee connector VHF / UHF HDMI1 / 2 / 3 / 4 input Operating conditions TYPE A Connectors Temperature HDMI1 / 3 / 4: 4K, Content Type, Deep Colour, x.v.Colour™ 0 °C - 35 °C HDMI2: 4K, Content Type, Audio Return Channel, Humidity Deep Colour, x.v.Colour™...
- Page 26 If there is a major failure in regard to the product which cannot be remedied then you must notify us within a reasonable period by contacting the Panasonic Customer Care Centre. If the failure in the product is not a major failure then Panasonic may choose to repair or replace the product and will do so in a reasonable period of time from receiving notice from you.
- Page 27 New Zealand WARRANTY - New Zealand only NEW ZEALAND Distributed in New Zealand by Panasonic New Zealand Limited 18 Sir Woolf Fisher Drive, Highbrook, East Tamaki, Private Bag 14911, Panmure, Auckland Tel. 09 272 0100 Customer Care Center Email: Customerservice@nz.panasonic.com...
- Page 28 Warranty Service purposes. Model Number Serial Number English Web Site: http://www.panasonic.com Printed in Malaysia © Panasonic Corporation 2019 04-2019...
