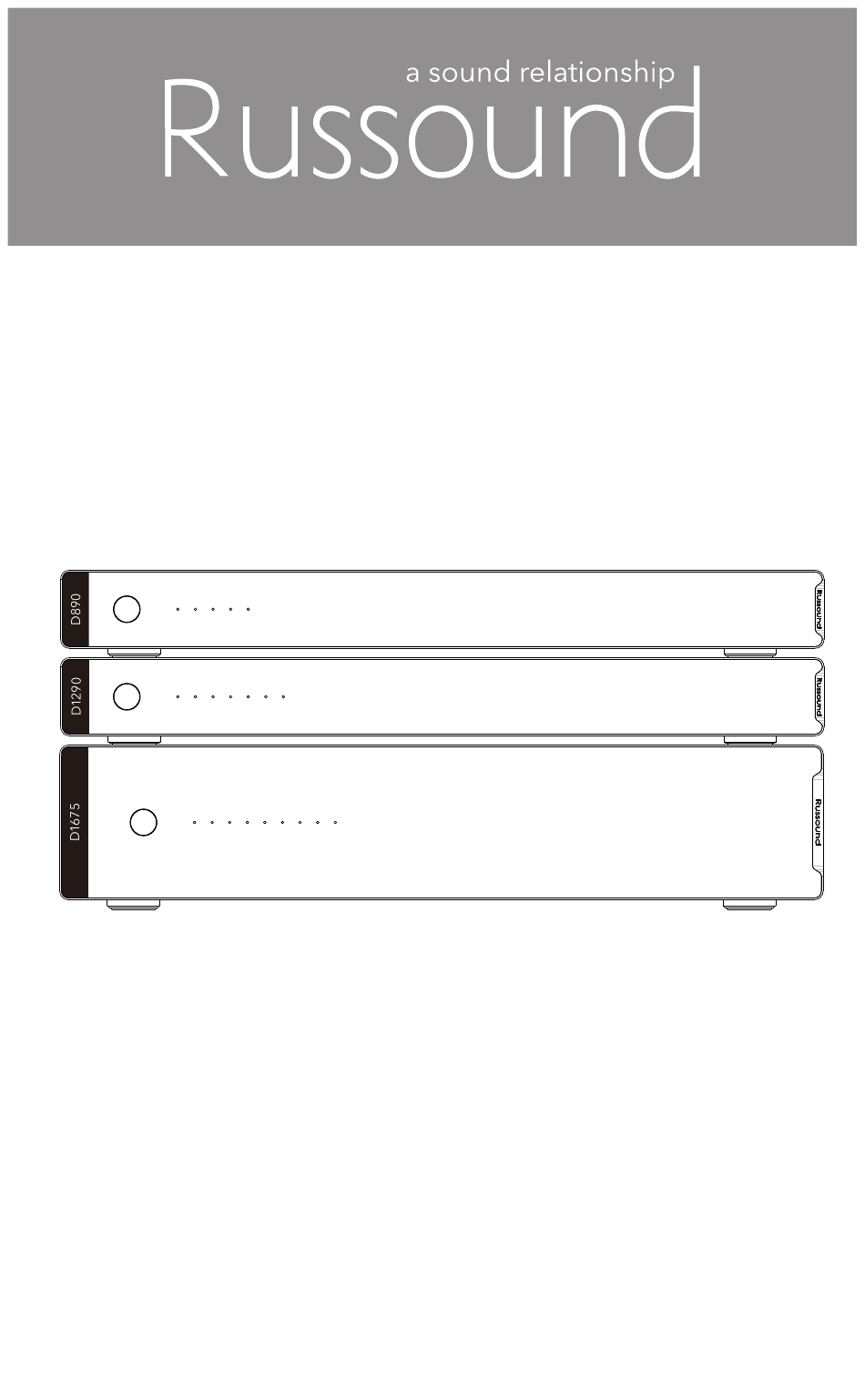

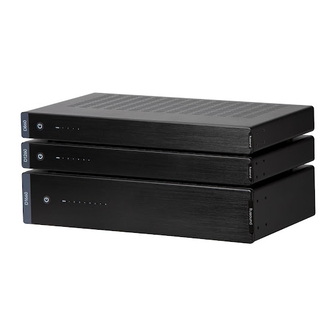

- Page 1 STATUS STATUS STATUS D-SERIES MULTI-CHANNEL POWER AMPLIFIERS D890, D1290, D1675 Designed for multi-room, home theater, and advanced audio systems I N S T A L L A T I O N G U I D E...
-
Page 2: Rack Mounting
RACK MOUNTING The latest generation of multi-channel Class D digital amplifiers from Russound expand on Russound’s 55+ year history of audio design, adding high performance to even the most demanding audio systems, with the When installed in a rack, the four mounting feet on the bottom of the chassis flexibility, power, and quality needed to be the backbone of your favorite audio may be removed if needed. - Page 3 CONNECTING AUDIO SOURCES Please note that all wiring changes and changes to the settings switches on the rear of the Russound D-Series amplifier should be done with the amplifier There are two input types on your Russound D-Series amplifier: powered off by removing the power cord from the rear of the amplifier.
- Page 4 “ON” or “12V”, the front panel switch will have no effect because it is being overridden by the rear switch setting. OUTPUT FILTER SETTINGS TRIGGER IN/OUT The Russound D-Series amplifiers have a D890/1290 D1675 powerful feature allowing their output signal to be...
-
Page 5: Specifications
Shipping Weight 9.5 lbs (4.3 kg) 10.6 lbs (4.8 kg) 14.8 lbs (6.7 kg) Minimum Impedance 2.66 ohms 2.66 ohms 2.66 ohms Limited Warranty 2 Years 2 Years 2 Years Russound D-Series Amplifier Installation Guide Russound D-Series Amplifier Installation Guide... -
Page 6: Application Diagrams
BRIDGED 8Ω LINE IN LINE IN Left Left Right Right Left Right Right Left Speaker Speaker Speaker Speaker Speaker Speaker Speaker Speaker Input Input Output Output Input Input Output Output Russound D-Series Amplifier Installation Guide Russound D-Series Amplifier Installation Guide... - Page 7 Do not use rough material, thinners, alcohol or other chemical solvents or cloths since this may damage the finish or remove the panel OFFICE lettering. Russound D-Series Amplifier Installation Guide Russound D-Series Amplifier Installation Guide...
- Page 8 ________________________________________________________________ has been exposed to rain; or D. The appliance does not appear to operate normally; or E. The appliance has been dropped or the enclosure is damaged. ________________________________________________________________ ________________________________________________________________ Russound D-Series Amplifier Installation Guide Russound D-Series Amplifier Installation Guide...
- Page 9 ©2023 Russound/FMP, Inc. All rights reserved. All trademarks are the property of their respective owners. Specifications are subject to change without notice REV6...
