Empire Comfort Systems DVVK4F-1 Installation Instructions

DireCt Vent HoriZontal termination Kits: DVVK4F-1, DVVK5F-1
The following termination kits can only be used with direct vent fireplaces listed for use with DVVK-4F or DVVK-5F.
Please check and verify your fireplace model number.

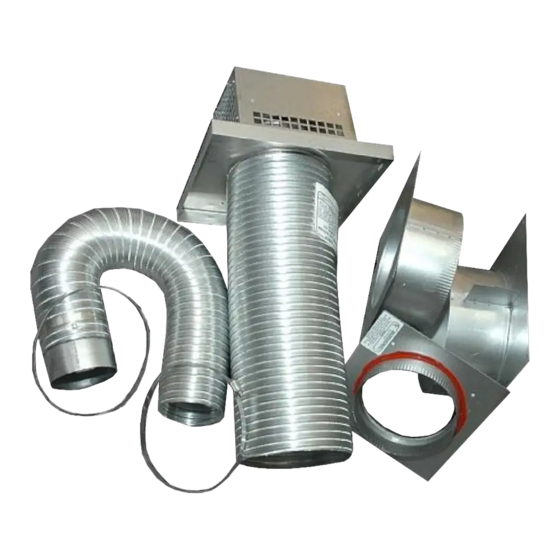

DVVK4F 4"/7" - 48" Flex termination Kit
item Discription
Termination Cap
Wall Firestop/Thimble Assembly
2 Ply Alum Flex 4" Dia by 48" (with attached starter collar)
2 Ply Alum Flex 7" Dia by 48"
Flex Adapter Collar w/Gasket
Clamp 4" Dia
Clamp 7" Dia
Screws 1/8 x 3"
Self Tapping Screws #6 x 1/2"
Screws #6 x 1/2" ph SS
Deflector Shield
tools needed:
• Phillips Screwdriver
• Hammer
• Saw and/or saber saw
all Fireplaces listed for use with the DVVK-4F or the DVVK-5F will operate safely when installed in accordance
with this instruction manual. read all instruction before starting installation, then follow these instructions
carefully to maximize fireplace performance and safety. Report damaged parts to your dealer.
any common venting of the gas appliance using the DV vent kit with other gas appliances is not allowed. Do not
connect this appliance to a chimney flue servicing a separate solid fuel-burning appliance.
always maintain minimum clearances around vent systems. the minimum clearance to combustibles for
horizontal vent pipe is 3 inches at the top and 1 inch at the sides and bottom of the vent system until the
flue penetrates the nearest vertical wall. FOR WALL FIRESTOPS AND VERTICAL RUNS ONLY, maintain a 1 inch
minimum clearance from all sides of the vent. Do not pack the open air spaces around the fireplace or flue with
insulation or other materials. any horizontal run must have a 1/4" rise for every one (1) foot of run towards the
vent termination. never install the vent level or downward.
Failure to follow these instructions may create a possible fire hazard and will void the warranty.
Contact your Local Building and Fire Officials about restrictions and installation inspections in your area.
31657-3-0819
installation instrUCtions
HoriZontal termination Kits
Spring
• Measuring Tape
• Electric Drill and Bits
• Pliers
• Square
Kit Contents
DVVK5F 5"/8" - 48" Flex termination Kit
Qty
1
1 Wall Firestop/Thimble Assembly
1 2 Ply Alum Flex 5" Dia by 48" (with attached starter collar)
1 2 Ply Alum Flex 8" Dia by 48"
1
2
2
3
4 Self Tapping Screws #6 x 1/2"
16
2
1
Building supplies needed:
• Framing Materials
• Wall Finishing Materials
CaUtion
WarninG
WarninG
WarninG
WarninG
item Discription
Termination Cap
Clamp 5" Dia
Clamp 8" Dia
Spring
Screws 1/8 x 3"
Screws #6 x 1/2" ph SS
Deflector Shield
• Caulking Material
(Noncombustible)
• Silicone Sealant
Qty
1
1
1
1
2
2
3
4
16
2
1
