Summary of Contents for Bosch WAXH8G0LSN

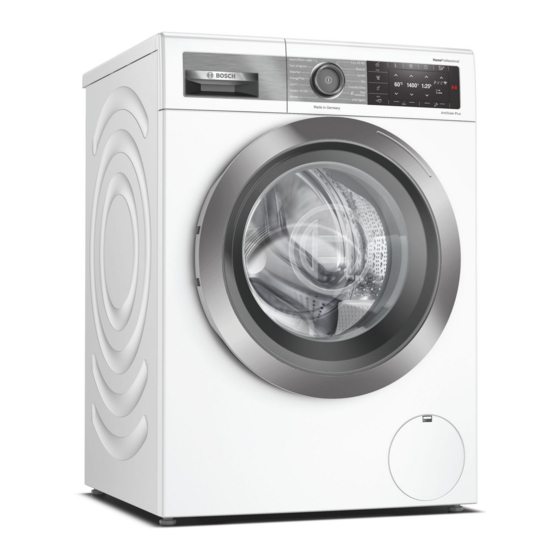

- Page 1 Washing machine WAXH8G0LSN [en] User manual and installation instructions...
-
Page 2: Table Of Contents
Futher information and explanations are available online: Table of contents 1 Safety .......... 4 6 Before using for the first time ... 20 1.1 General information.... 4 6.1 Starting an empty washing cycle ......... 20 1.2 Intended use....... 4 1.3 Restriction on user group... 4 7 Display ........ - Page 3 20 Customer Service..... 56 13.14 Unloading the laundry .. 37 20.1 Product number (E-Nr.) and 13.15 Switching off the appli- production number (FD).. 56 ance........ 37 20.2 AQUA-STOP guarantee .. 57 14 Childproof lock...... 37 21 Consumption values.... 58 14.1 Activating the childproof lock ......... 37 22 Technical data ......
-
Page 4: Safety
en Safety 1 Safety Observe the following safety instructions. 1.1 General information ¡ Read this instruction manual carefully. ¡ Keep the instruction manual and the product information safe for future reference or for the next owner. ¡ Do not connect the appliance if it has been damaged in transit. 1.2 Intended use Only use this appliance: ¡... -
Page 5: Safe Installation
Safety en 1.4 Safe installation WARNING ‒ Risk of electric shock! Incorrect installation is dangerous. ▶ Connect and operate the appliance only in accordance with the specifications on the rating plate. ▶ Connect the appliance to a power supply with alternating cur- rent only via a properly installed socket with earthing. ▶... - Page 6 en Safety WARNING ‒ Risk of injury! The high weight of the appliance may result in injury when lifted. ▶ Do not lift the appliance on your own. If this appliance is not correctly installed in a washer-dryer stack, the installed appliance may fall. ▶...
-
Page 7: Safe Use
Safety en ▶ Wear protective gloves when installing and transporting the ap- pliance. 1.5 Safe use WARNING ‒ Risk of electric shock! If the appliance or the power cord is damaged, this is dangerous. ▶ Never operate a damaged appliance. ▶ Never pull on the power cord to unplug the appliance. Always unplug the appliance at the mains. - Page 8 en Safety WARNING ‒ Risk of poisoning! Detergents and care products may result in poisoning if con- sumed. ▶ If accidentally swallowed, seek medical advice. ▶ Keep detergents and care products out of the reach of children. WARNING ‒ Risk of explosion! Laundry that has been pretreated with cleaning agents that con- tain solvents may cause an explosion in the appliance.
-
Page 9: Safe Cleaning And Maintenance
Safety en 1.6 Safe cleaning and maintenance WARNING ‒ Risk of electric shock! Incorrect repairs are dangerous. ▶ Repairs to the appliance should only be carried out by trained specialist staff. ▶ Only use genuine spare parts when repairing the appliance. ▶ If the power cord of this appliance is damaged, it must be re- placed by the manufacturer, the manufacturer's Customer Ser- vice or a similarly qualified person in order to prevent any risk. -
Page 10: Preventing Material Damage
en Preventing material damage Make sure that the length of the ▶ 2 Preventing material thread on the connection to the water tap is at least 10 mm. damage If the water pressure is too high or too low, the appliance may not be ATTENTION! able to operate properly. -
Page 11: Environmental Protection And Saving Energy
Environmental protection and saving energy en Remove all detergent residue, Reduce the washing temperature for ▶ spray residue or other residues im- lightly and normally soiled laundry. mediately if they come into contact a At lower temperatures, the appli- with the appliance. ance consumes less energy. -
Page 12: Installation And Connection
en Installation and connection Replace the accessories in ques- ▶ 4 Installation and con- tion before operating the appli- ance. nection → "Accessories", Page 33 Note: The appliance has been tested 4.1 Unpacking the appliance at the factory to check it is in working order. As a result, water stains may ATTENTION! remain in the appliance. - Page 13 Installation and connection en ATTENTION! Installation loca- Requirements If residual water in the appliance tion freezes, this may cause damage to Against a wall Do not trap the the appliance. hoses and power Do not install or operate this appli- ▶ cord between the ance anywhere that is liable to ex- wall and the ap-...
- Page 14 en Installation and connection Unscrew and remove all the Put on the 4 cover caps. screws for the 4 transit bolts with a WAF 13 wrench. Push the 4 cover caps downwards. Remove the power cable from the holder. Note: To install the transport locks to transport the appliance, perform these steps again in the reverse or- Remove the 4 sleeves.
-
Page 15: Removing The Transport Struts
Installation and connection en Remove the transport strut. 4.5 Removing the transport struts Unscrew and remove the screws in the vertical transport struts using a T20 screwdriver. 4.6 Connecting the appliance Connecting the water inlet hose WARNING Remove the transport struts. Risk of electric shock! The appliance contains live parts. -
Page 16: Aligning The Appliance
en Installation and connection When connecting to a 21 mm = ½" Sink Fix and secure tap, first fit the adapter with a seal- the water outlet ing washer. hose with an el- bow. Plastic pipe with Fix and secure rubber sleeve or the water outlet gully hose with an el-... -
Page 17: Connecting The Appliance To The Electricity Supply
Installation and connection en To align the appliance, turn the ap- The connection details of the appli- pliance feet. Check that the appli- ance can be found under Tech- ance is level using a spirit level. nical data → Page 58. Check the mains plug is inserted properly. -
Page 18: Detergent Drawer
en Familiarising yourself with your appliance 5 Familiarising yourself with your appliance 5.1 Appliance You can find an overview of the parts of your appliance here. On certain models, specific details such as the colour and shape may differ from those pictured. Maintenance flap for the drain Transit bolts → Page 13 pump → Page 42 Water inlet hose → Page 15... -
Page 19: Control Panel
Familiarising yourself with your appliance en Measuring aid for liquid deter- gent → "Inserting the measuring aid for liquid detergent", Page 35 Dispenser II: detergent for the main wash Compartment : Fabric softener Compartment I: Detergent for prewash 5.3 Control panel You can use the control panel to configure all functions of your appliance and to obtain information about the operating status. -
Page 20: Operating Logic
en first time 5.4 Operating logic In addition to the actual functions of the buttons on the display, you can also use these buttons to select pro- gramme settings in the main menu and settings in the sub-menus. Main menu To select programme settings, press the buttons above or below the sym- bols. - Page 21 first time en Pour washing powder into com- partment II. To prevent foaming, use only half of the amount of detergent recom- mended by the detergent manufac- turer for light soiling. Do not use detergent suitable for woollens or delicates. Push in the detergent drawer. Press to start the programme.
-
Page 22: Display
en Display 7 Display The display shows the current settings, options or relevant information. Example: Display Display Designation More information 0:40 Programme dura- Expected programme duration or pro- tion/programme gramme time remaining in hours and time remaining minutes. "Ready in" time → "Buttons", Page 25 10.0 Recommended The maximum load capacity for the selec-... - Page 23 Display en Display Designation More information Saving the pro- Save a programme → Page 35. gramme Set other programmes → Page 34. Other pro- grammes Childproof lock ¡ lights up: The childproof lock is activ- ated. ¡ flashes: The childproof lock is activated and the appliance has been operated. → "Deactivating the childproof lock", Page 37 Crease-reduction...
- Page 24 en Display Display Designation More information Tomato The stain type is activated. Energy consump- Energy consumption for the selected pro- tion gramme. : Low energy consumption ¡ : High energy consumption ¡ Water consump- Water consumption for the selected pro- tion gramme.
-
Page 25: Buttons
Buttons en 8 Buttons With the button, you can open the sub-menu for additional programme set- tings. The additional programme settings are listed in the overview for the but- tons. The selection of programme settings depends on the programme that is set. Button Selection More information... - Page 26 en Buttons Button Selection More information (Remote Start) ¡ Activate → "Remote start", Page 39 ¡ Deactivate ¡ Open the Home Connect menu (Child Lock 3 ¡ Activate → "Childproof lock", Page 37 sec.) ¡ Deactivate Multiple selection → "Basic settings", Page 40 (Basic Settings 3 sec.) (Options) Multiple selection Activate additional programme set- tings.
- Page 27 Buttons en Button Selection More information Easy-Iron ¡ Activate Activate or deactivate the reduced creasing programme. ¡ Deactivate In order to reduce creasing in the laundry, the spin cycle and the spin speed are adapted. Note: The laundry has a higher resid- ual moisture after washing.
-
Page 28: Programmes
en Programmes 9 Programmes Note: The laundry's care labels provide you with additional information on pro- gramme selection. Programme Description Max. load (kg) Cotton Wash hard-wearing items made from cotton, linen 10.0 or blended fabrics. Also suitable as a short programme for normally soiled laundry when you activate Programme setting: ¡... - Page 29 Programmes en Programme Description Max. load (kg) ¡ Max. 1400 rpm Mix Silent Wash items made from cotton, linen, or synthetic or blended fabrics. Suitable for quiet washing at night. The signal at the end of the programme is deactiv- ated and a reduced final spin speed set by default. Programme setting: ¡...
- Page 30 en Programmes Programme Description Max. load (kg) The selectable programme settings depend on the selected programme. AllergyPlus Wash hard-wearing items made from cotton, linen or blended fabrics. Suitable for allergy sufferers and for strict hygiene requirements. Note: Once the set temperature has been reached, it remains constant throughout the entire washing process.
-
Page 31: Laundry
Programmes en Programme Description Max. load (kg) Duvet Wash pillows or quilts stuffed with synthetic fibres or down fillings. Wash large items separately. Use a detergent that is suitable for down or delic- ates. Use sparingly. Do not use fabric softener. Note: To prevent excessive foaming, remove air from laundry items by rolling them up before you wash them. - Page 32 en Programmes Programme Description Max. load (kg) If you wish to reduce the programme duration to 15 minutes, activate . The maximum load is re- duced to 2.0 kg. Programme setting: ¡ Max. 40 °C ¡ Max. 1200 rpm activated Washing not possible...
-
Page 33: Preparing The Laundry
Accessories en 10 Accessories Use original accessories. These have been made especially for your appli- ance. Note: Some accessories are avail- able in other colours. Contact → "Customer Service", Page 56. Order number Water inlet hose exten- Extend the water inlet WMZ2381 sion hose for cold water or AquaStop (approx. -
Page 34: Detergents And Care
en Detergents and care products If required, adjust the programme 12 Detergents and care settings. → "Adjusting the programme set- products tings", Page 34 The manufacturer's instructions for Setting additional programmes use and dosage can be found on the packaging. Set the … further programme. Press to call up the sub-menu. -
Page 35: Saving The Programme Settings
operation en Press down on the insert and re- 13.4 Saving the programme move the detergent drawer. settings You can save your individual pro- gramme settings as favourites. Set the Memory programme. Press to call up the sub-menu. Select a programme. → "Operating logic", Page 20 Press Main menu to call up the main menu. -
Page 36: Adding Detergent And Care Product
en operation Slide the measuring aid forwards. 13.9 Starting the programme Requirement: A programme is set. → "Setting a programme", Page 34 Press ▶ a The drum rotates and load detec- tion takes place. This can take up to 2 minutes, after which water enters the drum. a The display shows the programme duration or the "Ready in"... -
Page 37: Resuming The Programme When The Programme Status Is Rinse Hold
Childproof lock en The appliance door remains Wipe the rubber gasket dry and re- locked for safety reasons if the move any foreign objects. temperature and water levels are high. – If the temperature is high, start the Rinse programme. – If the water level is high, start the Spin programme or select a suitable programme for draining. -
Page 38: Home Connect
en Home Connect So that the programme currently 15.1 Setting up the running is not cancelled, the pro- Home Connect app gramme selector must be set to the initial programme. Install the Home Connect app on goes out in the display. the mobile device. Home Connect 15 Home Connect This appliance is network-capable. -
Page 39: Activating Wi-Fi On The Appliance
Home Connect en 15.3 Activating Wi-Fi on the 15.6 Remote start appliance Enable the appliance for remote start via the Home Connect app. Note: When Wi-Fi is activated, the en- ergy consumption increases in com- Activating remote start parison to the values specified in the Notes consumption value table. -
Page 40: Data Protection
en Basic settings nect server and if Remote Dia- 16 Basic settings gnostics is available in the country in which you are using the appliance. You can configure the basic settings Tip: For further information and de- for your appliance to meet your tails about the availability of Remote needs. -
Page 41: Overview Of The Basic Settings
Cleaning and servicing en Basic setting Description 17 Cleaning and servi- Connect app Connect your ap- cing pliance to the Home Connect To keep your appliance working effi- app. ciently for a long time, it is important → "Setting up to clean and maintain it carefully. Home Connect", Page 38 17.1 Cleaning the drum... -
Page 42: Cleaning The Drain Pump
en Cleaning and servicing Pull out the insert upwards. Clean the opening for the deter- gent drawer. Clean the detergent drawer and in- sert with water and a brush, and Push in the detergent drawer. then dry them. 17.3 Cleaning the drain pump Clean the drain pump in the event of faults, e.g. - Page 43 Cleaning and servicing en Slide a sufficiently large container CAUTION - Risk of scalding! under the opening. When you wash at high temperat- ures, the detergent solution gets hot. Do not touch the hot detergent ▶ solution. To allow the detergent solution to flow out into the container, remove the sealing cap.
- Page 44 en Cleaning and servicing Ensure that both impellers can Cleaning the drain pump turn. Requirement: The drain pump is empty. → Page 42 Since water may remain in the drain pump, unscrew the pump cap carefully. The filter insert in the pump ‒ housing may become stuck due to coarse particles of dirt.
-
Page 45: Cleaning The Intake Opening In The Rubber Gasket
Cleaning and servicing en Insert and close the service flap. Remove any blockages from the intake opening. 17.4 Cleaning the intake Note: Do not use any sharp or poin- opening in the rubber ted objects. gasket Regularly check the intake opening in the rubber gasket for any block- ages and clean the intake opening. -
Page 46: Troubleshooting
en Troubleshooting 18 Troubleshooting You can rectify minor faults on your appliance yourself. Read the troubleshoot- ing information before contacting after-sales service. This will avoid unneces- sary costs. WARNING Risk of electric shock! Incorrect repairs are dangerous. Repairs to the appliance should only be carried out by trained specialist ▶... - Page 47 Troubleshooting en Fault Cause and troubleshooting "E:30 / -80" Remove any unapproved extensions from the water ▶ hose. → "Connecting the appliance", Page 15 The pump cap is not fully screwed in. Ensure that the pump cap is screwed in all the way ▶...
- Page 48 en Troubleshooting Fault Cause and troubleshooting The appliance is not The mains plug of the power cord is not plugged in. working. Connect the appliance to the power supply. ▶ The circuit breaker in the fuse box has tripped. Check the circuit breaker in the fuse box. ▶...
- Page 49 Troubleshooting en Fault Cause and troubleshooting The water is not drain- Ensure that the drain pipe and water drain hose are ▶ ing. not kinked or trapped. Drain pump is blocked. → "Cleaning the drain pump", Page 42 ▶ is activated. Rinse Hold Continue the programme by selecting Spin or ▶...
- Page 50 en Troubleshooting Fault Cause and troubleshooting The spin cycle runs The unbalanced load detection system eliminates an several times. imbalance by repeatedly redistributing the laundry. Not a fault – no action required. ▶ Note: When loading, where possible, place large and small items of laundry together in the drum. Different sized items of laundry distribute themselves better during the spin cycle.
- Page 51 Troubleshooting en Fault Cause and troubleshooting Heavy foam build-up Detergent dosage is too high. Immediate measure: Mix one tablespoon of fabric ▶ softener with 0.5 litres of water and pour the mix- ture into the left-hand compartment (not for outdoor clothing, sportswear or items stuffed with down). Reduce the amount of detergent for the next wash- ▶...
- Page 52 en Troubleshooting Fault Cause and troubleshooting Loud noises during Secure the appliance feet. ▶ the spin cycle. → "Aligning the appliance", Page 16 Transit bolts have not been removed. → "Removing the transit bolts", Page 13. ▶ Banging noises, rat- Foreign bodies have got into the drain pump. tling in the drain → "Cleaning the drain pump", Page 42 ▶...
- Page 53 Troubleshooting en Fault Cause and troubleshooting The spin result is not Note: Where possible, mix large and small items in satisfactory. The laun- the drum. Different sized items of laundry distribute dry is too wet/too themselves better during the spin cycle. damp. Start the Spin programme.
- Page 54 en Troubleshooting Fault Cause and troubleshooting Odours have formed Humidity and detergent residue may promote the in the appliance. formation of bacteria. → "Cleaning the drum", Page 41 ▶ If you are not using the appliance, leave the door ▶ and detergent drawer open so that residual water can evaporate.
-
Page 55: Emergency Release
Transportation, storage and disposal en 18.1 Emergency release 19.2 Inserting the transit bolts Releasing the door Secure the appliance before trans- Requirement: The drain pump is portation using transit bolts in order empty. → Page 42 to prevent transport damage. ATTENTION! Escaping water may Use a screwdriver to remove the 4 cause material damage. -
Page 56: Disposing Of Old Appliance
en Customer Service 19.4 Disposing of old appli- 20 Customer Service ance Function-relevant genuine spare parts Valuable raw materials can be re- according to the corresponding Eco- used by recycling. design Order can be obtained from Customer Service for a period of at WARNING least 10 years from the date on Risk of harm to health! - Page 57 Customer Service en 20.2 AQUA-STOP guarantee In addition to warranty claims against the seller under the purchase agree- ment and in addition to our manufac- turer's warranty, we offer compensa- tion under the following conditions. ¡ If our Aqua-Stop system is defect- ive and causes water damage, we will make good the damage for private users.
- Page 58 en Consumption values 21 Consumption values The following information is provided in accordance with the EU Ecodesign Regulation. The values given for programs other than the Eco 40-60 are indicat- ive only and were determined in accordance with the applicable standard EN60456. Programme Load Pro- Energy...
- Page 59 Length of the 210 cm A detailed Declaration of Conformity power cord can be found online at www.bosch- home.co.uk among the additional This product contains light sources documents on the product page for from energy efficiency class F. These your appliance.
- Page 60 en Declaration of Conformity UK (NI) 5 GHz WLAN (Wi-Fi): For indoor use only. 5 GHz WLAN (Wi-Fi): For indoor use only.
- Page 64 Expert advice for your Bosch home appliances, help with problems or a repair from Bosch experts. Find out everything about the many ways Bosch can support you: www.bosch-home.com/service Contact data of all countries are listed in the attached service direct- ory.
