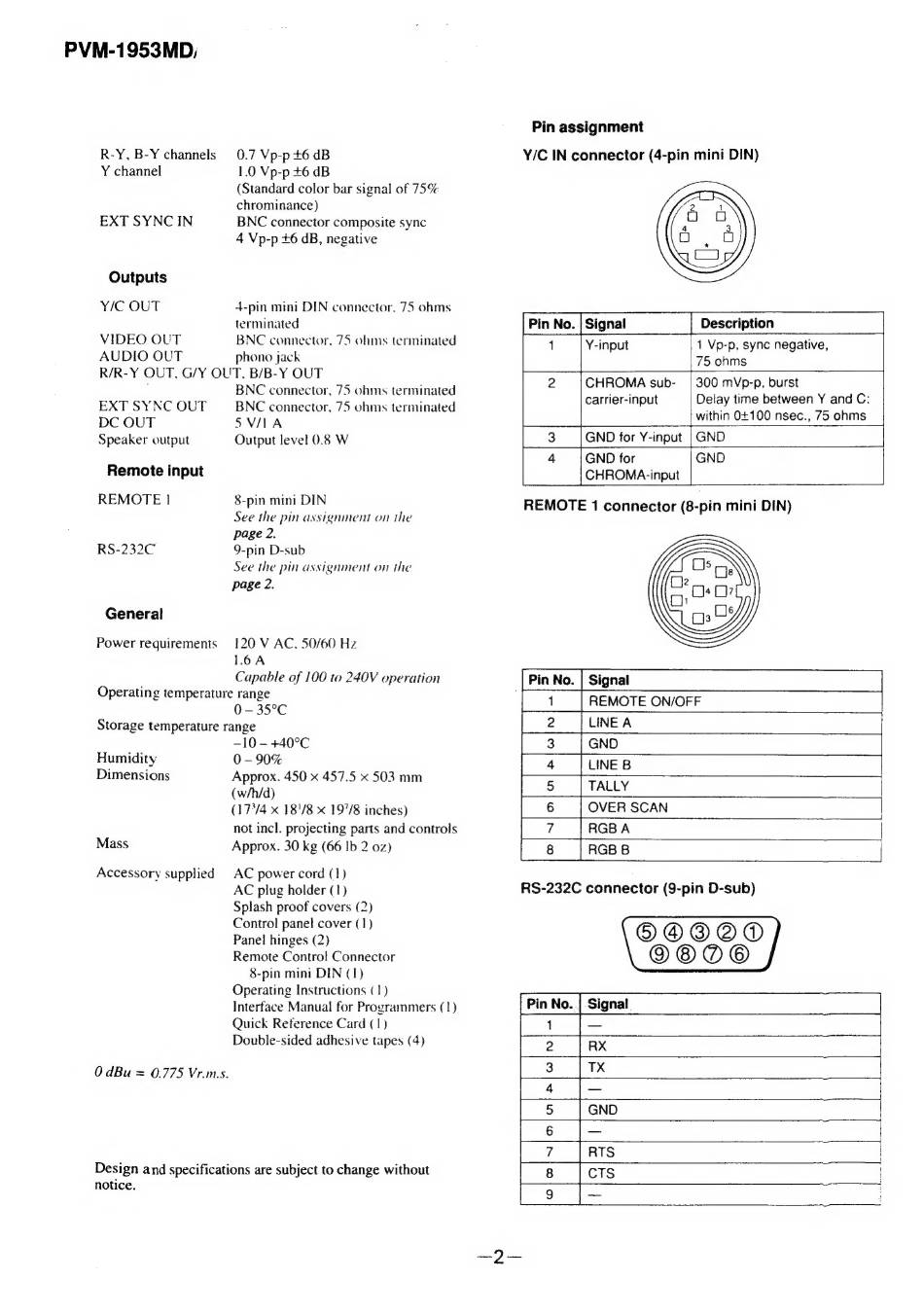

PVM-1953MD;
R-Y, B-Y channels
Y channel
EXT SYNC IN
Outputs
Y/C OUT
VIDEO OUT
AUDIO OUT
0.7 Vp-p £6 dB
1.0 Vp-p +6 dB
(Standard color bar signal of 75%
chrominance)
BNC connector composite sync
4 Vp-p +6 dB, negative
4-pin mini DIN connector, 75 ohms
terminated
BNC connector, 75 ohms terminated
phono jack
R/R-Y OUT. G/Y OUT. B/B-Y OUT
EXT SYNC OUT
DC OUT
Speaker output
Remote input
REMOTE
1
RS-232C
General
Power requirements
BNC connector, 75 ohms terminated
BNC connector, 75 ohms terminated
SV/LA
Output level 0.8 W
8-pin mini DIN
See the pin assignment on the
page 2.
9-pin D-sub
See the pin assignment on the
page 2.
120 V AC. 50/60 Hz
16A
Capable of 100 to 240V operation
Operating temperature range
0- 35°C
Storage temperature range
-10-+40°C
Humidity
0 - 90%
Dimensions
Approx. 450 x 457.5 x 503 mm
(w/h/d)
(17°/4 x 18'/8 x 197/8 inches)
not incl. projecting parts and controls
Mass
Approx. 30 kg (66 Ib 2 oz)
Accessory supplied
0 dBu = 0.775 Vr.m.s.
AC power cord (1)
AC plug holder (1)
Splash proof covers (2)
Control panel cover (1)
Panel hinges (2)
Remote Control Connector
8-pin mini DIN (1)
Operating Instructions (1)
Interface Manual for Programmers (1)
Quick Reference Card (1)
Double-sided adhesive tapes (4)
Design and specifications are subject to change without
notice.
Pin assignment
Y/C IN connector (4-pin mini DIN)
Pin No. | Signal
Description
Y-input
1 Vp-p, sync negative,
75 ohms
{
2 | CHROMA sub-
| 300 mVp-p, burst
carrier-input
Delay time between Y and C:
within 0+100 nsec., 75 ohms
3
GND for Y-input | GND
4
GND for
GND
CHROMA-input
REMOTE 1 connector (8-pin mini DIN)
ls
REMOTE ON/OFF
LINE B
TALLY
OVER SCAN
RGBA
i
COIN|
Din]
RGB B
RS-232C connector (9-pin D-sub)
© OOOO
QOOO
