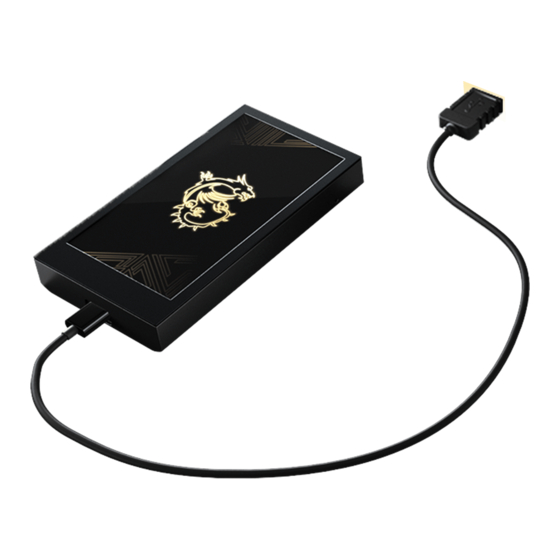

- Page 1 M-VISION DASHBOARD USER GUIDE (For Motherboard)
-
Page 2: Table Of Contents
Contents About M-VISION DASHBOARD ................4 M-VISION DASHBOARD feature ................4 M-VISION DASHBOARD function ................4 Connecting the M-VISION Dashboard ..............5 Get Started ......................6 System Requirements .................... 6 Installing MSI Center ....................6 Basic mode ......................8 Debug Code LED ..................... 8 Debug status ...................... - Page 3 MSI Center shortcut ..................... 20 Power On the computer ..................21 Configure advanced mode with MSI Center ............22 How to open M-Vision Dashboard setting menu ..........22 M-Vision Dashboard setting menu ............... 23 Set APP Shortcut..................... 23 Brightness ....................... 24 Direction ......................
-
Page 4: About M-Vision Dashboard
CPU speed, BIOS flash status and error message. You also can power on/ off the system and launch the MSI Center, Youtube, music APP, browser of the system by touching the M-VISION Dashboard. You can use MSI’s software to configure and customize the M-VISION Dashboard Advanced mode and even upload a .gif/ .bmp/... -
Page 5: Connecting The M-Vision Dashboard
Connecting the M-VISION Dashboard The M-VISION Dashboard can be connected to the motherboard not only by the magnetic case (default mode) but also by the M-VISION cable (detached mode). Please follow the steps below to connect M-VISION Dashboard to the motherboard by M-VISION cable. -
Page 6: Get Started
Installing MSI Center 1. Go to MSI Website download MSI Center. 2. Extract the downloaded file. 3. Double-click on the extracted MSI Center setup program. 4. Click Install to continue the process. 5. Open the Start menu, then right-click on MSI Center. - Page 7 7. Select Run as administrator. 8. Please wait until the installation is complete. 9. You can start to use MSI Center. Get Started...
-
Page 8: Basic Mode
Basic mode Debug Code LED Countdown Timer Tuning Controller Temperature display Humidity display Debug Code LED It displays progress and error codes during POST and shows the CPU core temperature after start-up the system successfully. Please refer to the Debug Code LED table in motherboard’s user manual for details. -
Page 9: Debug Status
Debug status CPU Error CPU is not detected or failed. And the M-Vision Dashboard will sound an alarm, you can replace the alarm sound with your desired by MSI center. DDR Error DDR memory is not detected or failed. And the M-Vision Dashboard will sound an alarm, you can replace the alarm sound with your desired by MSI center. -
Page 10: Vga Error
VGA Error GPU is not detected or failed. And the M-Vision Dashboard will sound an alarm, you can replace the alarm sound with your desired by MSI center. Boot Fail Booting device is not detected or fail. Basic mode... -
Page 11: Tuning Controller
Tuning Controller Tuning controller menu helps you to monitor, control and overclock the motherboard more easily. CPU CLK - / + Touch to incress/ decrease the CPU base clock/ CPU ratio. Please go to BIOS > OC > Direct OC Button and select the CPU BCLK or CPU Ratio to be overclocked. -
Page 12: Countdown Timer
Countdown Timer Touch to enter the countdown timer setting page, it allows you to set the time for the countdown timer. Countdown timer setting page Show the setting countdown time HH:MM:SS Set countdown time Reset countdown time Start to countdown Cancel the countdown timer and back to the main page... - Page 13 When you touch to start the countdown timer, the screen will show as below. ∙ Touch to go to the main page, and the timer is still counting. ∙ Touch to stop the countdown timer and back to the main page. When the countdown time is up, the screen will show as below.
-
Page 14: Temperature Display
Temperature display Show the ambient temperature. The temperature will refresh every minute. Humidity display Show the ambient humidity. The humidity will refresh every minute. Temperature display Humidity display Basic mode... -
Page 15: Advanced Mode
Before using the M-Vision Dashboard advanced mode, please make sure you have installed the MSI Center. If not, the M-Vision Dashboard will show a warning message on the screen (as shown below) and the advanced mode is disabled. Please download and install the MSI Center to enable the advanced mode. -
Page 16: Ez Tuning
EZ Tuning Touch to enter the EZ Tuning menu. CPU CLK - / + Touch to incress/ decrease the CPU base clock/ CPU ratio. Please go to BIOS > OC > Direct OC Button and select the CPU BCLK or CPU Ratio to be overclocked. -
Page 17: Music Player Shortcut
Music player shortcut Touch to open the music player on your system. Advanced mode... -
Page 18: Calculator Shortcut
Calculator shortcut Touch to open the calculator on your system. Advanced mode... -
Page 19: Web Browser Shortcut
Web browser shortcut Touch to open the default web browser on your system. Advanced mode... -
Page 20: Msi Center Shortcut
MSI Center shortcut Touch to open the MSI Center on your system. Advanced mode... -
Page 21: Power On The Computer
Before you power on the system, please touch the M-VISION to awaken the screen. Touch Power On tab to power on the computer You can power on the system with M-Vision dashboard. Please touch the power-on tab when the system is in the S5 or shutdown state. Power On the computer... -
Page 22: Configure Advanced Mode With Msi Center
Configure advanced mode with MSI Center You can configure the Advanced Mode of the M-Vision dashboard with MSI Center. How to open M-Vision Dashboard setting menu 1. Open the Start menu, then select MSI Center 2. Go to Features > Mystic Light. -
Page 23: M-Vision Dashboard Setting Menu
M-Vision Dashboard setting menu Set APP Shortcut Set APP Shortcut Set the application/ web page shortcut for your M-Vision Dashboard. And then you can touch the shortcut to open the application on your system. Set application shortcut 1. Click the Set APP Shortcut 2. -
Page 24: Brightness
LCD Display Turn on/ off the LCD display of M-Vision DASHBOARD. Mute It allows you to mute the sound of the M-Vision DASHBOARD. Alarm Setting Set the alarm and warning sounds. Audio file format support: .WAV / .MP3 ; maximum 5 seconds. -
Page 25: Hardware Monitor
Weather Hardware Monitor Select the display items of the hardware monitor function. The pieces of information of selected items will be shown on the M-Vision DASHBOARD sequentially. Video Image Uploading custom animation file. File Restriction: .BMP/ .JPG/ .PNG/ .GIF/.MP4 ; 800x480 px ; maximum time 100 seconds. -
Page 26: Others
Others S4/S5 (Suspend to Disk/Shutdown) state Flash BIOS states Updating BIOS Configure advanced mode with MSI Center... - Page 27 BIOS Update completed BIOS Update failed Configure advanced mode with MSI Center...
- Page 28 No BIOS file or can not read the BIOS file Configure advanced mode with MSI Center...
