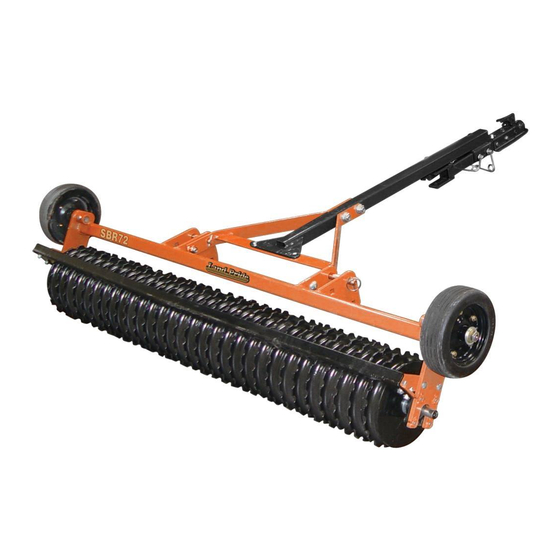

Seed Bed Roller
Model SBR72
Table of Contents
Without Pull Hitch Option
With Pull Hitch Option
25762
Operator's Manual
Read the Operator's Manual entirely. When you see this symbol,
!
the subsequent instructions and warnings are serious - follow
without exception. Your life and the lives of others depend on it!
Cover photo may show optional equipment not supplied
with standard unit.
For an Operator's Manual and Decal Kit in French
Language, please see your Land Pride dealer.
25763
322-215M
Printed 11/10/18

Advertisement

Table of Contents
loading

Related Manuals for Land Pride SBR72

Summary of Contents for Land Pride SBR72

  • Page 1 Your life and the lives of others depend on it! Cover photo may show optional equipment not supplied with standard unit. For an Operator’s Manual and Decal Kit in French Language, please see your Land Pride dealer. Printed 11/10/18...

  • Page 2: Machine Identification

    Serial Number Machine Height Machine Length Machine Width Machine Weight Delivery Date First Operation Accessories Dealer Contact Information Name: Street: City/State: Telephone: Email: California Proposition 65 WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov Model SBR72 Seed Bed Roller 322-215M 11/10/23...
  • Page 3 Land Pride assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained herein. Land Pride reserves the right to revise and improve its products as it sees fit. This publication describes the state of this product at the time of its publication, and may not reflect the product in the future.
  • Page 4 Download the appropriate for Land Pride products. app on your smart phone. Scan the QR Refer to Parts Manual QR code and take a picture. Locator on this page for detailed instructions. Model SBR72 Seed Bed Roller 322-215M 11/10/23...

  • Page 5: Safety At All Times

     Important Safety Information Important Safety Information Listed below are common practices that may or may not be applicable to the products described in this manual. Safety at All Times Look for the Safety Alert Symbol Careful operation is your best The SAFETY ALERT SYMBOL indicates there is a potential hazard assurance against an accident.
  • Page 6  Lower implement to the ground and  Replace parts on this implement using the correct tools and follow all shutdown procedures with genuine Land Pride parts only. equipment. before leaving the operator’s seat to Do not alter this implement in a way ...
  • Page 7 Use Seat Belt and ROPS Keep Riders Off Lights and Devices Machinery  Land Pride recommends the use of a CAB or roll-over-protective-  Never carry riders on the tractor or  A slow moving power machine structures (ROPS) and seat belt implement.

  • Page 8: Important Safety Information

    Important Safety Information Listed below are common practices that may or may not be applicable to the products described in this manual.  Be aware of and follow OSHA  If possible, change into disposable Avoid Crystalline Silica (or other local, State, or Federal) or washable work clothes at the (Quartz) Dust work site;...
  • Page 9 Important Safety Information This page left blank intentionally. 11/10/23...

  • Page 10: Safety Labels

    Spray soapy water onto the cleaned area. all damaged or missing labels. Order new labels from your Peel backing from label and press label firmly onto the nearest Land Pride dealer. To find your nearest dealer, surface. visit our dealer locator at www.landpride.com.

  • Page 11: Using This Manual

    Table of Contents Introduction Introduction Land Pride welcomes you to the growing family of new Owner Assistance product owners. This Seed Bed Roller has been The dealer should complete the Online Warranty designed with care and built by skilled workers using Registration at the time of purchase.

  • Page 12: Tractor Requirements

    The Pull Type Model is set-up with a 2" ball hitch and a clevis type hitch. Pull-type horsepower..18-50 hp (13.4-37.3 kW) 25773 Three point Hitch Assembly Figure 1-1 Model SBR72 Seed Bed Roller 322-215M 11/10/23...
  • Page 13 (#5) if tractor drawbar is 13" or higher. 25774 26518 Pull Type Hitch Assembly Pull Type Hitch Assembly With Drawbar 13" & Higher With Drawbar under 13" High Figure 1-2 Figure 1-3 11/10/23 Model SBR72 Seed Bed Roller 322-215M...
  • Page 14 3. Some adjustment to the scraper teeth can be made by loosening nuts on scraper (#1). Tighten nuts after adjustment has been made. See “Scraper Bar Adjustment” on page 14 for detailed instructions. Model SBR72 Seed Bed Roller 322-215M 11/10/23...

  • Page 15: Point Hook-Up

    3. With lower lift arm hitch holes aligned with clevis lug holes, insert hitch pins (#1) through clevis and lower arm holes. Secure hitch pins with linchpins (#6). 11/10/23 Model SBR72 Seed Bed Roller 322-215M...
  • Page 16 “A” is in alignment with wire snap lock pin (#5B). • Push support stand onto both wire snap lock pins and re-hook wire retainers. Clevis Hook-up (Tractor drawbar height 13" and higher) Figure 1-7 Model SBR72 Seed Bed Roller 322-215M 11/10/23...
  • Page 17 Seed Bed Roller. Tighten nut supplied with the ball to correct torque. 2" Ball with 3/4" shank (P/N 890-975C) can be purchased from Land Pride. 2. Back machine up to the Seed Bed Roller until the 2" ball is in alignment with ball socket in hitch (#2).

  • Page 18: Section 2: Adjustments

    Figure 2-2 nut (#3) until plate (#1) is against plate (#2). 2. Rotate ball hitch about plate (#2) by hand. If ball hitch will not rotate, back nut (#3) off until it will rotate. Model SBR72 Seed Bed Roller 322-215M 11/10/23...

  • Page 19: Operating Checklist

    Operators Manual to determine whether 9. Do not transport on a public roads with roller down. or not to add ballast. Damage to unit and/or road may occur. 11/10/23 Model SBR72 Seed Bed Roller 322-215M...
  • Page 20 Figure 3-1. Re-hook hitch to the drawbar. If using IMPORTANT: Beware of positive ball hitch, rotate ball hitch 180 to re-hookup. hitch weight when unhooking. 25762 Pull-Type Set-Up (Field Set-Up Shown) Figure 3-2 Model SBR72 Seed Bed Roller 322-215M 11/10/23...

  • Page 21: Long Term Storage

    5. Repaint where paint is worn or scratched to prevent 5. If in transport, rotate hitch 180 over the roller body to rust. Ask your dealer for Land Pride touch-up paint. rest unit on the rollers and not on the wheels. Land Pride Aerosol Touch-up Paint 6.
  • Page 22 Never pull onto hard surfaces or paved areas with the roller on the ground or excessive wear and damage may occur. The Land Pride Seed Bed Chock Back Roller is a very user friendly attachment and with a little...

  • Page 23: Section 4: Maintenance & Lubrication

    They can weaken the integrity and impair the Replace any worn, damaged, or illegible safety labels by safety, function, performance, and life of the implement. obtaining new labels from your Land Pride dealer. Replace parts only with genuine OEM parts. •...

  • Page 24: Drag Harrow

    Accessories are available for mounting the spreader to a 2" receiver hitch on a utility vehicle or to a Land Pride Disc Harrow. A rear hitch can be attached to the Disc Harrow 25611 Spin Spreader mounting bracket.
  • Page 25 This system is comprised of a Land Pride Disc Harrow, rear mounted Electric Spin Spreader with special hitch kit, trailing Drag Harrow, and trailing Pull-type Seed Bed Roller.

  • Page 26: Section 6: Specifications & Capacities

    Transport Wheels Straight Ribbed Tread Hitch Support Stand Standard Equipment Standard Equipment 18" (45.7 cm) 77 3/4" (1.97 m) 11 7/8" 19" (30.2 cm) (48.3 cm) 26791 26790 Three Point Type Pull Type Model SBR72 Seed Bed Roller 322-215M 11/10/23...

  • Page 27: Section 7: Features & Benefits

    Allows operator’s to switch from transport to working position and back pull-type configuration. again with ease and keeps costs down. Notched and ribbed patterned gray iron roller. Provides for optimal seedbed finish and long durable product life. 11/10/23 Model SBR72 Seed Bed Roller 322-215M...

  • Page 28: Section 8: Torque Values Chart

    See Important Note on page 14. Adjust nut tight enough so that the two mating plates (3/4"-10 Hex Flange Top Locknut) make contact but loose enough so that the mating plates can rotate against each other. Model SBR72 Seed Bed Roller 322-215M 11/10/23...

  • Page 29: Warranty

    This Warranty is limited to the repair or replacement of any defective part by Land Pride and the installation by the dealer of any such replacement part, and does not cover common wear items. Land Pride reserves the right to inspect any equipment or parts which are claimed to have been defective in material or workmanship.
  • Page 30 Corporate Office: P.O. Box 5060 Salina, Kansas 67402-5060 USA www.landpride.com...
