When using your telephone equipment, basic safety precautions should always
be followed to reduce the risk of fire, electric shock and injury, including the
following:
1.
Read and understand all instructions.
2.
Follow all warnings and instructions marked on the product.
3.
Unplug this product from the wall outlet before cleaning. Do not use liquid
cleaners or aerosol cleaners. Use a damp cloth for cleaning.
4.
Do not use this product near water (for example, near a bath tub, kitchen
sink, or swimming pool).
5.
Do not place this product on an unstable cart, stand, or table. The product
may fall, causing serious damage to the product.
6.
Slots and openings in the cabinet and the back or bottom are provided
for ventilation. To protect it from overheating, these openings must not be
blocked by placing the product on the bed, sofa, rug, or other similar surface.
This product should never be placed near or over a radiator or heat register.
This product should not be placed in a built-in installation where proper
ventilation is not provided.
7.
This product should be operated only from the type of power source
indicated on the marking label. If you are not sure of the type of power
supply to your home, consult your dealer or local power company.
8.
Do not allow anything to rest on the power cord. Do not locate this product
where the cord will be abused by persons walking on it.
9.
Never push objects of any kind into this product through cabinet slots as
they may touch dangerous voltage points or short out parts that could result
in a risk of fire or electric shock. Never spill liquid of any kind on the product.
10.
To reduce the risk of electric shock, do not disassemble this product, but
take it to an authorized service facility. Opening or removing cabinet parts
other than specified access doors may expose you to dangerous voltages
or other risks. Incorrect reassembling can cause electric shock when the
appliance is subsequently used.
11.
Do not overload wall outlets and extension cords as this can result in the
risk of fire or electric shock.
91-5358-10-00.p65
Important Safety Instructions
1
1
1/22/2003, 5:20 PM
Advertisement
Table of Contents
Related Manuals for VTech V2675
Summary of Contents for VTech V2675
-
Page 1: Important Safety Instructions
When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury, including the following: Read and understand all instructions. Follow all warnings and instructions marked on the product. Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. -
Page 2: Save These Instructions
Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lighting. Do not use the telephone to report a gas leak in the vicinity of the leak. VTECH COMMUNICATIONS INC. -
Page 3: Important
The v 2656 is an advanced cordless telephone that operates in the 2.4GHz frequency range. Your v 2656 is capable of supporting up to a maximum of 4 Handsets. Using additional Handsets, 2 people can be conferenced on a call, while two other extensions can be talking internally, using the Intercom feature. -
Page 4: Parts Check List
Base Unit Handset AC Power Adapter Telephone Cord To purchase replacement battery packs, call Vtech Communications, Inc. at 1-800-595-9511. In Canada, call VTech Telecommunications Canada Ltd. at 1-800-267-7377. 91-5358-10-00.p65 Parts Check List Battery Pack Wall Mounting Bracket User's Manual 1/22/2003, 5:20 PM... -
Page 5: The Handset Layout

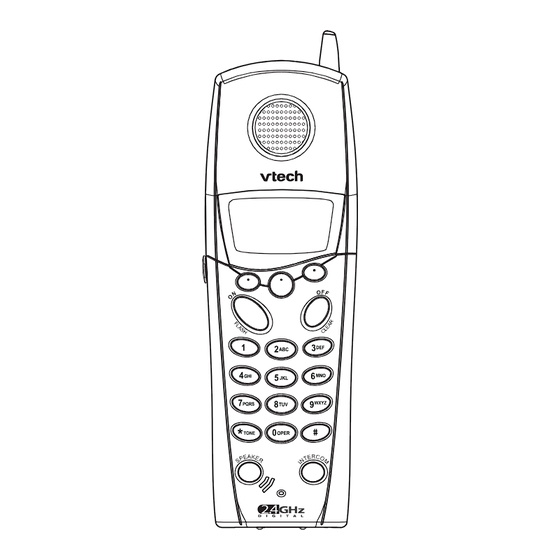

Antenna Earpiece Scroll Keys Headset Jack (2.5mm) On (Flash) Dialing Keys (0-9, *, #) 91-5358-10-00.p65 The Handset Layout Handsfree Speakerphone LCD Display Select /Menu Off (Clear) Intercom Microphone 1/22/2003, 5:20 PM... -
Page 6: The Base Unit Layout
Record/Memo Time/Set Change Menu Charge Contacts Delete Page Charging Indicator 91-5358-10-00.p65 The Base Unit Layout In Use Indicator Repeat/Slow key Answer ON/OFF key Skip/Quick key Volume Keys Mailbox Keys DC Connector Telephone Jack 1/22/2003, 5:20 PM... -
Page 7: Setup
Connecting Power to Base Unit Plug the AC power adapter into an electrical outlet, and the DC connector into the back of the Base unit. CAUTION: Use only the VTech power supply provided with your VTech Unit. IMPORTANT: FOR MAXIMUM PERFORMANCE OF YOUR CORDLESS TELEPHONE SYSTEM: 1. - Page 8 Installation of Battery Pack in Handset The original Handset that is shipped with your v 2656 system will be automatically registered to the Base. This Handset is HANDSET 1. As you register additional Handsets to the system, they will be assigned extension numbers in the following order: HANDSET 2, HANDSET 3, and finally HANDSET 4.
-
Page 9: Charging Of Handset Battery Pack
Connecting to phone line Plug one end of the telephone line cord into the jack on the bottom of the Base unit. Plug the other end of this cord into the wall jack. -
Page 10: Wall Mounting
12 hours. Connect the telephone line cord to the jack on the bottom of the base unit, and the other end to the wall jack. -
Page 11: Registration Of Additional Handsets
Registration and Operation of the v 2600 Accessory Handset v 2656 Your system can operate up to 4 Handsets. The VTech accessory Handset consists of the following: 91-5358-10-00.p65 Registration of Additional Handsets Setup of the v 2600 Accessory Handset Plug the AC power adapter into an electrical outlet. - Page 12 Enter Base ID Code After charging the Handset, if screen SEARCHING FOR BASE, press NEW. You will see ENTER BASE ID. If the screen already says ENTER BASE ID, go to step 2. Enter the 15 digit Base Unit ID code, located on the underside of the Base Unit.
-
Page 13: Handset And Base Indicators
Handset Icons Description Icon Line In Use indicator On steady with no number next to it when a parallel set is in use. On steady with one or more numbers next to it, indicating which extensions are using the line. For example, that Handset 1 and Handset 2 are on an outside call. -
Page 14: Soft Menu Functions
Example of the idle mode display: RDL (Redial) Press RDL to display the last 5 telephone numbers dialed. The number on top line is the most recent number dialed. ï Use the ï... - Page 15 SAVE : Select this option to save the displayed Caller ID record into Memory. Only Caller ID records with telephone numbers can be saved into Memory. If you need to modify the number after saving, see To Edit a Number/Name, on page 21.
- Page 16 From the Handset Settings menu you can select the following options to modify: ï RINGER VOLUME Select this option to adjust the ringer volume. Use the keys to adjust the volume up or down. A Handset will display a graphic indicator of the selected volume setting.
-
Page 17: Tone/Pulse Selection
Your v 2656 has an enhanced feature that is designed to improve performance. If you are using your v 2656 in an area with excessive interference, or you require a moderate increase in operating range. the Range Extender feature can help to improve both the sound quality and range. -
Page 18: Register And Memory
Use this option to register additional Handsets to the v 2656 Base. You can register a total of four Handsets. You will be prompted to enter the 15-digit Base ID code printed on the underside of the base unit. After entering this code, press OK. The Handset will display SEARCHING FOR BASE, and then FOUND BASE when the process is complete. -
Page 19: To Store A Number/Name
To Store a Number/Name: ï Starting from the idle screen, enter the number you want to store in memory. ï Be sure to include long distance codes and pauses (using the PAUSE soft key) if necessary. When finished, press the MEM soft key. -
Page 20: To Search For And Dial A Number/Name
To Search For and Dial a Number/ Name: ï Starting from the idle screen, press the MEM soft key to review memory contents. ï Using soft keys scroll through the memory contents in alphabetical order. ï Or, you can press the FIND soft key, enter the first few characters of the name. -
Page 21: To Edit A Number/Name
Handset will display: ï To delete the displayed records, press THIS. ï To delete all the records, press ALL. To confirm the deletion of ALL records, press YES. To exit without deleting press NO. To Edit a Number/Name ï Using the steps from 1 to 3 in To Search For and Dial a Number/ Name, locate the entry you want to edit. -
Page 22: Handset And Base Operation
Mute Function During an active call, press the MUTE soft key on the Handset to disable the microphone. Press MUTE again to return to the 2-way conversation. Hold Function ï Press the HOLD soft key to place a call on hold. To return to the call press the ON (or SPEAKER) key. -
Page 23: Flash Function
91-5358-10-00.p65 Handset and Base Operation Flash Function You can use your v 2656 with services such as Call Waiting. Simply press the ON key on the Handset to FLASH the line. Volume Control From the Handset: During an active call, press the VOL soft key, then use the soft keys to adjust the earpiece (or Handset Speaker) volume. -
Page 24: Handsfree Speakerphone Operation
When the telephone line is currently being used by a parallel set (a telephone device other than the v 2656 on the same line), the IN USE LED on the Base will flash. When the answer machine take up the line, the IN USE LED on the base will flash too. -
Page 25: Low Battery Indication
Low Battery Indication When a low battery is detected, the Battery icon will flash and a warning beep is played. The status message LOW BATTERY will also be displayed when the Handset is in idle mode. To prevent an unexpected call drop, a drained Handset battery should be replaced by a fully charged spare battery. -
Page 26: Answering System Operation
The message window shows the total number of messages in all mailboxes. When the system is turned on, you will hear "Answering machine on" and the ON/OFF light will be lit. When the system is off, you will hear "Answering machine off" and the ON/OFF light will not be lit. -
Page 27: About Mailboxes
About Mailboxes This answering system has three voice mailboxes. Callers using a touch tone phone can select the mailbox in which their messages will be recorded by pressing 1, 2, or 3 while the system plays the outgoing announcement. Otherwise, messages will be recorded in Mailbox 1. -
Page 28: Answering System Feature Setup
3 Press any MAILBOX/STOP button to stop recording. The system plays back your recorded message. To review your announcement at any time: 1 Press MENU until you hear "Set Outgoing Messages." 2 Press any MAILBOX/STOP button. The system plays the current announcement. 91-5358-10-00.p65 Answering System Operation To delete your announcement:... -
Page 29: Feature Summary
FEATURE SUMMARY SYSTEM ANNOUNCES: "Set Security Code" "Set Audible Message Alert" Off* "Set Announce Only" Off* "Set Base Ringer" "Set Number of Rings" Toll Saver NOTE: Exit Feature Setup at any time by pressing a MAILBOX/STOP button. 91-5358-10-00.p65 Answering System Operation Default setting indicated by*: DESCRIPTION/DIRECTIONS: Set the remote access code you will... -
Page 30: Listen To Messages
This system automatically saves your messages until you delete them, and can store approximately 15 minutes of messages, memos, and announcements (up to a maximum of 99 messages). A message or memo can be up to 4 minutes long. If the system has less than 30 seconds of recording time left, it automatically turns off. -
Page 31: Adjust Playback Volume
91-5358-10-00.p65 Answering System Operation Press the MAILBOX/STOP button at any time during playback to exit message playback. You will hear a long beep. Adjust Playback Volume Press VOLUME or VOLUME to adjust playback volume to a comfortable level. If volume is set to level 1, you will not hear incoming messages as they are received. -
Page 32: Record A Memo
Call Screening 1 Set the Base playback volume to a level greater than 1 to hear messages as your callers leave them. 2 If you press ON on the Handset, the Answering System will stop recording, and you can talk to your caller. 3 If you do not want to screen messages as your callers leave them, set the playback volume on the Base to 1. -
Page 33: Message Window Display
MESSAGE WINDOW DISPLAY WINDOW DISPLAYS 1-98 0-99 Couning 1 to 99 99, flashing 1-99, flashing 1-8, steady for one second 40-99 On or OF, steady for one second normal display --, Flashing 91-5358-10-00.p65 Answering System Operation TO INDICATE: No messages in any mailbox Total number of messages in all mailboxes Memory is full or total number of... -
Page 34: Remote Access
Remote Access You can access many features of this system remotely from a touch tone phone. 1 Dial your telephone number. 2 When the system answers enter your Remote Access Code (preset to 50). The system beeps once and announces the number of new messages on the system. -
Page 35: Headset Operation
Headset option, you must obtain an optional accessory Headset, which is compatible with the v 2656. To purchase a Headset, call VTech Customer Service at 1-800-595-9511, In Canada, call at 1-800-267-7377. Once you have a compatible 2.5mm Headset, locate the Headset Jack on the Handset. - Page 36 Avoid water Your telephone can be damaged if it gets wet. Do not use the Handset outdoors in the rain, or handle it with wet hands. Do not install your Base Unit near a sink, bathtub or shower.
- Page 37 If you have difficulty operating your phone, the suggestions below should solve the problem. If you still have difficulty after trying these suggestions, call VTech Communications at 1-800-595-9511. In Canada, call VTech Telecommunications Canada Ltd. at 1-800-267-7377. The Phone Doesn't Work At All ï...
- Page 38 ï Disconnect your Base Unit from the telephone jack, and plug in a regular telephone. If you still hear other calls, the problem is probably in your wiring or local service. Call your local telephone company. You Hear Noise In The Handset, And None Of The Keys Or Buttons Work ï...
- Page 39 If we choose to replace this product, we may replace it with a new or refurbished product of the same or similar design. VTech will return repaired or replacement products to you in working condition. VTech will retain defective parts, modules, or equipment.
- Page 40 If the Product failure is not covered by this limited warranty, or proof of purchase does not meet the terms of this limited warranty, VTech will notify you and will request that you authorize the cost of repair and return shipping costs for the repair of Products that are not covered by this limited warranty.
-
Page 41: Fcc Part
This equipment is compatible with inductively coupled hearing aids. Should you experience trouble with this telephone equipment, please contact: VTech Communications Inc. CUSTOMER SERVICE at 1-800-595-9511. In Canada, call VTech Telecommunications Canada Ltd. at 1-800-267-7377. For repair/warranty information, the telephone company may ask you to disconnect this equipment from the line network until the problem has been corrected. - Page 42 The REN is used to determine how many devices you may connect to your telephone line and still have them ring when you are called. In most , but not all areas, the sum of all RENS should be five (5.0) or less, You may want to connect your local telephone company for more information.
- Page 43 If you do, please keep three things in mind: a. We recommend that you also write the telephone number on the directory card, so that you can still dial the emergency number manually if the memory dialing feature doesn't work.
- Page 44 VTechís participation in RBRC local retailers participating in the RBRC service centers. Please call 1-800-8-BATTERY recycling and disposal bans/restrictions in your area.VTechís involvement in this program is part of its commitment to protecting our environment and conserving natural resources. RBRC is a registered trademark of Rechargeable Battery Recycling Corporation.
- Page 45 FREQUENCY CONTROL Crystal controlled PLL synthesizer TRANSMIT FREQUENCY 2401.056 - 2482.272 MHz RECEIVE FREQUENCY 2401.056 - 2482.272 MHz CHANNELS 95 Channels NOMINAL EFFECTIVE RANGE Maximum power allowed by FCC. Actual operating range may vary according to environmental conditions at the time of use. SIZE Handset :171.5mm x 53mm x 45mm Base :...
-
Page 46: Table Of Contents
Table Of Contents 1. I m p o r t a n t Instructions 3. Introduction Parts Check List The Handset Layout The Base Unit Layout 7. Getting Started Setup Charging Of Handset Battery Pack 10. Wall Mounting 11. Registration of Additional Handsets 13. - Page 47 VTECH TELECOMMUNICATIONS LTD. A member of THE VTECH GROUP OF COMPANIES. Distributed in the U.S.A. by VTech Communications Inc.; Beaverton, Oregon. Distributed in Canada by VTech Telecommunications Canada Ltd.; Suite 200,7671 Alderbridge Way, Richmond, B.C. V6X 1Z9. Copyright 2003 for VTECH TELECOMMUNICATIONS LTD.
- Page 52 For detailed operational instructions, please refer to the User's Manual. To order additional system Handsets (model# v 2600), battery packs, or headsets, call VTech Communications, Inc. at 1-800-595-9511. STOP!! If you have questions about this product, or if you're having difficulty with setup or operation, do not return your phone to the store.
- Page 53 Do not overload wall outlets and extension cords as this can result in the risk of fire or electric shock. Unplug this product from the wall outlet and refer servicing to VTECH under the following conditions: A.When the power supply cord or plug is damaged or frayed.
-
Page 54: Installation Of Battery Pack In Handset
Getting Started Registration And Operation Of The VTECH v 2600 Accessory Handset Your VTECH system can support up to 4 Handsets. The accessory Handset v 2600 consists of the following: Setup Of The v 2600 Accessory Handset Setup The original Handset that is shipped with your v 2651 or v 2656 will be automatically registered to the Base. - Page 55 Wait until the Base Unit is in the idle (on hook) mode, and repeat steps 2 to 4. Congratulations! You can now enjoy the benefits of your VTech multi-Handset system. Registration Antenna Earpiece Headset Jack (2.5mm)
-
Page 56: Belt Clip
Headset for hands-free operation. If you choose to use the Headset option, you must obtain an optional accessory Headset, which is compatible with the Handset. To purchase a Headset, call VTech Customer Service at 1-800-595-9511; in Canada, call 1-800-267-7377. -
Page 57: Maintenance
Avoid water Your telephone can be damaged if it gets wet. Do not use the Handset outdoors in the rain, or handle it with wet hands. Do not install your Base Unit near a sink, bathtub or shower. -
Page 58: Warranty Statement
3. Product to the extent that the problem experienced is caused by signal conditions, network reliability or cable or antenna systems; or 4. Product to the extent that the problem is caused by use with non-VTECH electrical accessories; or 5. Product whose warranty/quality stickers, Product serial numbers plates or electronic serial numbers have been removed, altered or rendered illegible;... - Page 59 • If the Product failure is not covered by this limited warranty, or proof of purchase does not meet the terms of this limited warranty, VTECH will notify you and will request that you authorize the cost of repair prior to any further repair activity. You must pay for the cost of repair and return shipping costs for the repair of Products that are not covered by this limited warranty.
-
Page 60: Fcc, Acta And Ic Regulations
In most , but not all areas, the sum of all RENS should be five (5.0) or less, You may want to connect your local telephone company for more information. -
Page 61: The Rbrc Seal
VTech product service centers.Please call 1-800-8-BATTERY for information on Ni-Cd battery recycling and disposal bans/restrictions in your area.VTech’s involvement in this program is part of its commitment to protecting our environment and conserving natural resources. RBRC ®... -
Page 62: Technical Specifications
A member of THE VTECH GROUP OF COMPANIES. Distributed in the U.S.A. by VTech Communications Inc.; Beaverton, Oregon. Distributed in Canada by VTech Telecommunications Canada Ltd., Suite 200, 7671 Alderbridge Way, Richmond, B.C. V6X 1Z9. Copyright 2003 for VTECH TELECOMMUNICATIONS LTD.
