ADTRAN OC-48/STM-16 DWDM SFP Manual

OC-48/STM-16 DWDM 1559.79nm 80 km SFP
CLEI: SOOTALWJ__
Product P/N: 1442707G2
D
ESCRIPTION

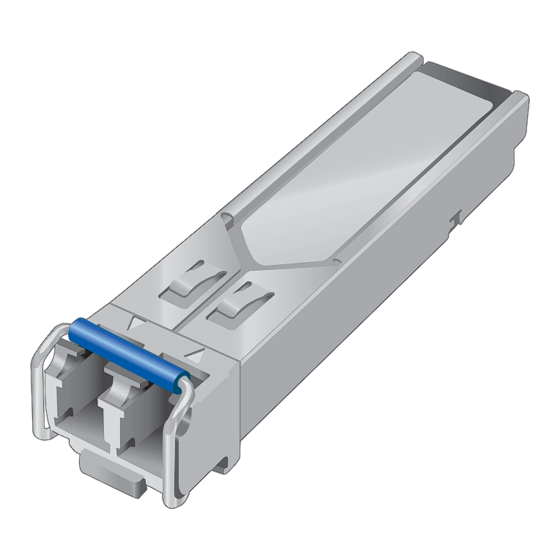

The OC-48/STM-16 DWDM 1559.79nm 80 km SFP (DWDM SFP)
is a full duplex serial electric, serial optic device with both
transmit and receive functions contained in a single module that
provides a high speed serial link at SONET OC-3, OC-12, OC-48,
SDH STM-1, STM-4, STM-16, and GigE rates. The DWDM SFP
operates on Optical Channel 22 (1559.79 nm). When installed in
the appropriate host module, the DWDM SFP provides an optical
interface to the supporting system.
The transmit side of the DWDM SFP converts serial NRZ
electrical data at the line rate to a standard compliant optical
signal. The receive side converts the incoming DC balanced serial
NRZ optical data at the line rate into serial electrical data.
NOTE
To ensure compatibility, refer to the documentation provided
with the host module.
The DWDM SFP supports the following features:
•
1559.79 nm optical signals for up to 80 km reach
•
Low power consumption (<1.5 W max)
•
Bit error rate 10^–12
!
CAUTION
Due to compliance certification requirements, use only SFPs/
XFPs supplied by ADTRAN with the host module. ADTRAN
cannot certify system integrity with other SFP/XFPs.
Small Form-Factor Pluggable
O
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
I
NSTALLATION
To install the DWDM SFP into an appropriate module, complete
the following steps:
!
Do not remove the protective end cap from the SFP until the fiber
optic cable is ready to be connected.
NOTE
Use the latch on the DWDM SFP to remove the SFP from the SFP
cage mounted on the printed circuit board.
S
PERATIONAL PECIFICATIONS
Channel Spacing: 100 GHz
Data Rate: 150 Mbps to 2.5 Gbps
Optical distance: 80 km nominal
Transmit Wavelength: 1559.79 nm (Channel 22)
Receive Wavelength: 1525nm to 1565 nm
Optical transmit levels: 0.0 to +5.0 dBm
Spectral Width: 0.4 nm (20 dB spectral width)
Extinction Ratio: 8.2 dB
Optical receive level: –29.0 dBm to –8.0 dBm
Receiver Damage Threshold: –5.0 dBm
Optical Path Penalty: 2.0 dB max
Minimum Span Attenuation: 13 dB
Optical Budget: –27 dB
Dispersion Tolerance: 1600 ps/nm
Optical connectors: LC
Environmental Support:
o Operational temperature range: –40°C to +65°C
o Storage temperature range: –40°C to +85°C
o Relative humidity: up to 85%, noncondensing
1. Inspect the DWDM SFP. If damaged, file a claim with the
carrier and then contact ADTRAN Customer Support.
CAUTION
2. Insert the DWDM SFP into the SFP cage on the module.
Ensure that the manufacturer label on the SFP is facing
upward for correct installation.
3. Slide the DWDM SFP all the way into the receptacle until
there is an audible "click."
jobAid
Issue Date: October 2011
Document P/N: 61442707G2-22A
1
