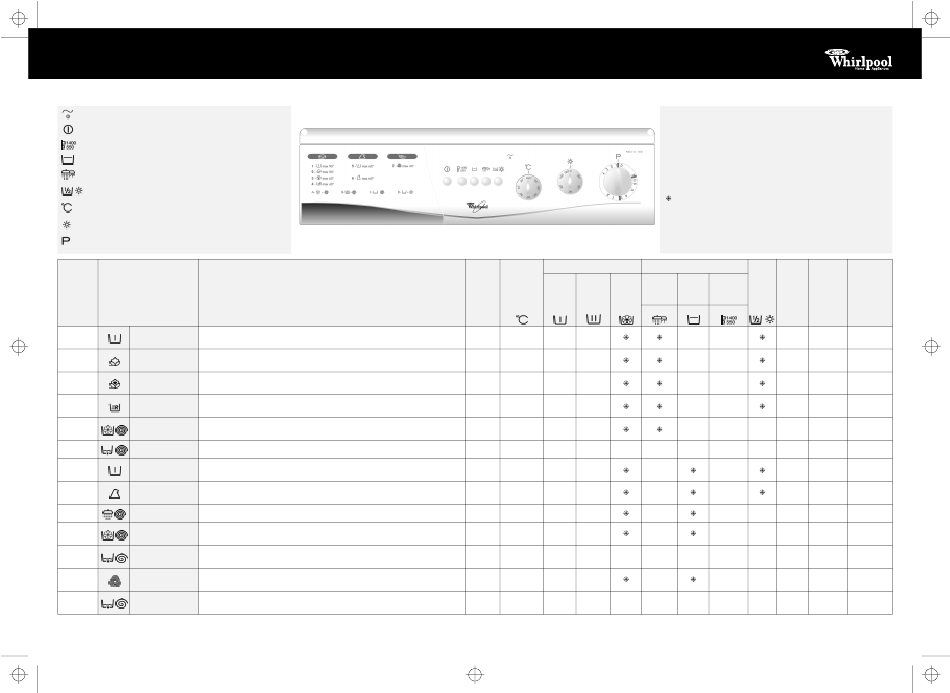

GB AWZ 414
"On/Off" indicator light
"On/Off" Button
"Spin Speed Reduction" Button
"Rinse and Hold" Button
"Intensive Rinse" Button
"Dryer Half Load" Button
Washing "Temperature" Selector Knob
"Drying Time" Selector Knob
"Washing Program" Selector Knob
Programme
selector Programme
knob
Cotton with Heavily soiled, hard-wearing cotton and linen fabrics (bedlinen, table linen,
1
prewash underwear, shirts etc.).
Normally soiled bed linen, table linen and underwear, towels, shirts etc. made
2
Cotton
of cotton or linen.
3
Coloured Cotton Average to heavily soiled, hard-wearing cotton or linen fabrics.
Normally soiled bed linen, table linen and underwear, towels, shirts etc. made
4
Quick wash
of cotton or linen.
Special rinse for Programme for treating laundry with starch and/or softener. The programme
B
cottons ends with an intensive spin cycle.
C
Drain + Spin Drain, with final spin. Alternative method for unloading laundry earlier.
Synthetic with Heavily soiled shirts, blouses, aprons, etc. made of polyester (diolen, trevira),
5
prewash polyamide (perlon, nylon) or cotton blends.
Lightly to normally soiled blouses, t-shirts, aprons, etc. made of polyester
6
Synthetic
(diolen, trevira), polyamide (perlon, nylon) or cotton blends.
A
Rinse Rinse program, ending with a spin cycle.
Special rinse for Programme for treating laundry with starch and/or softener. The programme
B
synthetic fabrics ends with an intensive spin cycle.
Drain, with final spin. Alternative method for ending the "Synthetic", "Delicate"
D
Drain + Spin
and "Wool" programmes and for unloading the laundry earlier.
Only machine washable woollens with Pure New Wool label.
7
Wool
If you select "Rinse and Hold" do not leave items to soak for too long.
Drain + Spin Drain, with final spin. Alternative method for ending the "Synthetic", "Delicate"
D
for woollens and "Wool" programmes and for unloading the laundry earlier.
* drying times for guidance only.
These times will be perfected with experience and use.
Max.
Load
washing
Type of load/Notes
Kg
5.0
5.0
5.0
5.0
5.0
5.0
2.5
2.5
2.5
2.5
2.5
1.0
1.0
Avoid touching the glass door during and immediately after
running the drying cycle since it will be hot.
Do not dry fabrics that have been treated with solvents or
petroleum based products, sleeping bags, duvets or bulky clothing.
Avoid drying clothing excessively in order to prevent creasing and
difficult ironing.
For hand-washed items, remove excess water using the highest
spin speed before starting the drying cycle.
: option / Yes: add the detergent.
Washing Detergent and Additives
temperature
Pre- Main Fabric Intensive
selector
wash wash Softener Rinse
Washing
Max. 90° yes yes
Max. 90° — yes
Max. 60° — yes
Max. 40° — yes
— — —
— — — — —
Max. 60° yes yes —
Max. 60° — yes —
— — — —
— — — —
— — — — —
Max. 40° — yes —
— — — — —
Options 1/2 Max. Approx Approx Time
load Drying Time Cupboard
Rinse Spin speed
for Load Iron Drying
and Reduction
drying Drying
Hold
Load
*
1400
— 2.5 kg 70/100
550
1400
— 2.5 kg 70/100
550
1400
— 2.5 kg 70/100
550
1400
— 2.5 kg 70/100
550
1400
— — 2.5 kg 70/100
550
— — — — —
550 1.5 kg 30/40
550 1.5 kg 30/40
550 — 1.5 kg 30/40
550 — 1.5 kg 30/40
— 550 — 1.5 kg 30/40
550 — — —
— — — — —
