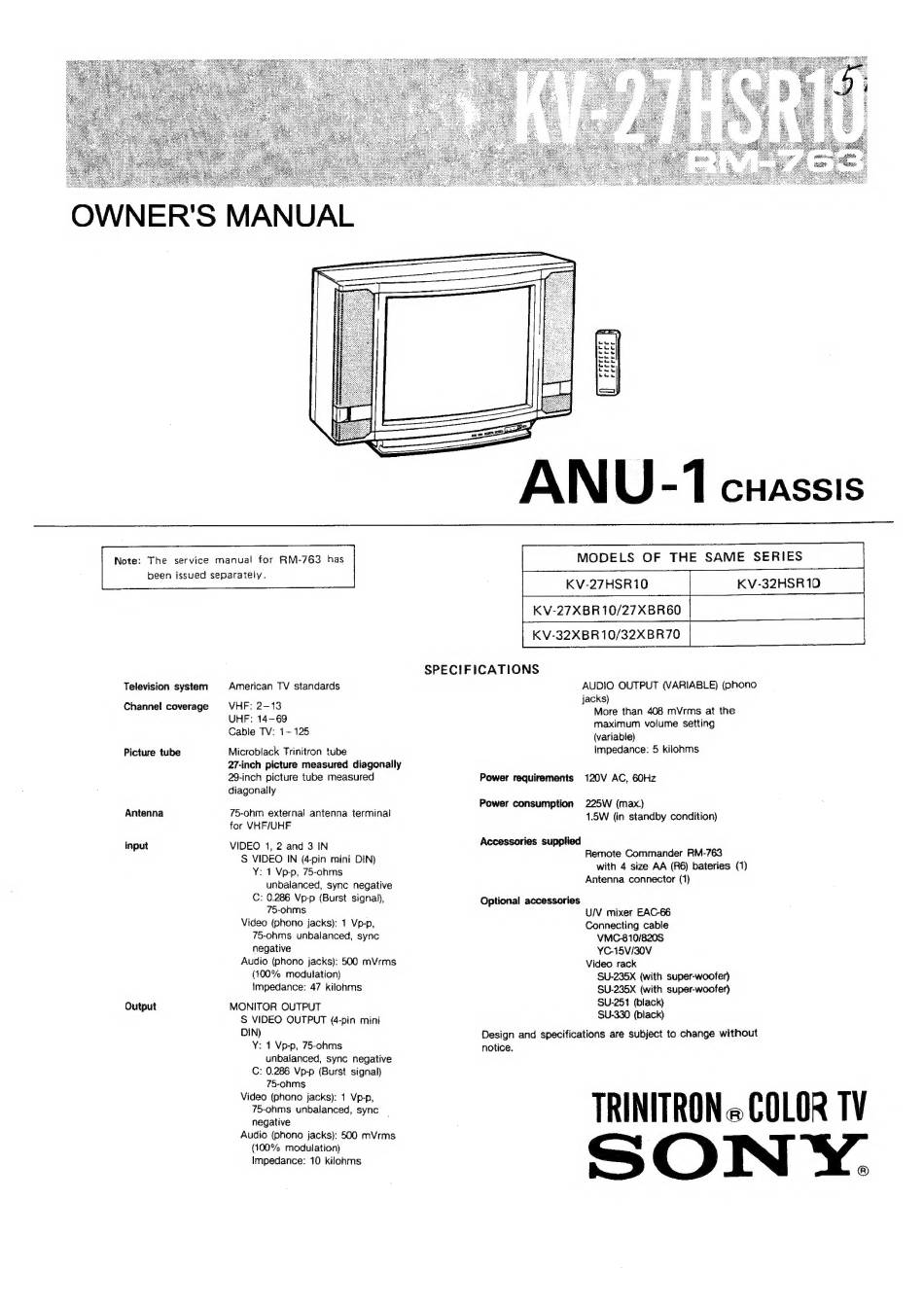

Sony TRINITRON KV-27HSR10 Owner's Manual

OWNER'S MANUAL
Note: The service manual for RM-763 has
been issued separately.
Television system
Channel coverage
Picture tube
Antenna
input
Output
American TV standards
VHF: 2-13
UHF: 14-69
Cable TV: 1-125
Microblack Trinitron tube
27-inch picture measured diagonally
29-inch picture tube measured
diagonally
75-ohm external antenna terminal
for VHF/UHF
VIDEO 1, 2 and 3 IN
S VIDEO IN (4-pin mini DIN)
Y: 1 Vp-p, 75-ohms
unbalanced, sync negative
C: 0.286 Vp-p (Burst signal),
75-ohms
Video (phono jacks): 1 Vp-p,
75-ohms unbalanced, sync
negative
Audio (phono jacks): 500 mVrms
(100% modulation)
Impedance: 47 kilohms
MONITOR OUTPUT
S$ VIDEO OUTPUT (4-pin mini
DIN)
Y: 1 Vp-p, 75-ohms
unbalanced, sync negative
C: 0.286 Vp-p (Burst signal)
75-ohms
Video (phono jacks): 1 Vp-p,
75-ohms unbalanced, sync
negative
Audio (phono jacks): 500 mVrms
(100% modulation)
Impedance: 10 kilonms
MODELS OF THE SAME SERIES
KV-27HSR10
KV-27XBR 10/27XBR60
KV-32XBR10/32XBR70
SPECIFICATIONS
Power requirements
Power consumption
Accessories supplied
Optional accessories
KV-32HSR10
AUDIO OUTPUT (VARIABLE) (phono
jacks)
More than 408 mVrms at the
maximum volume setting
(variable)
impedance: 5 kilohms
120V AC, 60Hz
225W (max.)
1.5W (in standby condition)
Remote Commander RM-763
with 4 size AA (R6) bateries (1)
Antenna connector (1)
U/V mixer EAC-66
Connecting cable
VMC-810/820S
YC-15V/30V
Video rack
SU-235X (with super-woofer)
SU-235X (with super-woofer)
SU-251 (black)
SU-330 (black)
Design and specifications are subject to change without
notice.
TRINITRON » COLOR TV
