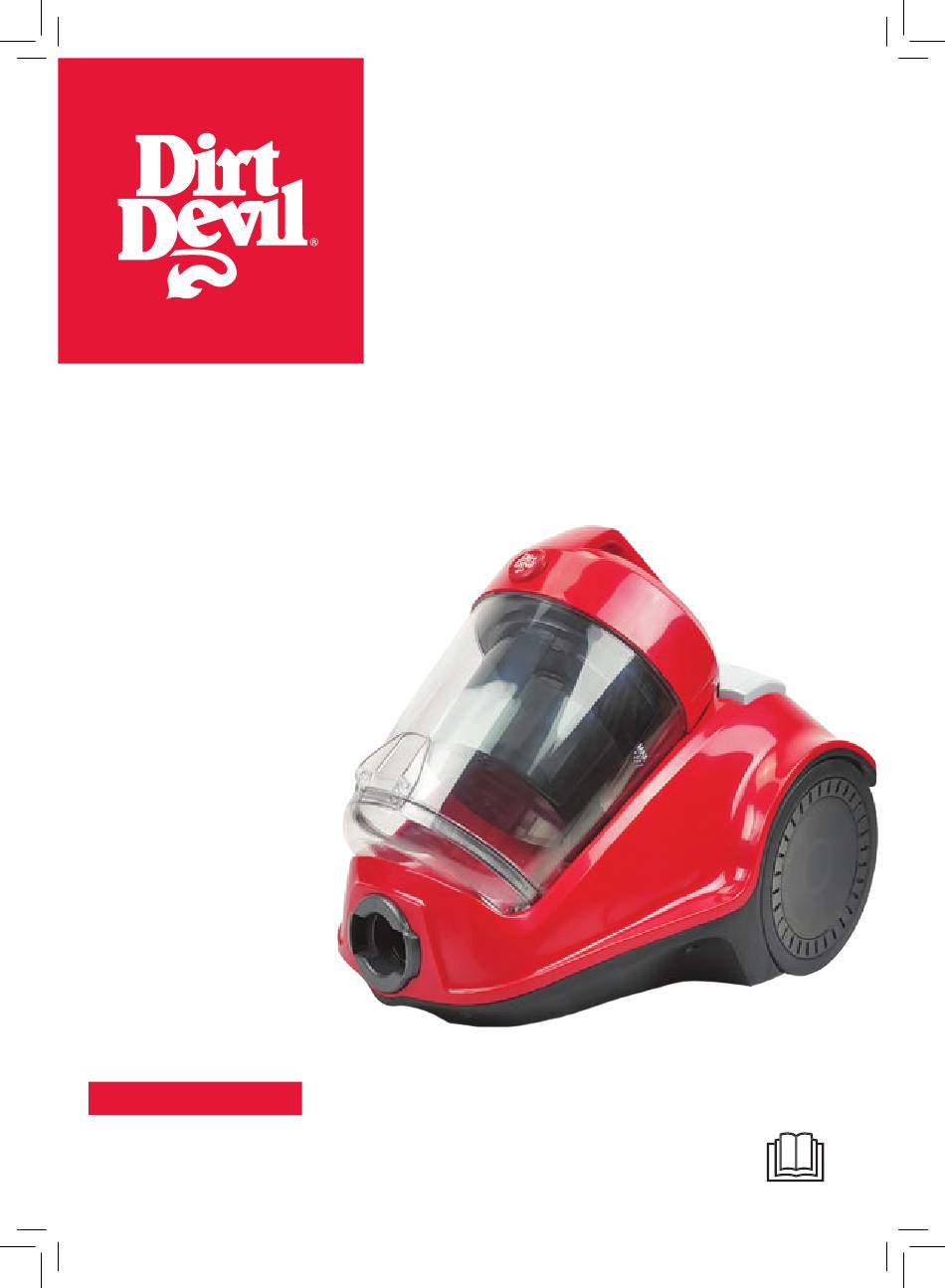

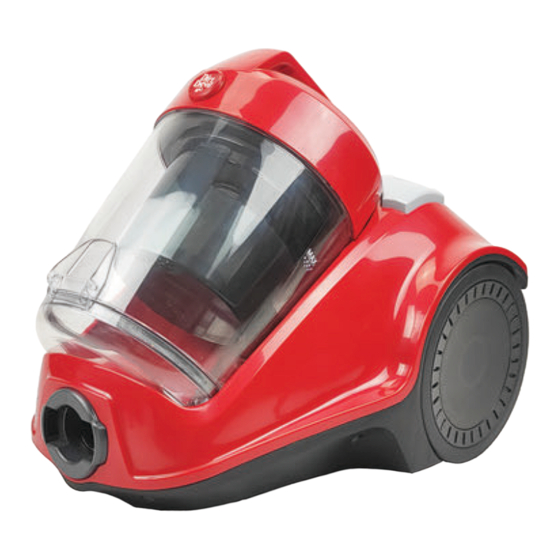

- Page 1 REBEL 4.0 BAGLESS VACUUM CLEANER USER GUIDE LET’S GO. 1 YEAR WARRANTY DACBLV21E2...
- Page 2 Let’s talk safety This vacuum cleaner is intended for household use only and NOT for commercial or industrial use. READ ALL THE INSTRUCTIONS BEFORE USING Basic THIS APPLIANCE safety • Only use the vacuum cleaner indoors and keep the area you’re precautions cleaning well lit.
- Page 3 • Only Dirt Devil recommended tools and accessories should be used with this vacuum cleaner • Dirt Devil recommends the use of a Residual Current Device rating of 30 mA or less. • If the supply cord is damaged, it must be replaced by the manufacturer, or similarly qualified person in order to avoid a hazard, or invalidating the warranty.
- Page 4 Taking care of your carpets and hard floors The Rebel 4.0 is designed to make vacuuming carpets and hard floors regularly as effective and efficient as possible and this user guide will help you get the most out of your machine.
- Page 5 Contents Included with your machine Let’s talk safety Getting to know your machine Hose and Handle Getting started 2-in-1 Tool Using your machine Combination Floor Head Taking care of your machine What to do if it goes wrong 2x Extension Tubes Notes Also included is a warranty card and a user guide.
- Page 6 Cord rewind button Blockage indicator Filter grille release button Wheel Technical Specification Name: Dirt Devil Rebel 4.0 Bagless Vacuum Subject to technical change without notice. Images are illustrative only. Model: DACBLV21E2 Contents vary dependant on model purchased. Voltage: 220-240V ~ 50Hz...
- Page 7 Getting started PLEASE READ ‘LET’S TALK SAFETY’ AT THE BEGINNING BEFORE USE CAUTION: Always switch off the vacuum cleaner before connecting or disconnecting the hose/attachments, or removing and emptying the dust container. IMPORTANT: The condition of the filters affects the performance of your machine. Filters should be tapped over a bin every 4-6 uses, to remove dirt and debris, and replaced every 6-9 months depending on use.
- Page 8 Using your machine Assembling your vacuum cleaner Hard floors Carpets Insert the hose into the hose inlet Gently insert the handle into the Insert the opposite end of the on the vacuum until it clicks into extension tubes and push until it is extension tubes into the floor place.
- Page 9 Taking care of your machine WARNING: Always switch off and unplug the vacuum cleaner from the electrical socket before assembling, opening or emptying the dust container or before connecting/disconnecting the attachments. Packing away and storage Press the On/Off Button to turn For convenience, there is a off the vacuum.
- Page 10 Taking care of your machine Cleaning the pre-motor filter IMPORTANT: Water temperature should not exceed 40°C when washing the pre-motor filter. Allow the filter to dry completely for 24 hours before reinstalling the filter back into the vacuum cleaner. Remove the dust container Remove the pre-motor filter, as The filter should be tapped over a from the vacuum.
- Page 11 Taking care of your machine NOTE: The shroud is accessed by removing the dust container lid and is located underneath the pre-motor filter. IMPORTANT: Water temperature should not exceed 40°C when washing the shroud. Allow to dry completely before replacing in the vacuum cleaner. Cleaning the shroud The filter should be tapped over a Remove the dust container...
- Page 12 Taking care of your machine Cleaning the post-motor filter WARNING: The post-motor filter is not a washable filter. Do not wash post-motor filter. Press the Filter Grille Release Remove the post-motor filter. The filter should be tapped over a Button to remove the filter grille. bin every 4-6 uses, to remove dirt and debris, and replaced every 6-9 months depending on use.
- Page 13 What to do if it goes wrong Problem Solution • Check the ‘Contents’ page in this guide to make sure the part is definitely included in your unit. There is an • If it is missing, we’re here to help. Simply call us on: accessory missing.
- Page 14 Notes...
- Page 15 Notes...
- Page 16 Distributed By: Techtronic Industries Australia Pty Ltd 31 Gilby Road, Mount Waverley, VIC, 3149, Melbourne, Australia Careline AU: 1300 829 287 Techtronic Industries N.Z. Limited Unit C, 70 Business Parade South, East Tamaki, Auckland, 2013, New Zealand Careline NZ: 0800 829 695...
