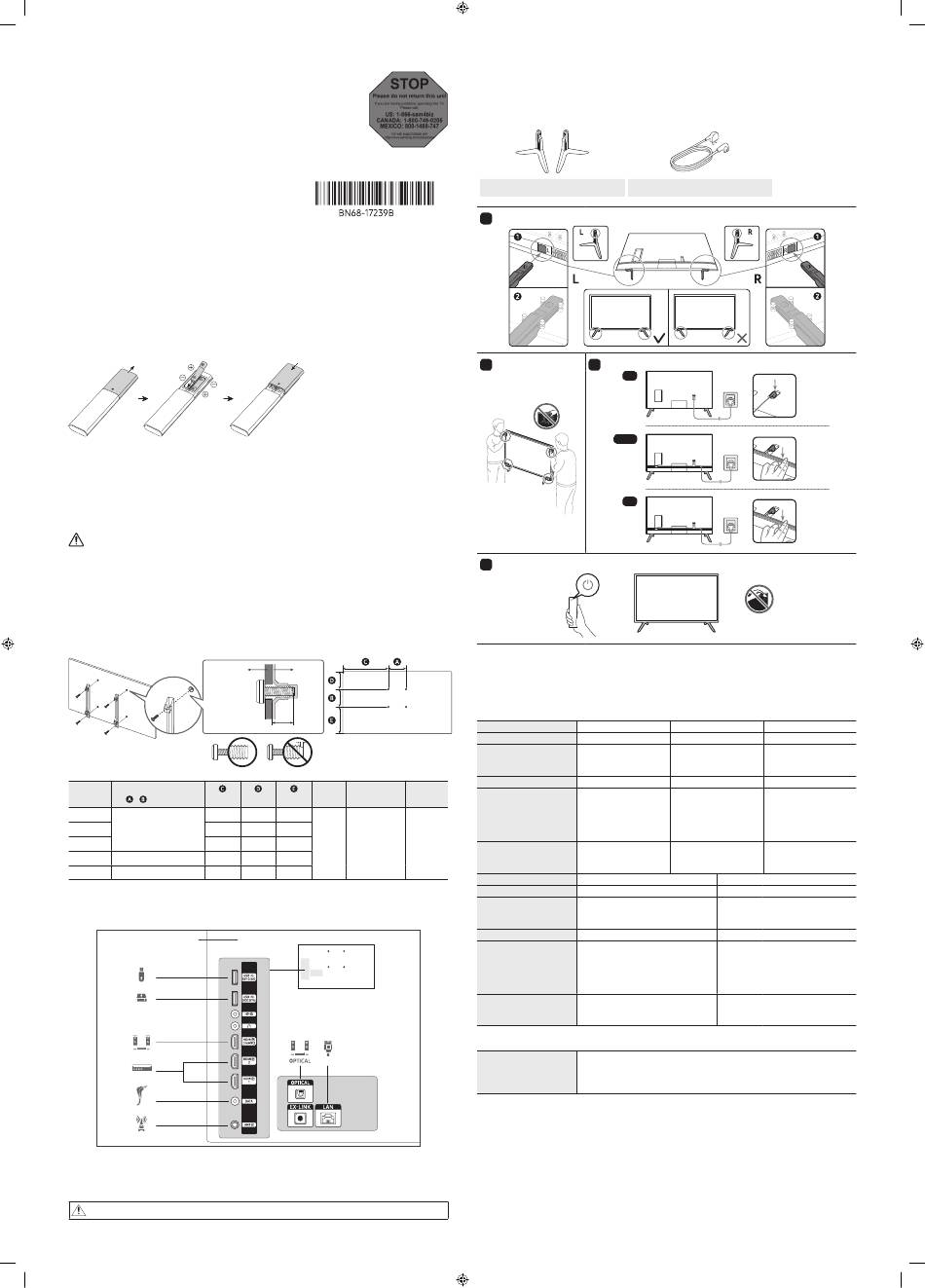

Samsung HG43CU700 Series Quick Setup Manual

ENG
Quick Setup Guide
Guide d'installation rapide
Guía de configuración rápida
To register this product please visit www.samsung.com
1. List of Parts
• The provided accessories may vary depending on the model.
Remote Control & Batteries (AAA x 2)
1
Quick Setup Guide / Regulatory Guide
3
2. The Remote Control
Installing batteries into the Remote Control
3. Wall Mount Kit Specifications (VESA)
Install your wall mount on a solid wall, perpendicular to the floor. When attaching to other building materials, please contact
your nearest dealer. If installing on a ceiling or slanted wall, TV may fall and result in severe personal injury.
• The wall mount kit is not supplied, but sold separately.
• Standard dimensions for wall mount kits are shown in the table below.
• Samsung wall mount kits contain a detailed installation manual. All parts necessary for assembly are provided.
Do not install your wall mount kit while your TV is turned on. This may result in personal injury from electric shock.
• Do not use screws that are longer than the standard dimension or do not comply with the VESA standard screw
specifications. Screws that are too long may cause damage to the inside of the TV set.
• For wall mounts that do not comply with the VESA standard screw specifications, the length of the screws may differ
depending on the wall mount specifications.
• Do not fasten the screws too firmly. This may damage the product or cause the product to fall, leading to personal injury.
Samsung is not liable for these kinds of accidents.
• Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used or
when the consumer fails to follow the product installation instructions.
• Do not mount the TV at more than a 15 degree tilt.
• Always have two people mount the TV onto a wall.
TV size in VESA screw hole specs
inches ( * ) in millimeters
43
50 200 x 200
55
65 400 x 300
75 400 x 400
4. Viewing the Connection Panel
BACK OF TELEVISION
ARRIÈRE DU TÉLÉVISEUR
PARTE TRASERA DEL TELEVISOR
USB
HDD
ARC
HDMI
DATA
ANT IN
State of California Proposition 65 Warning
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Please do not return this unit
If you are having problems operating this TV,
US: 1-866-sam4biz
CANADA: 1-800-749-0205
MEXICO: 800-1488-747
https://www.samsung.com/us/business
Power Cord
2
Data Cable x 2 (Depending on the model)
4
– The images, buttons, and functions of the
remote control may differ with the model
or geographical area.
– If you use the remote control that comes
with your TV to control another TV, some
functions may not operate normally.
Wall mount TV
bracket
C
C (mm) Standard Screw
(inches) (inches) (inches)
14.9 3.6 10.3
17.9 5.9 11.5
20.2 8.1 11.8 20-22 M8
20.6 8.9 11.9
25.0 9.1 12.8
* EX-LINK :
Dedicated to service technicians.
Réservé aux techniciens de service.
Exclusivo para los técnicos.
LAN
5. Installing the LED TV Stand
STOP
Assembling the Stand and Components
Please call;
When installing the stand, use the provided components and parts.
For web support please visit
Stand
-00
1
2
4
NOTE
• Make sure to distinguish between the front and back of each component when assembling them.
• Make sure that at least two persons lift and move the TV.
6. Specifications
Model Name
Display Resolution
Screen Size
Diagonal
Measured Diagonally
Sound (Output)
Quantity Dimensions (W x H x D)
Body
With Stand
4
Weight
Without Stand
With Stand
Model Name
Display Resolution
Screen Size
Diagonal
Measured Diagonally
Sound (Output)
Dimensions (W x H x D)
Body
With Stand
Weight
Without Stand
With Stand
Environmental Considerations
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
• Design and specifications are subject to change without prior notice.
• This device is a Class B digital apparatus.
• For information about the power supply, and more information about power consumption, refer to the information on the
label attached to the product.
– On most models, the label is attached to the back of the TV. (On some models, the label is inside the cover terminal.)
• To connect a LAN cable, use a CAT 7 (*STP type) cable for the connection. (100/10 Mbps)
* Shielded Twisted Pair
• Your TV and its accessories may look different than the product images presented in this manual, depending on the model.
• All drawings are not necessarily to scale. Some dimensions are subject to change without prior notice. Refer to the
dimensions before installing your TV. Not responsible for typographical or printed errors.
• Download the user manual from the following Samsung Website for further details. (https://www.samsung.com)
Power Cord
R
3
43"
50-65"
75"
HG43CU700** HG50CU700**
3840 x 2160 3840 x 2160
43˝ Class 50˝ Class
42.5 inches 49.5 inches
20 W 20 W
37.9 x 22.0 x 2.3 inches 44.0 x 25.4 x 2.4 inches
(963.9 x 558.9 x 59.6 mm) (1116.8 x 644.2 x 59.9 mm)
37.9 x 24.7 x 7.6 inches 44.0 x 28.3 x 9.9 inches
(963.9 x 627.8 x 192.5 mm) (1116.8 x 719.1 x 250.2 mm)
17.9 lbs (8.1 kg) 25.1 lbs (11.4 kg)
18.3 lbs (8.3 kg) 25.6 lbs (11.6 kg)
HG65CU700**
3840 x 2160
65˝ Class
64.5 inches
20 W
57.1 x 32.7 x 2.4 inches 65.9 x 37.7 x 2.4 inches
(1449.4 x 830.3 x 59.9 mm) (1673.2 x 958.2 x 59.9 mm)
57.1 x 35.7 x 11.1 inches 65.9 x 41.3 x 13.4 inches
(1449.4 x 906.6 x 282.1 mm) (1673.2 x 1047.9 x 341.1 mm)
45.4 lbs (20.6 kg)
46.1 lbs (20.9 kg)
50 °F to 104 °F (10 °C to 40 °C)
10 % to 80 %, non-condensing
-4 °F to 113 °F (-20 °C to 45 °C)
5 % to 95 %, non-condensing
HG55CU700**
3840 x 2160
55˝ Class
54.6 inches
20 W
48.4 x 27.8 x 2.4 inches
(1230.5 x 707.2 x 59.9 mm)
48.4 x 30.8 x 9.9 inches
(1230.5 x 783.3 x 250.2 mm)
30.6 lbs (13.9 kg)
31.3 lbs (14.2 kg)
HG75CU700**
3840 x 2160
75˝ Class
74.5 inches
20 W
67.0 lbs (30.4 kg)
67.9 lbs (30.8 kg)
