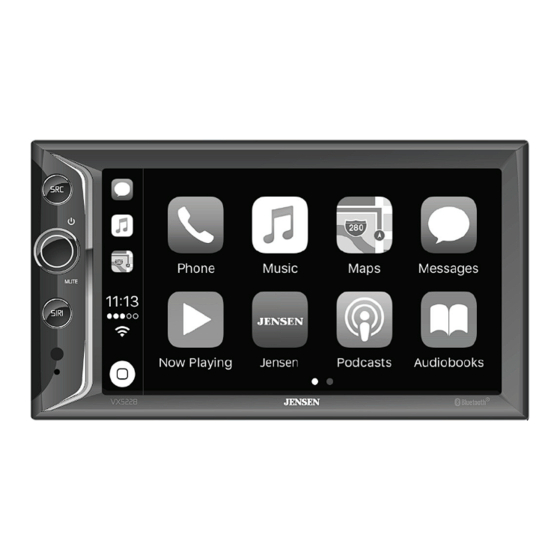

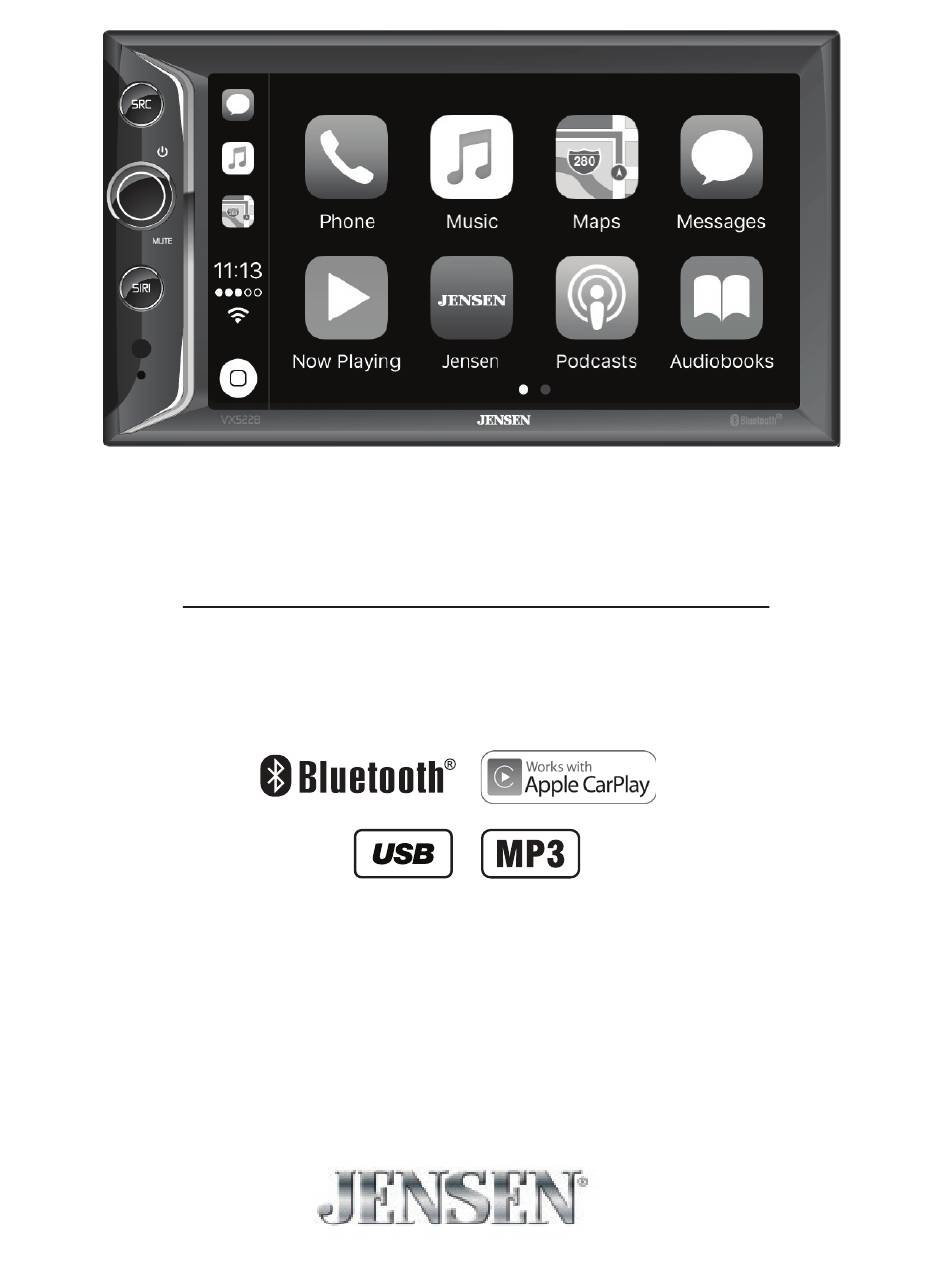

- Page 1 VX5228 INSTALLATION/OWNER’S MANUAL ® Multimedia Receiver with Bluetooth featuring a 6.2" Touch Screen Display...
- Page 2 Copyright Notes This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation.
-
Page 3: Table Of Contents
VX5228 PREPARATION Table of Contents Page Warning Statement .......... - Page 4 VX5228 PREPARATION WARNING Upon installation of this monitor/media player (“unit”) into a vehicle, the driver of the vehicle must not operate this unit by watching videos or playing video games while driving. Failure to follow this instruction could lead to driver distraction which could result in serious injury or death to the vehicle’s occupants or persons outside the vehicle and/or...
-
Page 5: Safety Information/Precautions
Please read all instructions carefully before attempting to install or operate. Due to its technical nature, it is highly recommended that your JENSEN VX5228 is installed by a professional installer or an authorized dealer. This product is only for use in vehicles with 12VDC negative ground only. -
Page 6: Preparation/Mounting
VX5228 INSTALLATION Preparation Before You Start • Disconnect negative battery terminal. Consult a qualified technician for instructions. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration. -
Page 7: Wiring Diagram
VX5228 INSTALLATION Wiring Diagram - Inputs/Outputs Note: When replacing a fuse, make sure to use the correct type and amperage. Using an incorrect fuse could cause damage. The unit uses (1) 10 amp ATM mini style fuse located on the power connector. -
Page 8: Control Locations
VX5228 OPERATION Control Locations Mode IR Remote Sensor Power / Volume / Mute Reset Siri Mode Volume Up Power Tune / Track Up Siri Band Volume Down Preset 3 Preset 2 / Random Preset 6 Preset 5 End Call Bluetooth Talk... -
Page 9: Remote Preparation
VX5228 OPERATION Remote Control Preparation Remove battery insulation tape . Notes: • The remote control uses one 3 volt Lithium CR2025 battery. Remove the battery if the remote will not be used for a month or longer. • Remove and dispose of battery properly. -
Page 10: General Operation
VX5228 OPERATION General Operation Power On/Off Momentarily press to turn the unit on. Press and hold to turn the unit off. Volume Rotate the volume knob to increase or decrease the volume level. Mute Momentarily press MUTE to silence the audio. Momentarily press MUTE Rotating the volume again to return to the previously selected volume. - Page 11 VX5228 OPERATION General Operation From the Main Menu screen, select Settings to access the Setup menu Setup Menu and select from eight categories represented by the icons on the top of the screen: System, Fader/Balance, Equalizer, Surround, Supwoofer, Display, Time Settings and Miscellaneous. Select the category, and adjust any of the available options using the touch screen.
-
Page 12: Am/Fm Tuner Operation
VX5228 OPERATION AM/FM Tuner Operation Radio Operation Select the Radio icon from the Main Menu screen. Main Menu Press to return to Main Menu screen. Current Mode Indicator Displays current mode of operation. Local / Distance Press to toggle between Local and DIstance tuning. -
Page 13: Usb Operation
VX5228 OPERATION USB Operation To play audio files from a USB device, connect a device to the rear USB cable and playback will begin automatically. To return to USB playback from another mode of operation, select the USB icon in the Main Menu. -
Page 14: Media Compatibility
VX5228 OPERATION Media Compatibility File Type FAT 12 File System FAT 16/FAT 32 .mp3/.MP3/.Mp3/.mP3 File Extension .rmp/.m4a MPEG 1 MPEG MPEG 2 Format MPEG 2.5 MPEG 1 32/44.1/48kHz Sampling MPEG 2 12/16/22.05/24kHz Frequency MPEG 2.5 8/11.025/12kHz MPEG 1 32 ~ 320kbps... - Page 15 VX5228 OPERATION Media Compatibility Media Compatibility The following types of files are not compatible: • WMA files that are protected by DRM (Digital Rights Management) • WMA lossless format • MP3 PRO format, MP3 playlists • RMP format • WAV format •...
-
Page 16: Bluetooth Operation
The unit broadcasts the pairing signal constantly when no devices are currently connected. Complete the pairing sequence from your Bluetooth device. Refer to the owner's manual for your device for more details. The device name is "VX5228". The Bluetooth passcode is "0000". - Page 17 VX5228 OPERATION Bluetooth Operation Bluetooth Talk Press to connect a call. Bluetooth Music Press to transfer audio between the unit and mobile phone. Backspace When dialing, press to erase the last digit. Clear When dialing, press to clear all digits entered.
-
Page 18: Ipod Operation
VX5228 OPERATION iPod Operation Connect an iPod to the unit's rear USB input, and the unit will automatically Connecting an iPod begin iPod playback. To return to iPod playback from another mode of operation, select the iPod icon in the Main Menu. -
Page 19: Apple Carplay
VX5228 OPERATION Apple CarPlay Operation Apple CarPlay™ is a smart interface for iPhone, allowing you to voice-control (via Siri) music, navigation, phone and messaging apps - significantly reducing driver distraction. Phone - Use Siri to make calls, return missed calls, listen to voicemail messages, and view the caller ID on the receiver’s screen. - Page 20 VX5228 OPERATION Apple CarPlay Operation When the CarPlay menu is displayed, the home button in the lower left corner work just like the home button on your iPhone. Press and hold it to summon Siri and begin your voice commands.
-
Page 21: Auxiliary Inputs/Rear Camera Operation
VX5228 OPERATION Rear RCA Aux Input Auxiliary Input Connect an optional audio source into the RCA (rear) input. Select auxiliary input from the Main Menu to listen to audio. Adjust volume on the external audio source as needed (if connected to the headphone output of the device). -
Page 22: Swc Input Operation
The built-in SWC Interface is compatible with PAC steering wheel control modules. The PAC SWI-RC is recommended. A third-party adapter must be used in order for the VX5228 to be compatible with any steering wheel controls. The following controls are available for most vehicles. -
Page 23: Troubleshooting
VX5228 OPERATION Troubleshooting General Problem Cause Action Yellow wire not connected or incorrect voltage Check connections for proper voltage (11~16VDC) Unit will not turn on Red wire not connected or incorrect voltage (no power) Black wire not connected Check connection to ground... -
Page 24: Specifications
VX5228 OPERATION Specifications FM Tuner Tuning range: 87.5MHz-107.9MHz Usable sensitivity: 10dBf 50dB quieting sensitivity: 20dBf Stereo separation @ 1kHz: 38dB Frequency response: 30Hz-13kHz AM Tuner 530kHz-1710kHz Tuning range: 24uV Usable sensitivity: 30Hz-2.3kHz Frequency response: Front USB High Speed USB 2.0... -
Page 25: Warranty
VX5228 OPERATION Limited Two Year Warranty What to do? This warranty gives you specific legal rights. You may also have other rights which vary from state to state. 1. Before you call for service, check the troubleshooting guide in your owner’s manual. - Page 26 Dual Electronics Corp. Toll Free: 888-921-4088 www.jensenmobile.com ©2018 Dual Electronics Corp. All rights reserved. The Bluetooth ® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Namsung is under license. Other trademarks and trade names are those of their respective owners. NSA1217-V01...
