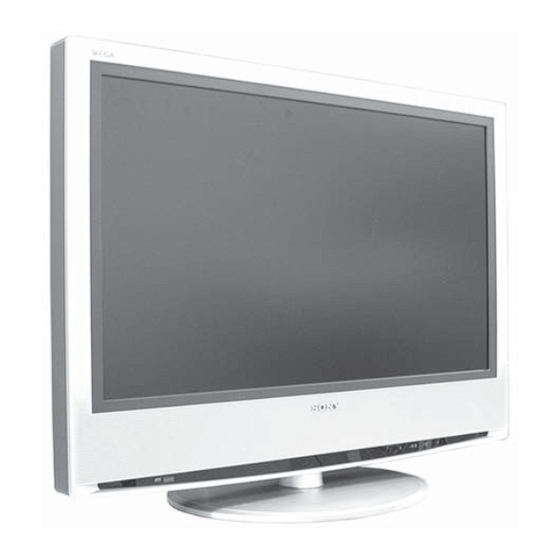

RM-ED002 SERVICE MANUAL CHASSIS MODEL MODEL COMMANDER DEST COMMANDER DEST KDL-S23A11E KDL-S32A11E RM-ED002 RM-ED002 KDL-S26A11E RM-ED002 KDL-S23A11E / KDL-S26A11E / KDL-S32A11E RM-ED002 FLAT PANEL COLOR TV - 1 -...
COMPONENTS IDENTIFIED BY SHADING AND MARKED THE SCHEMATIC DIAGRAMS, EXPLODED VIEWS AND IN THE PARTS LIST ARE CRITICAL FOR SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.
Due to the higher melting point of Lead Free Solder the soldering iron tip temperature needs to be set to 370 degrees centigrade. This requires soldering equipment capable of accurate temperature control coupled with a good heat recovery characteristics. For more information on the use of Lead Free Solder, please refer to http://www.sony-training.com - 3 -...
RM-ED002 21 pin connector Pin No Signal Signal level Audio output B Standard level : 0.5V rms (right) Output impedence : Less than 1kohm* Audio input B Standard level : 0.5V rms (right) Output impedence : More than 10kohm* Audio output A Standard level : 0.5V rms (left) Output impedence : Less than 1kohm*...
RM-ED002 WAX SELF DIAGNOSTIC SOFTWARE The identification of errors within the WAX chassis is triggered in one of two ways :- 1: Busy or 2: Device failure to respond to IIC. In the event of one of these situations arising the software will first try to release the bus if busy (Failure to do so will report with a continuous flashing LED) and then communicate with each device in turn to establish if a device is faulty.
RM-ED002 SECTION 3 SET-UP ADJUSTMENTS 3-1. Signal Adjustment 3-2. White Balance Adjustment Service adjustments to this model can be performed using the 3-2-1. White Balance adjustment (H/L) supplied remote commander RM-ED002. 1. Select AV0. How to enter into the Service Mode 2.
RM-ED002 3-2-2. White Balance adjustment (C/O) 3-2-3. SECAM White Balance adjustment (H/L) 1. Select AV0. 1. Select AV0. 2. Change the TV to Custom Mode and set the following registers by 2. Change the TV to Custom Mode and set the following registers by sending “TT54”.
RM-ED002 3-2-4. SECAM White Balance adjustment (C/O) 3-3. TEST TEST MODE 1. Select AV0. Test Test Mode is available in Service Mode, OSD ‘TT’ appears. The 2. Change the TV to Custom Mode and set the following registers by functions described below are available by selecting the two numbers. sending “TT54”.
4-1. BLOCK DIAGRAMS (4) A2E.- 23inch IC2501 IC2504 LUMINANCE, CHROMINANCE & IC2500 RGB SWITCH SYNCHRONIZING SIGNAL PROCESSOR HS/VS GATE B SCART 1 R IN R IN Q2504 BUFFER G SCART 1 G IN G IN Q2617 BUFFER R SCART 1 B IN B IN Q2502...
4-1. BLOCK DIAGRAMS (5) A2E.- 26 & 32inch IC2501 IC2504 LUMINANCE, CHROMINANCE & IC2500 RGB SWITCH SYNCHRONIZING SIGNAL PROCESSOR HS/VS GATE IC2601 B SCART 1 R IN R IN CB OUT 1 CR OUT Q2504 Q2618 BUFFER BUFFER G SCART 1 G IN G IN Y OUT...
Page 34
A2E.-WAX COMPONENTS MARKED AS XX ARE NOT FITTED ON THIS MODEL AU_9V R7980 D7820 REG17.5V AU_9V R7978 R7977 R7976 C9635 CHIP Q7808 2SC4081T106R A2E(2/5) Board Waveform R7851 R7979 R7810 1/10W CHIP CHIP Q7809 R7853 100ns/div MUN5213T1 1/10W LINE_MUTE C7811 R7832 R7852 C7862 AC_OFF_DET_AU...
Page 35
A2E.-WAX COMPONENTS MARKED AS XX ARE NOT FITTED ON THIS MODEL R2557 A5V_1 IC2503 A5V_1 C2550 R2511 0.47 220k 1/10W DIMMER OUT1 R2553 B_SCART2 R2554 C2539 R2513 R2512 -IN1 OUT2 220k 220k 1/10W R2550 1/10W L2511 B_SCART1 10uH DIM_PRE +IN1 -IN2 C2551 R2565...
Page 36
A2E.-WAX COMPONENTS MARKED AS XX ARE NOT FITTED ON THIS MODEL R9592 C9548 Q9502 R_OUT1 R9584 TU9500 BTF-EF412Z R9717 C9500 R9507 R9503 C9512 R9505 C9539 D9522 R9591 R9593 470p 0.022 470k 10 11 12 13 14 15 16 17 CHIP 1/10W 1/10W 1/10W...
Page 37
TO BE BOARD TO BE BOARD CN1001 CN1003 CN8530 CN9405 A2E.-WAX COMPONENTS MARKED AS XX ARE NOT FITTED ON THIS MODEL PANEL5V_GND R9409 R8569 R8572 R9401 CHIP R8707 R8575 R8576 R8577 R8578 C9409 C8530 C8531 C8532 C8533 C8534 C8535 CHIP CHIP CHIP R9898...
~ A2E Printed Wiring Board Conductor Side A ~ ~ A2E Board Semiconductor Voltage Table Side A ~ ~ A2E Board Semiconductor Location Table Side A ~ ~ A2E Board IC Voltage Table Side A ~ - 38 -...
Page 39
~ A2E Printed Wiring Board Conductor Side B ~ ~ A2E Board Semiconductor Location Table Side B ~ - 39 -...
~ BE Printed Wiring Board Conductor Side A ~ ~ BE Board Semiconductor Location Table Side A ~ ~ BE Printed Wiring Board Conductor Side B ~ ~ BE Board Semiconductor Location Table Side B ~ - 47 -...
~ G1 Printed Wiring Board Conductor Side A ~ ~ G1 Board Semiconductor Location Table Side A ~ ~ G1 Printed Wiring Board Conductor Side B ~ ~ G1 Board Semiconductor Location Table Side B ~ - 49 -...
~ GE1 Printed Wiring Board Conductor Side A ~ ~ GE1 Board Semiconductor Location Table Side A ~ ~ GE1 Printed Wiring Board Conductor Side B ~ ~ GE1 Board Semiconductor Location Table Side B ~ - 51 -...
~ GE2 Board Semiconductor Location Table Side A ~ ~ GE2 Printed Wiring Board Conductor Side A ~ ~ GE2 Board IC Voltage Table ~ ~ GE2 Printed Wiring Board Conductor Side B ~ ~ GE2 Board Semiconductor Location Table Side B ~ - 56 -...
N.-WAX NAND_ALE,NAND_CLE,NAND_RBB +3V3D +3V3D_STRAPS FB3100 THESE CAPACITORS TO BE PLACED UNDERNEATH BGA C3100 C3106 C3109 C3112 C3115 C3119 C3103 +2V5D_DDR +2V5D FB3101 THESE CAPACITORS TO BE PLACED UNDERNEATH BGA C3107 C3110 C3113 C3116 C3120 C3104 151 150 142 141 139 138 +1V5D FB3102 THESE CAPACITORS TO BE PLACED UNDERNEATH BGA...
Page 58
N.-WAX +3V3D COMPONENTS MARKED AS XX ARE NOT FITTED ON THIS MODEL FB3201 C3205 C3206 C3208 NAND FLASH C3209 +3V3D R3251 R3238 RDATA[7] IO/8 RDATA[6] IO/7 NAND_RBB RDATA[5] IO/6 C3230 1000p RDATA[4] FOEB IO/5 +2V5D_DDR PLACE THESE CAPACITORS CLOSE TO IC PINS. FCSB1 C3210 C3220...
Page 59
EXTERNAL CONNECTOR CN3300 +3V3D_31 N.-WAX Mount Mecha A3300 181564021 COMPONENTS MARKED AS XX ARE NOT FITTED ON THIS MODEL IC3311 74LVT245PW C3315 OCTAL TRANSCEIVER +3V3D_31 +3V3D FB3300 C3324 C3300 C3320 C3301 R3308 CHIP +5VD_CI D[15:8] R3303 FB3301 1/16W nCI_WAIT TS_BCLK, VS1B TP_SYNC, C3307...
~ N Printed Wiring Board Conductor Side A ~ ~ N Board Semiconductor Location Table Side A ~ ~ N Printed Wiring Board Conductor Side B ~ ~ N Board Semiconductor Location Table Side B ~ - 64 -...
~ H1E Printed Wiring Board Conductor Side A ~ ~ H1E Printed Wiring Board Conductor Side B ~ ~ H2 Printed Wiring Board Conductor Side A ~ ~ H2 Printed Wiring Board Conductor Side B ~ ~ H3 Printed Wiring Board Conductor Side A ~ ~ H3 Printed Wiring Board Conductor Side B ~ - 66 -...
TO N BOARD TO N BOARD TO N BOARD TO AE2 BOARD CN3503 CN8603 CN3403 CN3404 TAB (CONTACT) CN0004 CN0001 CN0002 CN0005 CN0003 N1.-WAX COMPONENTS MARKED AS XX ARE NOT FITTED ON THIS MODEL R0021 TUNER_SCL CHIP TUNER_SDA 5VAEMI IF_AGC R0022 CHIP D0007...
~ N1 Printed Wiring Board Conductor Side A ~ ~ N1 Board Semiconductor Location Table Side A ~ ~ N1 Printed Wiring Board Conductor Side B ~ ~ N1 Board Semiconductor Location Table Side B ~ - 68 -...
....................74 A2E BOARD COMMON Parts List : Parts common to all models listed in this manual ...... 75 Model Parts that belong only to the model specified KDL-S23A11E ....................85 KDL-S26A11E/KDL-S32A11E ....................86 H1E BOARD COMPLETE Parts List : ....................
Page 74
8-719-977-28 DIODE DTZ10B < IC > < SOCKET > IC9901 6-600-271-01 IC RPM7140-H8 J9006 1-780-244-11 TERMINAL BLOCK, S(RIGHT ANGLE) IC9902 6-600-418-01 IC TPS851(A.SONY) J9852 1-568-267-11 JACK < TRANSISTOR > < RESISTOR > Q9902 8-729-907-00 TRANSISTOR DTC114EU R9103 1-216-811-11 METAL CHIP...
Page 86
REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK < CONNECTOR > R9564 NOT FITTED R9565 NOT FITTED CN9505 NOT FITTED R9566 NOT FITTED R9567 NOT FITTED < DIODE > R9568 NOT FITTED D6019 NOT FITTED R9569 NOT FITTED D8414 NOT FITTED R9570 NOT FITTED R9573...
Page 87
REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK R2610 1-216-864-11 SHORT CHIP < DIODE > R2613 1-216-864-11 SHORT CHIP R2614 1-216-864-11 SHORT CHIP D9801 8-719-036-94 DIODE RD5.6SB-T1 R2617 NOT FITTED D9802 8-719-036-94 DIODE RD5.6SB-T1 R2619 1-216-864-11 SHORT CHIP < RESISTOR > R2622 1-216-864-11 SHORT CHIP...
