Enlarge Your Ethernet Network

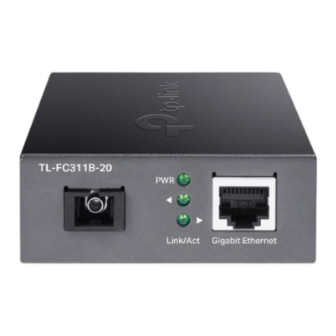

Gigabit WDM Media Converter
Package Contents: Converter, Power Adapter, Installation Guide
Scenario 1: Connect Devices with and without Optical Interfaces
Ethernet Device
with Optical Interfaces
1000BASE-X (Fiber) Interface
LC-SC Fiber Cable
Media Converter
PWR
Gigabit Ethernet
LED Explanation
PWR
On:
Power on
Off:
Power off
Link/Act
On:
Valid link
Flashing:
Transmitting or receiving data
Off:
Invalid link
Ethernet Device
without Optical Interfaces
Gigabit Ethernet
Twisted-Pair Cable
