TP-Link Omada FC111PB-20 Manual

Enlarge Your Ethernet Network

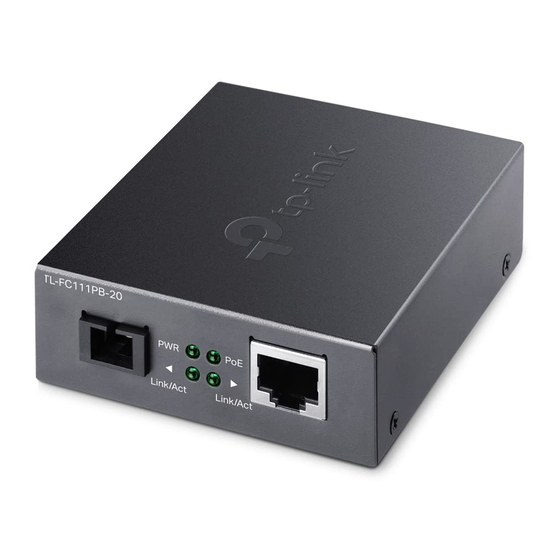

10/100Mbps WDM Media Converter with 1-Port PoE
Package Contents: Converter, Power Adapter, Installation Guide
Scenario 1: Connect Devices with Optical Interfaces
Ethernet Device
with Optical Interfaces
Note:
The maximum output power of FC111PB-20 is 15.4W. PoE devices that require more than 15.4W are not supported.
•
The PoE Media Converter supplies steady power and data connectivity to a powered device such as PoE IP Camera and PoE AP.
•
100BASE-X (Fiber) Interface
LC-SC Fiber Cable
LED Explanation
PWR
On: Power on
Off: Power off
PoE
On: Supplying power normally
Off: Supplying power abnormally or no power supply
Media Converter
PWR PoE
Fast Ethernet
Link/Act
On: Valid link
Flashing: Transmitting or receiving data
Off: Invalid link
Powered Device (PD)
IP Camera
Twisted-Pair Cable
AP
