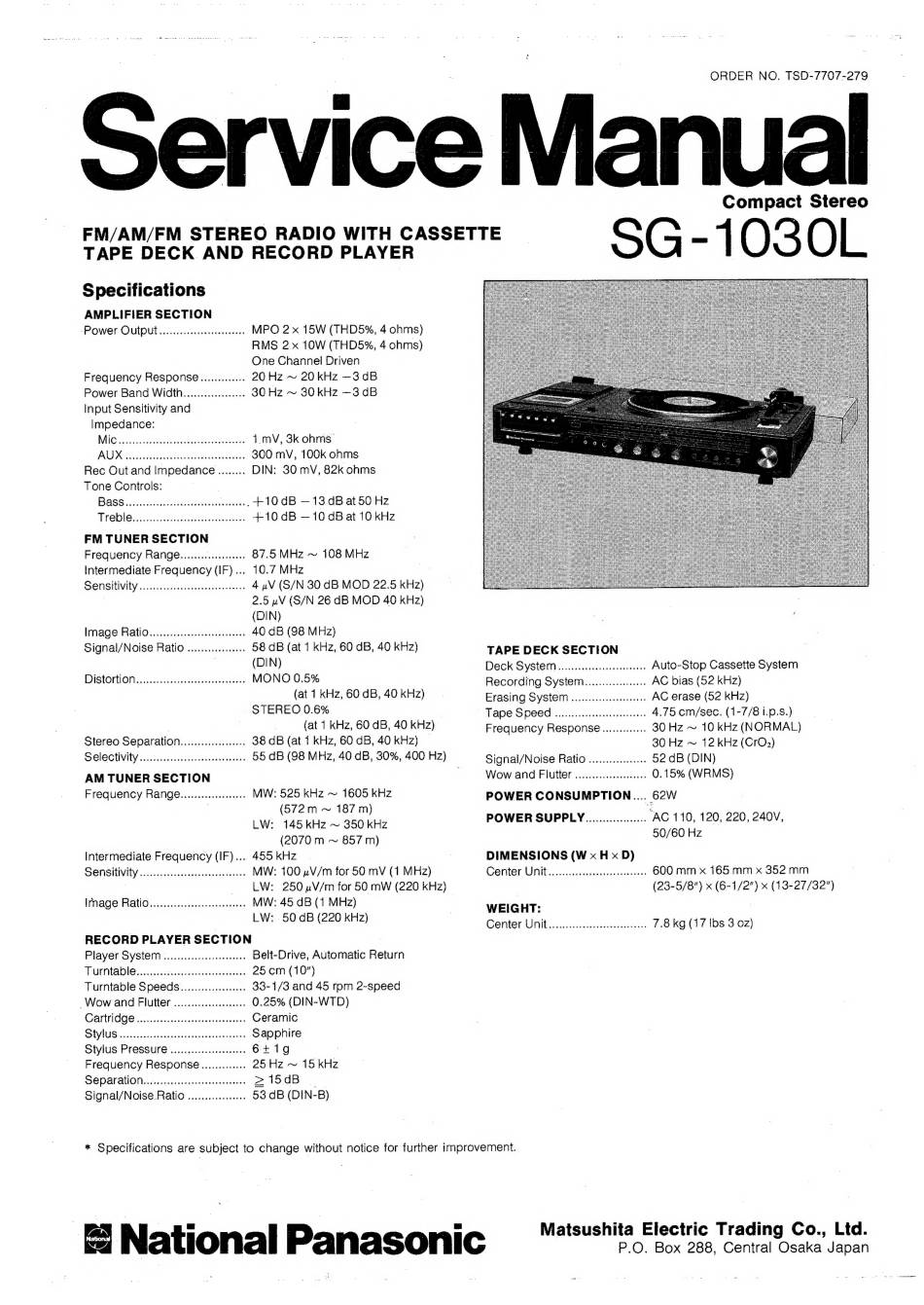

Panasonic SG-1030L Service Manual

FM/AM/FM STEREO RADIO WITH CASSETTE
TAPE DECK AND RECORD PLAYER
Specifications
AMPLIFIER SECTION
'Power Output........... eee MPO 2x 15W (THDS%, 4 ohms)
RMS 2x 10W (THD5%, 4 ohms)
One Channel Driven
Frequency Response............. 20HZ ~ 20 kHz —3 dB
Power Band Width.................. 30 Hz ~ 30 kHz —3 dB
Input Sensitivity and
Impedance:
Mic... .. ImvV, 3k ohms"
AUK ache et aan BOO MV , 100K OHMS
Rec Out and Impedance ........ DIN: 30 mV, 82k ohms
Tone Controls:
BASS......ccccccssssssscersersseseness, £ IO GB — 13 dB at 50 Hz
Treble......cccccessecsseereeeeeeee 10 dB —10 dB at 10 kHz
FM TUNER SECTION
Frequency Rangé............00. 87.5 MHz ~ 108 MHz
Intermediate Frequency (IF)... 10.7 MHz
SeNSitivity ....ccccescesteereeeeeeeeee 4 uV (S/N 30 dB MOD 22.5 kHz)
2.5 nV (S/N 26 dB MOD 40 kHz)
(DIN) ,
Image RatiO.......... eee 40 dB (98 MHz) |
Signal/Noise Ratio ............ 58d0B (at | kHz, 60 dB, 40 KHz) TAPE DECK SECTION
| (DIN) Deck System..........:0.000. Auto-Stop Cassette System
DIStOMION nie heicitoncccre MONO OSS Recording System... _ AC bias (52 kHz)
(at 1 kHz, 60dB, 40 kHz) Erasing System .........c00 AC erase (52 kHz)
STEREO 0.6% | — Tape Speed ores 4.75 om/sec. (1-7/8 i.p.S.)
_ {at 1 kHz, 60 dB, 40 kHz) Frequency Response. . 30 Hz ~ 10 KHz (NORMAL)
Stereo Separation.................. 38dB (at 1 kHz, 60 dB, 40 kHz) 30 Hz ~ 12 kHz (CrO;)
Selectivity... cee 55 OB (98 MHz, 40 dB, 30%, 400 Hz) Signal/Noise Ratio .. 52 dB (DIN)
AM TUNER SECTION
~
Wow and Flutter... 0.15% (WRMS)
Frequency Rangé..............0.. MW: 525 kHz ~ 1605 kHz POWER CONSUMPTION.... 62
. (572m ~ 187m) i
LW: 145 kHz ~ 350 kHz POWER SUPPLY.................. AC 110, 120, 220, 240V,
| (2070 m ~ 857 m) enieh riz
Intermediate Frequency (IF)... 455 kHz | . | DIMENSIONS (W x H x D)
Sensitivity ........eceeceeeeeereeeee MW: 100 uV/m for 50 mV (1 MHz) Center Unit........0.....0...0002e2.. 600 mm x 165 mm x 352 mm
LW: 250 nV/m for 50 mW (220 kHz) (23-5/8") x (6-1/2") x (13-27/32"")
Image Ratio.....cceecseeeee MW: 45 dB (1 MHz) | WEIGHT:
| Ee
GI eeu)
Center
Unit ...ccccsssesseseees. 7.8 kg (17 Ibs 3 02)
RECORD PLAYER SECTION
Player System ..........:0000. Belt-Drive, Automatic Return
Turntable... cece 296M (10")
Turntable Speeds...............33-1/3 and 45 rom 2-speed
Wow and Flutter ................. 0.25% (DIN-WTD)
Cartridge .......ceeeeeerrereeee. Ceramic
SIYIUS vcsccccciectstesteevenstcascerecve OADPHIE
Stylus Pressure .......ccseee BE1Q
Frequency Response............ 25Hz ~ 15 kHz
Sear al ONivierciioutanconsay 2 dB
_ 53 dB (DIN-B)
Signal/Noise.Ratio ...........
* Specifications are subject to change without notice for further improvement.
me Ya — Matsushita Electric Trading Co., Ltd.
E National Panasonic P.O. Box 288, Eoeeal Gaake Japan
