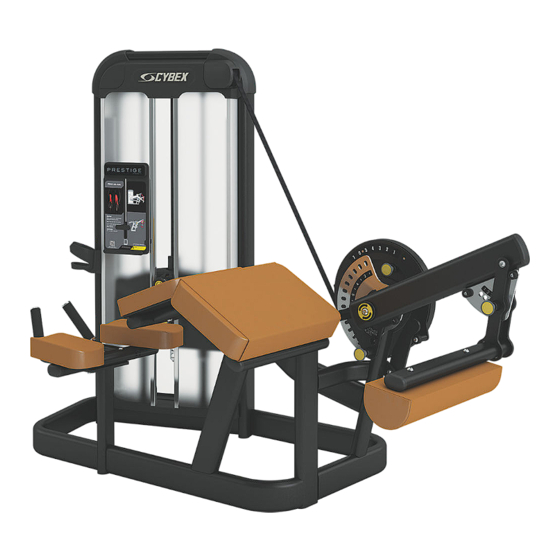

CYBEX Prestige 21140-999-4 AC Owner's Manual

Prone leg curl
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Prestige
Owner's Manual
Part Number
21140-999-4 AC
Prone Leg Curl
®

Advertisement

Table of Contents
loading

Related Manuals for CYBEX Prestige 21140-999-4 AC

Summary of Contents for CYBEX Prestige 21140-999-4 AC

  • Page 1 Prestige Prone Leg Curl ® Owner's Manual Part Number 21140-999-4 AC...
  • Page 3 AMERICAS United Kingdom All Other EMEA Countries and Distributor Business EMEA* North America Life Fitness UK LTD Life Fitness Atlantic BV Cybex International Inc. Queen Adelaide Bijdorpplein 25-31 Ely, Cambs, CB7 4UB 2992 LB Barendrecht 10601 W Belmont Ave Telephone: General Office (+44) 1353.666017 THE NETHERLANDS Franklin Park, IL 60131 U.S.A.
  • Page 4 User and Service Documents Link https://lifefitness9512.zendesk.com/hc/en-us https://lfworld.lifefitness.com Additional information is available online using the links above. ‫أ علاه‬ ‫إل ر إبط‬ ‫باستخدإم‬ ‫إ لإ ن تر نت‬ ‫على‬ ‫إضافية‬ ‫معلومات‬ ‫تتوفر‬ 点击上面的链接可在线获取更多信息。 Flere oplysninger er tilgængelige online gennem linket ovenfor. Bijkomende informatie is online beschikbaar via bovenstaande link.

  • Page 5: Table Of Contents

    Inc. DISCLAIMER: Cybex International, Inc. makes no representations or warranties regarding the contents of this manual. We reserve the right to revise this document at any time or to make changes to the product described within it without notice or obligation to notify any person of such revisions or changes.

  • Page 6: Safety Guidelines And Practices

    To maximize stability and eliminate rocking, tipping, or falling over, equipment must be anchored to a solid, level surface, utilizing all anchoring holes provided. • Fasteners must have a minimum of 500 lbs. tensile capacity. Cybex recommends .3/8” grade 2 bolts or better. A minimum pull force of 220 lbs/100 kgs is required for each anchor position. •...

  • Page 7: User Safety Precautions

    DO NOT pin weights on selectorized equipment in an elevated position or use the machine if found in this position • DO NOT increase weight resistance on equipment by any means other than those provided by Cybex. • DO NOT wear loose or dangling clothing or jewelry while using equipment. Stay clear of moving parts.

  • Page 8: Label Placement

    Label Placement The following diagram shows where each label is located. Description DE000023-X 8500-025-X Page 6 of 22...

  • Page 9: Assembly

    Assembly Machine Specifications Total Weight and Size: 21140 Prestige Prone Leg Curl Standard Stack Weight Machine Dimensions at Rest Machine Dimensions in Use 475 Lbs 77” L × 39” W × 58” H 77” L × 39” W × 58” H 216 Kg 195"...

  • Page 10: Environment

    • Adjacent units may share the free area. It is the responsibility of the facility owner/owner of the equipment to ensure that there is appropriate clearance around each machine to allow for safe use and passage. In compliance with the ADA (American Disabilities Act) there must be clear floor space of at least 30 by 48 inches and be served by an accessible route for at least one of each type of exercise equipment.

  • Page 11: Tools Required

    To maximize stability and eliminate rocking, tipping, or falling over, equipment must be anchored to a solid, level surface, utilizing all anchoring holes provided. • Fasteners must have a minimum of 500 lbs. tensile capacity. Cybex recommends .3/8” grade 2 bolts or better. A minimum pull force of 220 lbs/100 kgs is required for each anchor position. •...
  • Page 12 2. Remove screws securing top rear cover to frame using a Phillips screwdriver. Item Description Screw Top rear cover 3. Remove screws securing top mount to frame using a Phillips screwdriver. Item Description Screw Top mount Back panel 4. Slide back panel upward and remove. 5.
  • Page 13 2. Remove top guide rod caps. Top guide rod cap contains a compression spring that will fly if grasp is not released slowly. Slide spring loaded top guide rod cap down guide rod until cap is clear of frame. Slowly release grasp of top guide rod cap and set aside.
  • Page 14 6. Install compression spring and top guide rod cap onto guide rod. Slide spring loaded top guide rod cap down guide rod until cap is clear of guide rod plate and install. Repeat for opposite side. Item Description Top guide rod cap Guide rod Guide rod plate 7.
  • Page 15 5. Remove front sheet, do not peel decals off of weight plates. Item Description Weight stack selector pin Weight plate decals 6. Repeat above steps for other half of the weight plate decals. Belt routing 1. Verify belt is routed through top of pulley bracket and then route end of belt down to the top weight. 2.
  • Page 16 To maximize stability and eliminate rocking, tipping, or falling over, equipment must be anchored to a solid, level surface, utilizing all anchoring holes provided. • Fasteners must have a minimum of 500 lbs. tensile capacity. Cybex recommends .3/8” grade 2 bolts or better. A minimum pull force of 220 lbs/100 kgs is required for each anchor position. •...

  • Page 17: Exercise

    Exercise Intended Use The intended commercial use of this machine is to aid exercise and improve general physical fitness. Instructions TIP: Read and understand all instructions and warnings prior to using this machine in the Safety section of the Owner’s Manual. CAUTION: Use only in manner depicted.

  • Page 18: Maintenance

    Cleaning products may be harmful/irritating to your skin, eyes, etc. Use protective gloves and eye protection. Do Not inhale or swallow any cleaning product. Protect surrounding area/clothing from exposure. Use in well ventilated area. Follow all product manufacturer’s warnings. Cybex and its vendors cannot be held responsible for damage or injuries resulting from the use or misuse of cleaning products.

  • Page 19: Weekly Procedures

    Then 1. Apply a light coat of furniture wax for 30 seconds. Restoring Luster 2. Lightly rub area using a clean white cloth. Clean Frames Wipe down all frames using a mild solution of warm water and car wash soap. Be sure to dry thoroughly. AVOID acid or chlorine based cleaners and also cleaners containing abrasives as these could scratch or damage the equipment.
  • Page 20 The following conditions may indicate a worn belt: Condition of Belt 3D View 3D or Side View Peeling of the belt’s skin. Wave in belt Replace belt if any section is over 1/32” Examine edge of belt (both sides). Replace (.03) narrower than the rest of belt belt if any section is narrower than the rest.

  • Page 21: Yearly Procedures

    Inspection Action Inspect grips for looseness or wear. Replace all loose or worn grips immediately. Inspect all labeling for readability, including instructional Replace all worn labeling immediately. placards, warning and caution decals. Correct all improper alignment and operation issues Inspect all weight stacks for proper alignment and operation. immediately.

  • Page 22: Customer Service

    Follow the following procedures carefully. Contact your authorized Cybex dealer on all warranty-related matters. Your local Cybex dealer will request a RMA from Cybex, if applicable. Under no circumstances will defective parts or equipment be accepted by Cybex without proper RMA and an Automated Return Service (ARS) label.

  • Page 23: Damaged Parts

    Damaged Parts Materials damaged in shipment should not be returned for credit. Shipping damages are the responsibility of the carrier (UPS, Federal Express, trucking companies, etc.) Apparent Damage Upon receipt of your shipment, check all items carefully. Any damage seen with a visual check must be noted on the freight bill and signed by the carrier’s agent.
  • Page 24 10601 W Belmont Ave, Franklin Park, IL 60131 • 800-351-3737 • 847-288-3700 • www.cybexintl.com...
