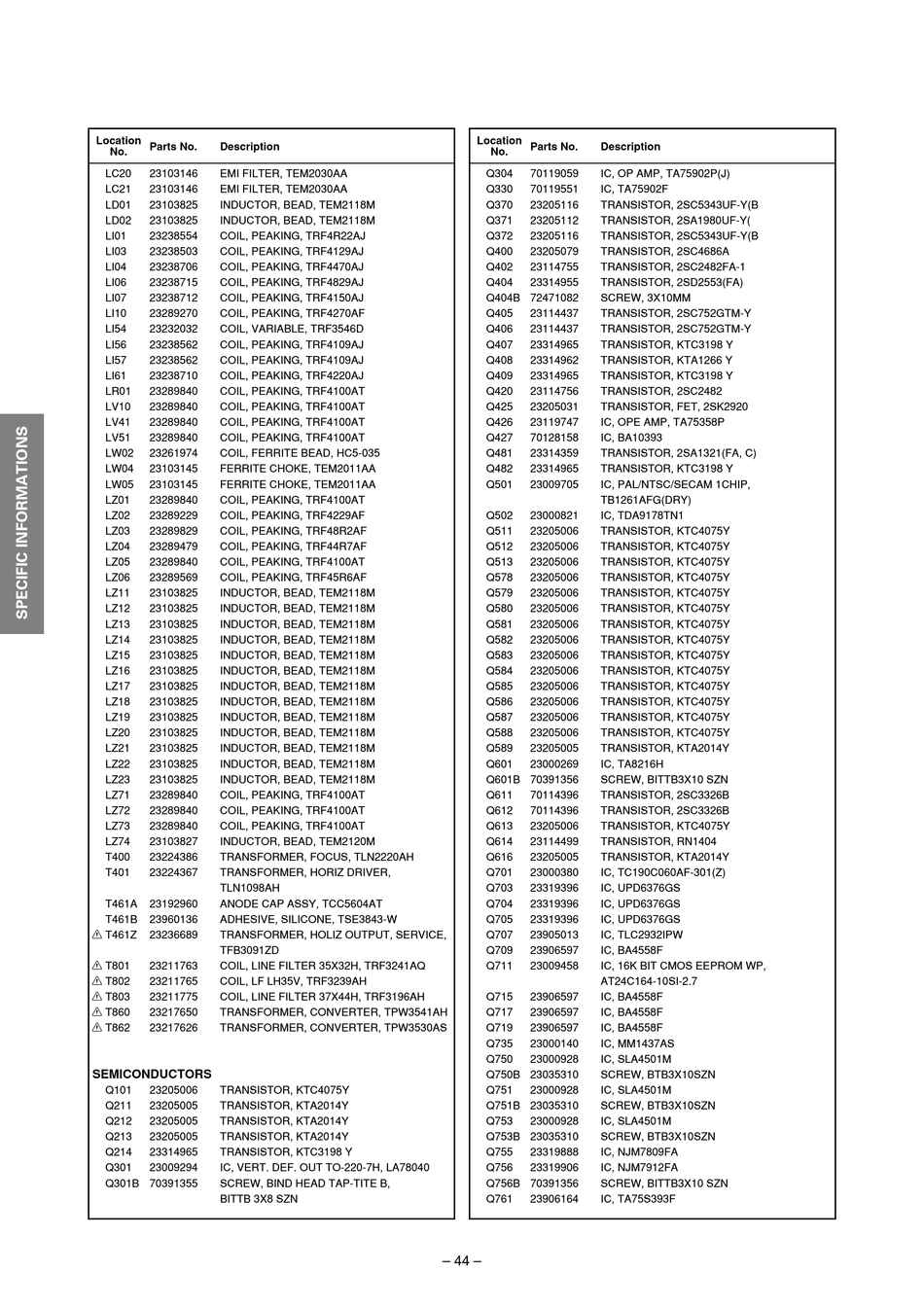

Toshiba 43S7DE Service Manual page 44

Location
Parts No. Description
No.
LC20 23103146 EMI FILTER, TEM2030AA
LC21 23103146 EMI FILTER, TEM2030AA
LD01 23103825 INDUCTOR, BEAD, TEM2118M
LD02 23103825 INDUCTOR, BEAD, TEM2118M
LI01 23238554 COIL, PEAKING, TRF4R22AJ
LI03 23238503 COIL, PEAKING, TRF4129AJ
LI04 23238706 COIL, PEAKING, TRF4470AJ
LI06 23238715 COIL, PEAKING, TRF4829AJ
LI07 23238712 COIL, PEAKING, TRF4150AJ
LI10 23289270 COIL, PEAKING, TRF4270AF
LI54 23232032 COIL, VARIABLE, TRF3546D
LI56 23238562 COIL, PEAKING, TRF4109AJ
LI57 23238562 COIL, PEAKING, TRF4109AJ
LI61 23238710 COIL, PEAKING, TRF4220AJ
LR01 23289840 COIL, PEAKING, TRF4100AT
LV10 23289840 COIL, PEAKING, TRF4100AT
LV41 23289840 COIL, PEAKING, TRF4100AT
LV51 23289840 COIL, PEAKING, TRF4100AT
LW02 23261974 COIL, FERRITE BEAD, HC5-035
LW04 23103145 FERRITE CHOKE, TEM2011AA
LW05 23103145 FERRITE CHOKE, TEM2011AA
LZ01 23289840 COIL, PEAKING, TRF4100AT
LZ02 23289229 COIL, PEAKING, TRF4229AF
LZ03 23289829 COIL, PEAKING, TRF48R2AF
LZ04 23289479 COIL, PEAKING, TRF44R7AF
LZ05 23289840 COIL, PEAKING, TRF4100AT
LZ06 23289569 COIL, PEAKING, TRF45R6AF
LZ11 23103825 INDUCTOR, BEAD, TEM2118M
LZ12 23103825 INDUCTOR, BEAD, TEM2118M
LZ13 23103825 INDUCTOR, BEAD, TEM2118M
LZ14 23103825 INDUCTOR, BEAD, TEM2118M
LZ15 23103825 INDUCTOR, BEAD, TEM2118M
LZ16 23103825 INDUCTOR, BEAD, TEM2118M
LZ17 23103825 INDUCTOR, BEAD, TEM2118M
LZ18 23103825 INDUCTOR, BEAD, TEM2118M
LZ19 23103825 INDUCTOR, BEAD, TEM2118M
LZ20 23103825 INDUCTOR, BEAD, TEM2118M
LZ21 23103825 INDUCTOR, BEAD, TEM2118M
LZ22 23103825 INDUCTOR, BEAD, TEM2118M
LZ23 23103825 INDUCTOR, BEAD, TEM2118M
LZ71 23289840 COIL, PEAKING, TRF4100AT
LZ72 23289840 COIL, PEAKING, TRF4100AT
LZ73 23289840 COIL, PEAKING, TRF4100AT
LZ74 23103827 INDUCTOR, BEAD, TEM2120M
T400 23224386 TRANSFORMER, FOCUS, TLN2220AH
T401 23224367 TRANSFORMER, HORIZ DRIVER,
TLN1098AH
T461A 23192960 ANODE CAP ASSY, TCC5604AT
T461B 23960136 ADHESIVE, SILICONE, TSE3843-W
* T461Z 23236689 TRANSFORMER, HOLIZ OUTPUT, SERVICE,
TFB3091ZD
* T801 23211763 COIL, LINE FILTER 35X32H, TRF3241AQ
* T802 23211765 COIL, LF LH35V, TRF3239AH
* T803 23211775 COIL, LINE FILTER 37X44H, TRF3196AH
* T860 23217650 TRANSFORMER, CONVERTER, TPW3541AH
* T862 23217626 TRANSFORMER, CONVERTER, TPW3530AS
SEMICONDUCTORS
Q101 23205006 TRANSISTOR, KTC4075Y
Q211 23205005 TRANSISTOR, KTA2014Y
Q212 23205005 TRANSISTOR, KTA2014Y
Q213 23205005 TRANSISTOR, KTA2014Y
Q214 23314965 TRANSISTOR, KTC3198 Y
Q301 23009294 IC, VERT. DEF. OUT TO-220-7H, LA78040
Q301B 70391355 SCREW, BIND HEAD TAP-TITE B,
BITTB 3X8 SZN
Location
Parts No. Description
No.
Q304 70119059 IC, OP AMP, TA75902P(J)
Q330 70119551 IC, TA75902F
Q370 23205116 TRANSISTOR, 2SC5343UF-Y(B
Q371 23205112 TRANSISTOR, 2SA1980UF-Y(
Q372 23205116 TRANSISTOR, 2SC5343UF-Y(B
Q400 23205079 TRANSISTOR, 2SC4686A
Q402 23114755 TRANSISTOR, 2SC2482FA-1
Q404 23314955 TRANSISTOR, 2SD2553(FA)
Q404B 72471082 SCREW, 3X10MM
Q405 23114437 TRANSISTOR, 2SC752GTM-Y
Q406 23114437 TRANSISTOR, 2SC752GTM-Y
Q407 23314965 TRANSISTOR, KTC3198 Y
Q408 23314962 TRANSISTOR, KTA1266 Y
Q409 23314965 TRANSISTOR, KTC3198 Y
Q420 23114756 TRANSISTOR, 2SC2482
Q425 23205031 TRANSISTOR, FET, 2SK2920
Q426 23119747 IC, OPE AMP, TA75358P
Q427 70128158 IC, BA10393
Q481 23314359 TRANSISTOR, 2SA1321(FA, C)
Q482 23314965 TRANSISTOR, KTC3198 Y
Q501 23009705 IC, PAL/NTSC/SECAM 1CHIP,
TB1261AFG(DRY)
Q502 23000821 IC, TDA9178TN1
Q511 23205006 TRANSISTOR, KTC4075Y
Q512 23205006 TRANSISTOR, KTC4075Y
Q513 23205006 TRANSISTOR, KTC4075Y
Q578 23205006 TRANSISTOR, KTC4075Y
Q579 23205006 TRANSISTOR, KTC4075Y
Q580 23205006 TRANSISTOR, KTC4075Y
Q581 23205006 TRANSISTOR, KTC4075Y
Q582 23205006 TRANSISTOR, KTC4075Y
Q583 23205006 TRANSISTOR, KTC4075Y
Q584 23205006 TRANSISTOR, KTC4075Y
Q585 23205006 TRANSISTOR, KTC4075Y
Q586 23205006 TRANSISTOR, KTC4075Y
Q587 23205006 TRANSISTOR, KTC4075Y
Q588 23205006 TRANSISTOR, KTC4075Y
Q589 23205005 TRANSISTOR, KTA2014Y
Q601 23000269 IC, TA8216H
Q601B 70391356 SCREW, BITTB3X10 SZN
Q611 70114396 TRANSISTOR, 2SC3326B
Q612 70114396 TRANSISTOR, 2SC3326B
Q613 23205006 TRANSISTOR, KTC4075Y
Q614 23114499 TRANSISTOR, RN1404
Q616 23205005 TRANSISTOR, KTA2014Y
Q701 23000380 IC, TC190C060AF-301(Z)
Q703 23319396 IC, UPD6376GS
Q704 23319396 IC, UPD6376GS
Q705 23319396 IC, UPD6376GS
Q707 23905013 IC, TLC2932IPW
Q709 23906597 IC, BA4558F
Q711 23009458 IC, 16K BIT CMOS EEPROM WP,
AT24C164-10SI-2.7
Q715 23906597 IC, BA4558F
Q717 23906597 IC, BA4558F
Q719 23906597 IC, BA4558F
Q735 23000140 IC, MM1437AS
Q750 23000928 IC, SLA4501M
Q750B 23035310 SCREW, BTB3X10SZN
Q751 23000928 IC, SLA4501M
Q751B 23035310 SCREW, BTB3X10SZN
Q753 23000928 IC, SLA4501M
Q753B 23035310 SCREW, BTB3X10SZN
Q755 23319888 IC, NJM7809FA
Q756 23319906 IC, NJM7912FA
Q756B 70391356 SCREW, BITTB3X10 SZN
Q761 23906164 IC, TA75S393F
– 44 –
